AXVH71L-AEXNBW (2017)
Toyota Camry/Hybrid
ILLUST NO. 2 OF 4(1709-2001)AXVH71
FUEL PUMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-25020 |
A25AFXS..AXVH7# MARK 23070-36010 |
1 | ||
| 23070-36010 |
A25AFXS..AXVH71 MARK 23070-36010 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-25030 |
A25AFXS..AXVH7# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31020 |
A25#..AXVA70,AXVH7# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
A25AFXS..AXVH71 |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
A25AFKS..AXVA70..LHD;A25AFXS,2ARFE,6ARFSE..ASV7#,AXVH7#..D,N |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
A25AFXS..AXVH71 |
1 | ||
| 23283-24010 |
A25AFXS..AXVH7# |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-33510 |
AXVH71 |
1 | ||
| 77020-33571 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77020-33570 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77020-33511 |
AXVH71 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33310 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77024-33420 |
AXVH71 |
1 | ||
| 77024-33340 |
AXVH71 |
1 | ||
| 77024-33410 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-12150 |
AXVH7# |
1 | ||
| 77103-33060 |
AXVH71 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-33030 |
AXVH71 |
1 | ||
| 77175-12030 |
AXVH7# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-42070 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77785-33180 |
AXVH71 |
1 | ||
| 77785-33190 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| Common parts | ||||
| 90301-08019 | ||||
| Linked diagrams | ||||
| 8401 | ||||

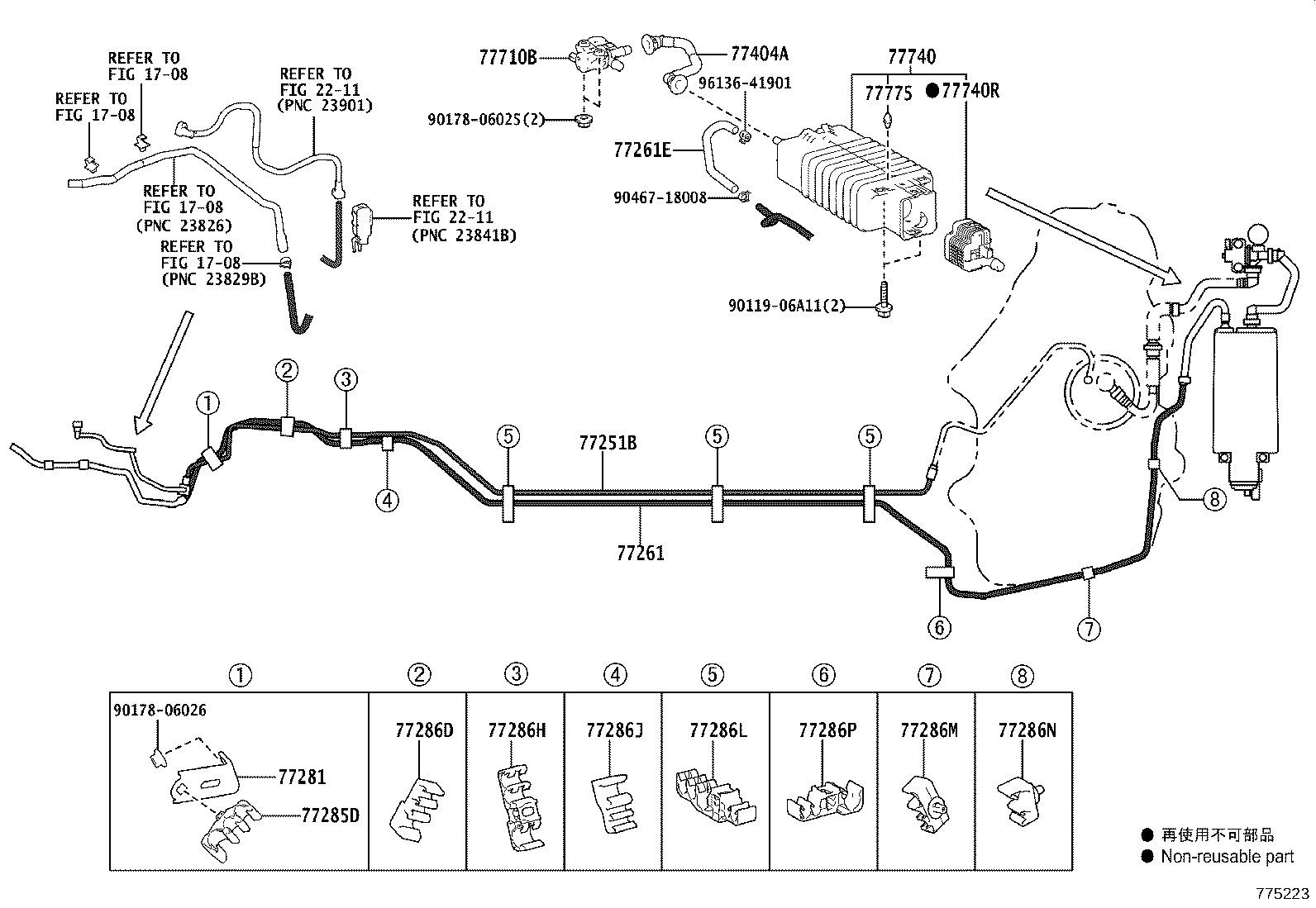

ILLUST NO. 3 OF 4(1709- )AXVH7#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33290 |
AXVH7# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-33280 |
AXVH7# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-33080 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33090 |
AXVA70,AXVH7# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48120 |
AXVA70,AXVH7# |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-33110 |
AXVA70,AXVH7# |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48190 |
AXVA70,AXVH7# |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-33040 |
AXVA70,AXVH7# |
3 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77286-47050 |
AXVH7# |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77286-33110 |
AXVA70,AXVH7# |
1 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77298-33100 |
AXVH7# |
1 | ||
| Common parts | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

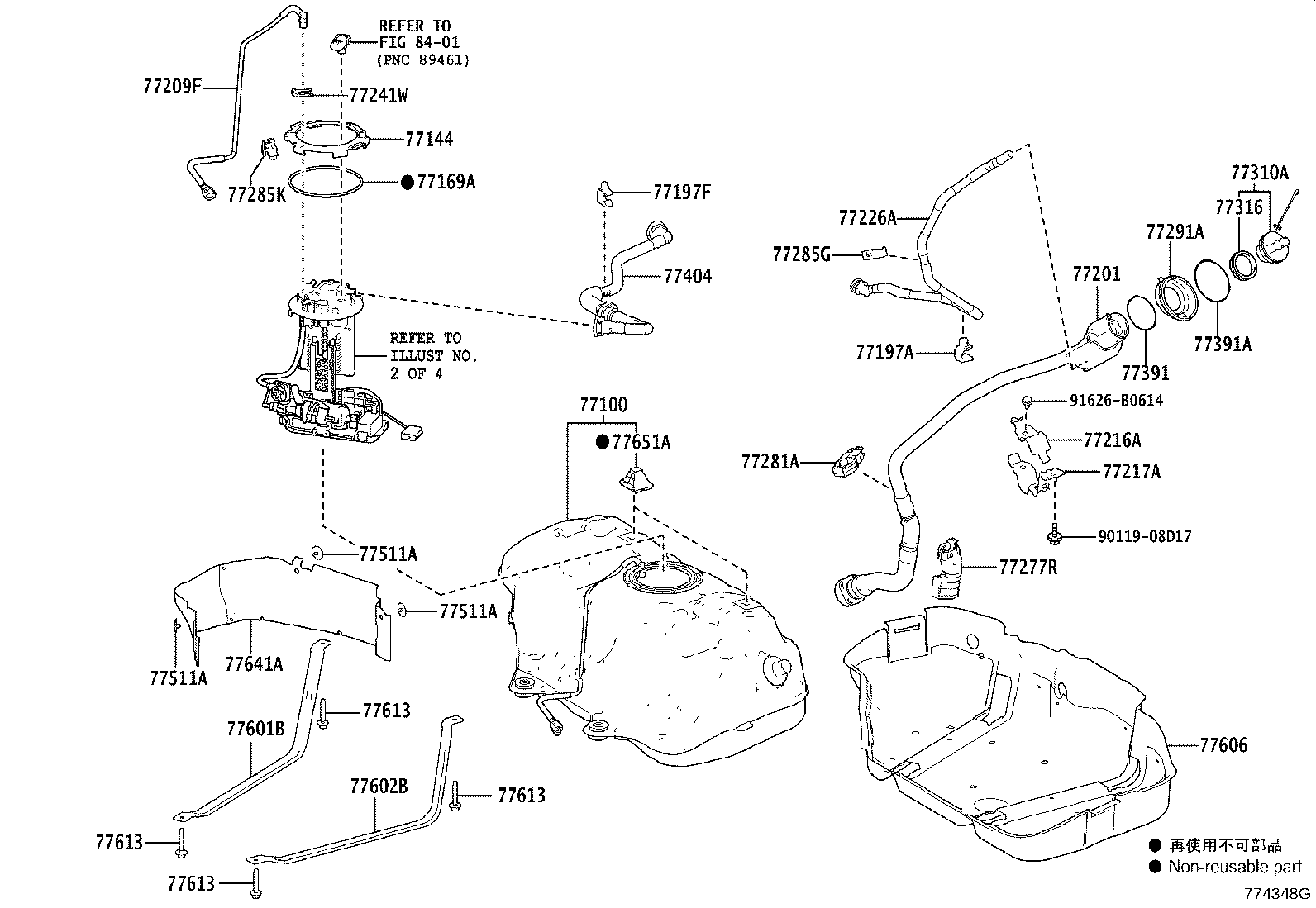

ILLUST NO. 1 OF 4(1709- )AXVH71..LHD..N
FUEL TANK(KOREA SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77001-33280 |
AXVH71..N |
1 | ||
| 77001-33330 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77001-33280 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77001-33430 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77001-33310 |
AXVH71..D |
1 | ||
| 77001-33430 |
AXVH71..N |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
GSV70..RUS;AXVA70..LHD;ASV7#,AXVH7#..D,N |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77169-47030 |
GSV70..RUS;ASV7#,AXVH71..N |
1 | ||
| 77169-47040 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 77169-47030 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-47010 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77197F - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-33080 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-33560 |
AXVH71..D |
1 | ||
| 77201-33490 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77201-33440 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77201-33440 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-33171 |
AXVH70;AXVH71..D |
1 | ||
| 77209-33170 |
AXVH71..LHD KOREA SPEC |
1 | ||
| 77209-33140 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77209-33171 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77209-33140 |
AXVH71..N |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-33160 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77216-33170 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77216-33190 |
AXVH71..D |
1 | ||
| 77216-33170 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33100 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77217-33110 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77217-33130 |
AXVH71..D |
1 | ||
| 77217-33110 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-33150 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77226-33250 |
AXVH71..D |
1 | ||
| 77226-33160 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77226-33160 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
AXVH71..LHD..N KOREA SPEC |
2 | ||
| 77241-33011 |
GSV70..RUS;AXVA70..LHD;ASV7#,AXVH71..D,N |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-33110 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-33130 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77281-33050 |
ASV7#,AXVH71,GSV70..D,G,N |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-47120 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
GSV70..RUS;AXVA70..LHD;ASV7#,AXVH7#..D,N |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33110 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-48020 |
AXVH71..D |
1 | ||
| 77300-53040 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77300-12020 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77300-12020 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77316-75020 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 77316-75020 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77316-52040 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20040 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-33200 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
AXVH71..N |
3 | ||
| 77512-35140 |
AXVH71..LHD..N KOREA SPEC |
3 | ||
| 77512-35140 |
AXVH71..LHD..D UKRAINE SPEC |
2 | ||
| 77512-35140 |
AXVH70;AXVH71..D |
3 | ||
| 77512-35140 |
AXVH71..N |
2 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
AXVH71..N |
3 | ||
| 77512-35140 |
AXVH71..LHD..N KOREA SPEC |
3 | ||
| 77512-35140 |
AXVH71..LHD..D UKRAINE SPEC |
2 | ||
| 77512-35140 |
AXVH70;AXVH71..D |
3 | ||
| 77512-35140 |
AXVH71..N |
2 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
AXVH71..N |
3 | ||
| 77512-35140 |
AXVH71..LHD..N KOREA SPEC |
3 | ||
| 77512-35140 |
AXVH71..LHD..D UKRAINE SPEC |
2 | ||
| 77512-35140 |
AXVH70;AXVH71..D |
3 | ||
| 77512-35140 |
AXVH71..N |
2 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33180 |
AXVH7# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33190 |
AXVH7# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-33040 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77606-33030 |
AXVH71..N |
1 | ||
| 77606-33030 |
AXVH70;AXVH71..D |
1 | ||
| 77606-33030 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77606-33050 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77606-33050 |
AXVH71..N |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-33060 |
AXVH7# |
2 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(1709- )EUR
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-33080 |
ASV7#,AXVA70,AXVH71,GSV70 |
1 | ||
| 77030-33080 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33230 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-78010 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 77377-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-33010 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77379 - SPACER, FUEL INLET BOX COVER, NO.2 | ||||
| 77379-33010 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 90269-06021 | ||||
| 90541-06069 | ||||
ILLUST NO. 1 OF 4(1709- )AXVH71
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-33050 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77026-33050 |
AXVH71..N |
1 | ||
| 77026-33040 |
AXVH71 |
1 | ||
| 77026-33050 |
AXVH71..D |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-33280 |
AXVH71..N |
1 | ||
| 77001-33330 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77001-33280 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77001-33430 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77001-33310 |
AXVH71..D |
1 | ||
| 77001-33430 |
AXVH71..N |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
GSV70..RUS;AXVA70..LHD;ASV7#,AXVH7#..D,N |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77169-47030 |
GSV70..RUS;ASV7#,AXVH71..N |
1 | ||
| 77169-47040 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 77169-47030 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-33560 |
AXVH71..D |
1 | ||
| 77201-33490 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77201-33440 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77201-33440 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-33171 |
AXVH70;AXVH71..D |
1 | ||
| 77209-33170 |
AXVH71..LHD KOREA SPEC |
1 | ||
| 77209-33140 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77209-33171 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77209-33140 |
AXVH71..N |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-33130 |
ASV70,AXVH71,GSV70..(G,N)..EUR |
1 | ||
| 77213-33130 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-33160 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77216-33170 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77216-33190 |
AXVH71..D |
1 | ||
| 77216-33170 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33100 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77217-33110 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77217-33130 |
AXVH71..D |
1 | ||
| 77217-33110 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-33150 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77226-33250 |
AXVH71..D |
1 | ||
| 77226-33160 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77226-33160 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
AXVH71..LHD..N KOREA SPEC |
2 | ||
| 77241-33011 |
GSV70..RUS;AXVA70..LHD;ASV7#,AXVH71..D,N |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-33110 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-33130 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77281-33050 |
ASV7#,AXVH71,GSV70..D,G,N |
1 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-30110 |
ASV70,AXVH71,GSV70..EUR |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
GSV70..RUS;AXVA70..LHD;ASV7#,AXVH7#..D,N |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-33090 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77289-33090 |
AXVH71..N |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33110 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-48020 |
AXVH71..D |
1 | ||
| 77300-53040 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77300-12020 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77300-12020 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77316-75020 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 77316-75020 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77316-52040 |
ASV7#,AXVH71,GSV70..G,N |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20040 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
AXVH71..N |
3 | ||
| 77512-35140 |
AXVH71..LHD..N KOREA SPEC |
3 | ||
| 77512-35140 |
AXVH71..LHD..D UKRAINE SPEC |
2 | ||
| 77512-35140 |
AXVH70;AXVH71..D |
3 | ||
| 77512-35140 |
AXVH71..N |
2 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
AXVH71..N |
3 | ||
| 77512-35140 |
AXVH71..LHD..N KOREA SPEC |
3 | ||
| 77512-35140 |
AXVH71..LHD..D UKRAINE SPEC |
2 | ||
| 77512-35140 |
AXVH70;AXVH71..D |
3 | ||
| 77512-35140 |
AXVH71..N |
2 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
AXVH71..N |
3 | ||
| 77512-35140 |
AXVH71..LHD..N KOREA SPEC |
3 | ||
| 77512-35140 |
AXVH71..LHD..D UKRAINE SPEC |
2 | ||
| 77512-35140 |
AXVH70;AXVH71..D |
3 | ||
| 77512-35140 |
AXVH71..N |
2 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33180 |
AXVH7# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33190 |
AXVH7# |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77606-33030 |
AXVH71..N |
1 | ||
| 77606-33030 |
AXVH70;AXVH71..D |
1 | ||
| 77606-33030 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77606-33050 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 77606-33050 |
AXVH71..N |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-33060 |
AXVH7# |
2 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-33080 |
AXVH71 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90460-22002 | ||||
| 90460-40007 | ||||
| 90460-50008 | ||||
| 91626-B0614 | ||||
| 96132-51300 | ||||
| 96136-41901 | ||||
ILLUST NO. 2 OF 4(2001- )AXVH7#
FUEL PUMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-25020 |
A25AFXS..AXVH7# MARK 23070-36010 |
1 | ||
| 23070-36010 |
A25AFXS..AXVH71 MARK 23070-36010 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-25030 |
A25AFXS..AXVH7# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31020 |
A25#..AXVA70,AXVH7# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
A25AFXS..AXVH71 |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
A25AFKS..AXVA70..LHD;A25AFXS,2ARFE,6ARFSE..ASV7#,AXVH7#..D,N |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
A25AFXS..AXVH71 |
1 | ||
| 23283-24010 |
A25AFXS..AXVH7# |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-33510 |
AXVH71 |
1 | ||
| 77020-33571 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77020-33570 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77020-33511 |
AXVH71 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33310 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77024-33420 |
AXVH71 |
1 | ||
| 77024-33340 |
AXVH71 |
1 | ||
| 77024-33410 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-12150 |
AXVH7# |
1 | ||
| 77103-33060 |
AXVH71 |
1 | ||
| 77173 - BRACKET, FUEL GAGE | ||||
| 77173-12010 |
AXVH7# |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-33030 |
AXVH71 |
1 | ||
| 77175-12030 |
AXVH7# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-42070 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77785-33180 |
AXVH71 |
1 | ||
| 77785-33190 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| Common parts | ||||
| 90301-08019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(1709- )AXVH71..LHD..N
FUEL TUBE(KOREA SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33290 |
AXVH7# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-33280 |
AXVH7# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77249-33180 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-33080 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33090 |
AXVA70,AXVH7# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48120 |
AXVA70,AXVH7# |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-33110 |
AXVA70,AXVH7# |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48190 |
AXVA70,AXVH7# |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-33040 |
AXVA70,AXVH7# |
3 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77286-47050 |
AXVH7# |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77286-33110 |
AXVA70,AXVH7# |
1 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77298-33100 |
AXVH7# |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-33210 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-47020 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-33240 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77740R - PUMP SUB-ASSY, LEAK DETECTION | ||||
| 90910-14008 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-33010 |
AXVH71..LHD..N KOREA SPEC |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90178-06025 | ||||
| 90178-06026 | ||||
| 90467-18008 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
