AXVH71L-AEXDBW (2019)
Toyota Camry/Hybrid
(1709-2102)LHD ; (2102-2104)RUS

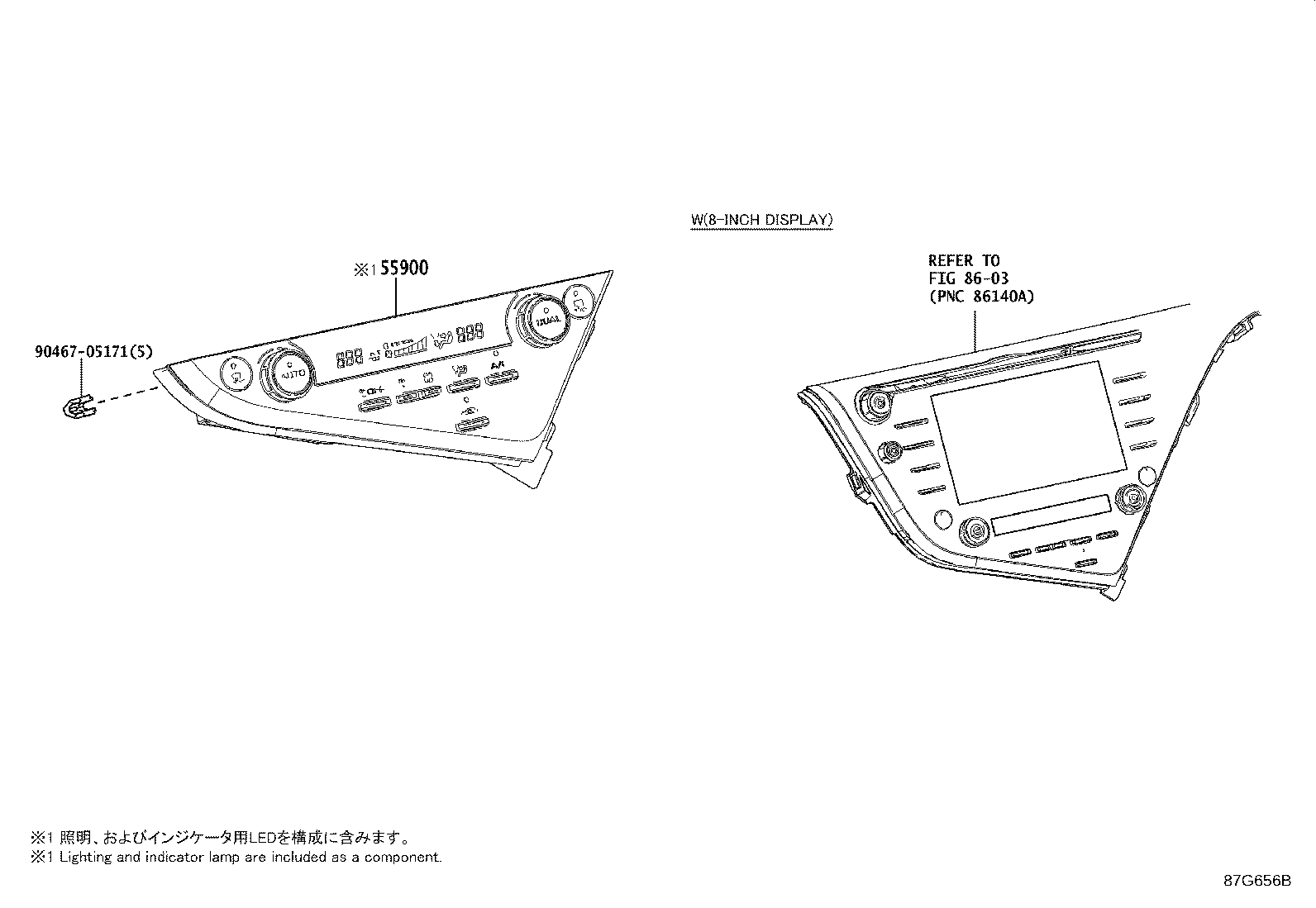

HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-33L20 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 4 |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 8603 | ||||
(1709-2006)LHD..EUR
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55870-33030 |
AXVH71,GSV70..LHD..EUR |
1 | ||
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55870-33030 |
AXVH71,GSV70..LHD..EUR |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55844-33190 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55845-33180 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-33140 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-33150 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-33160 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-33110 |
AXVH70..N;ASV7#,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-33470 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-33530 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-33410 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-33460 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-33050 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87215-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-33070 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87216-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60431 | ||||
| 90179-06274 | ||||
| 90183-05009 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8724 | ||||
(1709-2102)AXVH7#..LHD

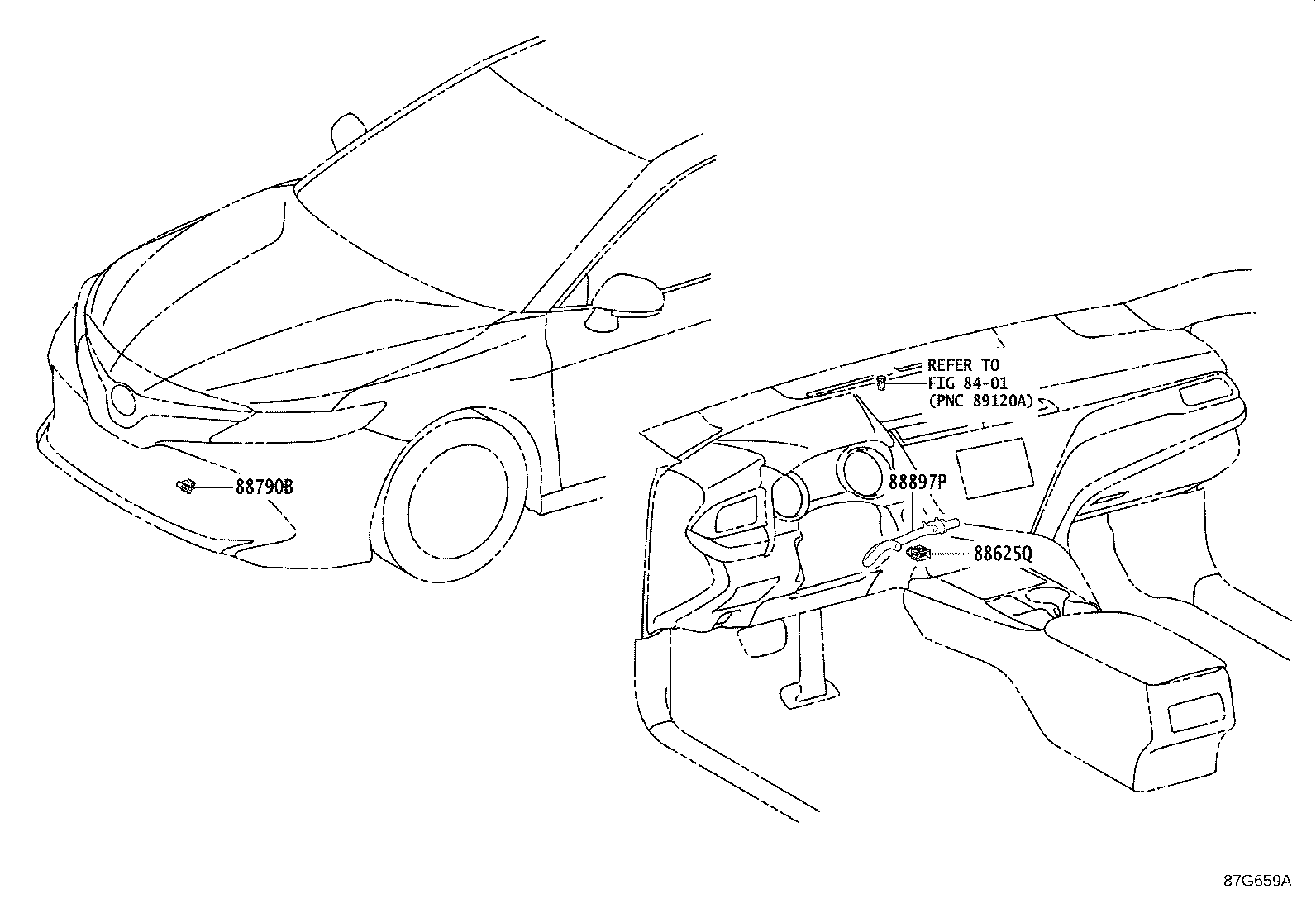

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 88897P - ASPIRATOR | ||||
| 87201-33480 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
(2007-2102)LHD..EUR
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55870-33030 |
AXVH71,GSV70..LHD..EUR |
1 | ||
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55870-33030 |
AXVH71,GSV70..LHD..EUR |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55844-33190 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55845-33180 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-33140 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-33150 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-33160 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-33110 |
AXVH70..N;ASV7#,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-33470 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-33530 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-33410 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-33460 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-33050 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87215-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-33070 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87216-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60431 | ||||
| 90179-06274 | ||||
| 90183-05094 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8724 | ||||
