AXVH71L-AEXDBW (2019)
Toyota Camry/Hybrid
Production
Feb 2019
-
Feb 2021
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1709-2102)EUR

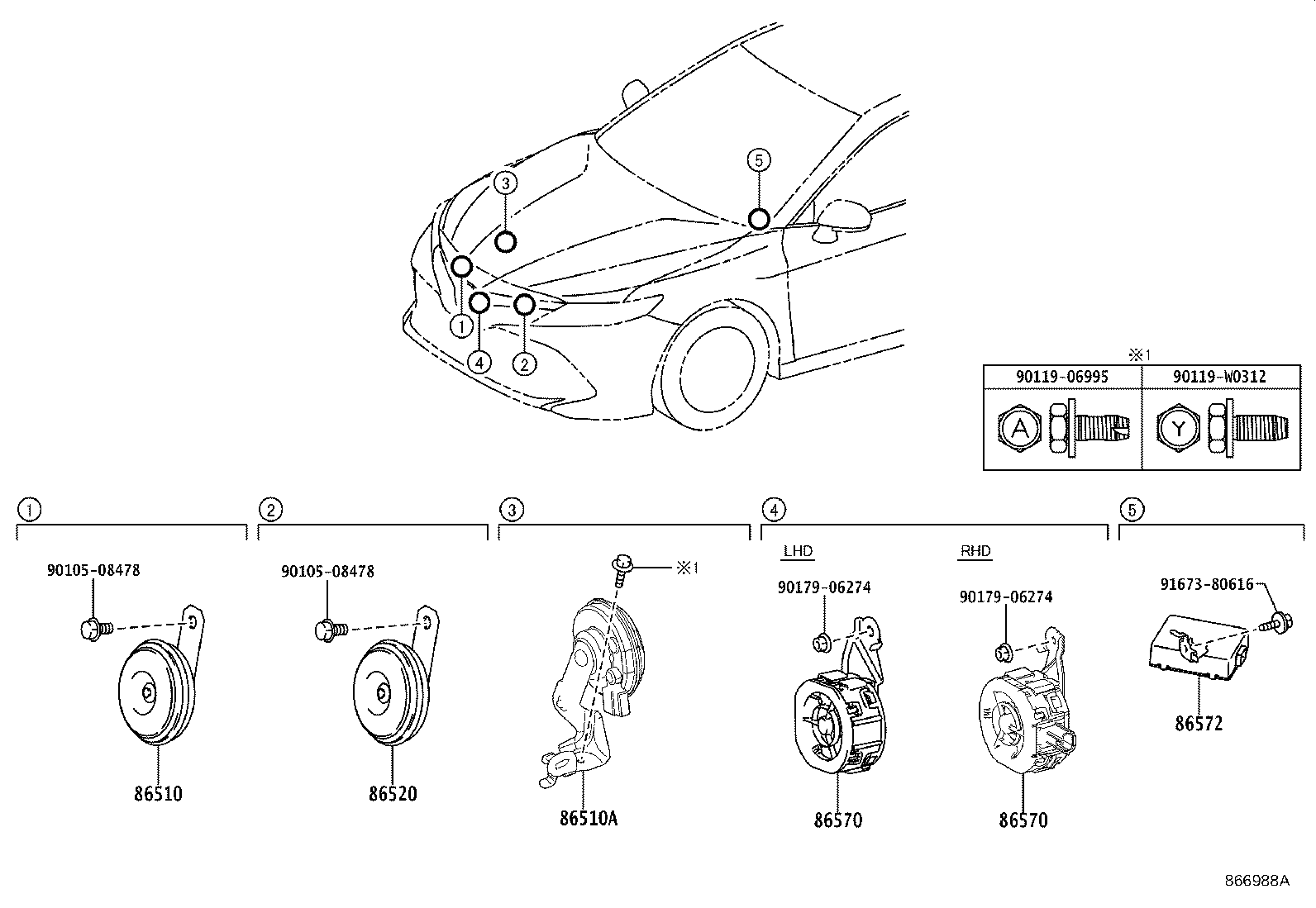

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-47050 |
AXVA70..S;ASV70,AXVH71,GSV70..EUR |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-33060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-47030 |
AXVA70..S;ASV70,AXVH71,GSV70..EUR |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-33090 |
AXVH70;AXVH71..LHD..D |
1 | ||
| 86570-33090 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-33090 |
AXVH70;AXVH71..LHD..D |
1 | ||
| 86570-33090 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER | ||||
| 86572-33170 |
AXVH70;AXVH71..LHD..D |
1 | ||
| 86572-33170 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90119-06995 | ||||
| 90119-W0312 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
