AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709-2102)LHD..EUR

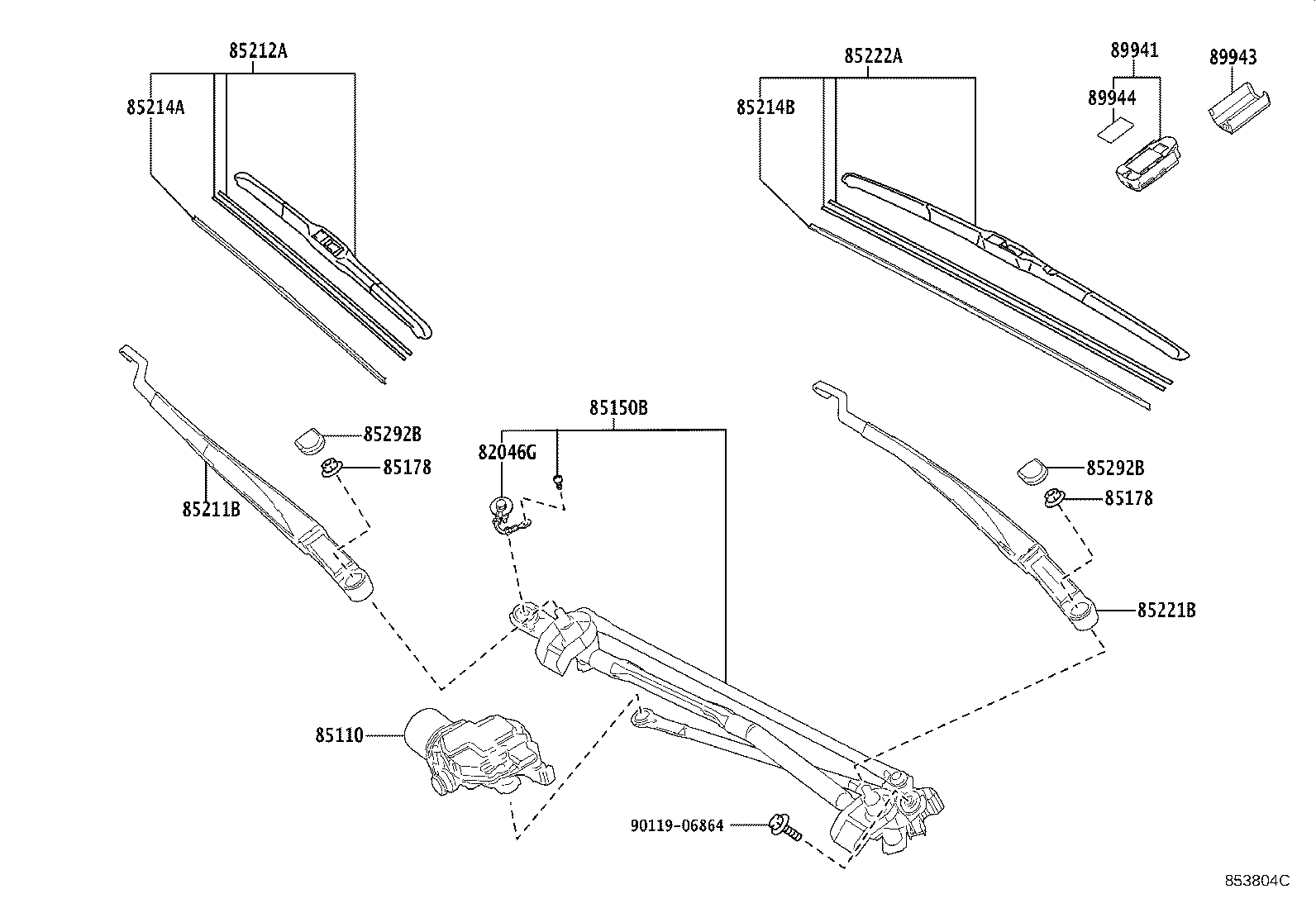

Click highlighted areas on diagram

diagram 82046G 85110 85150B 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 9011906864
Part # Description Qty Price
82046G - WIRE SUB-ASSY, BODY GROUND
82046-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-33430

ASV7#,AXVA70,AXVH7#,GSV70..LHD

 1
85150B - LINK ASSY, WIPER
85150-33290

ASV70,AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR

 1
85150-33290

AXVH71..LHD..D

UKRAINE SPEC

 1
85150-33330

AXVH71..LHD..D

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
85211B - ARM, FRONT WIPER, RH
85211-33450

AXVH71..LHD..D

UKRAINE SPEC

 1
85211-33450

ASV70,AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR

 1
85211-33440

AXVH71..LHD..D

 1
85212A - BLADE, FR WIPER, RH
85212-33340

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
85214A - RUBBER, WIPER, RH
85214-60120

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
85214B - RUBBER, WIPER, LH
85214-52110

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
85221B - ARM, FRONT WIPER, LH
85221-33440

AXVH71..LHD..D

UKRAINE SPEC

 1
85221-33390

AXVH71..LHD..D

 1
85221-33440

ASV70,AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR

 1
85222A - BLADE, FR WIPER, LH
85222-33340

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
89941 - SENSOR, RAIN
89941-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
89943 - COVER, RAIN SENSOR
89943-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
89944 - TAPE, RAIN SENSOR
89944-42020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
Common parts
90119-06864
