AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709-2006)LHD..EUR

Click highlighted areas on diagram

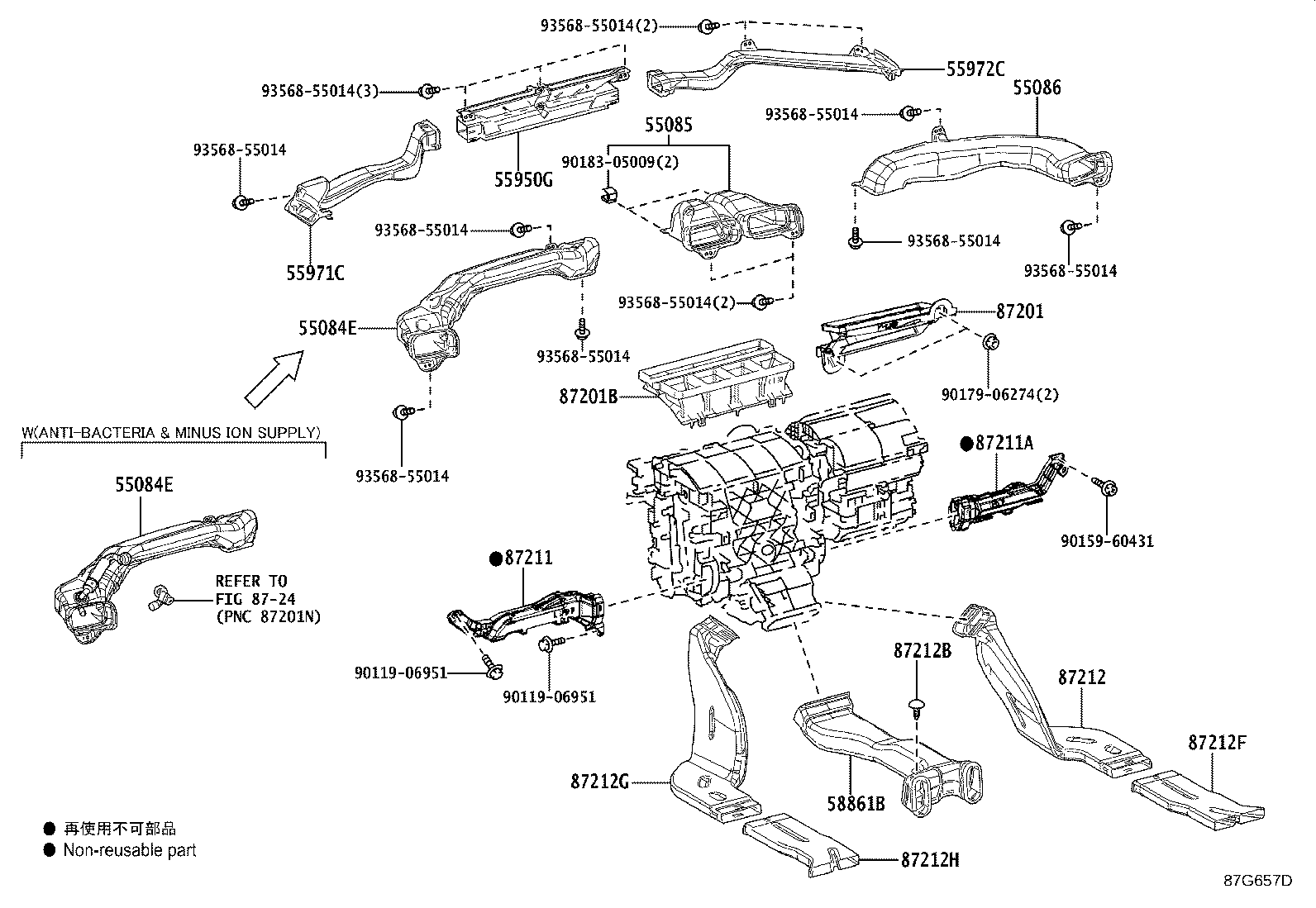

AIR DUCT

diagram 55084E 55084E 55085 55086 55950G 55971C 55972C 58861B 87201 87201B 87211 87211A 87212 87212B 87212F 87212G 87212H 8724 9011906951 9011906951 9015960431 9017906274 9018305009 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55870-33030

AXVH71,GSV70..LHD..EUR

 1
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55870-33030

AXVH71,GSV70..LHD..EUR

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55844-33190

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55845-33180

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-33140

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-33150

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-33160

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-33110

AXVH70..N;ASV7#,AXVA70,AXVH71,GSV70..LHD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-33470

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-33530

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87211 - DUCT, AIR, NO.1
87201-33410

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87211A - DUCT, AIR, NO.2
87201-33460

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87212 - DUCT, AIR, REAR NO.1
87212-33050

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87212F - DUCT, AIR, REAR NO.2
87215-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
87212G - DUCT, AIR, REAR NO.3
87213-33070

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87212H - DUCT, AIR, REAR NO.4
87216-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
Common parts
90119-06951
90159-60431
90179-06274
90183-05009
93568-55014
Linked diagrams
8724

(2007-2102)LHD..EUR

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55084E 55085 55086 55950G 55971C 55972C 58861B 87201 87201B 87211 87211A 87212 87212B 87212F 87212G 87212H 8724 9011906951 9011906951 9015960431 9017906274 9018305094 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55870-33030

AXVH71,GSV70..LHD..EUR

 1
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55870-33030

AXVH71,GSV70..LHD..EUR

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55844-33190

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55845-33180

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-33140

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-33150

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-33160

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-33110

AXVH70..N;ASV7#,AXVA70,AXVH71,GSV70..LHD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-33470

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-33530

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87211 - DUCT, AIR, NO.1
87201-33410

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87211A - DUCT, AIR, NO.2
87201-33460

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87212 - DUCT, AIR, REAR NO.1
87212-33050

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87212F - DUCT, AIR, REAR NO.2
87215-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
87212G - DUCT, AIR, REAR NO.3
87213-33070

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
87212H - DUCT, AIR, REAR NO.4
87216-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
Common parts
90119-06951
90159-60431
90179-06274
90183-05094
93568-55014
Linked diagrams
8724
