AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )

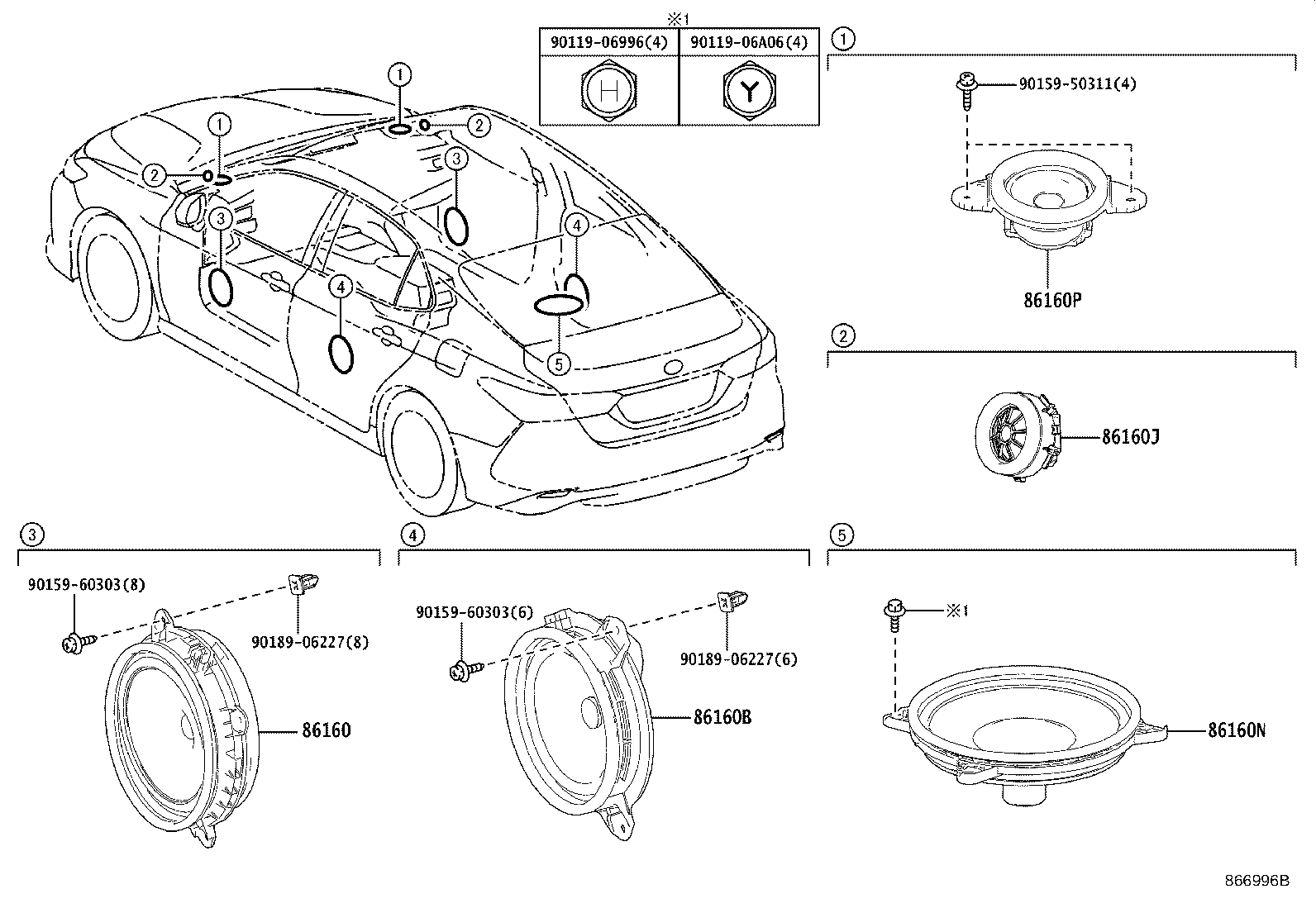

Click highlighted areas on diagram

9SPEAKER

diagram 86160 86160B 86160J 86160N 86160P 9011906996 9011906A06 9015950311 9015960303 9015960303 9018906227 9018906227
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-33A20

ASV70,AXVH71,GSV70..EUR

 2
86160-33A10

AXVH71..LHD..D

EU SALE SPECIFICATIONS 6

 2
86160B - SPEAKER ASSY, REAR
86160-33A00

AXVH71..LHD..D

EU SALE SPECIFICATIONS 6

 2
86160-42170

AXVH71..LHD..D

EU SALE SPECIFICATIONS 6,(J)

 2
86160-1A210

ASV70,AXVH71,GSV70..EUR

 2
86160J - SPEAKER ASSY, FRONT NO.3
86150-33060

AXVH71..LHD..D

EU SALE SPECIFICATIONS 6

 2
86160N - SPEAKER ASSY, STEREO COMPONENT, REAR
86150-33010

AXVH71..LHD..D

EU SALE SPECIFICATIONS 6

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-33A30

AXVH71..LHD..D

EU SALE SPECIFICATIONS 6

 2
86160-33760

ASV70,AXVH71,GSV70..EUR

 2
Common parts
90119-06996
90119-06A06
90159-50311
90159-60303
90189-06227

(1709- )

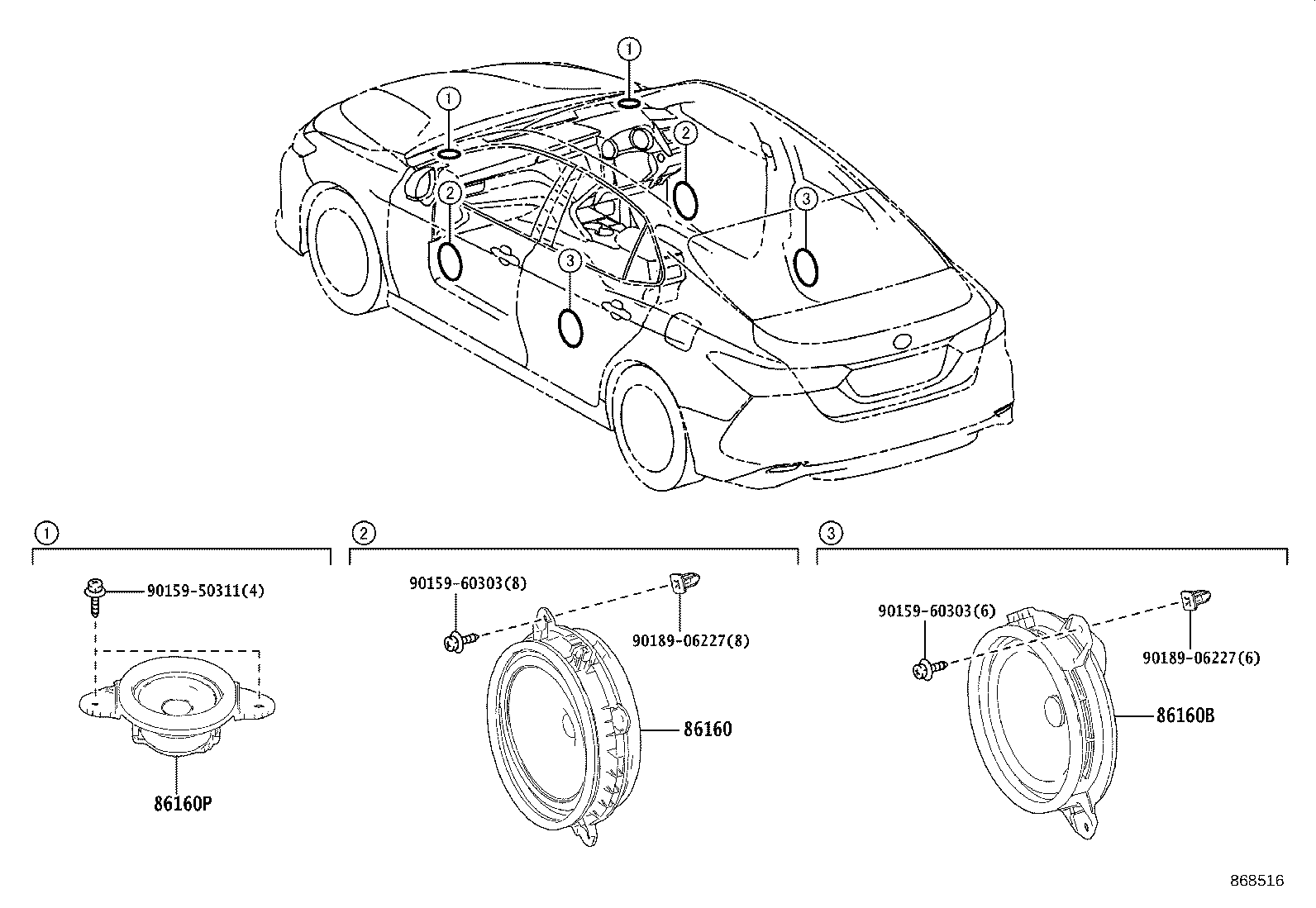

Click highlighted areas on diagram

6SPEAKER

diagram 86160 86160B 86160P 9015950311 9015960303 9015960303 9018906227 9018906227
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-33A20

ASV70,AXVH71,GSV70..EUR

 2
86160-33A10

AXVH71..LHD..D

EU SALE SPECIFICATIONS 6

 2
86160B - SPEAKER ASSY, REAR
86160-33A00

AXVH71..LHD..D

EU SALE SPECIFICATIONS 6

 2
86160-42170

AXVH71..LHD..D

EU SALE SPECIFICATIONS 6,(J)

 2
86160-1A210

ASV70,AXVH71,GSV70..EUR

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-33A30

AXVH71..LHD..D

EU SALE SPECIFICATIONS 6

 2
86160-33760

ASV70,AXVH71,GSV70..EUR

 2
Common parts
90159-50311
90159-60303
90189-06227
