AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )

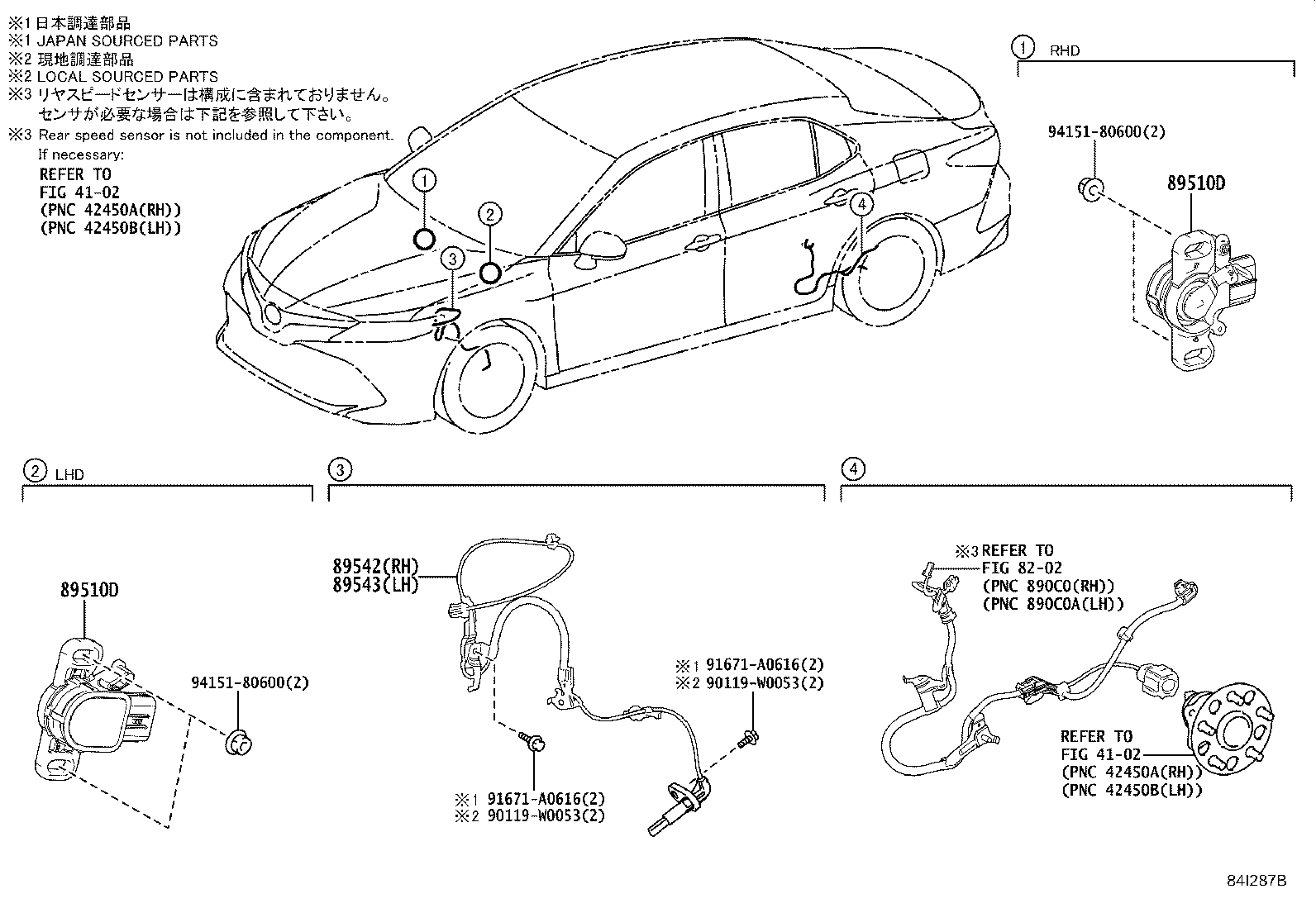

Click highlighted areas on diagram

diagram 4102 4102 8202 89510D 89510D 89542 89543 90119W0053 90119W0053 91671A0616 91671A0616 9415180600 9415180600
Part # Description Qty Price
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-47040

AXVH7#..LHD

 1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-47040

AXVH7#..LHD

 1
89542 - SENSOR, SPEED, FRONT RH
89542-33141

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
89543 - SENSOR, SPEED, FRONT LH
89543-33131

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
Common parts
90119-W0053
91671-A0616
94151-80600
Linked diagrams
4102
8202
