AXVH71L-AEXDBW (2019)
Toyota Camry/Hybrid

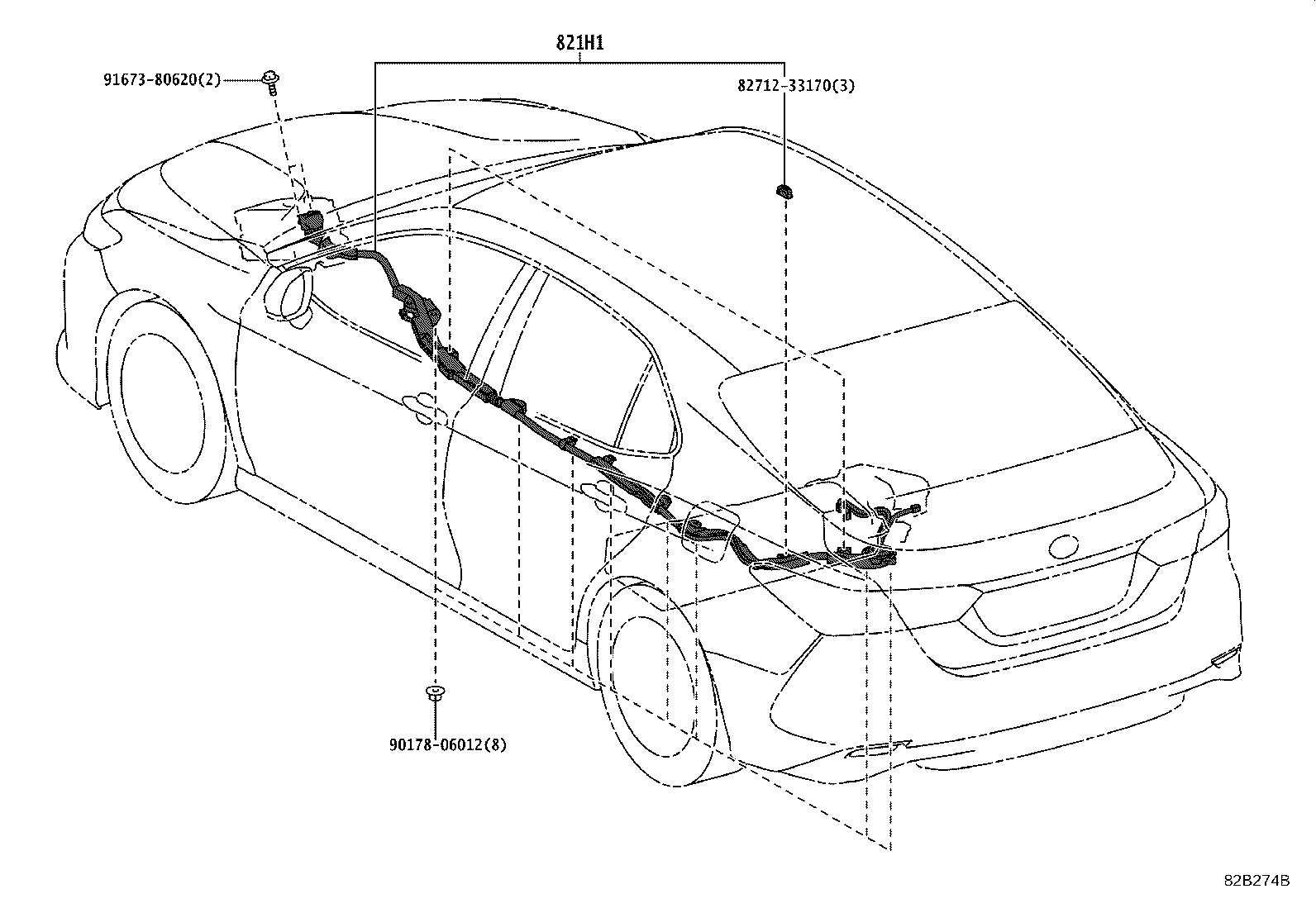

ILLUST NO. 6 OF10(1709- )AXVH7#
HIGH VOLTAGE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-33020 |
AXVH7# |
1 | ||
| Common parts | ||||
| 82712-33170 | ||||
| 90178-06012 | ||||
| 91673-80620 | ||||
ILLUST NO. 5 OF10(1709- )AXVH7#
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-3TD20 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2 |
1 | ||
| 82161-3TD80 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82161-3TD50 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82161-3TD10 |
AXVH71..LHD..D |
1 | ||
| 82161-3YD30 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82161-3YE10 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82161-3YD70 |
AXVH71..LHD..D |
1 | ||
| 82161-3YD90 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2 |
1 | ||
| 82161-3YD31 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-33140 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-33061 |
AXVH7# |
1 | ||
| 82165-33060 |
AXVH71 |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-33L60 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82171-33L60 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82171-33L50 |
AXVH71..LHD..D |
1 | ||
| 82171-33L51 |
AXVH71..LHD..D |
1 | ||
| 82171-33L61 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82171-33L61 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82171-33P71 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 6 |
1 | ||
| 82171-33P71 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 4 |
1 | ||
| 82171-33L61 |
AXVH71..LHD..D |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-33020 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-33650 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-33660 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-33500 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-33011 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-33021 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90179-06274 | ||||
| 91553-80620 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 4 OF10(1709- )
DOOR & TRUNK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-33G70 |
AXVH71..LHD..D |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-33J20 |
AXVH71..LHD..D |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-33390 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82153-33391 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-33320 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82154-33321 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-33Q40 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82181-33Q40 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82181-33Q41 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82181-33Q41 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82181-33G62 |
AXVH71..D;AXVH7#..LHD..N |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-33200 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82182-33210 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82182-33210 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 89348Y - CLIP, ULTRASONIC SENSOR, REAR | ||||
| 89348-50050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 89348Y - CLIP, ULTRASONIC SENSOR, REAR | ||||
| 89348-50050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0037 | ||||
| 91673-80616 | ||||
ILLUST NO. 8 OF10(1709- )AXVH7#
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-33550 | ||||
| 82715-33L00 | ||||
| 82715-33L40 | ||||
| 82715-33L60 | ||||
| 82715-33L80 | ||||
| 82715-33L90 | ||||
| 82715-33M20 | ||||
| 82715-33N00 | ||||
| 82715-33N10 | ||||
| 82715-33P20 | ||||
| 82715-33P30 | ||||
| 82715-33P80 | ||||
| 82715-33P90 | ||||
| 82715-33Q10 | ||||
| 82715-33Q40 | ||||
| 82715-33R20 | ||||
| 82715-33U70 | ||||
| 82715-33V00 | ||||
| 90119-06A12 | ||||
| 90179-06274 | ||||
| 91551-80616 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 1703 | ||||

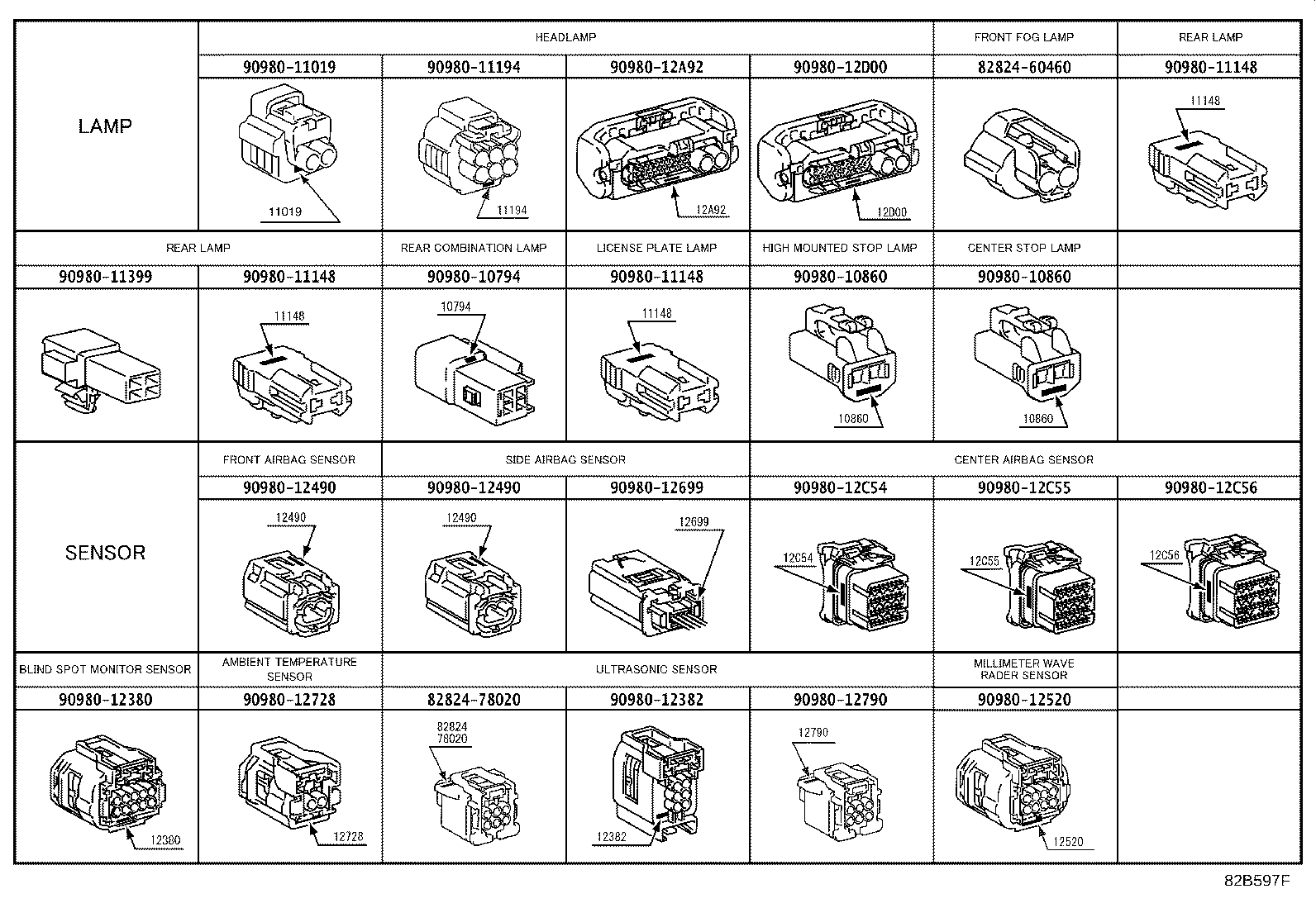

ILLUST NO.10 OF10(1709- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 82824-78020 | ||||
| 90980-10794 | ||||
| 90980-10860 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11194 | ||||
| 90980-11399 | ||||
| 90980-12380 | ||||
| 90980-12382 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12728 | ||||
| 90980-12790 | ||||
| 90980-12A92 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
| 90980-12D00 | ||||
ILLUST NO.10 OF10(1709- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-33470 | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12158 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
ILLUST NO. 2 OF10(1709- )AXVH7#..LHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-33F10 |
AXVH71..LHD..D |
1 | ||
| 82121-33J00 |
AXVH71..LHD |
1 | ||
| 82121-33G20 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 82121-33F11 |
AXVH71..LHD..D |
1 | ||
| 82121-33L20 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 82121-33L40 |
AXVH71..LHD..D |
1 | ||
| 82121-33G21 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-33270 |
AXVH7# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-33220 |
AXVA70,AXVH71 |
1 | ||
| 82125-33180 |
AXVA70,AXVH7# |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-33050 |
AXVA70,AXVH7# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-33141 |
AXVH7# |
1 | ||
| 82219-33140 |
AXVH71 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-33160 |
AXVH70;AXVH71..LHD..D |
2 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-33C80 |
AXVH7# |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-33F60 |
AXVH7# |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-33F70 |
AXVH7# |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-33F80 |
AXVH7# |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-33F90 |
AXVH7# |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-33G00 |
AXVH7# |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-33G60 |
AXVH7# |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-42C60 |
AXVH71..D |
1 | ||
| 82815-33G90 |
AXVA70,AXVH7#..N,S |
1 | ||
| 82815-33G90 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 82815-33G90 |
AXVH71..D |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-33J00 |
AXVA70,AXVH7# |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-33J40 |
AXVH7# |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-33J90 |
ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-33M70 |
AXVH7# NO.1 |
1 | ||
| 82815-33M20 |
AXVH7# NO.2 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-33M70 |
AXVH7# NO.1 |
1 | ||
| 82815-33M20 |
AXVH7# NO.2 |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-33M80 |
AXVH7# |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-33M90 |
AXVH7# |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-33E80 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33X20 |
AXVH7# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-33R20 |
AXVH7# |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-33R30 |
AXVH7# |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-33R40 |
AXVH7# |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-33R50 |
AXVH7# |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-33R60 |
AXVH7# |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-33S20 |
AXVH7# |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-33S50 |
AXVA70,AXVH7#..N,S |
1 | ||
| 82817-33S50 |
AXVH71..D |
1 | ||
| 82817-42P40 |
AXVH71..D |
1 | ||
| 82817-33S50 |
AXVH71..LHD..D UKRAINE SPEC |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-33S60 |
AXVA70,AXVH7# |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-33T00 |
AXVH7# |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33X70 |
ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33Y50 |
AXVA70,AXVH7# |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-3T220 |
AXVH7# |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-3T150 |
AXVH7# |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-3T230 |
AXVH7# |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-3T240 |
AXVH7# |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33X40 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-33Z40 |
AXVA70,AXVH7# |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-33460 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-33060 |
AXVH7# |
1 | ||
| Common parts | ||||
| 90119-06A29 | ||||
| 91551-80616 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

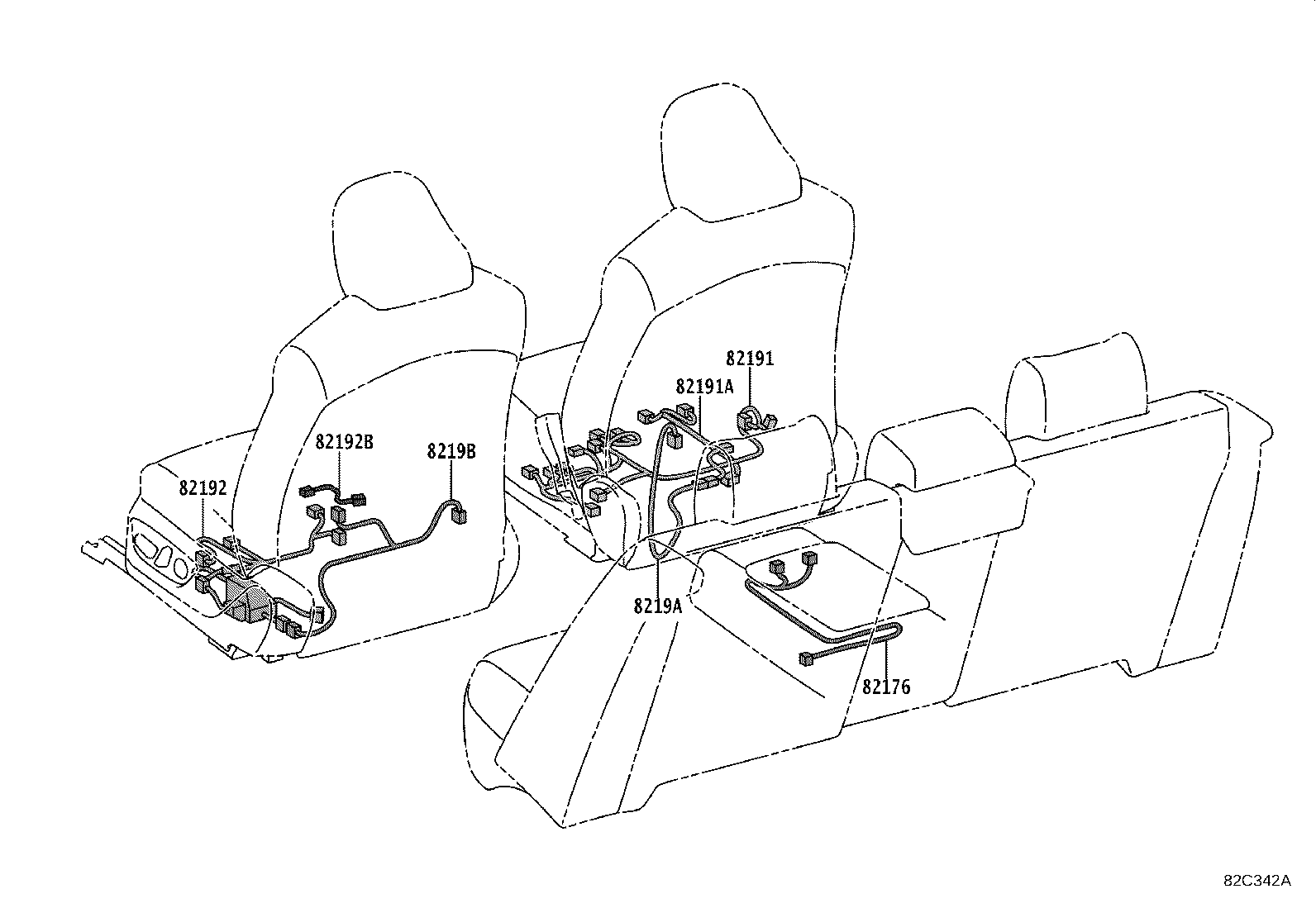

ILLUST NO. 7 OF10(1709- )LHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-33030 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-33D10 |
AXVH71..D EU SALE SPECIFICATIONS 2 |
1 | ||
| 82191-33D10 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82191-33D10 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-33A90 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 82192-33A80 |
AXVH71,GSV70..LHD..(D,G)..EUR |
1 | ||
| 82192-33A90 |
AXVH71..D EU SALE SPECIFICATIONS 2 |
1 | ||
| 82192-33A90 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82192-33A90 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-47040 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2 |
1 | ||
| 8219A-47040 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 8219A-47040 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-47060 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
ILLUST NO. 3 OF10(1709- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3TZ80 |
AXVH71..LHD..D |
1 | ||
| 82141-3TZ90 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2 |
1 | ||
| 82141-3YA10 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82141-3Y890 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 3 |
1 | ||
| 82141-3YB50 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 4 |
1 | ||
| 82141-3YA00 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82141-3YC80 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82141-3YC20 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82141-3YB60 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 6 |
1 | ||
| 82141-3YD10 |
AXVH71..LHD..D |
1 | ||
| 82141-3YC10 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 3 |
1 | ||
| 82141-3YD20 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2 |
1 | ||
| 82141-3YC90 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 6 |
1 | ||
| 82141-3YD30 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 4 |
1 | ||
| 82141-3YC21 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 82141-3YC81 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82141-3YD21 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2 |
1 | ||
| 82141-3YD11 |
AXVH71..LHD..D |
1 | ||
| 82141-3YC11 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 3 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-33090 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-33100 |
ASV70..RHD;AXVH71,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90178-W0039 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

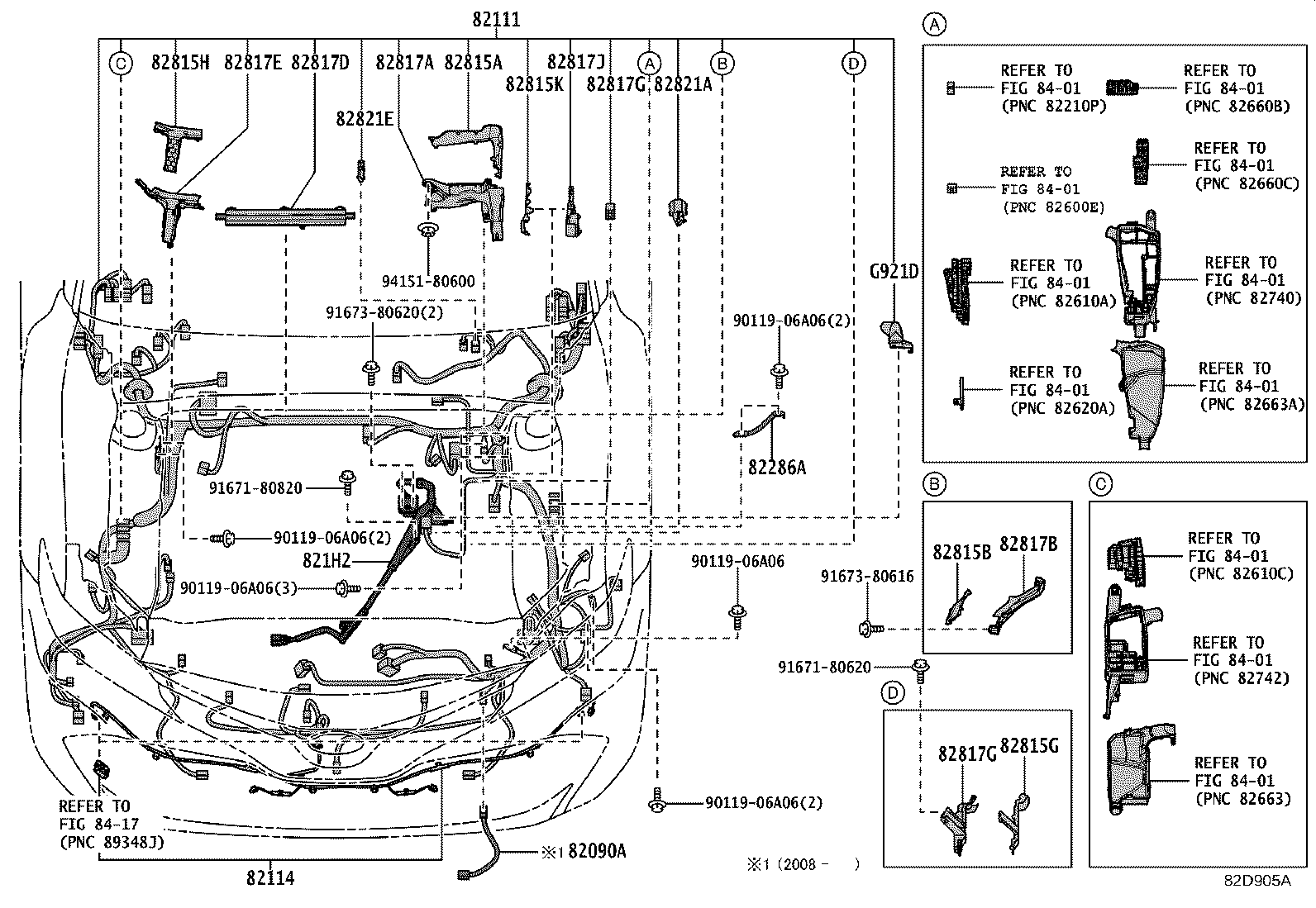

ILLUST NO. 1 OF10(1709- )AXVH7#..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82090A - WIRE ASSY, EXTENSION | ||||
| 82090-33030 |
AXVH7# |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3TA70 |
AXVH71..LHD..D |
1 | ||
| 82111-33T40 |
AXVH71..LHD..D WITHOUT(DESTINATION PACKAGE(ERP))&ISRAEL SPEC |
1 | ||
| 82111-3TB10 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82111-33T50 |
AXVH71..LHD..D WITHOUT(DESTINATION PACKAGE(ERP))&ISRAEL SPEC&EU SALE SPECIFICATIONS 6 |
1 | ||
| 82111-3TB70 |
AXVH71..LHD..D |
1 | ||
| 82111-3TB90 |
AXVH71..LHD..D WITHOUT(DESTINATION PACKAGE(ERP))&ISRAEL SPEC |
1 | ||
| 82111-3TC00 |
AXVH71..LHD..D WITHOUT(DESTINATION PACKAGE(ERP))&ISRAEL SPEC&EU SALE SPECIFICATIONS 6 |
1 | ||
| 82111-3TB80 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82111-3TC01 |
AXVH71..LHD..D WITHOUT(DESTINATION PACKAGE(ERP))&ISRAEL SPEC&EU SALE SPECIFICATIONS 6 |
1 | ||
| 82111-3TB91 |
AXVH71..LHD..D WITHOUT(DESTINATION PACKAGE(ERP))&ISRAEL SPEC |
1 | ||
| 82111-3TB81 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 6 |
1 | ||
| 82111-3TB71 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 4 |
1 | ||
| 82111-3TV50 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82111-3TV40 |
AXVH71..LHD..D |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-33110 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(D,G,N)..EUR |
1 | ||
| 82114-33170 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 82114-33170 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-33020 |
AXVH7# |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-33020 |
AXVH7# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33E30 |
AXVH7#..LHD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-33E70 |
AXVH7#..LHD |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-33K50 |
ASV70..LHD..EUR;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33M60 |
AXVH7# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-33U80 |
AXVH7#..LHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33Y20 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-33Y30 |
ASV70..LHD..EUR;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-33V00 |
AXVH7#..LHD |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-33V00 |
AXVH7#..LHD |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-3T210 |
AXVH7# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-33470 |
AXVH7# |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-33620 |
AXVH7#..LHD |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-47020 |
AXVH7# |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
