AXVH71L-AEXDBW (2019)
Toyota Camry/Hybrid

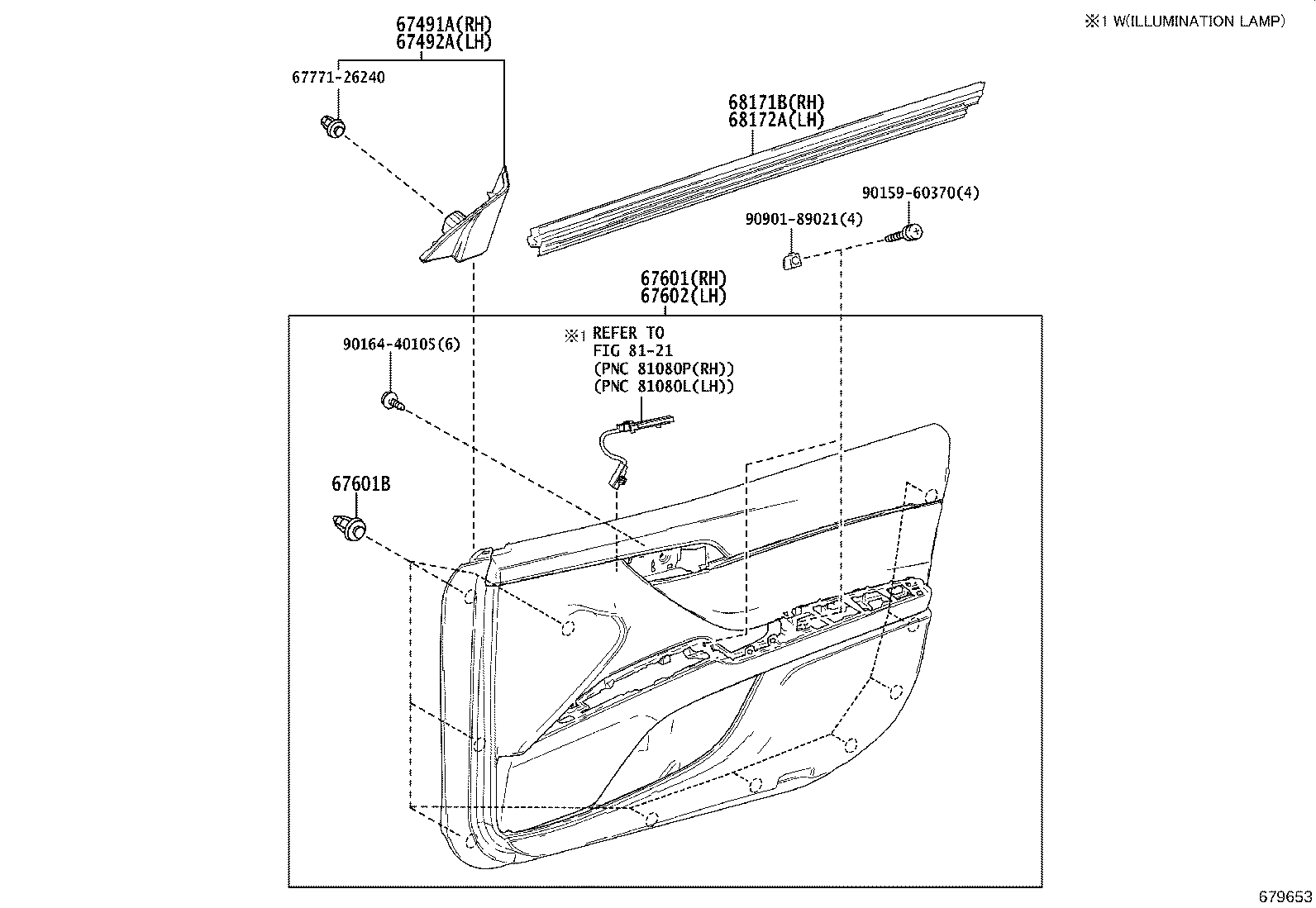

ILLUST NO. 2 OF 2(1709- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-33130 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-33130 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-33N20C0 |
AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 67610-33N40C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2,BLACK/BLACK/S.BLACK,TRIM2# |
1 | ||
| 67610-33N40C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK/BLACK/S.BLACK,TRIM2# |
1 | ||
| 67610-33N40E0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2,N.BEIGE/FROMAGE/NW.GRAY,TRIM4# |
1 | ||
| 67610-33N40E0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4,N.BEIGE/FROMAGE/NW.GRAY,TRIM4# |
1 | ||
| 67610-33N40E0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,N.BEIGE/FROMAGE/NW.GRAY,TRIM4# |
1 | ||
| 67610-33N40C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4,BLACK/BLACK/S.BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-33M90C0 |
AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 67620-33N00E0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4,N.BEIGE/FROMAGE/NW.GRAY,TRIM4# |
1 | ||
| 67620-33N00C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4,BLACK/BLACK/S.BLACK,TRIM2# |
1 | ||
| 67620-33N00C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK/BLACK/S.BLACK,TRIM2# |
1 | ||
| 67620-33N00C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2,BLACK/BLACK/S.BLACK,TRIM2# |
1 | ||
| 67620-33N00E0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,N.BEIGE/FROMAGE/NW.GRAY,TRIM4# |
1 | ||
| 67620-33N00E0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2,N.BEIGE/FROMAGE/NW.GRAY,TRIM4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-33112 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-33122 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 67771-26240 | ||||
| 90159-60370 | ||||
| 90164-40105 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 1 OF 2(1709- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-33230 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09143 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-33250 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-33100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-33100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-33100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-33110 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-33091 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-33091 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-33060 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N,S)..EUR |
1 | ||
| 67495-33060 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 67495-33040 |
AXVH71..D;ASV70..LHD..EUR |
1 | ||
| 67495-33060 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-33050 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 67496-33030 |
AXVH71..D;ASV70..LHD..EUR |
1 | ||
| 67496-33050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N,S)..EUR |
1 | ||
| 67496-33050 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-33060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-33060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-12180 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
4 | ||
| 67811-33040 |
ASV70,AXVA70,AXVH71,GSV70..EUR |
4 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-12180 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
4 | ||
| 67811-33040 |
ASV70,AXVA70,AXVH71,GSV70..EUR |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-33130 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-09206 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
6 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-33130 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-47010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67833-47010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH | ||||
| 67851-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH | ||||
| 67852-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-33120 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-33120 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-33050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-52010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
8 | ||
| 67863G - RETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-52010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
8 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67863-33050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
22 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
22 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67868-30030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-47010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
8 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-33330 |
AXVH71..D;AXVH71..LHD..N;ASV70,GSV70..EUR |
1 | ||
| 68101-33320 |
AXVH71..D;AXVH71..LHD..N;ASV70,GSV70..EUR |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-33340 |
AXVH71..D;AXVH71..LHD..N;ASV70,GSV70..EUR |
1 | ||
| 68102-33330 |
AXVH71..D;AXVH71..LHD..N;ASV70,GSV70..EUR |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-33130 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-33120 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75985B - STRIPE, FRONT DOOR, NO.3 RH | ||||
| 75985-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75986B - STRIPE, FRONT DOOR, NO.3 LH | ||||
| 75986-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR 0 OR 1PIECE,REF.ILL. |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90119-W0143 | ||||
| 90159-60303 | ||||
| 90164-40096 | ||||
| 90189-06227 | ||||
| 90333-20003 | ||||
| 90467-10161 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 90950-01A15 | ||||
| 94151-80600 | ||||
