AXVH71L-AEXDBW (2019)
Toyota Camry/Hybrid
ILLUST NO. 2 OF 2(1709- )
W(POWER RECLINING TYPE REAR SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-07215 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
4 | ||
| 64271E - PANEL, ROOM PARTITION | ||||
| 64241-33070 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 64429F - BOX, LUGGAGE COMPARTMENT TRIM | ||||
| 64429-33020 |
AXVH71..LHD..D SPARE TIRE-GROUND TIRE |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-33160C1 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4# |
1 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-08186C3 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK |
6 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-08186C3 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK |
6 | ||
| 64718C - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33030C1 |
AXVH70;AXVH71..D BLACK,TRIM2#,4# |
1 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-33200C1 |
AXVH70;AXVH71..D BLACK,TRIM2#,4# |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-08222C1 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK |
2 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-08222C1 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90530-25010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90530-25010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90530-25010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90530-25010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-33200C2 |
ASV70,AXVA70,AXVH71,GSV70..(D,G,N)..EUR BLACK,TRIM2#,4# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33090C2 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR BLACK,TRIM2#,4# |
2 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33090C2 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR BLACK,TRIM2#,4# |
2 | ||
| 64725J - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-33150C1 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6&SPARE TIRE-GROUND TIRE,BLACK,TRIM2#,4# |
1 | ||
| 64770-33190C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4# |
1 | ||
| 64770-33160C1 |
AXVH71..LHD..D SPARE TIRE-GROUND TIRE,BLACK,TRIM2#,4# |
1 | ||
| 64770-33140C1 |
AXVH70;AXVH71..D BLACK,TRIM2#,4# |
1 | ||
| 64779E - TRAY, SPARE WHEEL COVER | ||||
| 64779-33250 |
AXVH71..LHD..D SPARE TIRE-GROUND TIRE |
1 | ||
| 64779-33260 |
AXVH71..D |
1 | ||
| 64779-33240 |
AXVH71..D SPARE TIRE-TEMPORARY TIRE |
1 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010C3 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 90119-10873 | ||||
| 90159-60350 | ||||
| 90467-07215 | ||||
| 90467-10023 | ||||
| 90530-25010 | ||||
| 94151-21001 | ||||

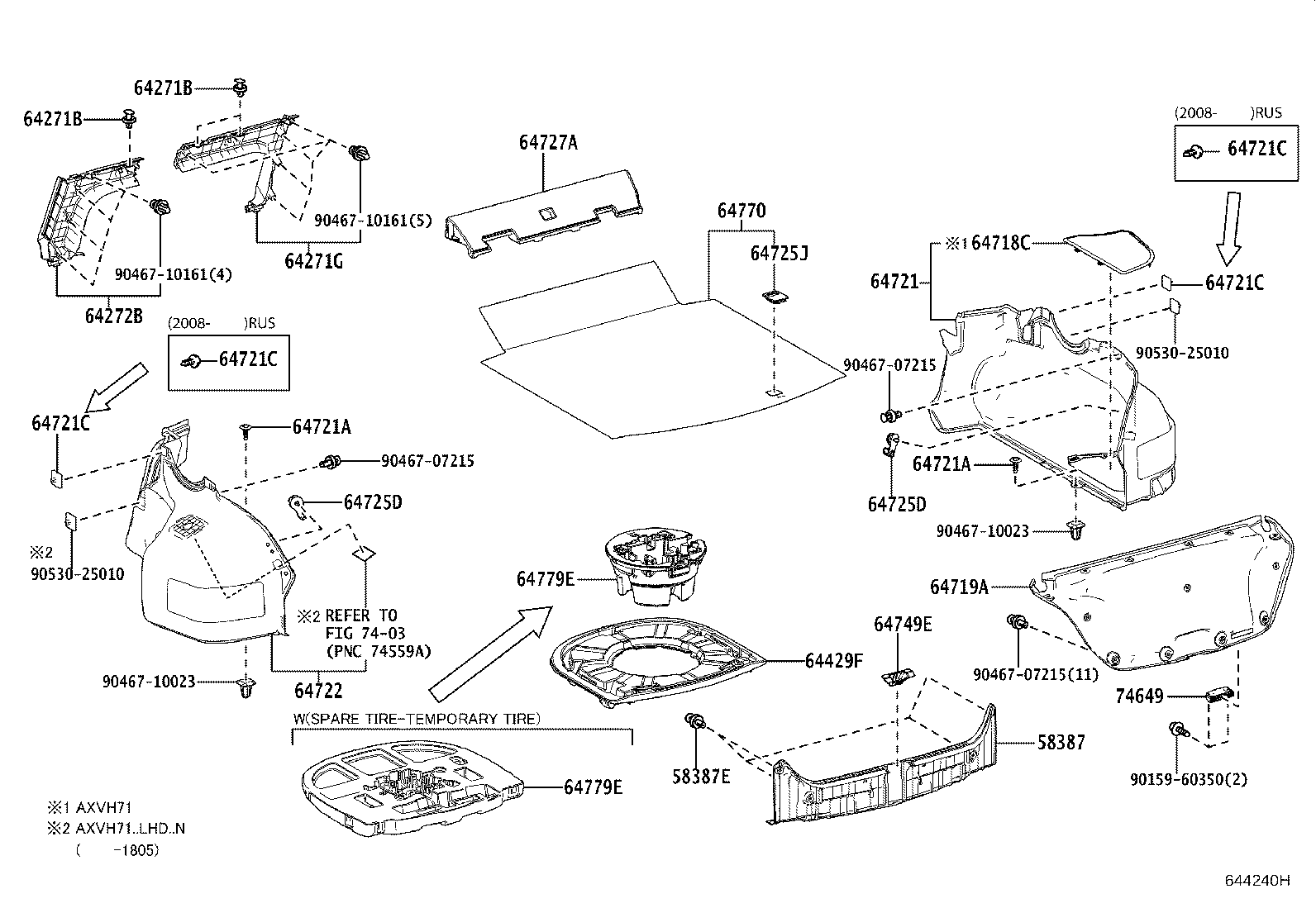

ILLUST NO. 2 OF 2(1709- )
W(FOLD TYPE REAR SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-07215 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
4 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-07220 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
3 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-07220 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
3 | ||
| 64271G - BOARD, ROOM PARTITION, RH | ||||
| 64271-33120C0 |
AXVA70..LHD..N;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) BLACK,TRIM2#,4# |
1 | ||
| 64272B - BOARD, ROOM PARTITION, LH | ||||
| 64272-33060C0 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..N..EUR BLACK,TRIM2#,4# |
1 | ||
| 64429F - BOX, LUGGAGE COMPARTMENT TRIM | ||||
| 64429-33020 |
AXVH71..LHD..D SPARE TIRE-GROUND TIRE |
1 | ||
| 64718C - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33030C1 |
AXVH70;AXVH71..D BLACK,TRIM2#,4# |
1 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-33200C1 |
AXVH70;AXVH71..D BLACK,TRIM2#,4# |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-08222C1 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK |
2 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-08222C1 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90530-25010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90530-25010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90530-25010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90530-25010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-33200C2 |
ASV70,AXVA70,AXVH71,GSV70..(D,G,N)..EUR BLACK,TRIM2#,4# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33090C2 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR BLACK,TRIM2#,4# |
2 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33090C2 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR BLACK,TRIM2#,4# |
2 | ||
| 64725J - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-33060 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-33150C1 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6&SPARE TIRE-GROUND TIRE,BLACK,TRIM2#,4# |
1 | ||
| 64770-33190C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4# |
1 | ||
| 64770-33160C1 |
AXVH71..LHD..D SPARE TIRE-GROUND TIRE,BLACK,TRIM2#,4# |
1 | ||
| 64770-33140C1 |
AXVH70;AXVH71..D BLACK,TRIM2#,4# |
1 | ||
| 64779E - TRAY, SPARE WHEEL COVER | ||||
| 64779-33250 |
AXVH71..LHD..D SPARE TIRE-GROUND TIRE |
1 | ||
| 64779-33260 |
AXVH71..D |
1 | ||
| 64779-33240 |
AXVH71..D SPARE TIRE-TEMPORARY TIRE |
1 | ||
| 64779E - TRAY, SPARE WHEEL COVER | ||||
| 64779-33250 |
AXVH71..LHD..D SPARE TIRE-GROUND TIRE |
1 | ||
| 64779-33260 |
AXVH71..D |
1 | ||
| 64779-33240 |
AXVH71..D SPARE TIRE-TEMPORARY TIRE |
1 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010C3 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 90159-60350 | ||||
| 90467-07215 | ||||
| 90467-10023 | ||||
| 90467-10161 | ||||
| 90530-25010 | ||||
| Linked diagrams | ||||
| 7403 | ||||

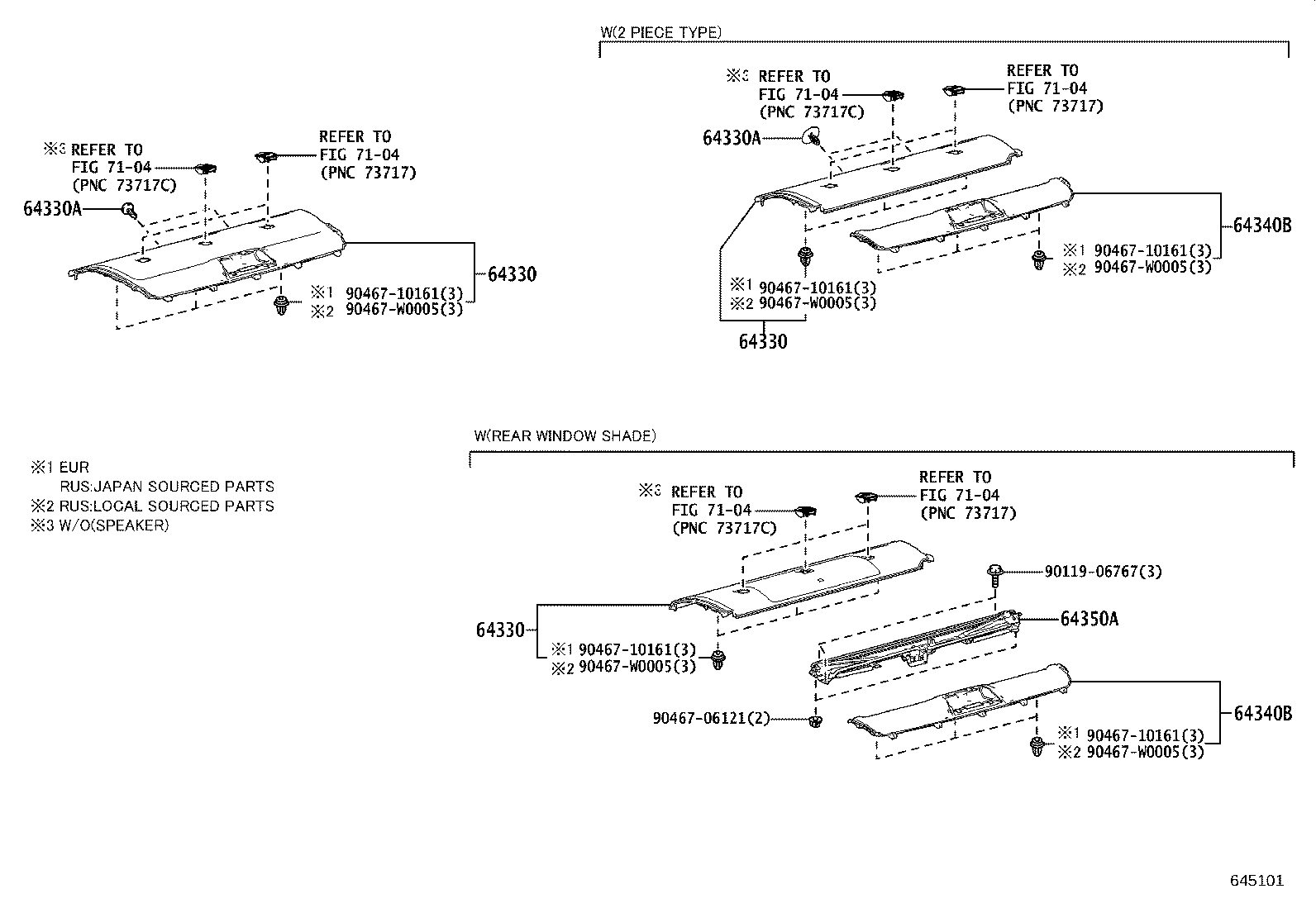

ILLUST NO. 1 OF 2(1709- )
PACKAGE TRAY TRIM PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-33810C0 |
AXVH71..D;ASV70..EUR BLACK,TRIM2#,4# |
1 | ||
| 64330-33A40C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-33810C0 |
AXVH71..D;ASV70..EUR BLACK,TRIM2#,4# |
1 | ||
| 64330-33A40C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-33810C0 |
AXVH71..D;ASV70..EUR BLACK,TRIM2#,4# |
1 | ||
| 64330-33A40C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-05164C7 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..N..EUR BLACK,TRIM2#,4# |
2 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-05164C7 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..N..EUR BLACK,TRIM2#,4# |
2 | ||
| 64340B - PANEL ASSY, PACKAGE TRAY TRIM, NO.2 | ||||
| 64340-33070C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4# |
1 | ||
| 64340B - PANEL ASSY, PACKAGE TRAY TRIM, NO.2 | ||||
| 64340-33070C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4# |
1 | ||
| 64350A - SHADE ASSY, REAR WINDOW | ||||
| 64350-33030 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90467-06121 | ||||
| 90467-10161 | ||||
| 90467-W0005 | ||||
| Linked diagrams | ||||
| 7104 | ||||
