AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )D

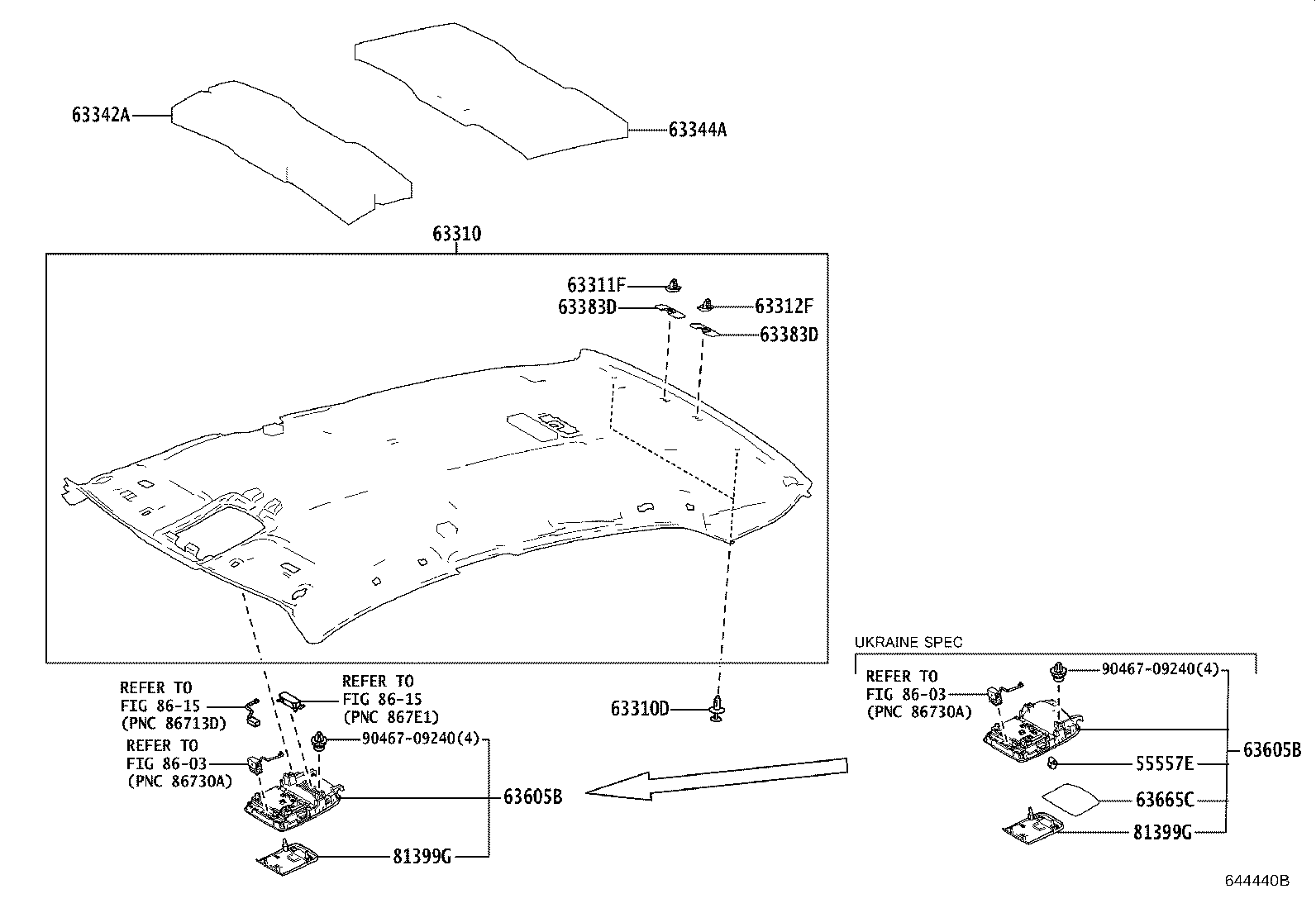

Click highlighted areas on diagram

diagram 55557E 63310 63310D 63311F 63312F 63342A 63344A 63383D 63383D 63605B 63605B 63665C 81399G 81399G 8603 8603 8615 8615 9046709240 9046709240
Part # Description Qty Price
55557E - CUSHION, ROOF CONSOLE BOX
55557-47050

AXVH71..LHD..D

UKRAINE SPEC

 1
63310 - HEADLINING ASSY, ROOF
63310-33840B0

AXVH71..RHD;AXVH71..LHD..D;ASV70,GSV70..EUR

GRAY,TRIM2#

 1
63310-33860B0

AXVA70,AXVH71..LHD..(N,S)

GRAY,TRIM2#

 1
63310-33840E0

AXVH71..RHD;AXVH71..LHD..D;ASV70,GSV70..EUR

NEUTRAL BEIGE,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90467-05168B0

ASV70,AXVA70,AXVH7#,GSV70..EUR

GRAY,TRIM2#

 2
90467-05168E0

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

NEUTRAL BEIGE,TRIM4#

 2
63311F - CLIP, ROOF HEADLINING, NO.1
90467-10181

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
63312F - CLIP, ROOF HEADLINING, NO.2
90467-09126

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
63342A - SILENCER, ROOF, NO.2
63342-33070

AXVH71..RHD;AXVH71..LHD..D;ASV70,GSV70..EUR

 1
63344A - SILENCER, ROOF, NO.4
63344-33060

AXVH71..RHD;AXVH71..LHD..D;ASV70,GSV70..EUR

 1
63383D - RETAINER, ROOF HEADLINING, REAR
63383-24030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
63383D - RETAINER, ROOF HEADLINING, REAR
63383-24030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
63605B - BOX SUB-ASSY, ROOF CONSOLE
63605-33320B0

AXVH71..LHD..D

GRAY,TRIM2#

 1
63605-33320E0

AXVH71..LHD..D

NEUTRAL BEIGE,TRIM4#

 1
63605-33140B0

AXVH71..LHD..D

UKRAINE SPEC,GRAY,TRIM2#

 1
63605-33140E0

AXVH71..LHD..D

UKRAINE SPEC,NEUTRAL BEIGE,TRIM4#

 1
63605B - BOX SUB-ASSY, ROOF CONSOLE
63605-33320B0

AXVH71..LHD..D

GRAY,TRIM2#

 1
63605-33320E0

AXVH71..LHD..D

NEUTRAL BEIGE,TRIM4#

 1
63605-33140B0

AXVH71..LHD..D

UKRAINE SPEC,GRAY,TRIM2#

 1
63605-33140E0

AXVH71..LHD..D

UKRAINE SPEC,NEUTRAL BEIGE,TRIM4#

 1
63665C - MAT, ROOF CONSOLE BOX
63665-33020

AXVH71..LHD..D

UKRAINE SPEC

 1
81399G - COVER, LENS
81399-33010

AXVH71..LHD..D

UKRAINE SPEC

 1
81399-33040

AXVA70,AXVH71..LHD..(N,S)

 1
81399G - COVER, LENS
81399-33010

AXVH71..LHD..D

UKRAINE SPEC

 1
81399-33040

AXVA70,AXVH71..LHD..(N,S)

 1
Common parts
90467-09240
Linked diagrams
8603
8615
