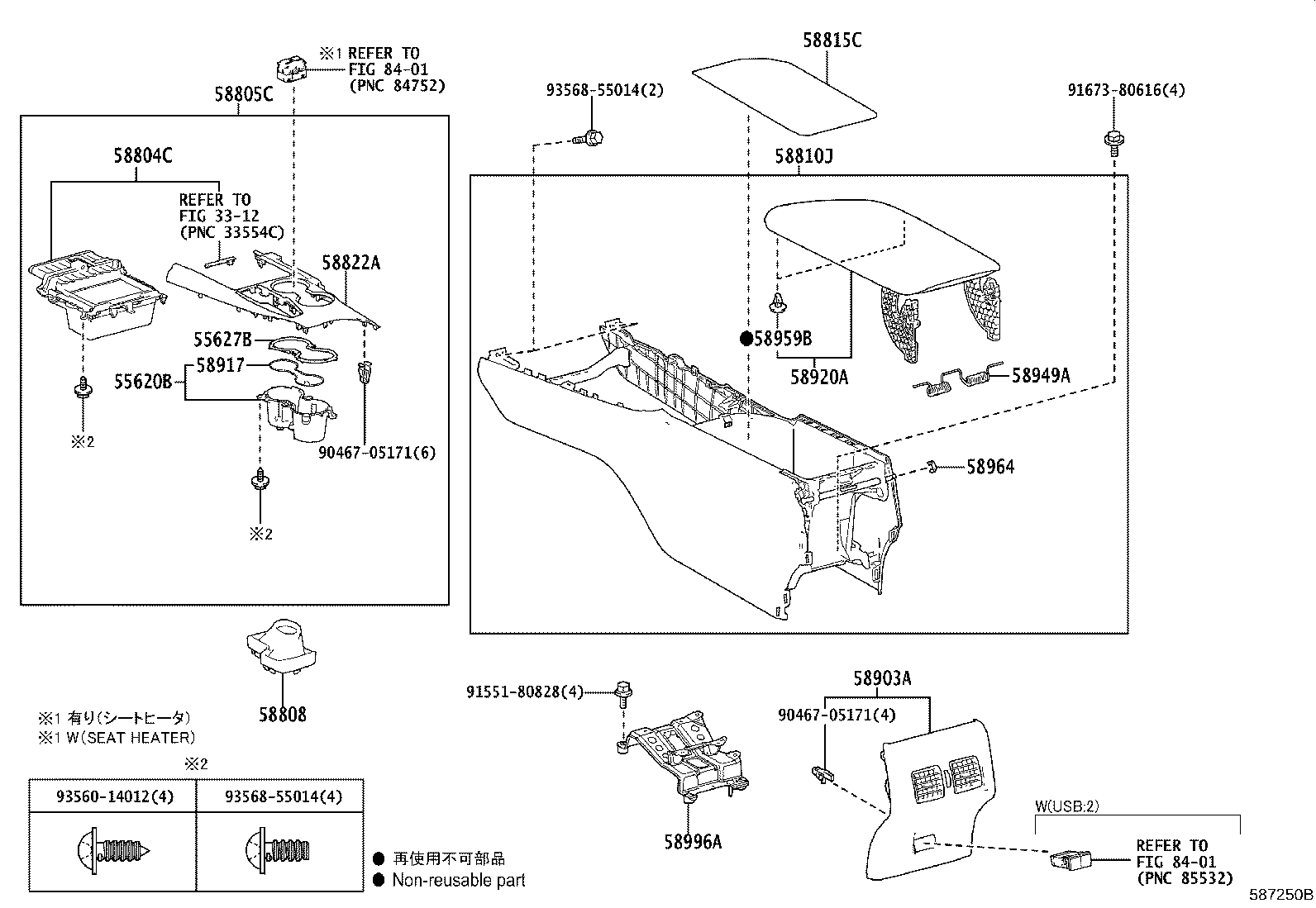

AXVH71L-AEXDBW (2019)
Toyota Camry/Hybrid
(1709- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-33390 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55627B - RAIL, CONSOLE BOX CUP HOLDER | ||||
| 55627-33010 |
ASV70..LHD..EUR;AXVA70,AXVH71..LHD..(D,S) |
1 | ||
| 55627-33020 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 55627-33020 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 58804C - INSERT SUB-ASSY, CONSOLE BOX, FRONT | ||||
| 58804-33A40 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 58804-33A30 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 58804-33A41 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 58804-33A40 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 58804-33A41 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-33430C0 |
AXVH71..LHD..D BLACK,TRIM2#,4# |
1 | ||
| 58805-33730E1 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4,TIGER EYE,TRIM2#,4# |
1 | ||
| 58805-33550C1 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2,BLACK,TRIM2#,4# |
1 | ||
| 58805-33730E1 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,TIGER EYE,TRIM2#,4# |
1 | ||
| 58805-33431C0 |
AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-33350C0 |
AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 58810-33380A0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2,FROMAGE,TRIM4# |
1 | ||
| 58810-33380A0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4,FROMAGE,TRIM4# |
1 | ||
| 58810-33380C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2,BLACK,TRIM2# |
1 | ||
| 58810-33380C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2# |
1 | ||
| 58810-33380A0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,FROMAGE,TRIM4# |
1 | ||
| 58810-33380C0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4,BLACK,TRIM2# |
1 | ||
| 58810-33400A3 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 4,FROMAGE,TRIM4# |
1 | ||
| 58810-33400C9 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 4,SOFT BLACK/C.BROWN,TRIM2# |
1 | ||
| 58810-33400C9 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 6,SOFT BLACK/C.BROWN,TRIM2# |
1 | ||
| 58810-33400A3 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 6,FROMAGE,TRIM4# |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-33170 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-33350C1 |
AXVH71..LHD..D BLACK,TRIM2#,4# |
1 | ||
| 58822-33400E1 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,TIGER EYE,TRIM2#,4# |
1 | ||
| 58822-33360C1 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2,BLACK,TRIM2#,4# |
1 | ||
| 58822-33350C1 |
AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 58822-33400E1 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4,TIGER EYE,TRIM2#,4# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-33330A0 |
ASV70,AXVA70,AXVH7#..(D,N)..EUR FROMAGE,TRIM4# |
1 | ||
| 58903-33330C0 |
ASV70,AXVA70,AXVH7#..EUR BLACK,TRIM2# |
1 | ||
| 58917 - MAT, BOX BOTTOM, NO.2 | ||||
| 58917-33130 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-33080C4 |
AXVH71..LHD..D;ASV70..LHD..EUR SOFT BLACK,TRIM2# |
1 | ||
| 58920-33090A2 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,FROMAGE,TRIM4# |
1 | ||
| 58920-33090A2 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 6,FROMAGE,TRIM4# |
1 | ||
| 58920-33090C6 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 4,SOFT BLACK/C.BROWN,TRIM2# |
1 | ||
| 58920-33090A2 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 4,FROMAGE,TRIM4# |
1 | ||
| 58920-33090A2 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2,FROMAGE,TRIM4# |
1 | ||
| 58920-33090A2 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4,FROMAGE,TRIM4# |
1 | ||
| 58920-33090C6 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 2,SOFT BLACK/C.BROWN,TRIM2# |
1 | ||
| 58920-33090C6 |
AXVH71..LHD..D UKRAINE SPEC&EU SALE SPECIFICATIONS 6,SOFT BLACK/C.BROWN,TRIM2# |
1 | ||
| 58920-33090C6 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4,SOFT BLACK/C.BROWN,TRIM2# |
1 | ||
| 58920-33090C6 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,SOFT BLACK/C.BROWN,TRIM2# |
1 | ||
| 58949A - SPRING, CONSOLE BOX MOUNTING BRACKET | ||||
| 58949-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-33100 |
ASV70,AXVH71,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 91551-80828 | ||||
| 91673-80616 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
