AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )AXVH7#..LHD

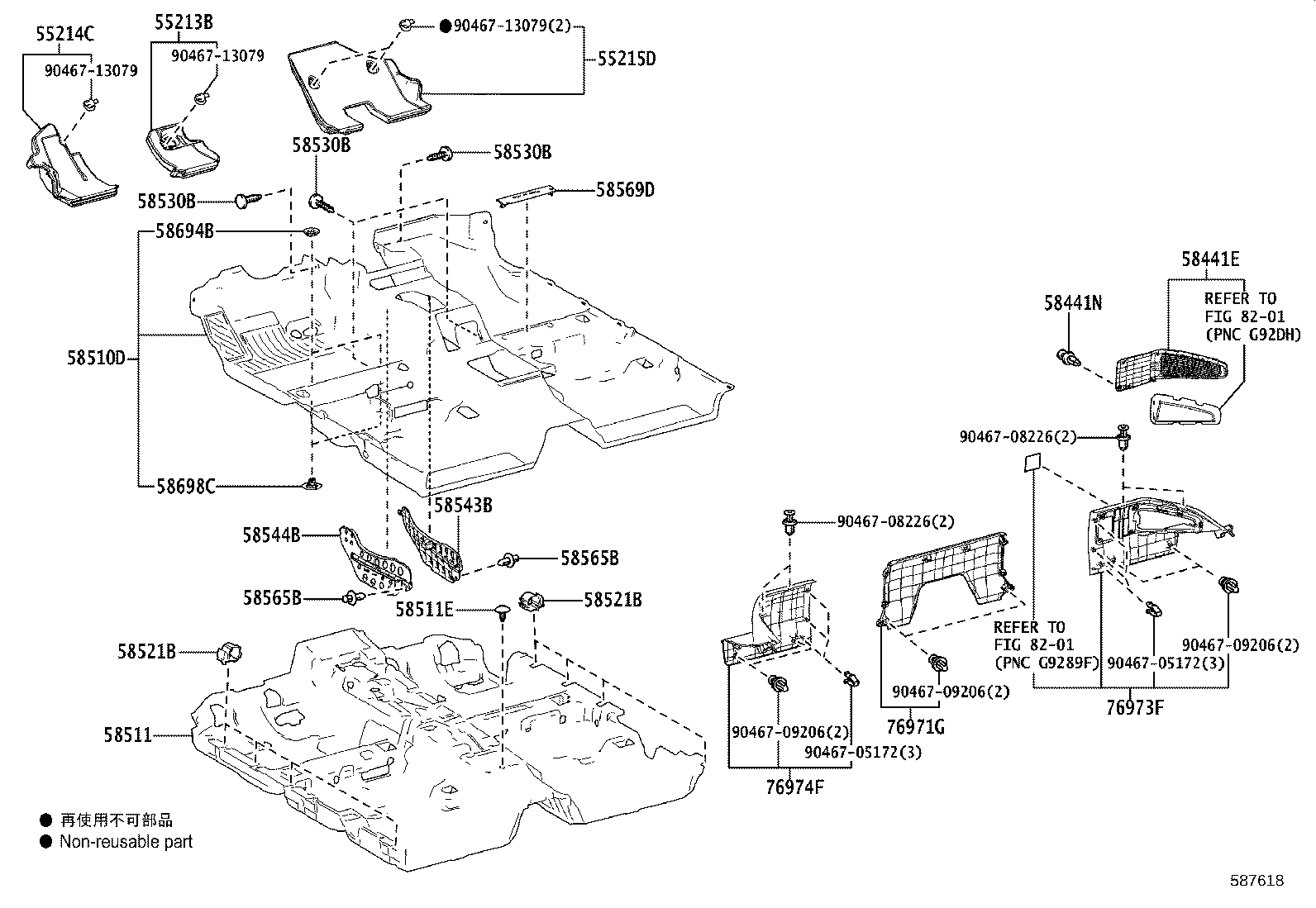

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58441E 58441N 58510D 58511 58511E 58521B 58521B 58530B 58530B 58530B 58543B 58544B 58565B 58565B 58569D 58694B 58698C 76971G 76973F 76974F 8201 8201 9046705172 9046705172 9046708226 9046708226 9046709206 9046709206 9046709206 9046713079 9046713079 9046713079
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-33110

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-33040

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
58441E - COVER, BATTERY SERVICE HOLE
58441-33020B0

AXVH70;AXVH71..D

NEUTRAL WARM GRAY,TRIM4#

 1
58441-33020C0

AXVH70;AXVH71..D

BLACK,TRIM2#

 1
58441N - CLIP(FOR BATTERY SERVICE HOLE COVER)
90467-06165C3

AXVH70;AXVH71..D

BLACK

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-33890C1

AXVH71..LHD

BLACK,TRIM2#

 1
58510-33890B2

AXVH71..LHD

NEUTRAL WARM GRAY,TRIM4#

 1
58511 - MAT, FLOOR, FRONT
58511-33022

AXVH7#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C4

ASV70,AXVA70,AXVH7#,GSV70..EUR

BLACK

 1
58521B - HOOK, FLOOR CARPET
58521-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 8
58521B - HOOK, FLOOR CARPET
58521-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 8
58543B - BRACKET, FLOOR CARPET, RH
58543-33110

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
58544B - BRACKET, FLOOR CARPET, LH
58544-33110

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
58565B - CLIP
90467-07076C7

ASV70,AXVA70,AXVH7#,GSV70..EUR

BLACK

 2
58565B - CLIP
90467-07076C7

ASV70,AXVA70,AXVH7#,GSV70..EUR

BLACK

 2
58694B - PLATE, MAT SET, UPPER
58694-33010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
58698C - PLATE, MAT SET, LOWER
58698-33010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
76971G - COVER, REAR UNDER
76971-33020C0

AXVH70;AXVH71..D

BLACK,TRIM2#

 1
76971-33020B0

AXVH70;AXVH71..D

NEUTRAL WARM GRAY,TRIM4#

 1
76973F - COVER, REAR UNDER SIDE, RH
76973-33020C0

AXVH70;AXVH71..D

BLACK,TRIM2#

 1
76973-33020B0

AXVH70;AXVH71..D

NEUTRAL WARM GRAY,TRIM4#

 1
76974F - COVER, REAR UNDER SIDE, LH
76974-33020C0

AXVH70;AXVH71..D

BLACK,TRIM2#

 1
76974-33020B0

AXVH70;AXVH71..D

NEUTRAL WARM GRAY,TRIM4#

 1
Common parts
90467-05172
90467-08226
90467-09206
90467-13079
Linked diagrams
8201
