AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )AXVH7#

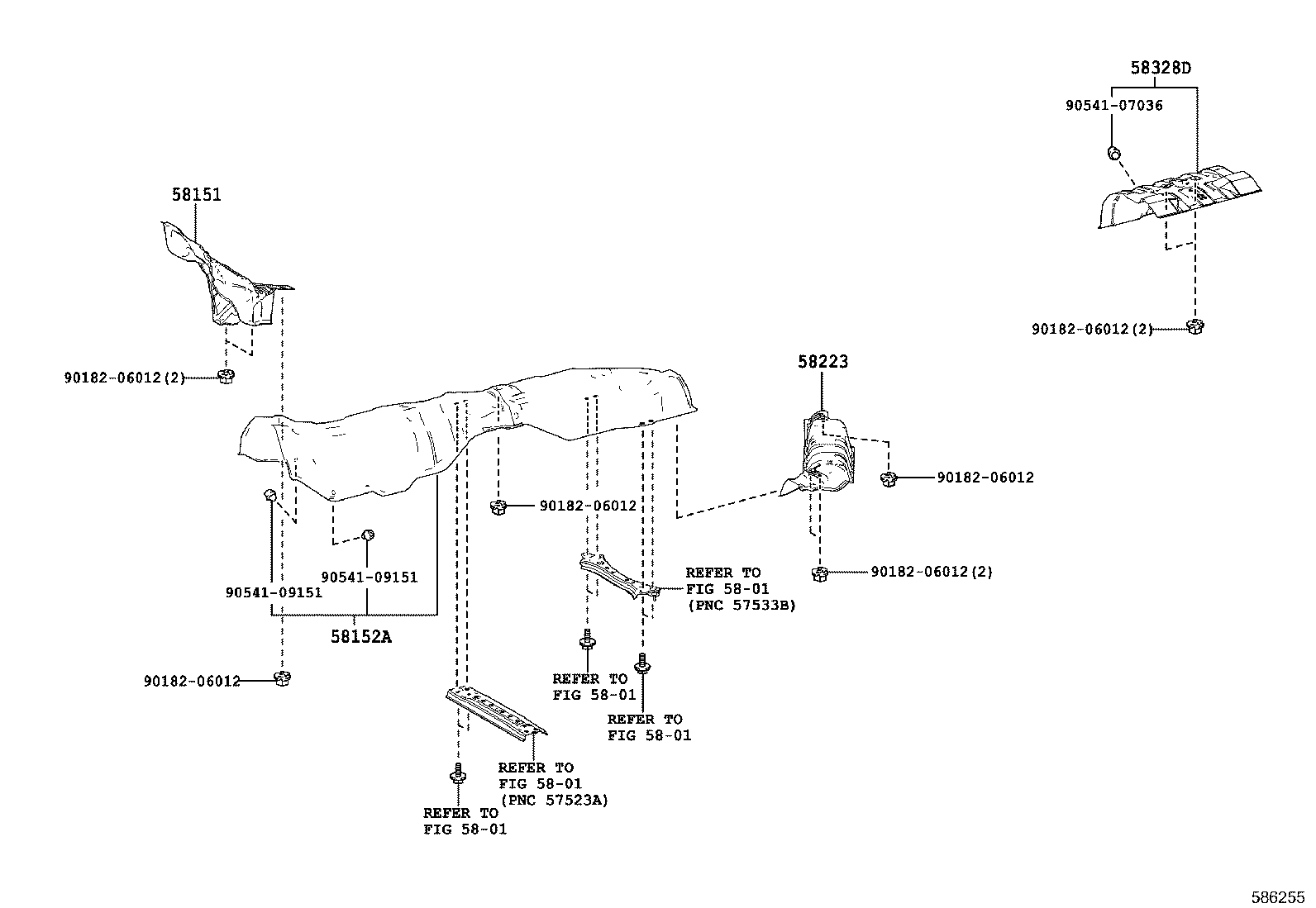

Click highlighted areas on diagram

diagram 5801 5801 5801 5801 5801 58151 58152A 58223 58328D 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9054107036 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-33010

AXVA70,AXVH7#

 1
58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58152-33080

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-33041

AXVH7#

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58327-33080

AXVH7#,GSV70..EUR

 1
Common parts
90182-06012
90541-07036
90541-09151
Linked diagrams
5801
