Toyota Camry/hybrid AXVH71 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
EU
CAMRY/HYBRID
AXVH71L-AEXDBW (2019)
5202 - REAR BUMPER & BUMPER STAY

AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021

Engine A25AFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

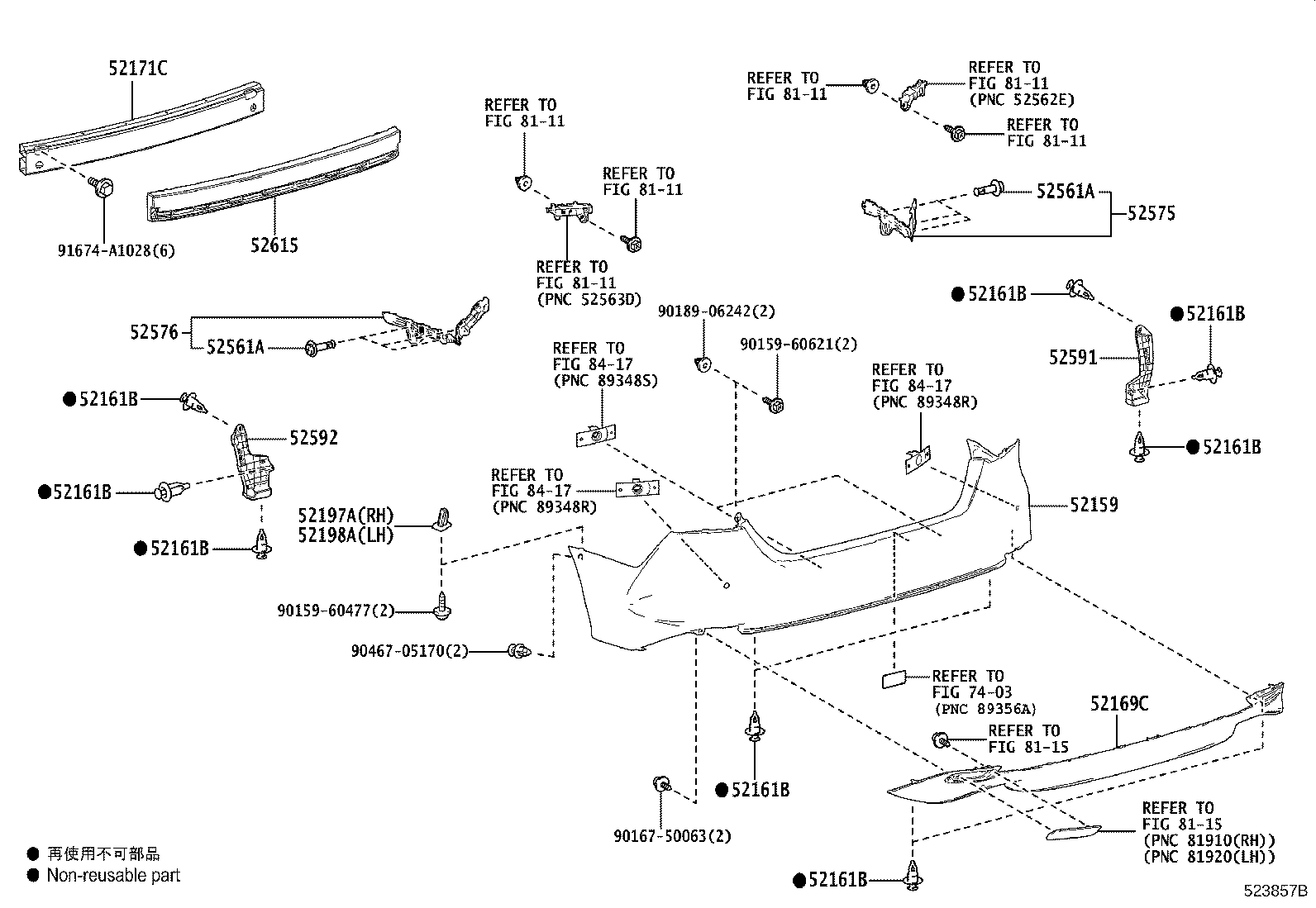

(1902-2102)D ; (2102- )D,G..EUR ; (2102- )AXVA70..LHD..EUR

Click highlighted areas on diagram

W(INTELLIGENT CLEARANCE SONAR)

Part #	Description	Period	Qty
52159 - COVER, REAR BUMPER
52159-33959	ASV70..RHD;AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	1
52159-33982	AXVH71..D PAINT REQ.,EU SALE SPECIFICATIONS 4	02/2019 - 02/2021	1
52159-33982	AXVH71..LHD..D PAINT REQ.,EU SALE SPECIFICATIONS 6	02/2019 - 02/2021	1
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52169C - COVER, REAR BUMPER, LOWER
52169-33030	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	1
52171C - REINFORCEMENT, REAR BUMPER
52171-33180	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-53040	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52198A - BRACKET, REAR BUMPER SEAL, LH
52198-53020	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-09237	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	6
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-09237	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	6
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-33130	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-33130	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-33040	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-33040	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-33150	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	1
Common parts
90159-60477
90159-60621
90167-50063
90189-06242
90467-05170
91674-A1028
Linked diagrams
7403
8111
8115
8417

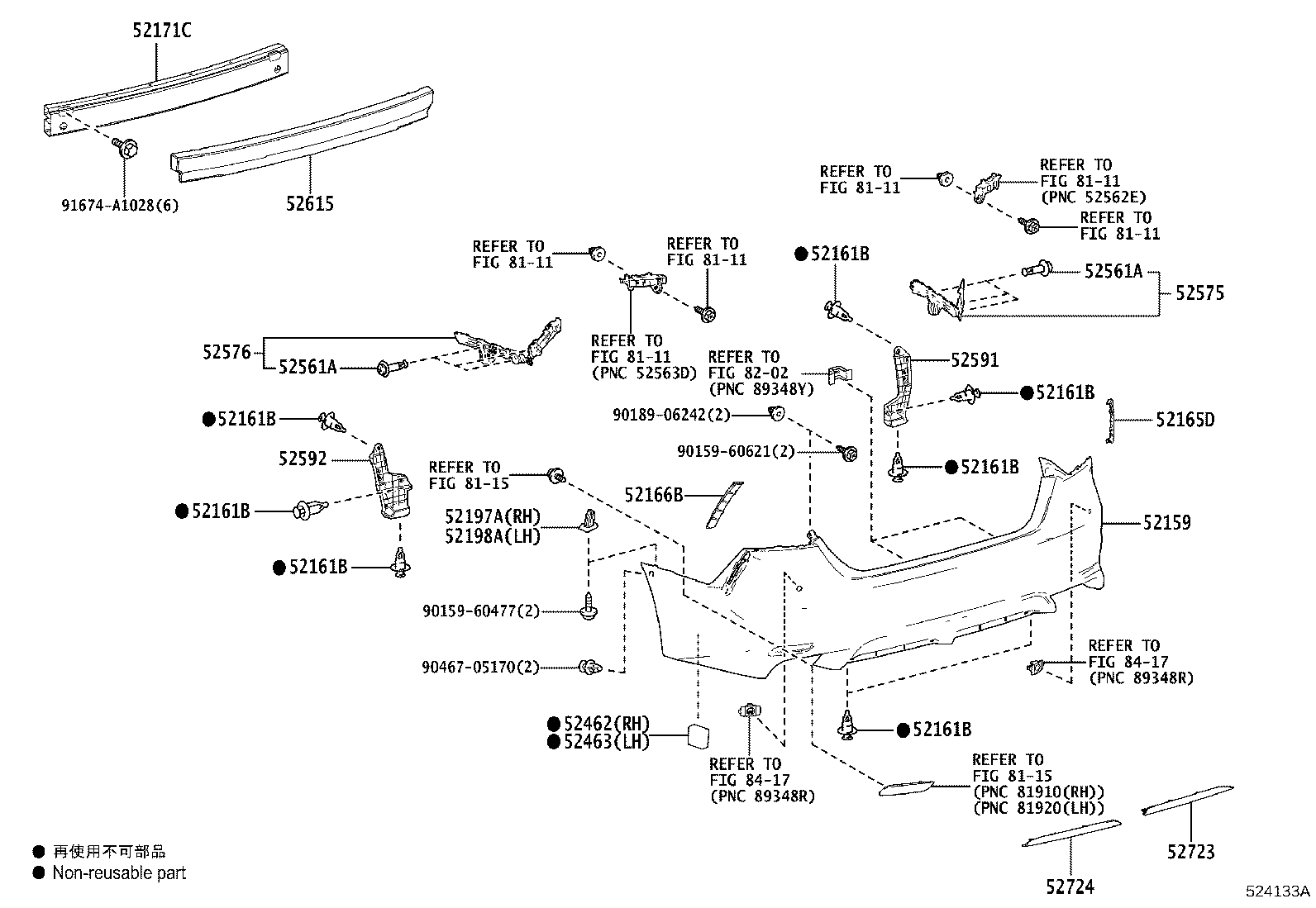

(1910-2102)S

Click highlighted areas on diagram

Part #	Description	Period	Qty
52159 - COVER, REAR BUMPER
52159-33959	ASV70..RHD;AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	1
52159-33982	AXVH71..D PAINT REQ.,EU SALE SPECIFICATIONS 4	02/2019 - 02/2021	1
52159-33982	AXVH71..LHD..D PAINT REQ.,EU SALE SPECIFICATIONS 6	02/2019 - 02/2021	1
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52161B - PIECE, REAR BUMPER
52161-16010	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	10
52171C - REINFORCEMENT, REAR BUMPER
52171-33180	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-53040	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52198A - BRACKET, REAR BUMPER SEAL, LH
52198-53020	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-09237	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	6
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-09237	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	6
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-33130	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-33130	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-33040	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-33040	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-33150	ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	1
Common parts
90159-60477
90159-60621
90189-06242
90467-05170
91674-A1028
Linked diagrams
8111
8115
8202
8417

AXVH71L-AEXDBW (2019)

(1902-2102)D ; (2102- )D,G..EUR ; (2102- )AXVA70..LHD..EUR

(1910-2102)S
