Toyota Camry/hybrid AXVH71 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
EU
CAMRY/HYBRID
AXVH71L-AEXDBW (2019)
4501 - STEERING COLUMN & SHAFT

AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021

Engine A25AFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1709- )LHD ; (1910- )AXVA70..S

Click highlighted areas on diagram

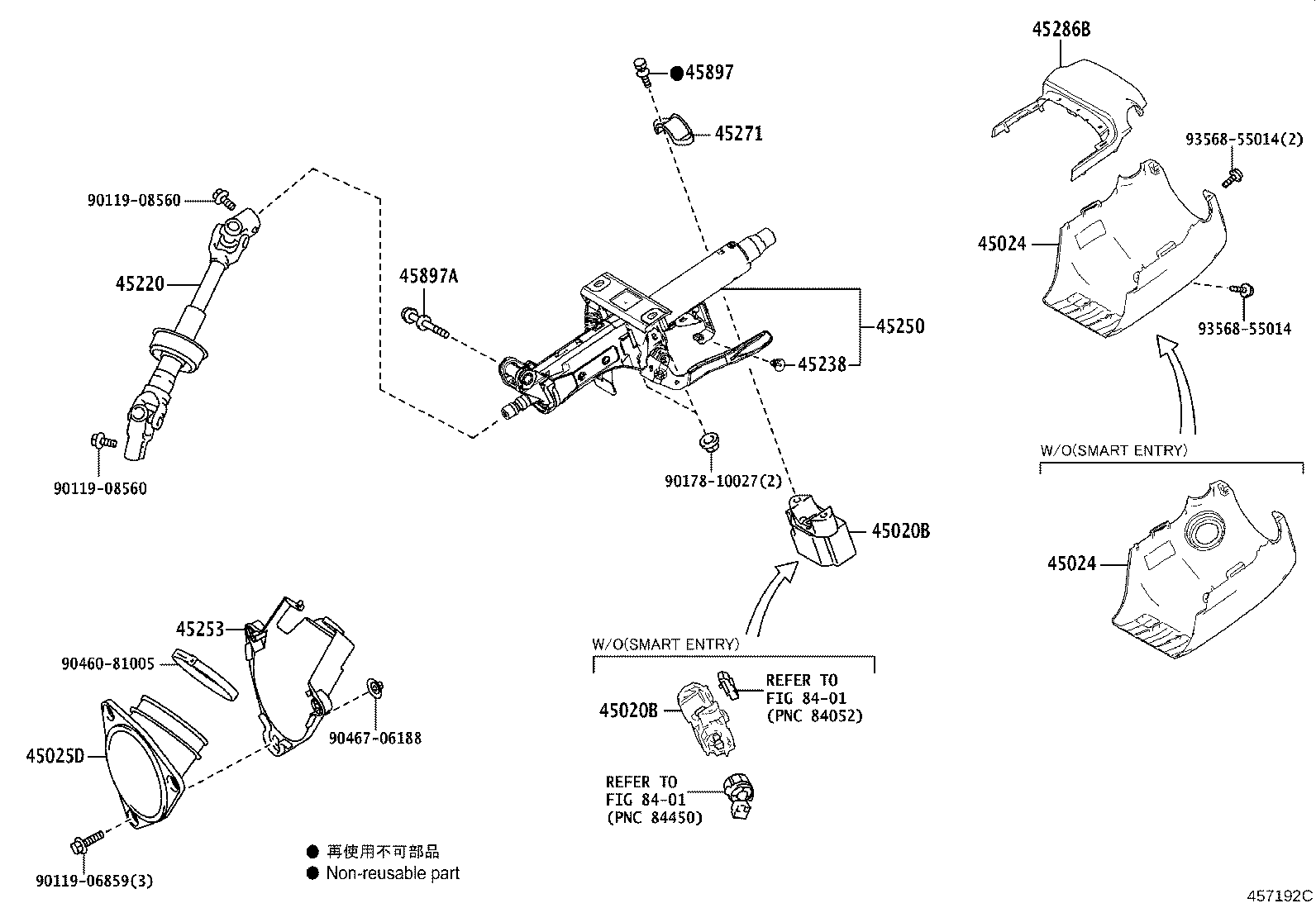

MANUAL TILT & TELESCOPIC

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-33240	AXVH71..D;ASV70..RHD;AXVA70,AXVH70	09/2017 - 02/2021	1
45020-33260	AXVH71..LHD..D EU SALE SPECIFICATIONS 6	02/2019 - 02/2021	1
45020-33260	AXVH71..D EU SALE SPECIFICATIONS 4	02/2019 - 02/2021	1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-33240	AXVH71..D;ASV70..RHD;AXVA70,AXVH70	09/2017 - 02/2021	1
45020-33260	AXVH71..LHD..D EU SALE SPECIFICATIONS 6	02/2019 - 02/2021	1
45020-33260	AXVH71..D EU SALE SPECIFICATIONS 4	02/2019 - 02/2021	1
45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER
45024-33230C0	AXVH71..D;ASV70..RHD;AXVA70,AXVH70..N BLACK,TRIM2#,4#	09/2017 - 02/2021	1
45024-33240C0	AXVH71..D EU SALE SPECIFICATIONS 4,BLACK,TRIM2#,4#	02/2019 - 02/2021	1
45024-33240C0	AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4#	02/2019 - 02/2021	1
45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER
45024-33230C0	AXVH71..D;ASV70..RHD;AXVA70,AXVH70..N BLACK,TRIM2#,4#	09/2017 - 02/2021	1
45024-33240C0	AXVH71..D EU SALE SPECIFICATIONS 4,BLACK,TRIM2#,4#	02/2019 - 02/2021	1
45024-33240C0	AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4#	02/2019 - 02/2021	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-33150	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-33351	ASV7#,AXVA70,AXVH7#,GSV70..LHD	09/2019 - 11/2020	1
45220-33350	ASV7#,AXVA70,AXVH71,GSV70..LHD	09/2017 - 08/2019	1
45220-33352	ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR	12/2020 - 02/2021	1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-11010	AXVH71..LHD..D EU SALE SPECIFICATIONS 6	02/2019 - 02/2021	1
45238-52010	AXVH71..D;ASV70,AXVA70,AXVH70..EUR	09/2017 - 02/2021	1
45238-11010	AXVH71..D EU SALE SPECIFICATIONS 4	02/2019 - 02/2021	1
45250 - COLUMN ASSY, STEERING
45250-33D60	AXVH71..D EU SALE SPECIFICATIONS 4	02/2019 - 05/2020	1
45250-33D60	AXVH71..LHD..D EU SALE SPECIFICATIONS 6	02/2019 - 05/2020	1
45250-33D40	AXVH71..D;ASV70..RHD	09/2017 - 02/2021	1
45250-48430	AXVH71..LHD..D EU SALE SPECIFICATIONS 6	06/2020 - 02/2021	1
45250-48430	AXVH71..D EU SALE SPECIFICATIONS 4	06/2020 - 02/2021	1
45253 - COVER, STEERING COLUMN HOLE
45253-33100	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030	AXVH71..D;ASV70,AXVA70,AXVH70..EUR	09/2017 - 02/2021	1
45286B - COVER, STEERING COLUMN, UPR
45286-33290C0	AXVH71..D;AXVA70,AXVH70..N BLACK,TRIM2#,4#	09/2017 - 02/2021	1
45897 - BOLT, STEERING LOCK SET
45897-12020	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	2
45897A - BOLT, TILT STEERING PAWL SET
90119-10980	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
Common parts
90119-06859
90119-08560
90178-10027
90460-81005
90467-06188
93568-55014
Linked diagrams
8401

(1709- )AXVH71..LHD ; (1709- )AXVH70,GSV70..G,S ; (1709- )ASV70,AXVA70..RU

Click highlighted areas on diagram

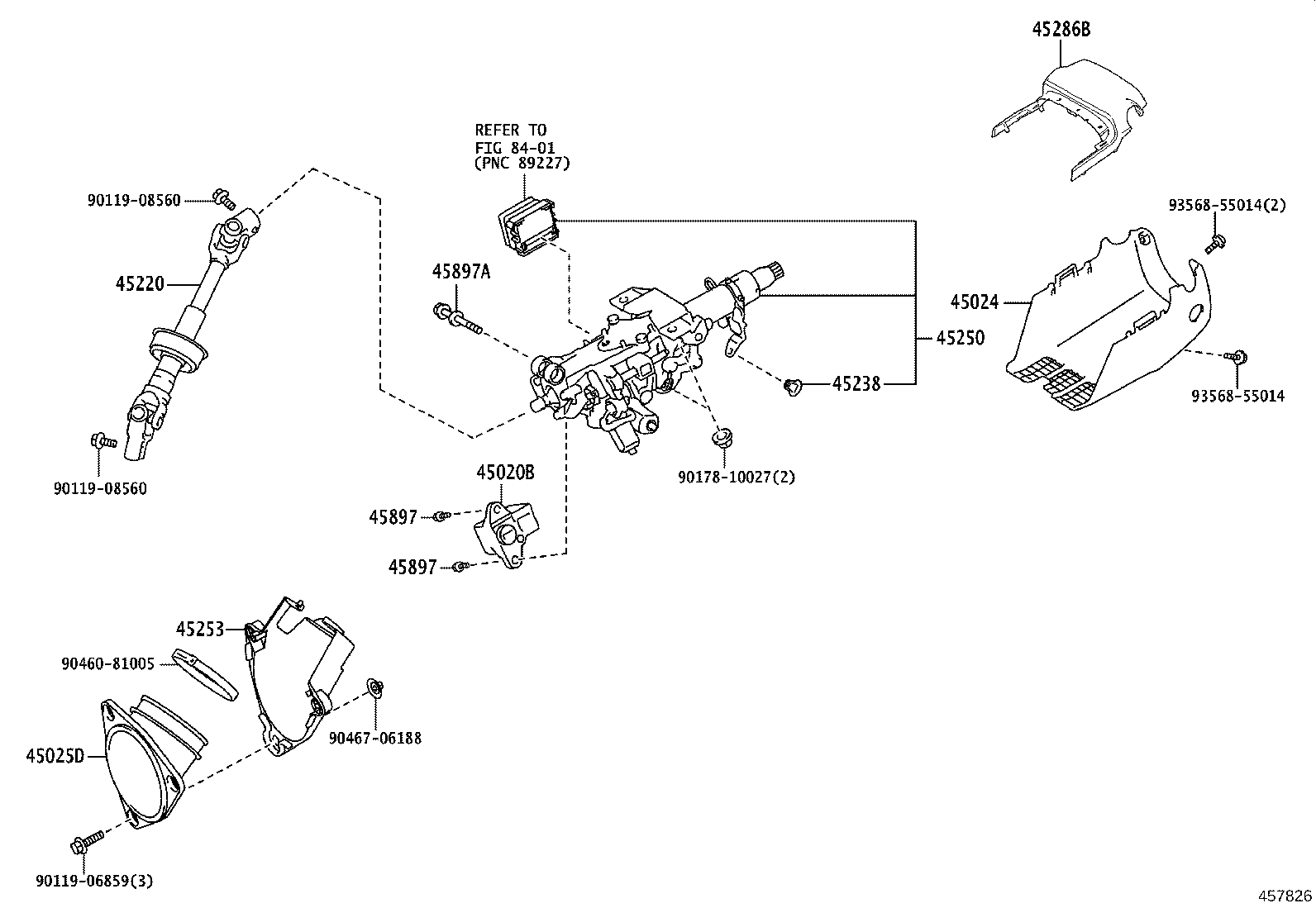

ELECTRIC TILT & TELESCOPIC

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-33240	AXVH71..D;ASV70..RHD;AXVA70,AXVH70	09/2017 - 02/2021	1
45020-33260	AXVH71..LHD..D EU SALE SPECIFICATIONS 6	02/2019 - 02/2021	1
45020-33260	AXVH71..D EU SALE SPECIFICATIONS 4	02/2019 - 02/2021	1
45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER
45024-33230C0	AXVH71..D;ASV70..RHD;AXVA70,AXVH70..N BLACK,TRIM2#,4#	09/2017 - 02/2021	1
45024-33240C0	AXVH71..D EU SALE SPECIFICATIONS 4,BLACK,TRIM2#,4#	02/2019 - 02/2021	1
45024-33240C0	AXVH71..LHD..D EU SALE SPECIFICATIONS 6,BLACK,TRIM2#,4#	02/2019 - 02/2021	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-33150	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-33351	ASV7#,AXVA70,AXVH7#,GSV70..LHD	09/2019 - 11/2020	1
45220-33350	ASV7#,AXVA70,AXVH71,GSV70..LHD	09/2017 - 08/2019	1
45220-33352	ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR	12/2020 - 02/2021	1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-11010	AXVH71..LHD..D EU SALE SPECIFICATIONS 6	02/2019 - 02/2021	1
45238-52010	AXVH71..D;ASV70,AXVA70,AXVH70..EUR	09/2017 - 02/2021	1
45238-11010	AXVH71..D EU SALE SPECIFICATIONS 4	02/2019 - 02/2021	1
45250 - COLUMN ASSY, STEERING
45250-33D60	AXVH71..D EU SALE SPECIFICATIONS 4	02/2019 - 05/2020	1
45250-33D60	AXVH71..LHD..D EU SALE SPECIFICATIONS 6	02/2019 - 05/2020	1
45250-33D40	AXVH71..D;ASV70..RHD	09/2017 - 02/2021	1
45250-48430	AXVH71..LHD..D EU SALE SPECIFICATIONS 6	06/2020 - 02/2021	1
45250-48430	AXVH71..D EU SALE SPECIFICATIONS 4	06/2020 - 02/2021	1
45253 - COVER, STEERING COLUMN HOLE
45253-33100	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
45286B - COVER, STEERING COLUMN, UPR
45286-33290C0	AXVH71..D;AXVA70,AXVH70..N BLACK,TRIM2#,4#	09/2017 - 02/2021	1
45897 - BOLT, STEERING LOCK SET
45897-12020	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	2
45897 - BOLT, STEERING LOCK SET
45897-12020	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	2
45897A - BOLT, TILT STEERING PAWL SET
90119-10980	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
Common parts
90119-06859
90119-08560
90178-10027
90460-81005
90467-06188
93568-55014
Linked diagrams
8401

AXVH71L-AEXDBW (2019)

(1709- )LHD ; (1910- )AXVA70..S

(1709- )AXVH71..LHD ; (1709- )AXVH70,GSV70..G,S ; (1709- )ASV70,AXVA70..RU
