AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

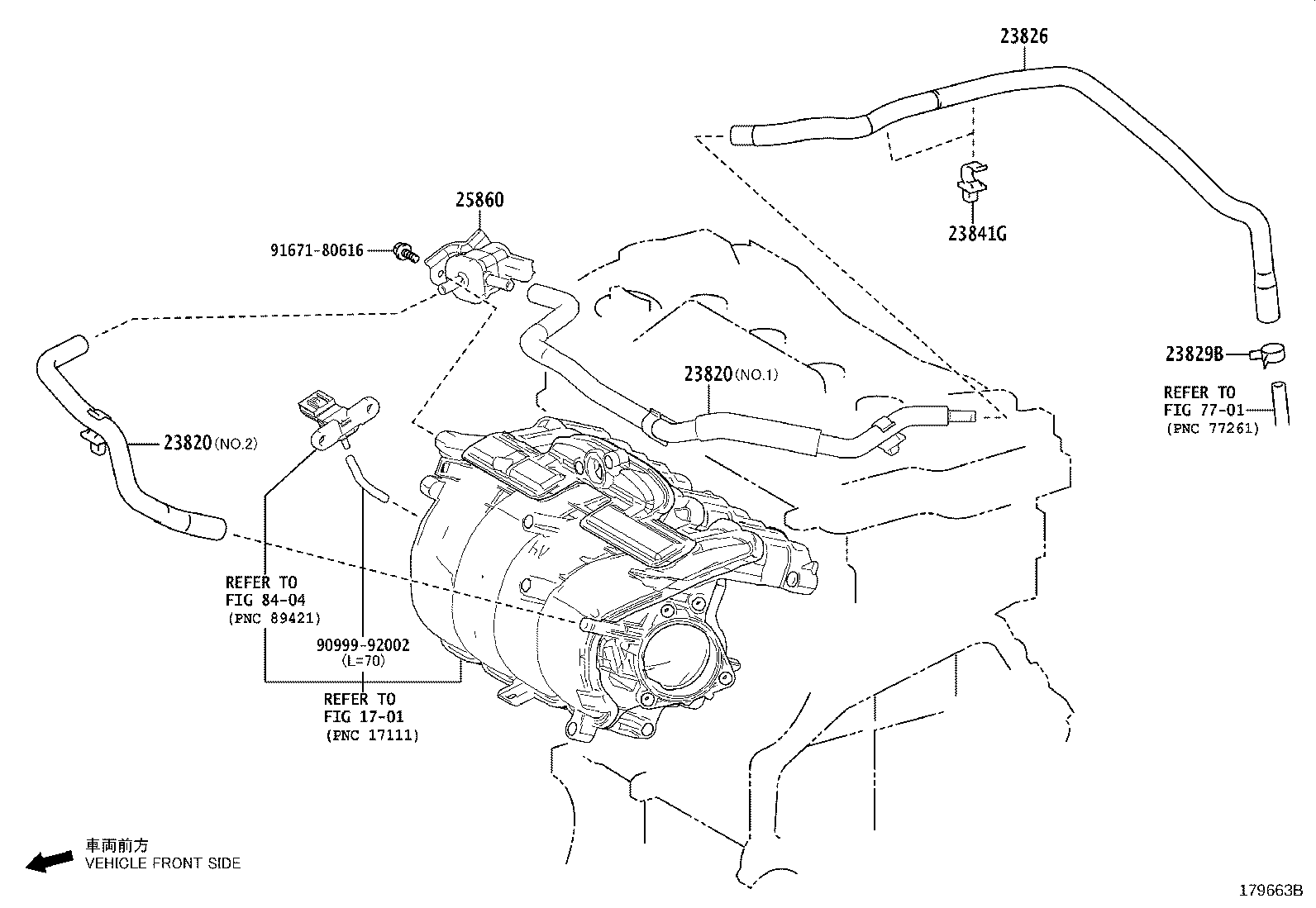

ILLUST NO. 1 OF 2(1709- )A25AFXS

Click highlighted areas on diagram

diagram 1701 23820 23820 23826 23829B 23841G 25860 7701 8404 9099992002 9167180616
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-25051

A25AFXS..AXVH71..LHD..D

UKRAINE SPEC,NO.1:REFER ILLUST.

 1
23820-25130

A25AFXS..AXVH71..LHD..D

UKRAINE SPEC,NO.2:REFER ILLUST.

 1
23820-25150

A25AFXS..AXVH71..D

NO.1:REFER ILLUST.

 1
23820-25160

A25AFXS..AXVH71..D

NO.2:REFER ILLUST.

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-25051

A25AFXS..AXVH71..LHD..D

UKRAINE SPEC,NO.1:REFER ILLUST.

 1
23820-25130

A25AFXS..AXVH71..LHD..D

UKRAINE SPEC,NO.2:REFER ILLUST.

 1
23820-25150

A25AFXS..AXVH71..D

NO.1:REFER ILLUST.

 1
23820-25160

A25AFXS..AXVH71..D

NO.2:REFER ILLUST.

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-25190

A25AFXS..AXVH71..D

 1
23826-25030

A25AFXS..AXVH71..LHD..D

UKRAINE SPEC

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96136-41901

A25#..AXVA70,AXVH7#

 1
23841G - CLAMP, FUEL HOSE
77281-06010

A25AFXS..AXVH71..D

 2
77196-48010

A25AFXS..AXVH71..LHD..D

UKRAINE SPEC

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-25020

A25AFXS..AXVH71..LHD..D

UKRAINE SPEC

 1
25860-25070

A25AFXS..AXVH71..D

 1
Common parts
90999-92002
91671-80616
Linked diagrams
1701
7701
8404

ILLUST NO. 2 OF 2(1902- )A25AFXS

Click highlighted areas on diagram

W(GPF)

diagram 25706 25715 8401 8401 9017906274 9017906274 9046712056
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-25010

A25AFXS..AXVH71..D

 1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-25010

A25AFXS..AXVH71..D

 1
Common parts
90179-06274
90467-12056
Linked diagrams
8401
