Toyota Camry/hybrid AXVH71 MANIFOLD

AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021

Engine A25AFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

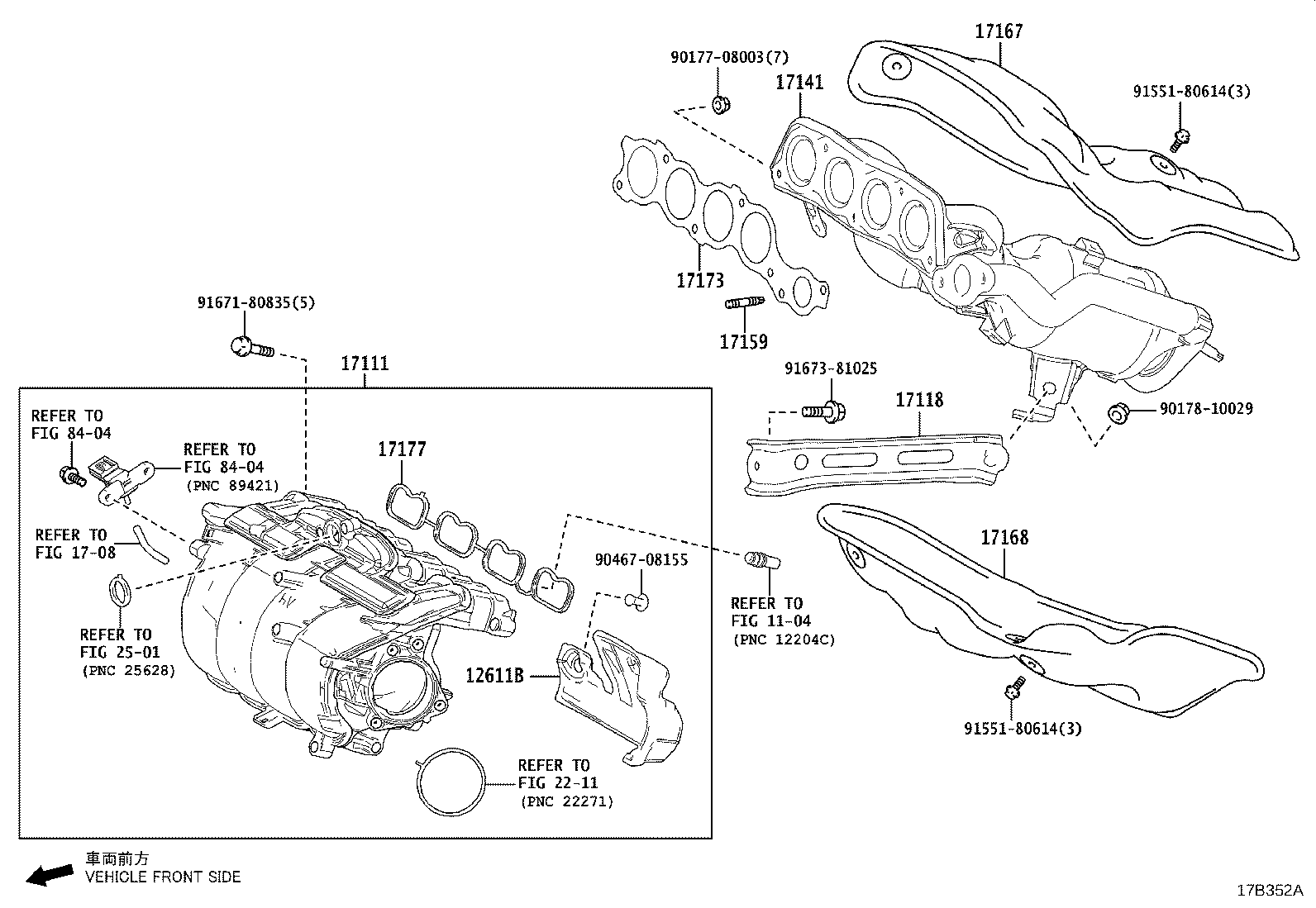

(1709-2009)A25AFXS

Click highlighted areas on diagram

Part #	Description	Period	Qty
12611B - COVER, ENGINE, NO.1
12613-25020	A25AFXS..AXVH7#	09/2017 - 02/2021	1
17111 - MANIFOLD, INTAKE
17120-25020	A25AFXS..AXVH7#	09/2017 - 02/2021	1
17118 - STAY, MANIFOLD
17118-25010	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	1
17141 - MANIFOLD, EXHAUST
17141-25040	A25AFXS..AXVH71..D *114=TOYOTA/25040/Y	09/2017 - 10/2019	1
17141-25041	A25AFXS..AXVH71..LHD..D *114=TOYOTA/25040/Y,UKRAINE SPEC	09/2020 - 02/2021	1
17141-25172	A25AFXS..AXVH71..D *114=TOYOTA/25170/Y	09/2020 - 02/2021	1
17141-25171	A25AFXS..AXVH71..D *114=TOYOTA/25170/Y	10/2019 - 09/2020	1
17141-25040	A25AFXS..AXVH71..LHD..D *114=TOYOTA/25040/Y,UKRAINE SPEC	10/2019 - 09/2020	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	7
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-25030	A25AFXS..AXVH71..D	10/2019 - 02/2021	1
17167-25010	A25AFXS..AXVH71..LHD..D UKRAINE SPEC	10/2019 - 08/2020	1
17167-25010	A25AFXS..AXVH71..D	09/2017 - 10/2019	1
17167-25040	A25#..AXVA70,AXVH7#..N,S	09/2020 - 02/2021	1
17167-25010	A25#..AXVA70,AXVH71..N,S	09/2017 - 08/2020	1
17167-25040	A25AFXS..AXVH71..LHD..D UKRAINE SPEC	09/2020 - 02/2021	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-25010	A25#..AXVA70,AXVH71	09/2017 - 08/2020	1
17168-25040	A25#..AXVA70,AXVH7#	09/2020 - 02/2021	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-25020	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-25010	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	1
Common parts
90177-08003
90178-10029
90467-08155
91551-80614
91671-80835
91673-81025
Linked diagrams
1104
1708
2211
2501
8404

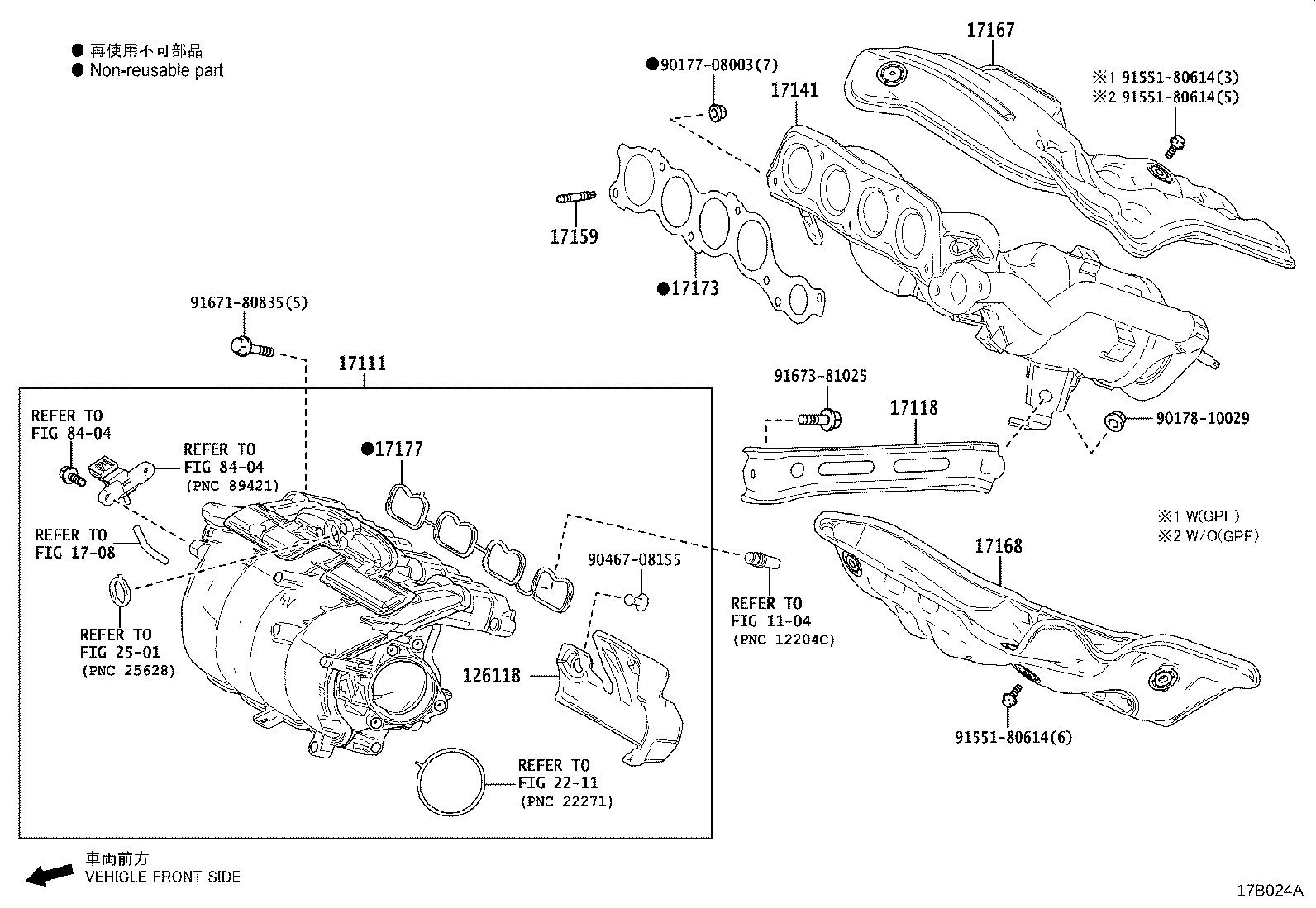

(2009- )A25AFXS

Click highlighted areas on diagram

Part #	Description	Period	Qty
12611B - COVER, ENGINE, NO.1
12613-25020	A25AFXS..AXVH7#	09/2017 - 02/2021	1
17111 - MANIFOLD, INTAKE
17120-25020	A25AFXS..AXVH7#	09/2017 - 02/2021	1
17118 - STAY, MANIFOLD
17118-25010	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	1
17141 - MANIFOLD, EXHAUST
17141-25040	A25AFXS..AXVH71..D *114=TOYOTA/25040/Y	09/2017 - 10/2019	1
17141-25041	A25AFXS..AXVH71..LHD..D *114=TOYOTA/25040/Y,UKRAINE SPEC	09/2020 - 02/2021	1
17141-25172	A25AFXS..AXVH71..D *114=TOYOTA/25170/Y	09/2020 - 02/2021	1
17141-25171	A25AFXS..AXVH71..D *114=TOYOTA/25170/Y	10/2019 - 09/2020	1
17141-25040	A25AFXS..AXVH71..LHD..D *114=TOYOTA/25040/Y,UKRAINE SPEC	10/2019 - 09/2020	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	7
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-25030	A25AFXS..AXVH71..D	10/2019 - 02/2021	1
17167-25010	A25AFXS..AXVH71..LHD..D UKRAINE SPEC	10/2019 - 08/2020	1
17167-25010	A25AFXS..AXVH71..D	09/2017 - 10/2019	1
17167-25040	A25#..AXVA70,AXVH7#..N,S	09/2020 - 02/2021	1
17167-25010	A25#..AXVA70,AXVH71..N,S	09/2017 - 08/2020	1
17167-25040	A25AFXS..AXVH71..LHD..D UKRAINE SPEC	09/2020 - 02/2021	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-25010	A25#..AXVA70,AXVH71	09/2017 - 08/2020	1
17168-25040	A25#..AXVA70,AXVH7#	09/2020 - 02/2021	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-25020	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-25010	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	1
Common parts
90177-08003
90178-10029
90467-08155
91551-80614
91671-80835
91673-81025
Linked diagrams
1104
1708
2211
2501
8404

AXVH71L-AEXDBW (2019)

(1709-2009)A25AFXS

(2009- )A25AFXS
