AXVH71L-AEXDBW (2019)

Toyota Camry/Hybrid

Production Feb 2019 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )

Click highlighted areas on diagram

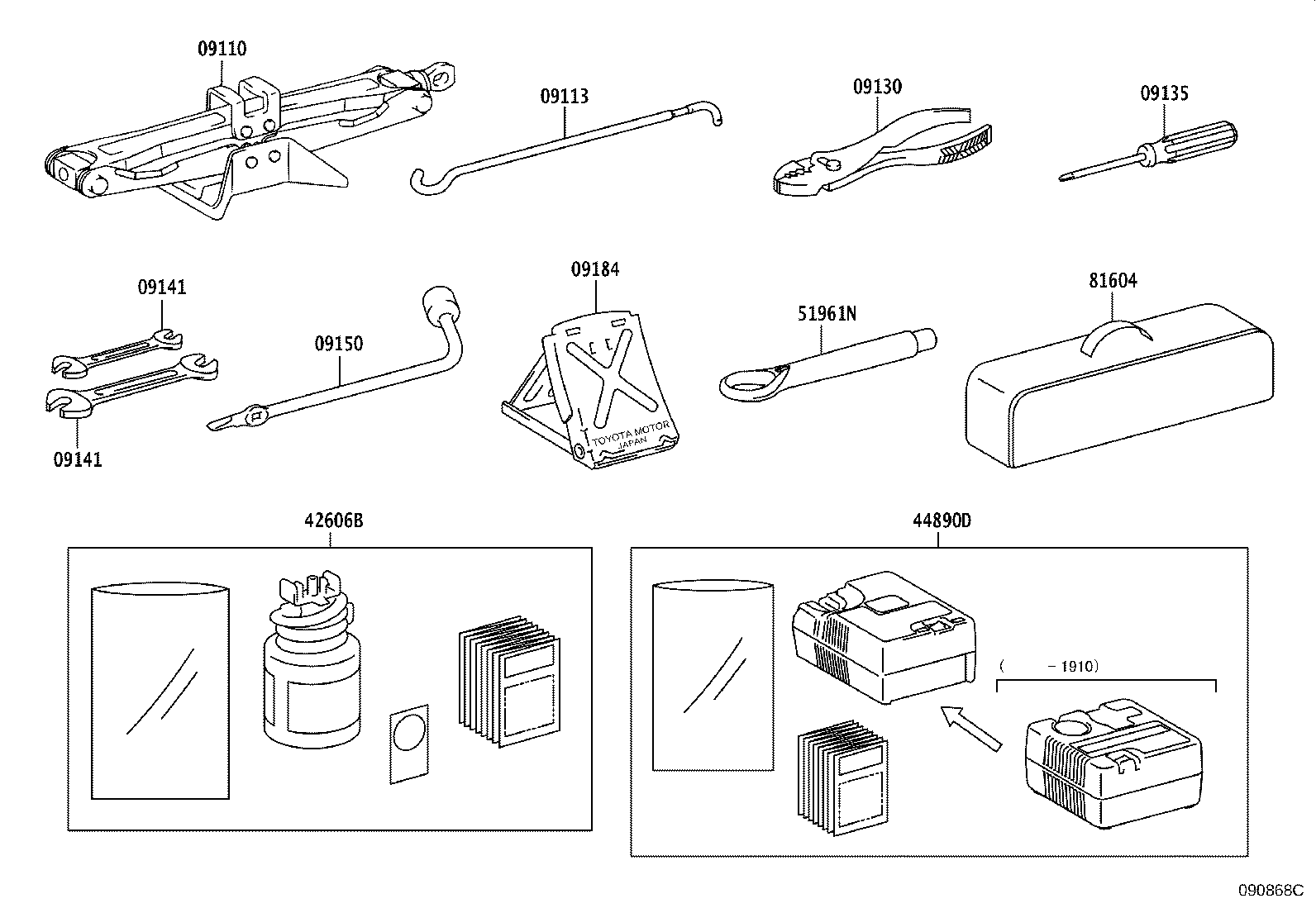

diagram 09110 09113 09130 09135 09141 09141 09150 09184 42606B 44890D 51961N 81604
Part # Description Qty Price
09110 - JACK ASSY
09111-33050

ASV70,AXVA70,AXVH71,GSV70..(D,G,N)..EUR

 1
09113 - HANDLE, JACK
09113-42030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
09130 - PLIERS
99913-11500

ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR

 1
09135 - DRIVER, SCREW
99915-10700

ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR

 1
09141 - SPANNER
99914-10810

ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR

8 X 10

 1
99914-11214

ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR

12 X 14

 1
09141 - SPANNER
99914-10810

ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR

8 X 10

 1
99914-11214

ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-42010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
09184 - STOPPER, WHEEL
09184-00010

ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR

 1
42606B - REPAIR KIT, TUBELESS TIRE
42606-58010

ASV7#,AXVA70,AXVH71,GSV70

 1
42606-30011

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
44890D - COMPRESSOR ASSY, AIR
44890-30030

AXVH71..D

 1
44890-33020

AXVH71..D

 1
51961N - HOOK, TRANSPORT
51961-33010

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

 1
