AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
(1709-2102)ASV70,AXVA70,GSV70..LHD ; (2102-2104)ASV70,GSV70..RUS

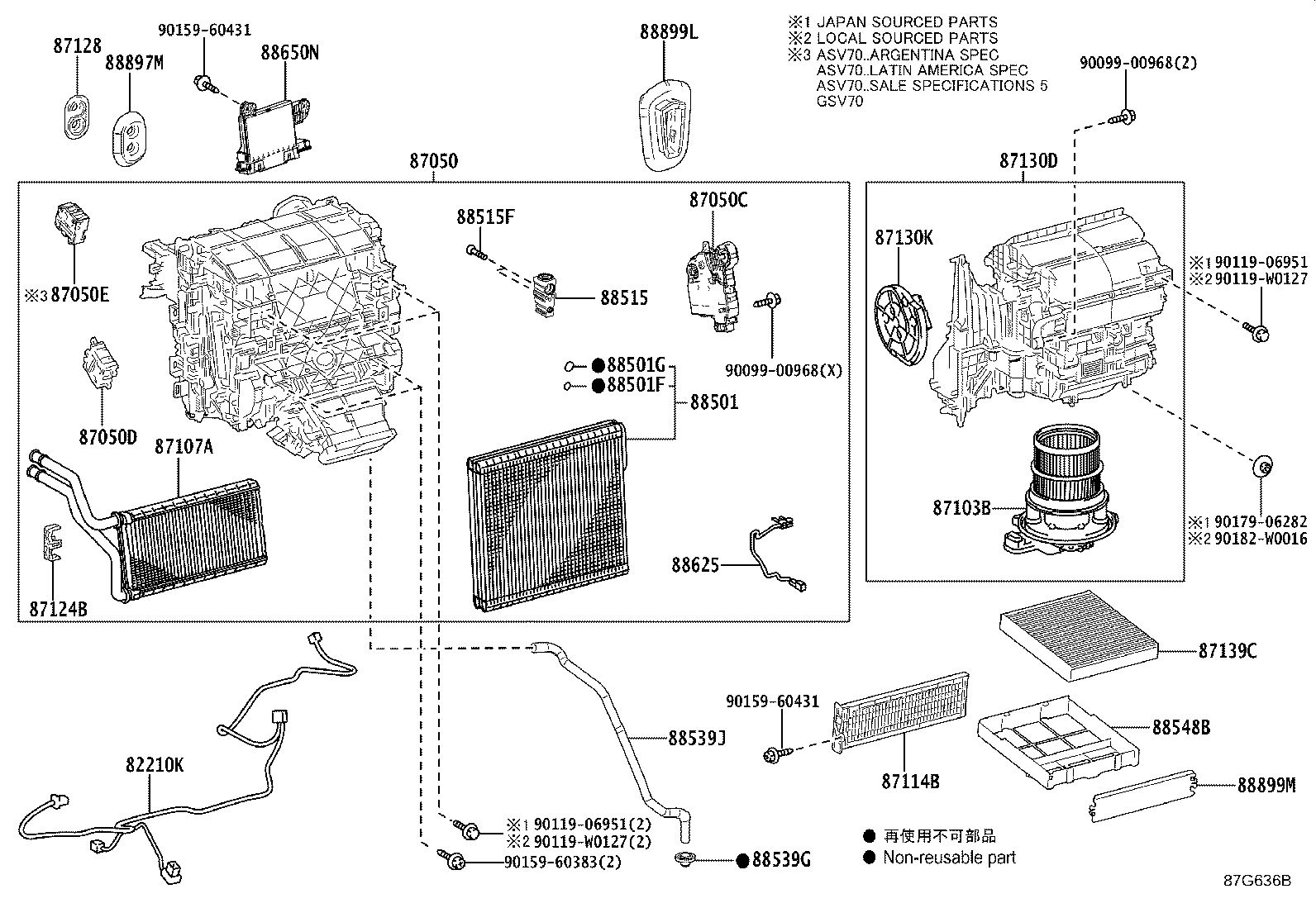

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-33100 |
ASV70,AXVA70..LHD |
1 | ||
| 82212-42050 |
AXVH71..LHD..D;ASV70,AXVA70,AXVH70..LHD..EUR |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33C30 |
ASV70,AXVA70..LHD..EUR |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48170 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-48200 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-58080 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33130 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-33050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70..EUR |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-47290 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-58050 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33340 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
ASV70,AXVA70,AXVH70,GSV70..EUR |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-33130 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-48070 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70..EUR |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-33D21 |
AXVA70 |
1 | ||
| 88650-33D20 |
AXVA70 |
1 | ||
| 88650-33D22 |
AXVA70,AXVH70 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70..EUR |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
ASV70,AXVA70,AXVH7#,GSV70..EUR TYPE B |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90119-W0127 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||
| 90182-W0016 | ||||
(1902-2102)LHD..D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-33100 |
ASV70,AXVA70..LHD |
1 | ||
| 82212-42050 |
AXVH71..LHD..D;ASV70,AXVA70,AXVH70..LHD..EUR |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33C30 |
ASV70,AXVA70..LHD..EUR |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48170 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-48200 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-58080 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33130 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-33050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70..EUR |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-47290 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-58050 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33340 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
ASV70,AXVA70,AXVH70,GSV70..EUR |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-33130 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-48070 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70..EUR |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-33D21 |
AXVA70 |
1 | ||
| 88650-33D20 |
AXVA70 |
1 | ||
| 88650-33D22 |
AXVA70,AXVH70 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70..EUR |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
ASV70,AXVA70,AXVH7#,GSV70..EUR TYPE B |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||
