AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
ILLUST NO. 2 OF 2(1709-2102) ; (2102-2104)RUS

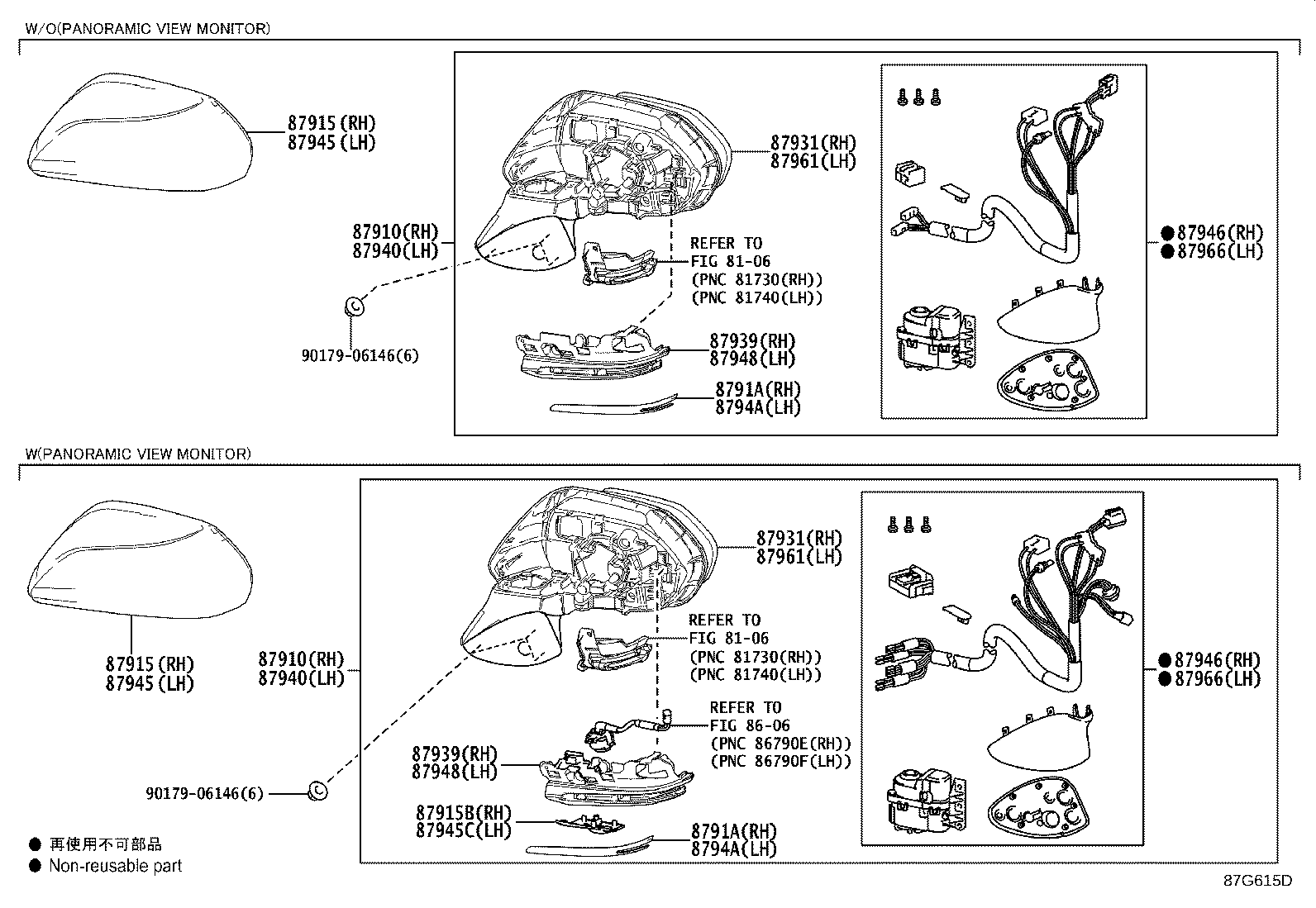

OUTER REAR VIEW MIRROR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-33D60 |
AXVA70,AXVH70 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-33D60 |
AXVA70,AXVH70 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-33030D0 |
ASV70,AXVA70,AXVH71,GSV70..EUR EMOTIONAL RED,3T7 |
1 | ||
| 87915-33030A1 |
ASV70,AXVA70,AXVH7#,GSV70..EUR PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87915-33030C0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR ATTITUDE BLACK MC.,218 |
1 | ||
| 87915-33030E2 |
ASV70,AXVA70,AXVH7#,GSV70..EUR GRAPHITE ME.,4X7 |
1 | ||
| 87915-33030E1 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR STEEL BLONDE ME.,4X1 |
1 | ||
| 87915-33030B0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR SILVER ME.,1F7 |
1 | ||
| 87915-33030D1 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR EMOTIONAL RED 2,3U5 |
1 | ||
| 87915-33030J0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR DK.BLUE M.M.,8W7 |
1 | ||
| 87915-33030C0 |
AXVA70..S ATTITUDE BLACK MC.,2PS ,2SC |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-33030D0 |
ASV70,AXVA70,AXVH71,GSV70..EUR EMOTIONAL RED,3T7 |
1 | ||
| 87915-33030A1 |
ASV70,AXVA70,AXVH7#,GSV70..EUR PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87915-33030C0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR ATTITUDE BLACK MC.,218 |
1 | ||
| 87915-33030E2 |
ASV70,AXVA70,AXVH7#,GSV70..EUR GRAPHITE ME.,4X7 |
1 | ||
| 87915-33030E1 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR STEEL BLONDE ME.,4X1 |
1 | ||
| 87915-33030B0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR SILVER ME.,1F7 |
1 | ||
| 87915-33030D1 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR EMOTIONAL RED 2,3U5 |
1 | ||
| 87915-33030J0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR DK.BLUE M.M.,8W7 |
1 | ||
| 87915-33030C0 |
AXVA70..S ATTITUDE BLACK MC.,2PS ,2SC |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791B-47360 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791B-47360 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87902-33150 |
AXVA70,AXVH70 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87902-33150 |
AXVA70,AXVH70 |
1 | ||
| 87939 - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-47360 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87939 - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-47360 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-33D60 |
AXVA70,AXVH70 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-33D60 |
AXVA70,AXVH70 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-33030B0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR SILVER ME.,1F7 |
1 | ||
| 87945-33030A1 |
ASV70,AXVA70,AXVH7#,GSV70..EUR PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87945-33030C0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR ATTITUDE BLACK MC.,218 |
1 | ||
| 87945-33030D1 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR EMOTIONAL RED 2,3U5 |
1 | ||
| 87945-33030J0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR DK.BLUE M.M.,8W7 |
1 | ||
| 87945-33030E2 |
ASV70,AXVA70,AXVH7#,GSV70..EUR GRAPHITE ME.,4X7 |
1 | ||
| 87945-33030E1 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR STEEL BLONDE ME.,4X1 |
1 | ||
| 87945-33030C0 |
AXVA70..S ATTITUDE BLACK MC.,2PS ,2SC |
1 | ||
| 87945-33030D0 |
ASV70,AXVA70,AXVH71,GSV70..EUR EMOTIONAL RED,3T7 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-33030B0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR SILVER ME.,1F7 |
1 | ||
| 87945-33030A1 |
ASV70,AXVA70,AXVH7#,GSV70..EUR PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87945-33030C0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR ATTITUDE BLACK MC.,218 |
1 | ||
| 87945-33030D1 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR EMOTIONAL RED 2,3U5 |
1 | ||
| 87945-33030J0 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR DK.BLUE M.M.,8W7 |
1 | ||
| 87945-33030E2 |
ASV70,AXVA70,AXVH7#,GSV70..EUR GRAPHITE ME.,4X7 |
1 | ||
| 87945-33030E1 |
ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR STEEL BLONDE ME.,4X1 |
1 | ||
| 87945-33030C0 |
AXVA70..S ATTITUDE BLACK MC.,2PS ,2SC |
1 | ||
| 87945-33030D0 |
ASV70,AXVA70,AXVH71,GSV70..EUR EMOTIONAL RED,3T7 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-33D60 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-33D60 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-47250 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-47250 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794B-47250 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794B-47250 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87907-33130 |
AXVA70,AXVH70 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87907-33130 |
AXVA70,AXVH70 |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-33D60 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-33D60 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| Common parts | ||||
| 90179-06146 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
ILLUST NO. 1 OF 2(1709-2102) ; (2102-2104)RUS

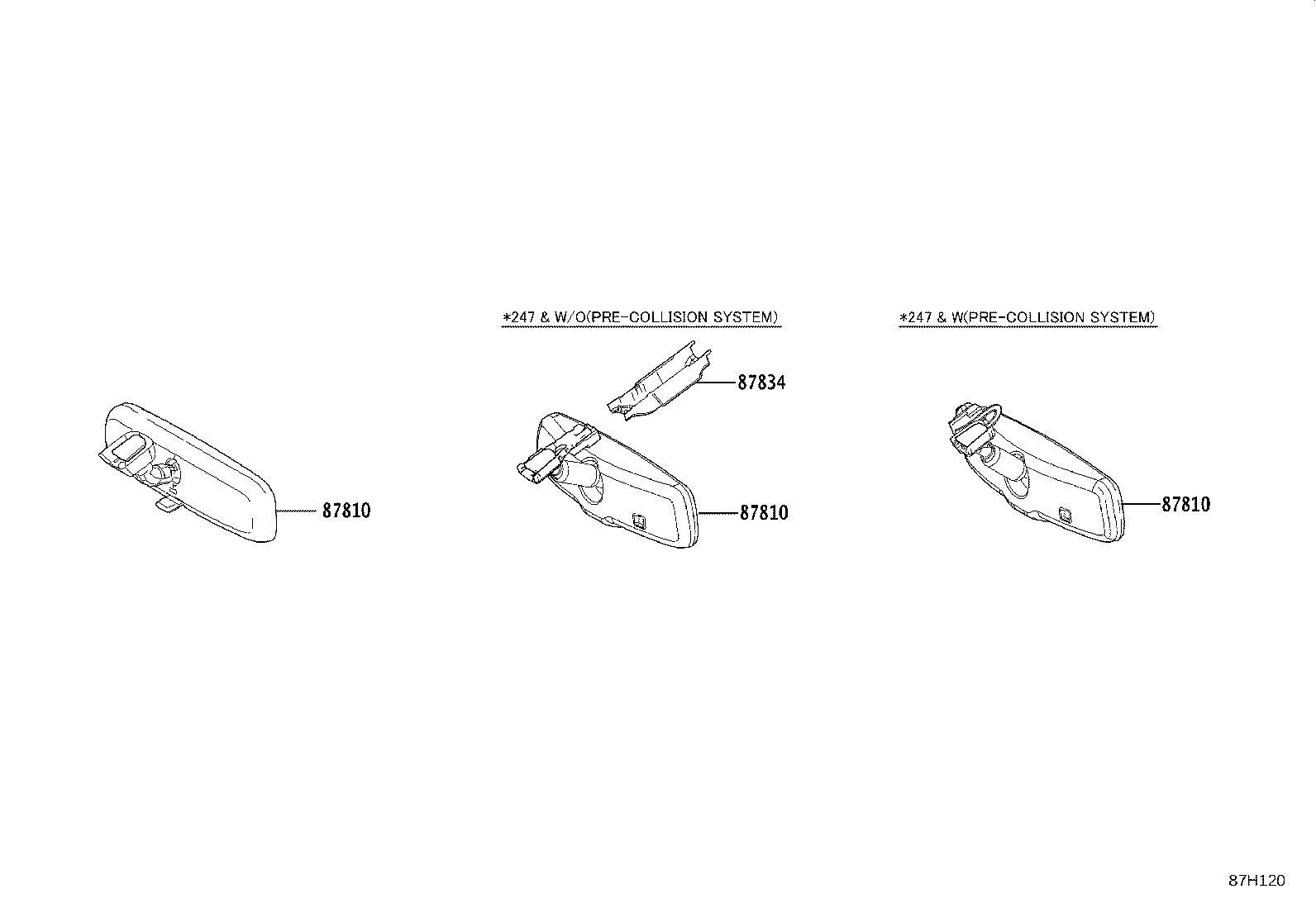

INNER REAR VIEW MIRROR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WS50 |
AXVA70,AXVH70 |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WS50 |
AXVA70,AXVH70 |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WS50 |
AXVA70,AXVH70 |
1 | ||
