AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
Production
Sep 2017
-
Feb 2021
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1709-2102)EUR

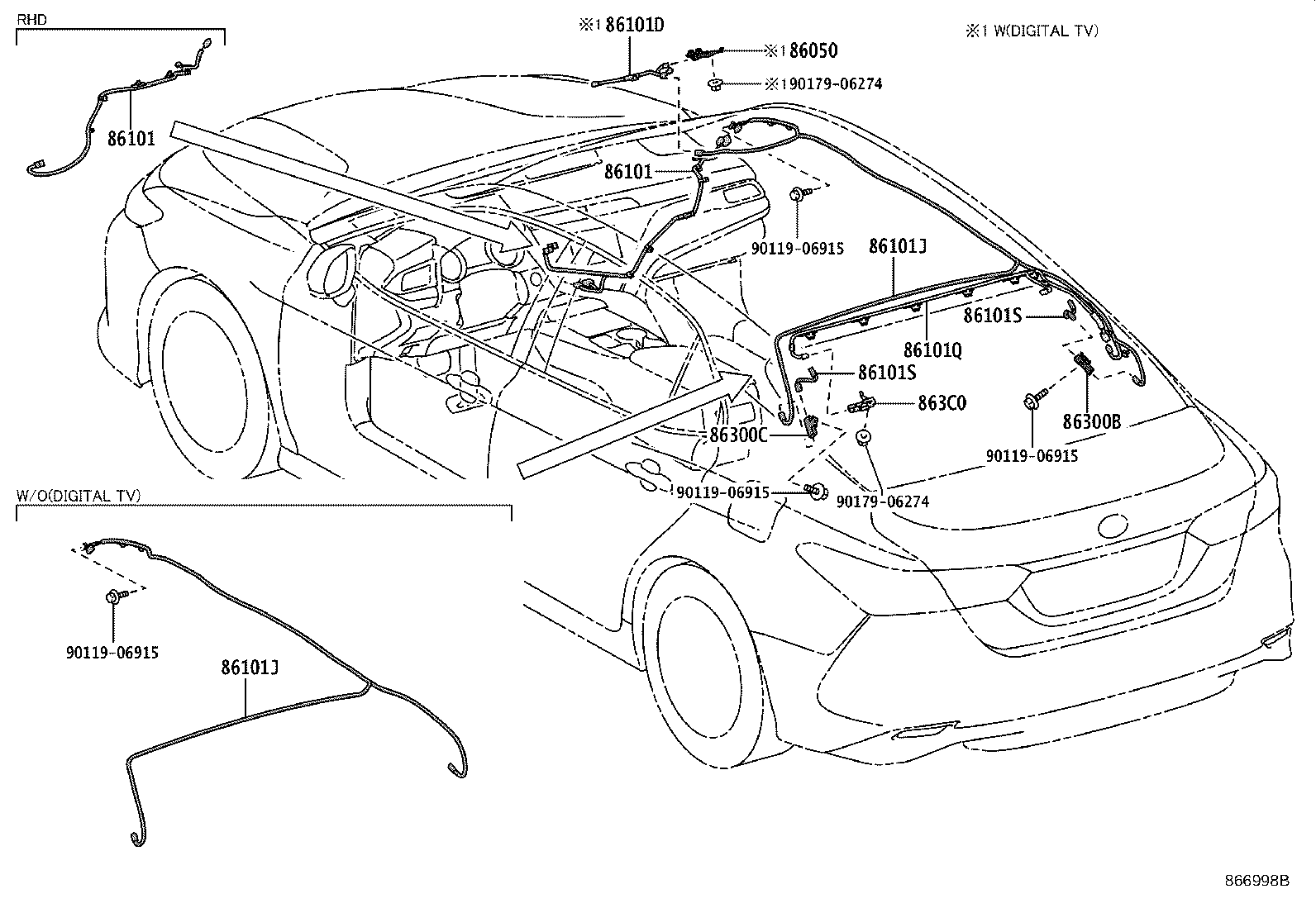

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-33N20 |
AXVA70,AXVH70 |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-33N20 |
AXVA70,AXVH70 |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-33K30 |
AXVA70 |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-33K30 |
AXVA70 |
1 | ||
| 86101Q - CORD SUB-ASSY, ANTENNA, NO.4 | ||||
| 86101-33L20 |
AXVA70,AXVH70 |
1 | ||
| 86101S - CORD SUB-ASSY, ANTENNA | ||||
| 86101-33J00 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 86101S - CORD SUB-ASSY, ANTENNA | ||||
| 86101-33J00 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-33370 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 86300C - ANTENNA ASSY, AMPLIFIER, NO.2 | ||||
| 86300-33380 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 863C0 - ANTENNA ASSY, DIGITAL AUDIO BROADCASTING | ||||
| 863C0-33040 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
(1902-2102)D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-33N20 |
AXVA70,AXVH70 |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-33N20 |
AXVA70,AXVH70 |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-33K30 |
AXVA70 |
1 | ||
| 86101S - CORD SUB-ASSY, ANTENNA | ||||
| 86101-33J00 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 86101S - CORD SUB-ASSY, ANTENNA | ||||
| 86101-33J00 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-33370 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 86300C - ANTENNA ASSY, AMPLIFIER, NO.2 | ||||
| 86300-33380 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 863C0 - ANTENNA ASSY, DIGITAL AUDIO BROADCASTING | ||||
| 863C0-33040 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90179-06274 | ||||
