AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709-2102)ASV70,AXVA70,AXVH7#,GSV70..LHD

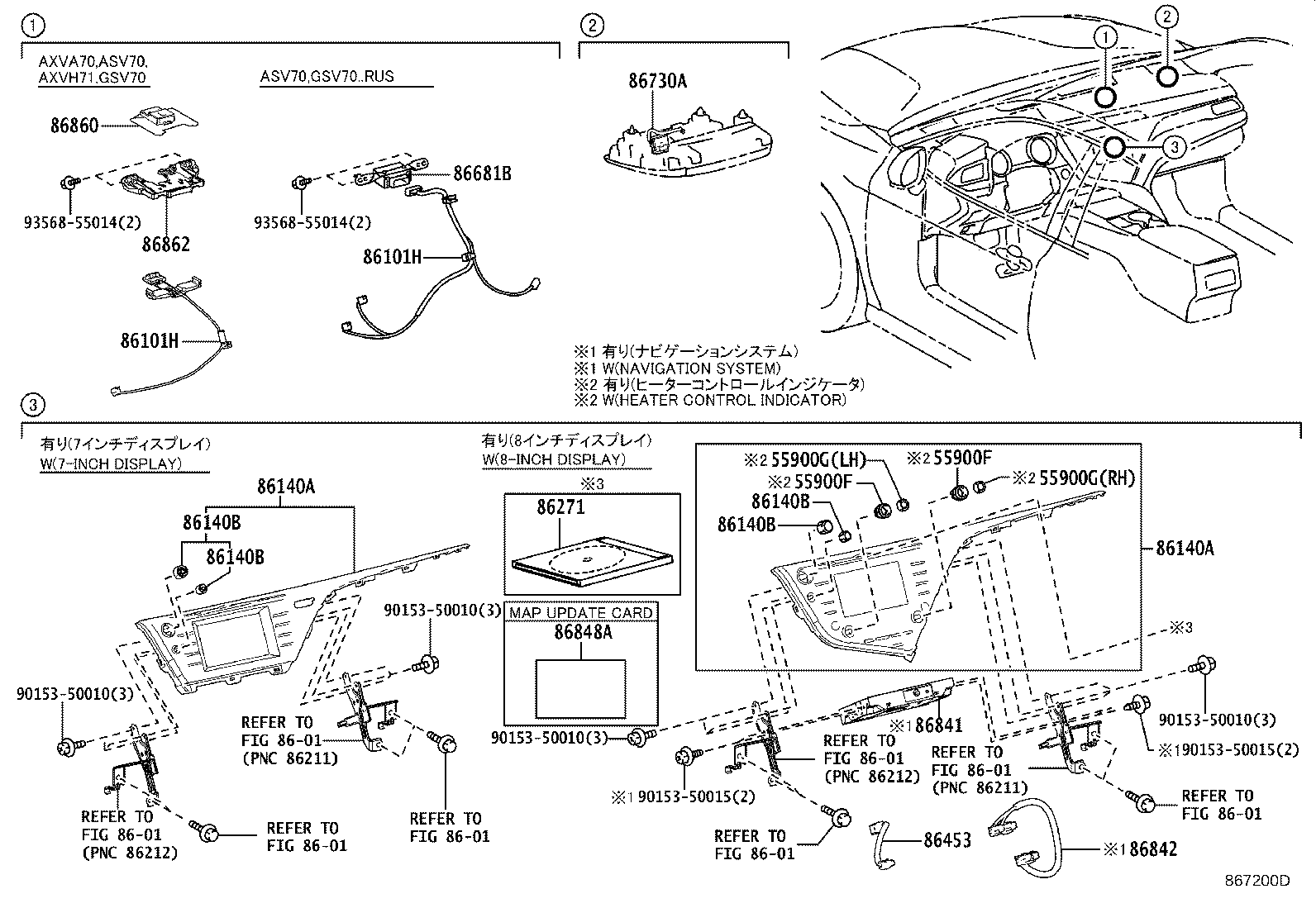

Click highlighted areas on diagram

diagram 55900F 55900F 55900G 55900G 8601 8601 8601 8601 8601 8601 8601 8601 86101H 86101H 86140A 86140A 86140B 86140B 86140B 86140B 86271 86453 86681B 86730A 86841 86842 86848A 86860 86862 9015350010 9015350010 9015350010 9015350010 9015350015 9015350015 9356855014 9356855014
Part # Description Qty Price
86101H - CORD SUB-ASSY, ANTENNA
86101-33L50

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
86101H - CORD SUB-ASSY, ANTENNA
86101-33L50

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-33640

AXVA70,AXVH70

PIONEER

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-33640

AXVA70,AXVH70

PIONEER

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22123

AXVA70,AXVH70

PWR/VOL

 1
90010-22124

AXVA70,AXVH70

TUNE/SCROLL

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22123

AXVA70,AXVH70

PWR/VOL

 1
90010-22124

AXVA70,AXVH70

TUNE/SCROLL

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22123

AXVA70,AXVH70

PWR/VOL

 1
90010-22124

AXVA70,AXVH70

TUNE/SCROLL

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22123

AXVA70,AXVH70

PWR/VOL

 1
90010-22124

AXVA70,AXVH70

TUNE/SCROLL

 1
86453 - WIRE, MULTI-MEDIA MODULE
86203-33280

ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-48040

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
86842 - WIRE, NAVIGATION, NO.1
86842-33150

AXVA70,AXVH70

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-78010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020

ASV70,AXVA70,AXVH71,GSV70..EUR

 1
86862-42010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
Common parts
90153-50010
90153-50015
93568-55014
Linked diagrams
8601
