AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
(1709-2104)AXVH70..N ; (1709-2104)ASV71,AXVA70,AXVH71..LHD..N,S ; (2102- )AXVH70
W/O HEADLAMP CLEANER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30240 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE +2 |
2 | ||
| 85381-30240 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE +2 |
2 | ||
| 85381-30230 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE -2 |
2 | ||
| 85381-30230 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE -2 |
2 | ||
| 85381-30220 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE 0 |
2 | ||
| 85381-30220 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30240 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE +2 |
2 | ||
| 85381-30240 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE +2 |
2 | ||
| 85381-30230 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE -2 |
2 | ||
| 85381-30230 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE -2 |
2 | ||
| 85381-30220 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE 0 |
2 | ||
| 85381-30220 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30240 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE +2 |
2 | ||
| 85381-30240 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE +2 |
2 | ||
| 85381-30230 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE -2 |
2 | ||
| 85381-30230 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE -2 |
2 | ||
| 85381-30220 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE 0 |
2 | ||
| 85381-30220 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE 0 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85329-33520 |
ASV71,AXVA70,AXVH70 |
1 | ||
| 85329-33520 |
ASV71,AXVA70,AXVH70 |
1 | ||
| 85301B - CLIP, WASHER | ||||
| 90467-07214 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 90467-07214 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-33070 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 85330-33070 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 85319-33230 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-33520 |
AXVH70..N;ASV71,AXVA70..LHD |
1 | ||
| 85315-33520 |
AXVH70..N;ASV71,AXVA70..LHD |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AXVH70..N;ASV71,AXVA70..LHD |
1 | ||
| 90099-32089 |
AXVH70..N;ASV71,AXVA70..LHD |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-33560 |
ASV71,AXVA70,AXVH70 |
1 | ||
| 85316-33560 |
ASV71,AXVA70,AXVH70 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30160 |
AXVH70..N;ASV71,AXVA70..LHD |
1 | ||
| 85336-30160 |
AXVH70..N;ASV71,AXVA70..LHD |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85378-33410 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85378-33410 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85373-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85373-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85321-26020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 85321-26020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85321-26020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 85321-26020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=1530 |
1 | ||
| 90099-33803 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=1530 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=330 |
1 | ||
| 90099-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=330 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33299 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=370 |
2 | ||
| 90099-33299 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=370 |
2 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33299 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=370 |
2 | ||
| 90099-33299 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=370 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=60 |
2 | ||
| 90099-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=60 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=60 |
2 | ||
| 90099-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=60 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85371-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85371-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 85397-52100 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-52090 | ||||
| 85371-12040 | ||||
| 90119-06767 | ||||
| 90119-W0089 | ||||
| 90469-07011 | ||||
(1709-2104)GSV70..EUR ; (1709-2104)ASV70,AXVH71..D,N ; (2102- )AXVA70,AXVH71,GSV
W/ HEADLAMP CLEANER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30240 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE +2 |
2 | ||
| 85381-30230 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE -2 |
2 | ||
| 85381-30220 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30240 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE +2 |
2 | ||
| 85381-30230 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE -2 |
2 | ||
| 85381-30220 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30240 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE +2 |
2 | ||
| 85381-30230 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE -2 |
2 | ||
| 85381-30220 |
ASV70,AXVA70,AXVH7#,GSV70..EUR ANGLE 0 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85329-33520 |
ASV71,AXVA70,AXVH70 |
1 | ||
| 85301B - CLIP, WASHER | ||||
| 90467-07214 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-33070 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-33520 |
AXVH70..N;ASV71,AXVA70..LHD |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AXVH70..N;ASV71,AXVA70..LHD |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-33560 |
ASV71,AXVA70,AXVH70 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30160 |
AXVH70..N;ASV71,AXVA70..LHD |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85378-33410 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85373-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85321-26020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85321-26020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=1530 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=330 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33299 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=370 |
2 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33299 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=370 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=60 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR *H,L=60 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85371-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-52090 | ||||
| 85371-12040 | ||||
| 90119-06767 | ||||
| 90119-W0089 | ||||
| 90469-07011 | ||||

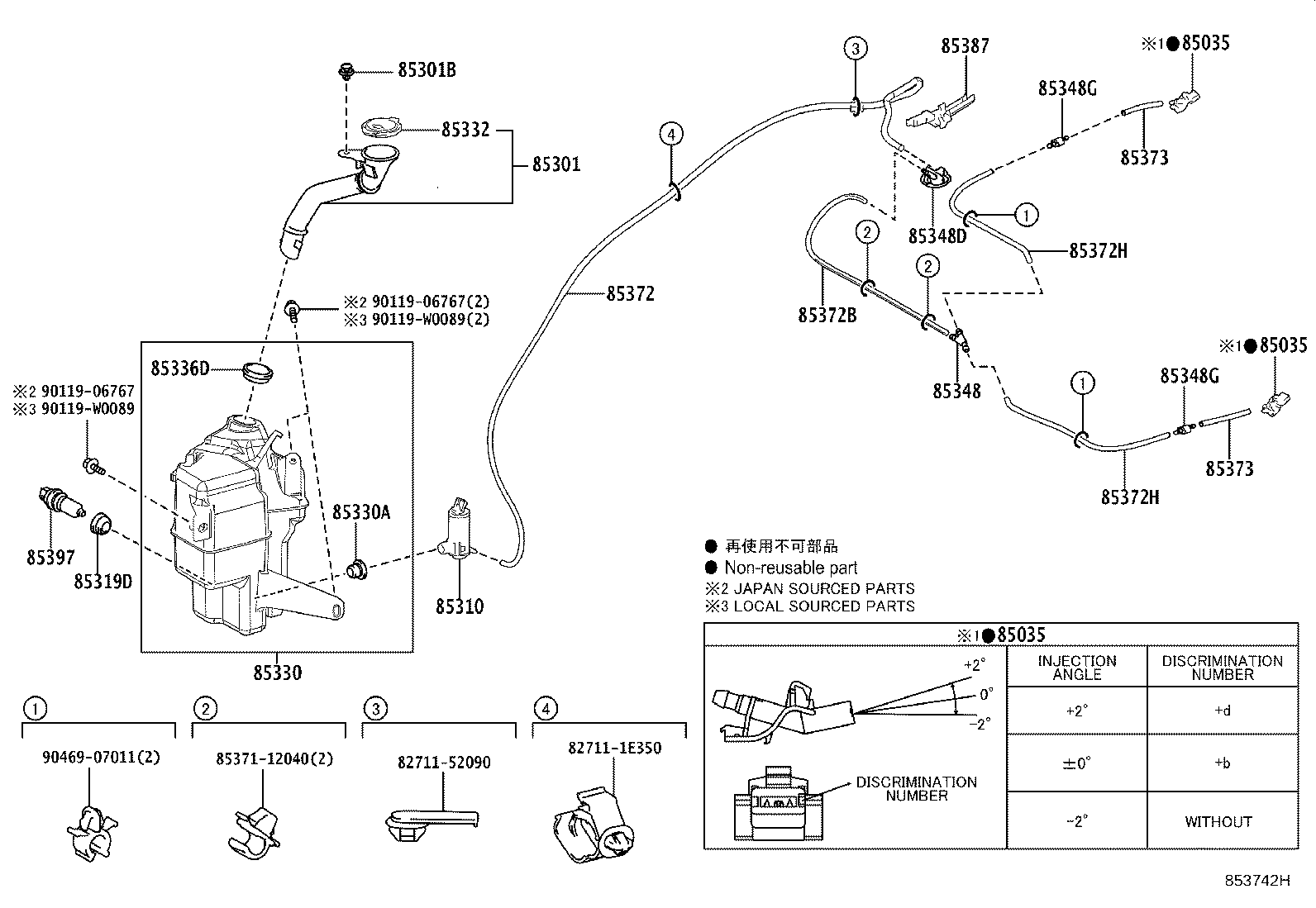

| Linked diagrams | ||||
| 8505 | ||||
