AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )AXVA70

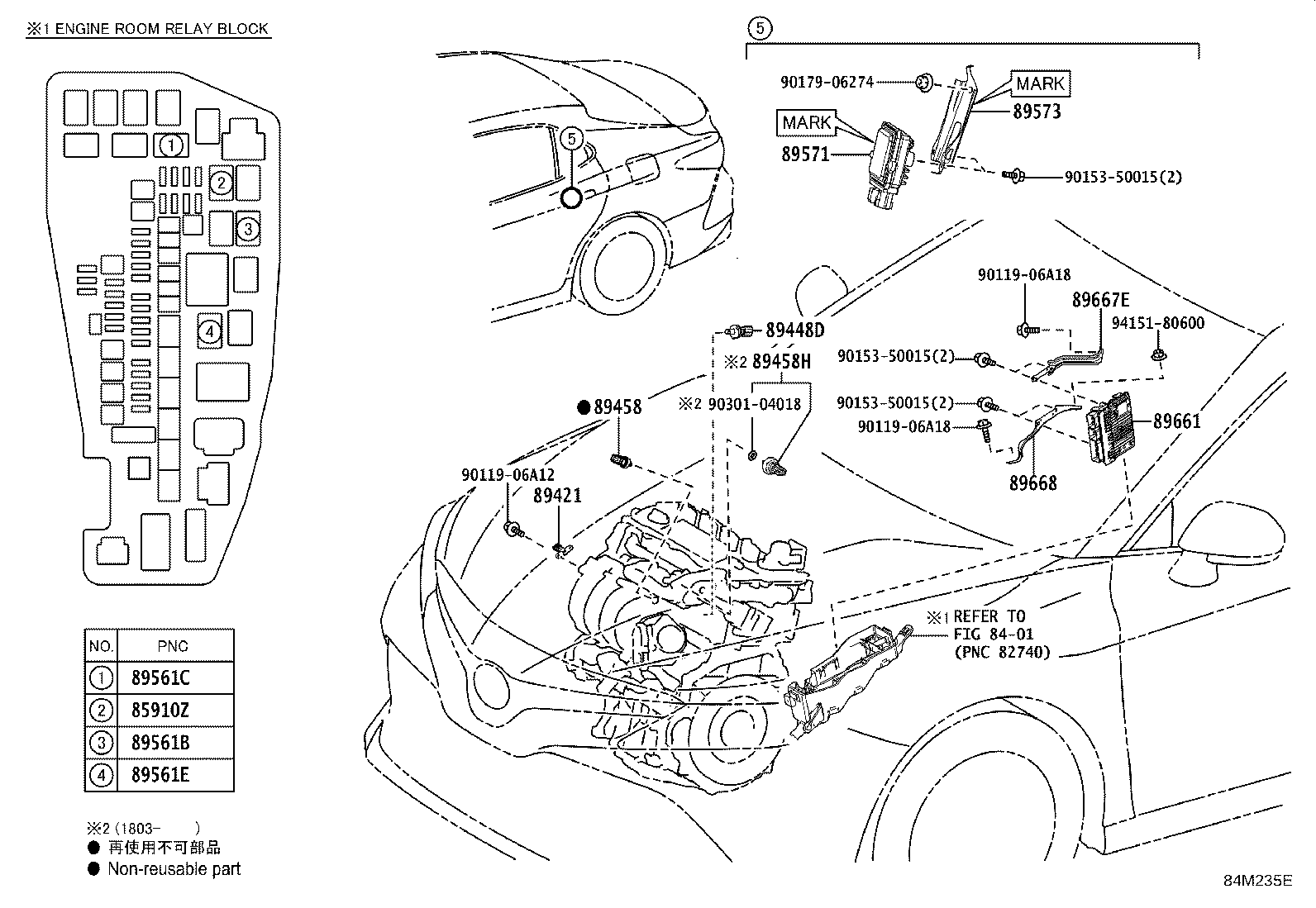

Click highlighted areas on diagram

diagram 8401 85910Z 89421 89448D 89458 89458H 89561B 89561C 89561E 89571 89573 89661 89667E 89668 9011906A12 9011906A18 9011906A18 9015350015 9015350015 9015350015 9017906274 9030104018 9415180600
Part # Description Qty Price
85910Z - RELAY, INJECTION (FOR EFI)
90987-02027

AXVA70,GSV70..EUR

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-33010

AXVA70,AXVH7#

 1
89448D - SENSOR, OIL PRESSURE & TEMPERATURE
89448-33010

AXVA70,AXVH7#

 1
89458 - SENSOR, FUEL PRESSURE
89458-33030

AXVA70,AXVH7#

 1
89458H - SENSOR, FUEL PRESSURE, NO.2
89458-33041

AXVA70,AXVH7#

 1
89561B - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
90987-02027

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
89561C - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
90987-02027

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
89561E - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
90987-02027

AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-42010

AXVA70,AXVH7#

P/N LABEL=8957142010

 1
89571-33030

AXVA70,AXVH71

P/N LABEL=8957133030

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-33070

AXVA70,AXVH7#,GSV70..EUR

MARK C

 1
89573-33040

AXVA70,AXVH71,GSV70

MARK K

 1
89661 - COMPUTER, ENGINE CONTROL
89661-33U70

AXVA70

DENSO,P/N LABEL=8966133U70

 1
89661-33U71

AXVA70

DENSO,P/N LABEL=8966133U71

 1
89661-3TA00

AXVA70

DENSO

 1
89661-3TE30

AXVA70

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-33190

AXVA70

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-33240

AXVA70

 1
Common parts
90119-06A12
90119-06A18
90153-50015
90179-06274
90301-04018
94151-80600
Linked diagrams
8401
