AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
ILLUST NO. 5 OF 8(1709-2102)LHD

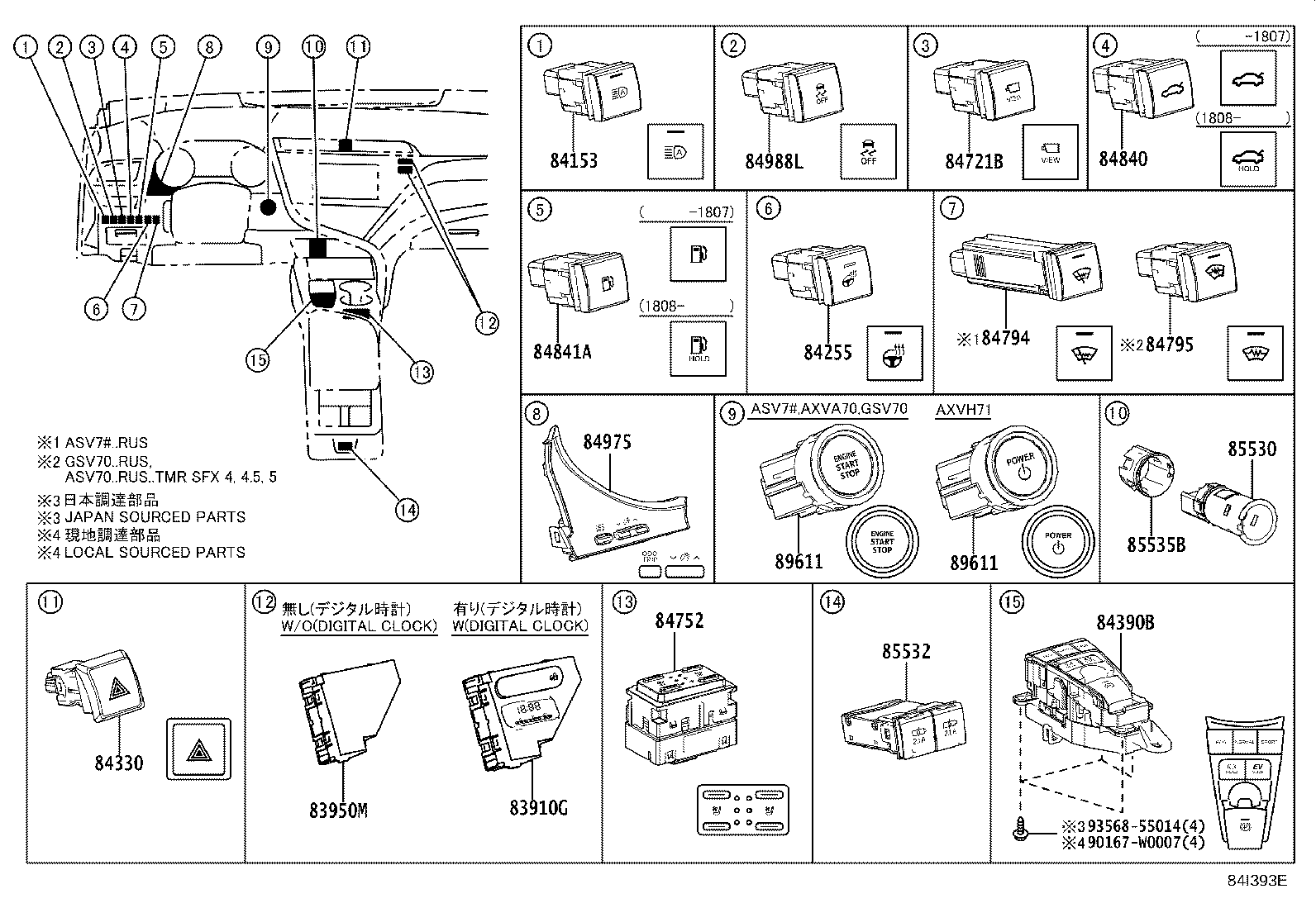

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-33080 |
AXVA70,AXVH70 |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-33100 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-33050 |
ASV70,AXVA70,GSV70..LHD..EUR |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-33160 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33120 |
ASV7#,AXVA70,AXVH71,GSV70 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-33040 |
ASV7#,AXVA70,AXVH71,GSV70 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-33040 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-33100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-52010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85532-33010 |
ASV7#,AXVA70,AXVH71,GSV70 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
ASV70..RHD;AXVA70,GSV70..EUR |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
ASV70..RHD;AXVA70,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 93568-55014 | ||||
ILLUST NO. 6 OF 8(1709- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-33500C4 |
AXVH71..D;GSV70..RUS;AXVA70,AXVH70..LHD..N BLACK / SATIN CHROM,TRIM2#,4# |
1 | ||
| 84250-33500C4 |
AXVA70..S BLACK / SATIN CHROM,TRIM2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-11010 |
AXVA70,AXVH70 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
AXVH71..D;ASV70,AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
AXVH71..D;ASV70,AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33120 |
AXVA70,AXVH70 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33120 |
AXVA70,AXVH70 |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-11010 |
AXVA70..S |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-33021 |
AXVA70..S RH |
1 | ||
| 84610-33011 |
AXVA70..S LH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-33021 |
AXVA70..S RH |
1 | ||
| 84610-33011 |
AXVA70..S LH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33600 |
AXVH71..D;ASV70,AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33600 |
AXVH71..D;ASV70,AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 89245C - SENSOR, STEERING | ||||
| 8924B-50050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 8924B-33040 |
ASV7#,AXVA70,AXVH71,GSV70 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
ILLUST NO. 7 OF 8(1709- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33180C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 84921-33180E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33180C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 84921-33180E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 84921-33170E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 84921-33170E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-33210C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 84922-33210E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-33210C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 84922-33210E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 7101 | ||||
ILLUST NO. 8 OF 8(1709- )
DOOR, FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33150 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33150 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33160 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33160 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-48030 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N,S)..EUR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-48030 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N,S)..EUR |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-48030 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N,S)..EUR |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-48030 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N,S)..EUR |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-33040 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-33040 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-47030 |
AXVA70,AXVH70 |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-33040 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60498 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90178-06012 | ||||
| 90189-06197 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 8201 | ||||
ILLUST NO. 2 OF 8(1709- )

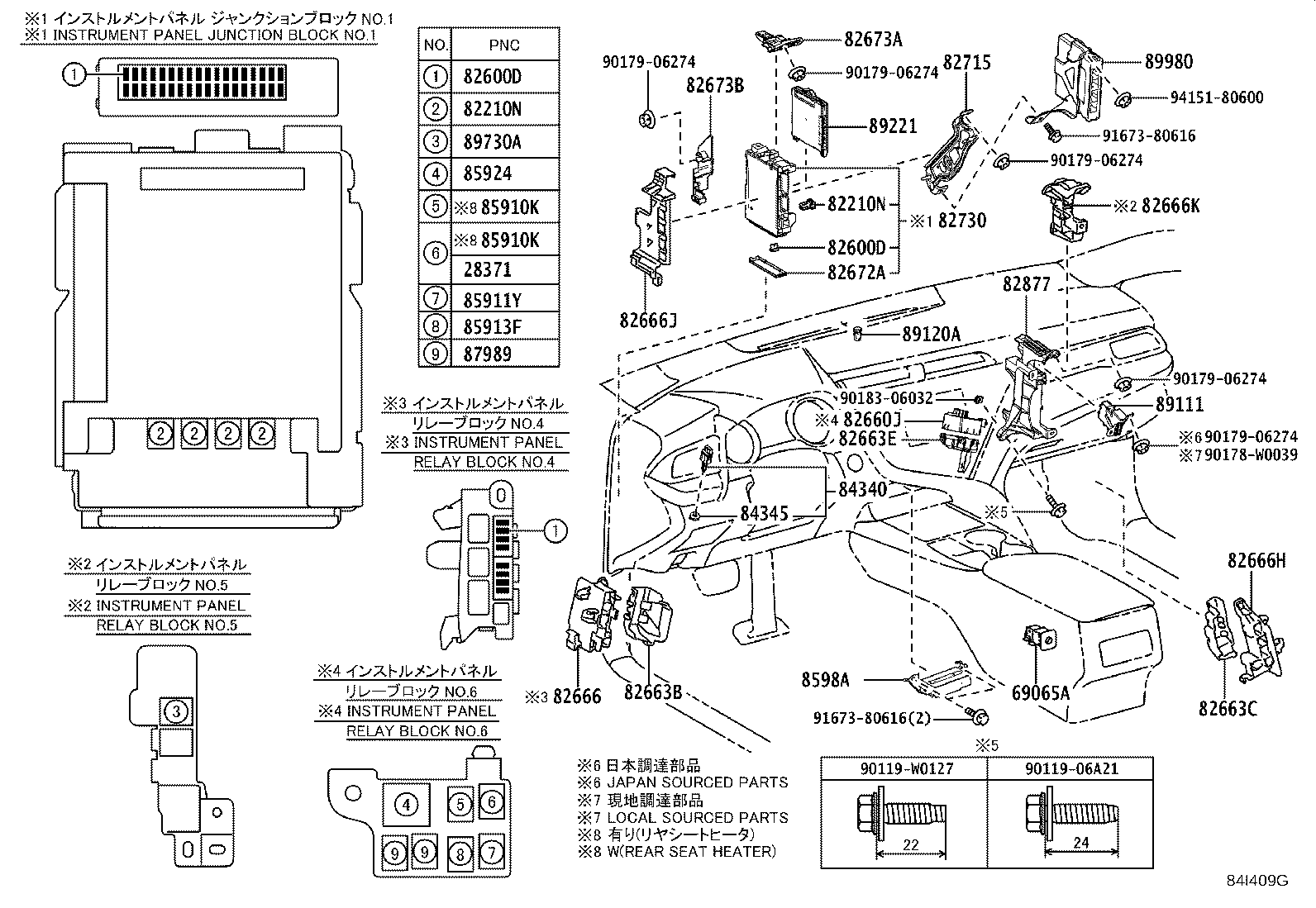

ENGINE ROOM 1/2
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 8(1709-2102)LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASV70,AXVA70,AXVH7#,GSV70..EUR 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASV70,AXVA70,AXVH7#,GSV70..EUR 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
ASV70,AXVA70,AXVH71,GSV70..EUR 25A,MINI FUSE |
1 | ||
| 90982-09020 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
ASV70,AXVA70,AXVH71,GSV70..EUR 25A,MINI FUSE |
1 | ||
| 90982-09020 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 20A,MINI FUSE,YELLOW |
1 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-33060 |
AXVA70,AXVH7#..LHD |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-33240 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-33250 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82663E - COVER, RELAY BLOCK, LOWER, NO.7 | ||||
| 82663-33260 |
AXVA70,AXVH7# |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-33570 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-33580 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82666J - HOLDER, CONNECTOR, NO.3 | ||||
| 82666-33630 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82666K - HOLDER, CONNECTOR, NO.4 | ||||
| 82666-33640 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-33390 |
ASV70,AXVA70,AXVH71,GSV70..EUR |
1 | ||
| 82672-33391 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-33120 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-33150 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-33Q20 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-33Q10 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 82730-33Q11 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-33030 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49075 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85911Y - RELAY, FRONT SEAT HEATER | ||||
| 90987-02027 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-33180 |
ASV70..RHD;AXVA70,GSV70..EUR |
1 | ||
| 89111-12030 |
ASV70..RHD;AXVA70,GSV70..EUR |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-33S60 |
AXVA70 |
1 | ||
| 89220-3T040 |
AXVA70 |
1 | ||
| 89220-3T290 |
AXVA70,AXVH70 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90119-06A21 | ||||
| 90119-W0127 | ||||
| 90178-W0039 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||

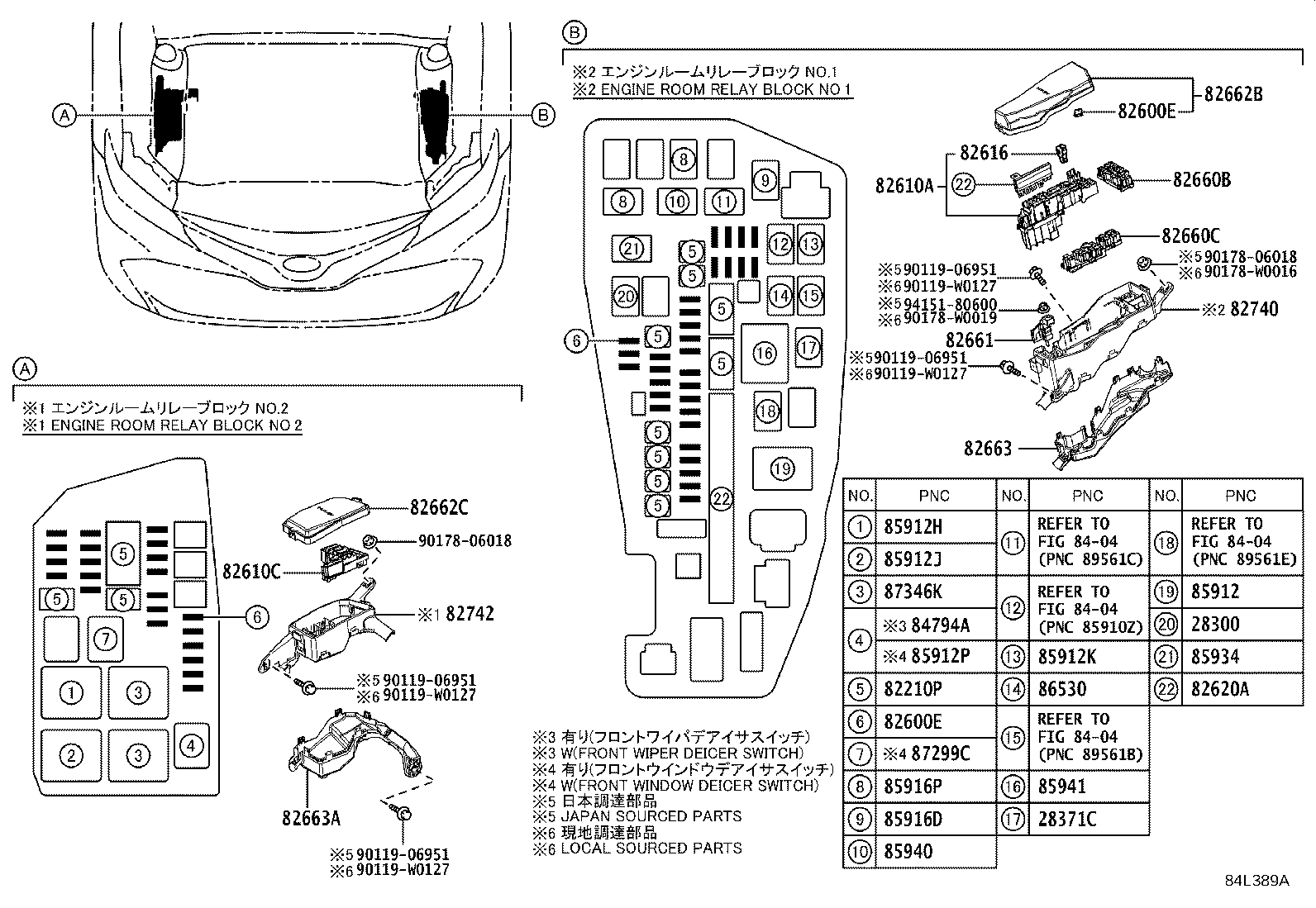

ILLUST NO. 3 OF 8(1709- )ASV7#,AXVA70,GSV70,MXVA71
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
A25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
ASV70,AXVA70,GSV70..EUR 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
ASV70,AXVA70,GSV70..EUR 50A,TERM.:FEMALE,RED |
4 | ||
| 90982-08303 |
ASV70,AXVA70,GSV70..EUR 50A-50A-50A,FEMALE |
2 | ||
| 90982-08302 |
AXVA70 50A-30A-50A,FEMALE |
1 | ||
| 90982-08303 |
AXVH7#;AXVA70..S 50A-50A-50A,FEMALE |
1 | ||
| 90982-08303 |
AXVA70..N 50A-50A-50A,FEMALE |
1 | ||
| 90982-08312 |
AXVA70,AXVH7#..N,S 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08298 |
ASV7#,GSV70;AXVA70..LHD 30A,TERMINAL:FEMALE |
4 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
AXVA70,AXVH70;AXVH71..LHD..D 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
AXVA70,AXVH7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
AXVA70,AXVH7# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
AXVA70,AXVH7# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
AXVA70,AXVH7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
AXVA70,AXVH70;AXVH71..LHD..D 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
AXVA70,AXVH7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
AXVA70,AXVH7# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
AXVA70,AXVH7# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
AXVA70,AXVH7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-33130 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-33150 |
AXVA70,AXVH70 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33130 |
ASV70,AXVA70..EUR |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-33100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33110 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-33050 |
AXVA70,GSV70 |
2 | ||
| 82661-33050 |
AXVA70,GSV70..(G,N)..EUR |
1 | ||
| 82661-33050 |
AXVH71..RHD;ASV70,AXVH70..EUR;AXVA70,AXVH71..LHD..(D,S) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-33B20 |
AXVA70 |
1 | ||
| 82662-33B21 |
AXVA70 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-33B30 |
AXVA70,AXVH70 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33210 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-33220 |
AXVA70,AXVH70 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33080 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-33050 |
AXVA70,AXVH70 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-02027 |
AXVA70,AXVH7# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02027 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90987-02027 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02025 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-W0127 | ||||
| 90178-06018 | ||||
| 90178-W0016 | ||||
| 90178-W0019 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||

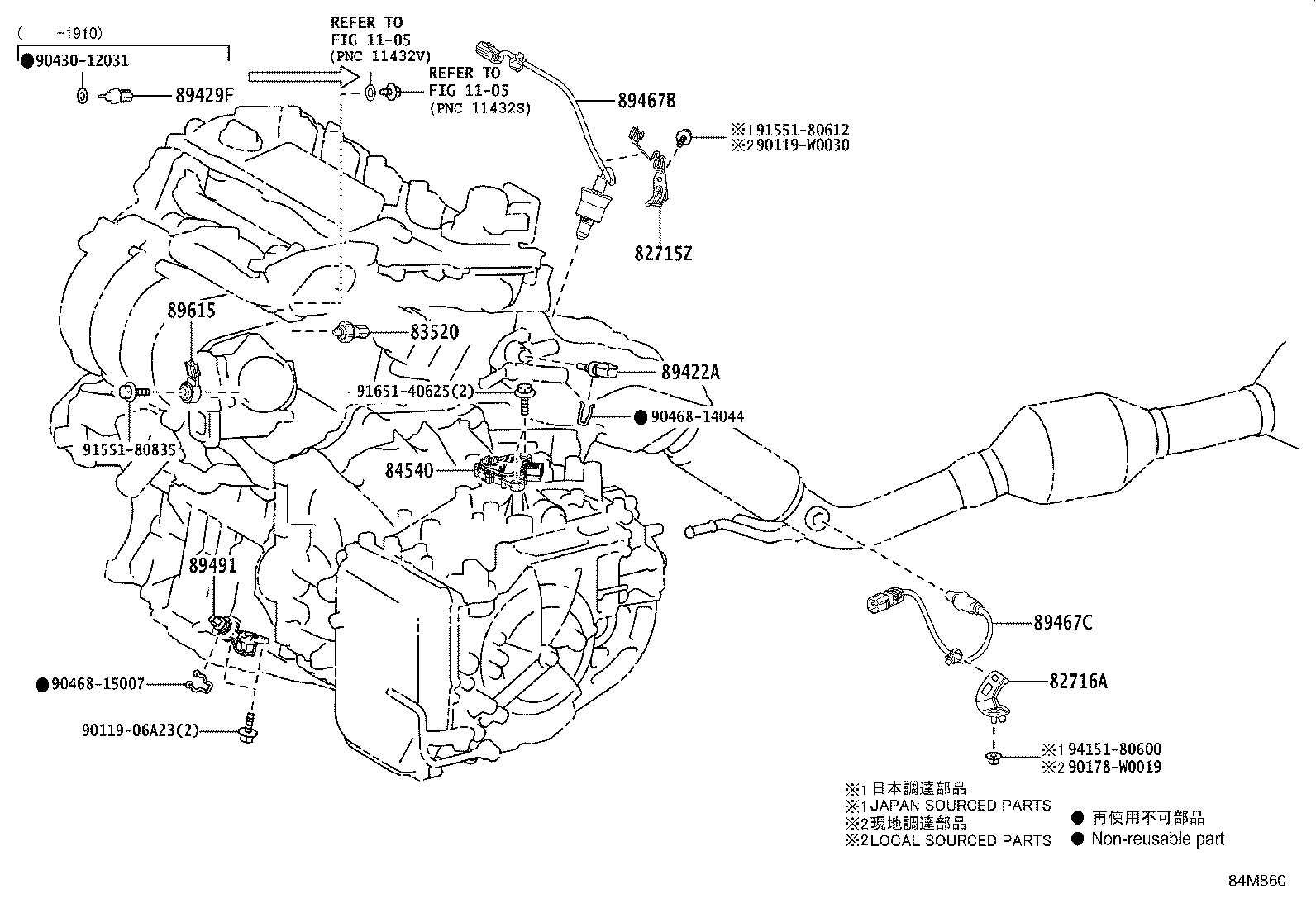

ILLUST NO. 1 OF 8(1709- )AXVA70
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715Z - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-33K11 |
AXVA70,AXVH7#..N,S |
1 | ||
| 82716A - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-33K30 |
AXVA70,AXVH7# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-33010 |
AXVA70,AXVH71 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33020 |
AXVA70,GSV70..EUR |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
AXVA70,AXVH7# |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
AXVA70,AXVH71 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-33290 |
AXVA70,AXVH7#..N,S |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-33210 |
AXVA70,AXVH7# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33050 |
AXVA70,AXVH71 |
1 | ||
| 89491-33051 |
AXVA70,AXVH7# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| Common parts | ||||
| 90119-06A23 | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| 90430-12031 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80612 | ||||
| 91551-80835 | ||||
| 91651-40625 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
