Toyota Camry/hybrid AXVA70 WIRING & CLAMP

AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021

Engine A25AFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF10(1709- )ASV7#,GSV70 ; (1709- )AXVA70..LHD

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-33M30	AXVA70	09/2017 - 08/2018	1
82111-33M31	AXVA70	08/2018 - 10/2019	1
82111-33M32	AXVA70	10/2019 - 08/2020	1
82111-33M33	AXVA70	08/2020 - 02/2021	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-33110	ASV70..RHD;AXVA70,AXVH7#,GSV70..(D,G,N)..EUR	09/2017 - 02/2021	1
82114-33120	AXVA70..S	10/2019 - 02/2021	1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-33E00	ASV70,AXVA70,GSV70..EUR	09/2017 - 02/2021	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-33E10	ASV70,AXVA70,GSV70..LHD..EUR	09/2017 - 02/2021	1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-33E20	ASV70,AXVA70,GSV70..LHD..EUR	09/2017 - 02/2021	1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-33K50	ASV70..LHD..EUR;AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-33N30	ASV70,AXVA70,GSV70..EUR	09/2017 - 02/2021	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-33N40	ASV70,AXVA70,GSV70..LHD..EUR	09/2017 - 02/2021	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-33N60	ASV70,AXVA70,GSV70..LHD..EUR	09/2017 - 02/2021	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-33Y20	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-33Y30	ASV70..LHD..EUR;AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
Common parts
90119-06A06
90119-08665
90119-W0037
90119-W0061
91673-80616
91673-80820
Linked diagrams
8401

ILLUST NO. 9 OF10(1709- )ASV7#,AXVA70,GSV70,MXVA71

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82286-33020	ASV70,AXVA70..EUR	09/2017 - 02/2021	1
Common parts
90119-06A06

ILLUST NO. 4 OF10(1709- )

Click highlighted areas on diagram

DOOR & TRUNK

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-33J90	AXVA70	09/2017 - 08/2018	1
82151-33J91	AXVA70,AXVH70	08/2018 - 02/2021	1
82152 - WIRE, FRONT DOOR, LH
82152-33K30	AXVA70,AXVH71,GSV70..LHD..EUR	09/2017 - 08/2018	1
82152-33K31	AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR	08/2018 - 02/2021	1
82153A - WIRE, REAR DOOR, RH
82153-33390	AXVA70	08/2018 - 10/2019	1
82153-33430	ASV70..RHD;AXVA70,AXVH71,GSV70..EUR	09/2017 - 08/2018	1
82153-33391	AXVA70,AXVH70	10/2019 - 02/2021	1
82154A - WIRE, REAR DOOR, LH
82154-33360	ASV70..RHD;AXVA70,AXVH71,GSV70..EUR	09/2017 - 08/2018	1
82154-33320	AXVA70	08/2018 - 10/2019	1
82154-33321	AXVA70,AXVH70	10/2019 - 02/2021	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-33F70	AXVA70	09/2017 - 08/2018	1
82181-33F71	AXVA70	08/2018 - 02/2021	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-33200	ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
89348Y - CLIP, ULTRASONIC SENSOR, REAR
89348-50050	ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	2
89348Y - CLIP, ULTRASONIC SENSOR, REAR
89348-50050	ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	2
Common parts
90119-06A06
90119-W0037
91673-80616

ILLUST NO. 8 OF10(1709- )AXVA70

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-33550
82715-33K40
82715-33K50
82715-33L00
82715-33L30
82715-33L40
82715-33P70
82715-33Q10
82715-33Q50
82715-33Q70
82715-33Q80
82715-33Q90
82715-33R00
82715-33S80
82715-33T40
82715-33V00
90119-06951
90119-06A12
90119-W0030
90119-W0037
90119-W0127
91671-80616
91671-80820
91673-80616

ILLUST NO. 5 OF10(1709- )ASV7#,AXVA70,GSV70,MXVA71

Click highlighted areas on diagram

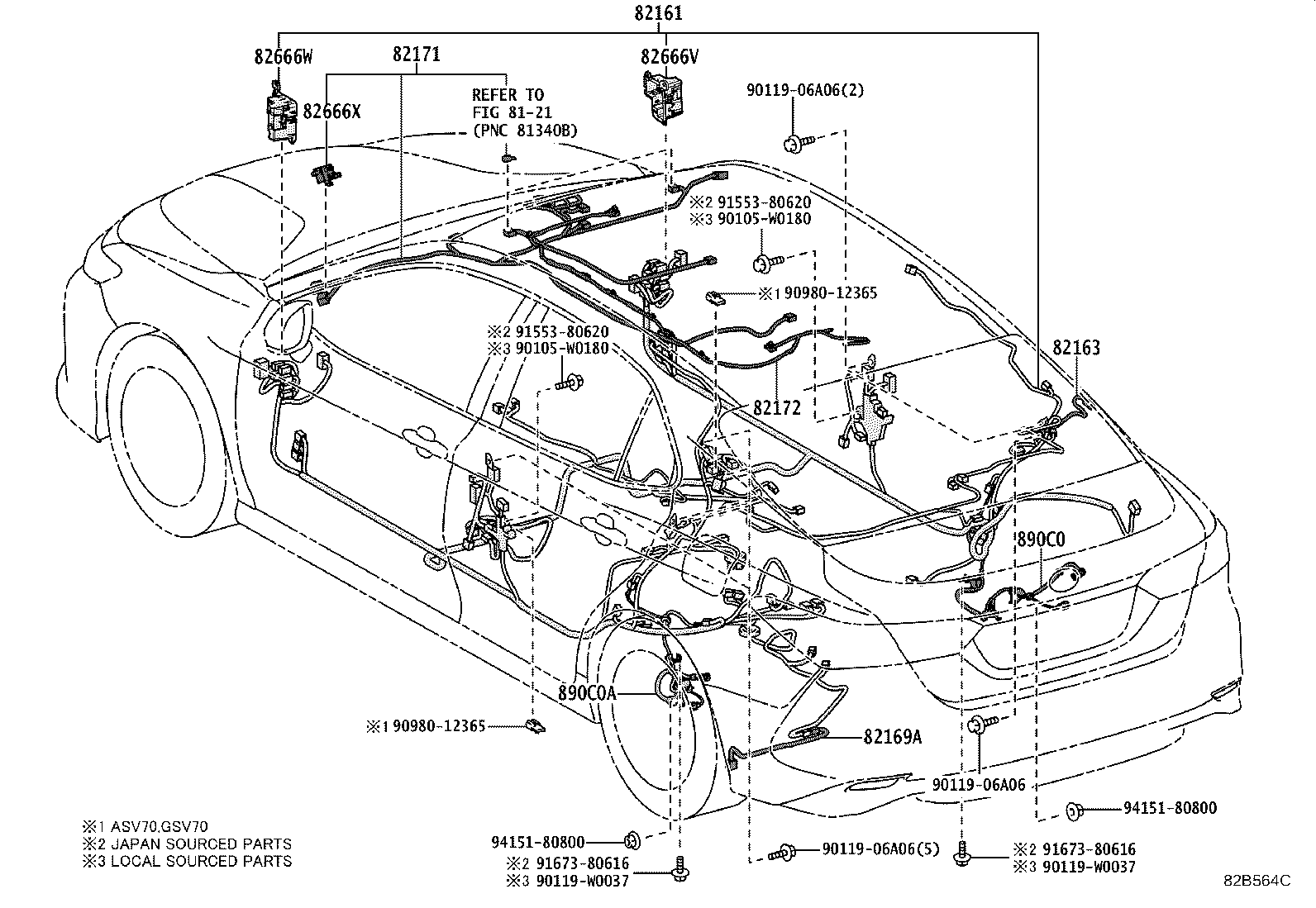

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-3TQ10	AXVA70	09/2017 - 08/2018	1
82161-3TQ11	AXVA70	08/2018 - 08/2020	1
82161-3TQ12	AXVA70	08/2020 - 02/2021	1
82163 - WIRE, FLOOR, NO.3
82163-33140	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
82169A - WIRE, FLOOR, NO.6
82169-33020	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
82171 - WIRE, ROOF, NO.1
82171-33Q90	AXVA70	09/2017 - 08/2018	1
82171-33Q91	AXVA70	08/2018 - 02/2021	1
82172 - WIRE, ROOF, NO.2
82172-33020	AXVA70,AXVH71..LHD..(N,S)	09/2017 - 02/2021	1
82666V - HOLDER, CONNECTOR NO.15
82666-33650	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
82666W - HOLDER, CONNECTOR NO.16
82666-33660	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
82666X - HOLDER, CONNECTOR NO.17
82666-33500	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
890C0 - WIRE ASSY, PARKING BRAKE, NO.1
890C0-33011	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
890C0A - WIRE ASSY, PARKING BRAKE, NO.2
890C0-33021	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
Common parts
90105-W0180
90119-06A06
90119-W0037
90980-12365
91553-80620
91673-80616
94151-80800
Linked diagrams
8121

ILLUST NO.10 OF10(1709- )

Click highlighted areas on diagram

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
82824-60460
82824-78020
90980-10794
90980-10860
90980-11019
90980-11148
90980-11194
90980-11399
90980-12380
90980-12382
90980-12490
90980-12520
90980-12699
90980-12728
90980-12790
90980-12A92
90980-12C54
90980-12C55
90980-12C56
90980-12D00

ILLUST NO.10 OF10(1709- )

Click highlighted areas on diagram

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts
82824-33470
82824-78020
90980-10619
90980-10996
90980-10997
90980-12158
90980-12555
90980-12790
90980-12A59
90980-12C39

ILLUST NO. 7 OF10(1709- )LHD

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-33D20	AXVA70,AXVH70	09/2017 - 02/2021	1
82191A - WIRE, FRONT SEAT, RH
82191-33C00	AXVA70,AXVH70	09/2017 - 02/2021	1
82192 - WIRE, FRONT SEAT, LH
82192-33A90	AXVA70,AXVH7#..LHD..(N,S)	09/2017 - 02/2021	1
82192B - WIRE, FRONT SEAT, LH NO.2
82192-11080	AXVA70,AXVH70	09/2017 - 02/2021	1
8219B - WIRE, FRONT SEAT, LH NO.2
8219B-47060	AXVA70,AXVH7#,GSV70..LHD..EUR	09/2017 - 02/2021	1

ILLUST NO. 3 OF10(1709- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-3YJ40	AXVA70	09/2017 - 08/2018	1
82141-3YJ41	AXVA70	08/2018 - 10/2019	1
82141-3YJ42	AXVA70	10/2019 - 02/2021	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-47031	AXVA70	09/2017 - 02/2018	1
82140-47032	AXVA70,AXVH70	03/2018 - 02/2021	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-33090	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
Common parts
90119-W0037
90178-W0039
90179-06274
91673-80616
Linked diagrams
8401

ILLUST NO. 2 OF10(1709- )AXVA70

Click highlighted areas on diagram

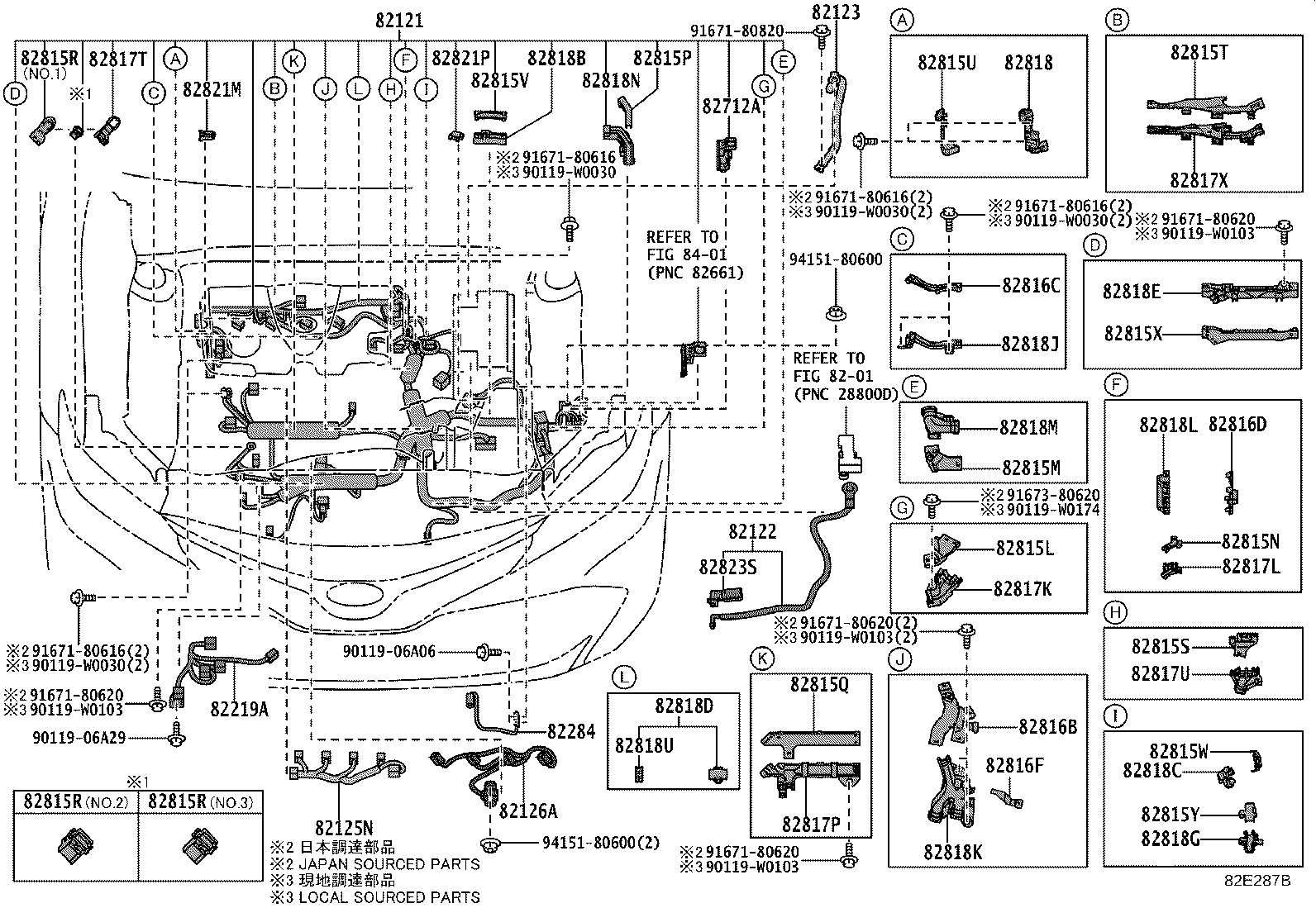

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-33G60	AXVA70	09/2017 - 10/2019	1
82121-33G61	AXVA70	10/2019 - 08/2020	1
82121-33G62	AXVA70	08/2020 - 02/2021	1
82122 - WIRE, ENGINE, NO.2
82122-33160	AXVA70	09/2017 - 02/2021	1
82123 - WIRE, ENGINE, NO.3
82123-33080	AXVA70	09/2017 - 02/2021	1
82125N - WIRE, ENGINE, NO.5
82125-33220	AXVA70,AXVH71	09/2017 - 02/2020	1
82125-33180	AXVA70,AXVH7#	02/2020 - 02/2021	1
82126A - WIRE, ENGINE, NO.6
82126-33050	AXVA70,AXVH7#	09/2017 - 02/2021	1
82219A - WIRE, SENSOR
82219-33140	AXVA70	09/2017 - 02/2021	1
82284 - WIRE, EARTH
82284-33140	ASV70,AXVA70,GSV70..EUR	09/2017 - 02/2021	1
82712A - SUPPORT, WIRING HARNESS
82712-33160	AXVA70,GSV70	09/2017 - 12/2017	2
82712-33160	AXVA70,GSV70..(G,N)..EUR	12/2017 - 02/2021	1
82712-33160	AXVA70..S;ASV70..EUR;AXVH71..RHD..N	09/2017 - 02/2021	1
82815L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-33C60	AXVA70	09/2017 - 02/2021	1
82815M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-33F20	AXVA70	09/2017 - 02/2021	1
82815N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-33J60	AXVA70	09/2017 - 02/2021	1
82815P - COVER, WIRING HARNESS PROTECTOR, NO.12
82815-33N00	ASV70,AXVA70,GSV70..EUR	09/2017 - 02/2021	1
82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13
82815-33J50	AXVA70	09/2017 - 02/2021	1
82815R - COVER, WIRING HARNESS PROTECTOR, NO.14
82815-33J10	AXVA70 NO.1	09/2017 - 02/2021	1
82815-33L00	AXVA70 NO.3	09/2017 - 02/2021	1
82815-33K90	AXVA70 NO.2	09/2017 - 02/2021	1
82815R - COVER, WIRING HARNESS PROTECTOR, NO.14
82815-33J10	AXVA70 NO.1	09/2017 - 02/2021	1
82815-33L00	AXVA70 NO.3	09/2017 - 02/2021	1
82815-33K90	AXVA70 NO.2	09/2017 - 02/2021	1
82815R - COVER, WIRING HARNESS PROTECTOR, NO.14
82815-33J10	AXVA70 NO.1	09/2017 - 02/2021	1
82815-33L00	AXVA70 NO.3	09/2017 - 02/2021	1
82815-33K90	AXVA70 NO.2	09/2017 - 02/2021	1
82815S - COVER, WIRING HARNESS PROTECTOR, NO.15
82815-33F30	AXVA70	09/2017 - 02/2021	1
82815T - COVER, WIRING HARNESS PROTECTOR, NO.16
82815-33G90	AXVA70,AXVH7#..N,S	09/2017 - 02/2021	1
82815U - COVER, WIRING HARNESS PROTECTOR, NO.17
82815-33J00	AXVA70,AXVH7#	09/2017 - 02/2021	1
82815V - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-33K60	AXVA70	09/2017 - 02/2021	1
82815W - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-33J90	ASV70,AXVA70,AXVH7#..EUR	09/2017 - 02/2021	1
82815X - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-33G80	AXVA70	09/2017 - 02/2021	1
82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-33J80	AXVA70	09/2017 - 02/2021	1
82816B - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-33F10	AXVA70	09/2017 - 02/2021	1
82816C - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-33E80	ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR	09/2017 - 02/2021	1
82816D - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-33F40	AXVA70	09/2017 - 02/2021	1
82816F - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-33L60	AXVA70	09/2017 - 02/2021	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-33V40	AXVA70	09/2017 - 02/2021	1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-33X30	AXVA70	09/2017 - 02/2021	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-33T20	AXVA70	09/2017 - 02/2021	1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-33S70	AXVA70	09/2017 - 02/2021	1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-33Q90	AXVA70	09/2017 - 02/2021	1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-33S50	AXVA70,AXVH7#..N,S	09/2017 - 02/2021	1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82817-33S60	AXVA70,AXVH7#	09/2017 - 02/2021	1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-33Y60	AXVA70	09/2017 - 02/2021	1
82818C - PROTECTOR, WIRING HARNESS, NO.4
82817-33X70	ASV70,AXVA70,AXVH7#..EUR	09/2017 - 02/2021	1
82818D - PROTECTOR, WIRING HARNESS, NO.5
82817-33Y50	AXVA70,AXVH7#	09/2017 - 02/2021	1
82818E - PROTECTOR, WIRING HARNESS, NO.6
82817-33S40	AXVA70	09/2017 - 02/2021	1
82818G - PROTECTOR, WIRING HARNESS, NO.8
82817-33X60	AXVA70	09/2017 - 02/2021	1
82818J - PROTECTOR, WIRING HARNESS, NO.10
82817-33X40	ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR	09/2017 - 02/2021	1
82818K - PROTECTOR, WIRING HARNESS, NO.11
82817-33Q70	AXVA70	09/2017 - 02/2021	1
82818L - PROTECTOR, WIRING HARNESS, NO.12
82817-33R00	AXVA70	09/2017 - 02/2021	1
82818M - PROTECTOR, WIRING HARNESS, NO.13
82817-33Q80	AXVA70	09/2017 - 02/2021	1
82818N - PROTECTOR, WIRING HARNESS, NO.14
82817-3T250	ASV70,AXVA70,GSV70..EUR	09/2017 - 02/2021	1
82818U - PROTECTOR, WIRING HARNESS, NO.17
82817-33Z40	AXVA70,AXVH7#	09/2017 - 02/2021	1
82821M - COVER, CONNECTOR
82821-33460	ASV70,AXVA70,AXVH7#,GSV70..EUR	09/2017 - 02/2021	1
82821P - COVER, CONNECTOR
82821-33690	AXVA70,GSV70..EUR	09/2017 - 02/2021	1
82823S - CAP, STARTER TERMINAL
82823-33070	AXVA70	09/2017 - 02/2021	1
Common parts
90119-06A06
90119-06A29
90119-W0030
90119-W0103
90119-W0174
91671-80616
91671-80620
91671-80820
91673-80620
94151-80600
Linked diagrams
8201
8401

AXVA70L-AEZNBW (2017)

ILLUST NO. 1 OF10(1709- )ASV7#,GSV70 ; (1709- )AXVA70..LHD

ILLUST NO. 9 OF10(1709- )ASV7#,AXVA70,GSV70,MXVA71

ILLUST NO. 4 OF10(1709- )

ILLUST NO. 8 OF10(1709- )AXVA70

ILLUST NO. 5 OF10(1709- )ASV7#,AXVA70,GSV70,MXVA71

ILLUST NO.10 OF10(1709- )

ILLUST NO.10 OF10(1709- )

ILLUST NO. 7 OF10(1709- )LHD

ILLUST NO. 3 OF10(1709- )LHD

ILLUST NO. 2 OF10(1709- )AXVA70

Part Price Details
