AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )ASV7#,AXVA70,GSV70,MXVA71

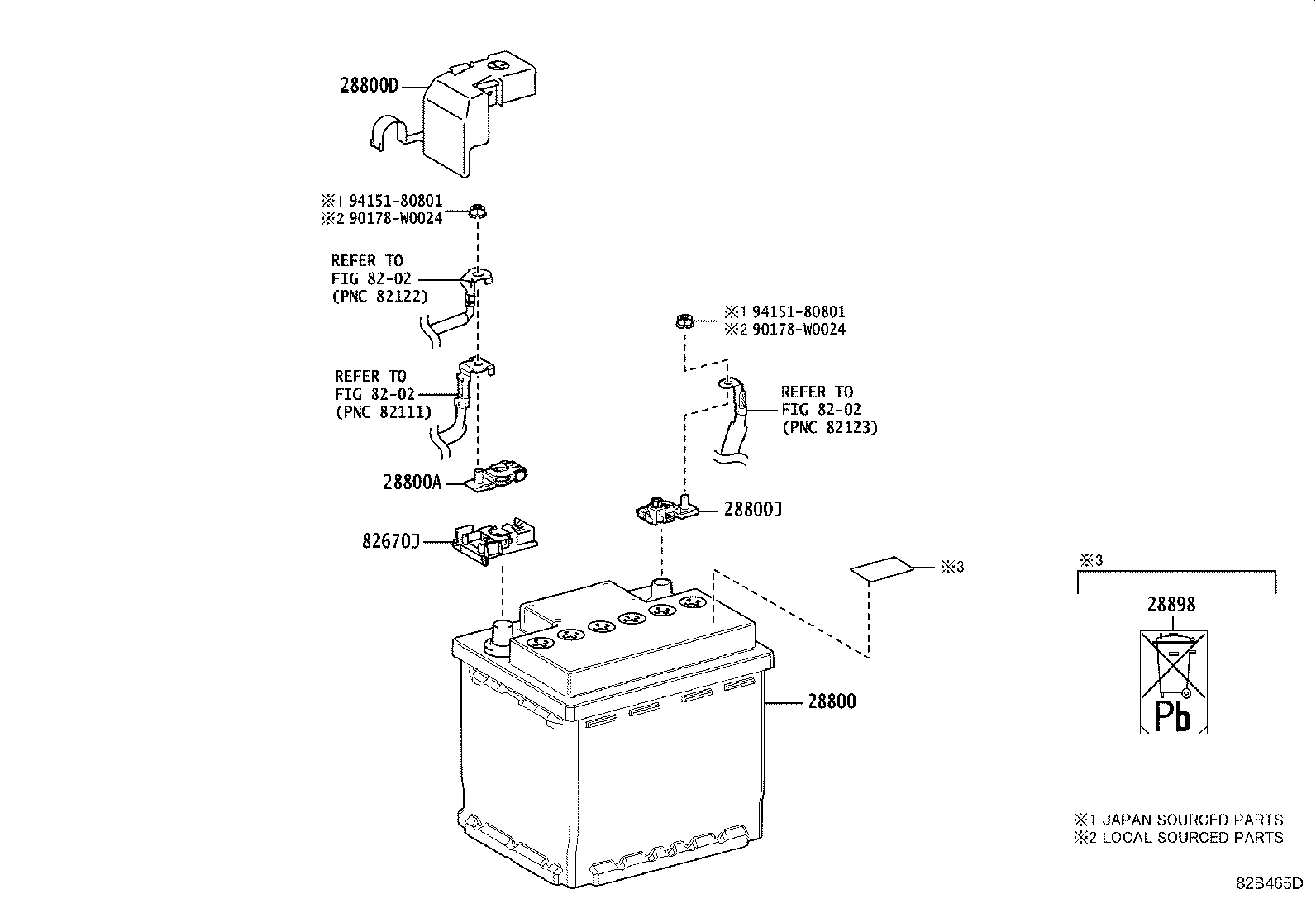

Click highlighted areas on diagram

BATTERY

diagram 28800 28800A 28800D 28800J 28898 8202 8202 8202 82670J 90178W0024 90178W0024 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-25020

A25AFKS..AXVA70

LN3

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05072

A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-33440

A25AFKS..AXVA70..LHD;2ARFE,6ARFSE,2GRFKS..ASV7#,GSV70

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06061

A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR

 1
28898 - PLATE, BATTERY
28898-46020

A25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
82670J - BLOCK ASSY, JUNCTION
82671-33100

ASV7#,GSV70;AXVA70..LHD

 1
Common parts
90178-W0024
94151-80801
Linked diagrams
8202
