AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712-2102)

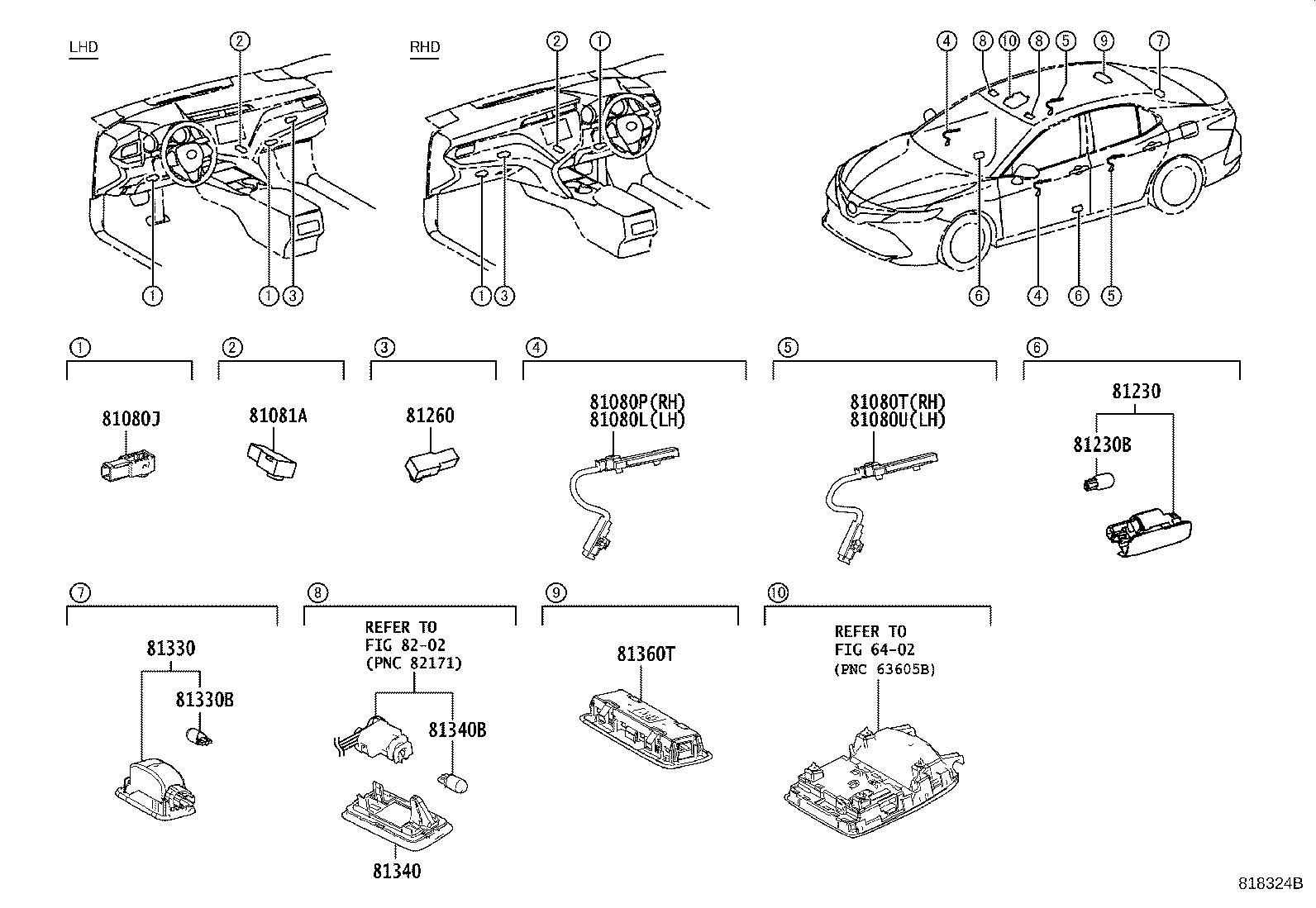

Click highlighted areas on diagram

diagram 6402 81080J 81080L 81080P 81080T 81080U 81081A 81230 81230B 81260 81330 81330B 81340 81340B 81360T 8202
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-33280

ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR

 2
81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-33160

ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR

 1
81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-33150

ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR

 1
81080T - LAMP ASSY, INTERIOR ILLUMINATION, NO.2 RH
81080-33150

ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR

 1
81080U - LAMP ASSY, INTERIOR ILLUMINATION, NO.2 LH
81080-33160

ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR

 1
81081A - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
81080-33300

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
81230 - LAMP ASSY, COURTESY
81230-30200

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ASV70,AXVA70,AXVH7#,GSV70..EUR

12V 5W

 2
81260 - LAMP ASSY, GLOVE BOX
81080-33290

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-30210

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

ASV70,AXVA70,AXVH7#,GSV70..EUR

12V 5W

 1
81340 - LAMP ASSY, VANITY
81340-30110

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

ASV70,AXVA70,AXVH7#,GSV70..EUR

12V 8W

 2
81360T - LAMP ASSY, SPOT
81360-33060E0

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

NEUTRAL BEIGE,TRIM4#

 1
81360-33060B0

ASV70,AXVA70,AXVH7#,GSV70..EUR

GRAY,TRIM2#

 1
Linked diagrams
6402
8202
