AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid

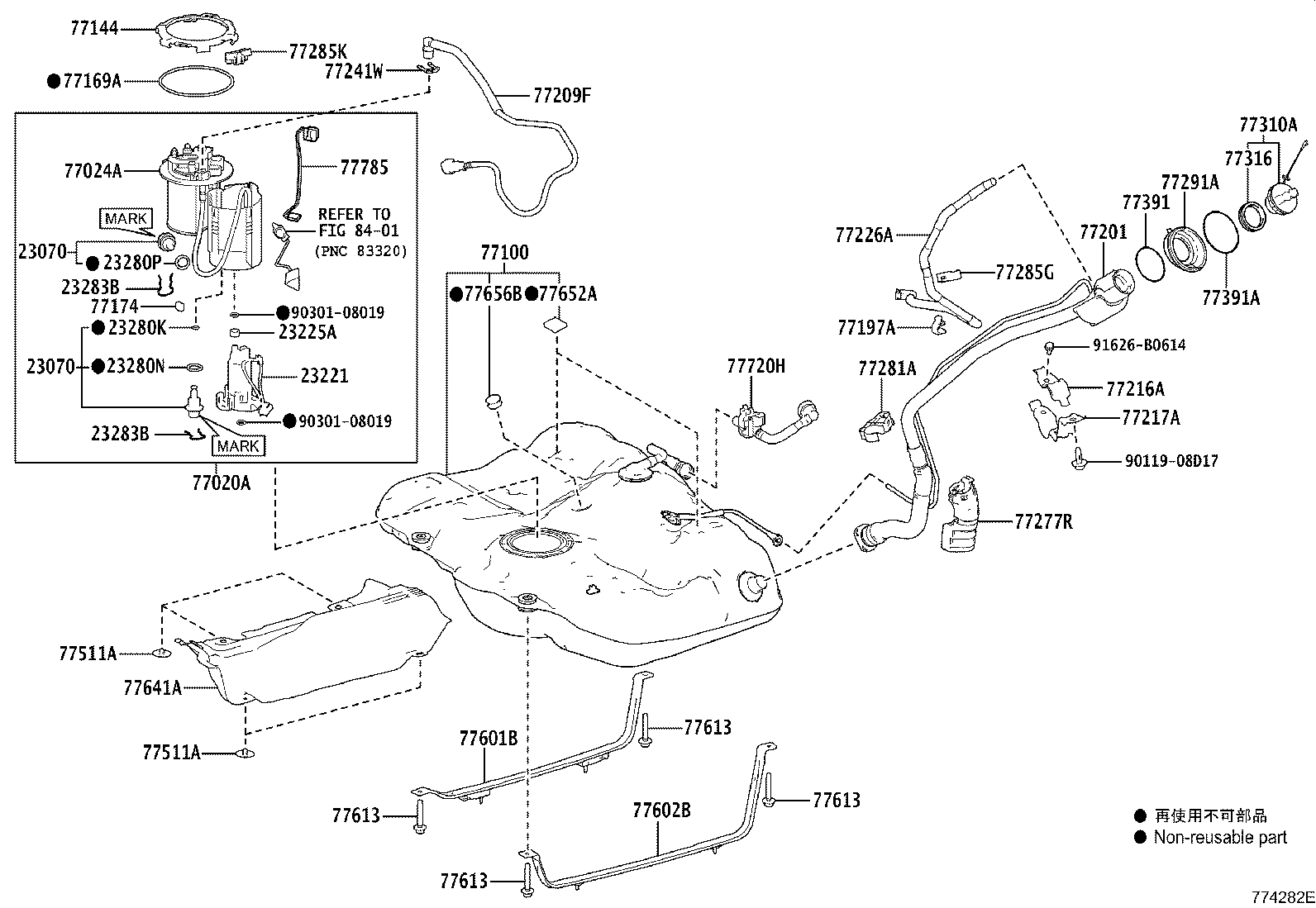

ILLUST NO. 1 OF 4(1709- )AXVA70..LHD..EUR
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-25020 |
A25AFKS..AXVA70 MARK 23070-25020 |
1 | ||
| 23070-31030 |
A25AFKS,2GRFKS..AXVA70,GSV70..LHD MARK 23070-31030 |
1 | ||
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-25020 |
A25AFKS..AXVA70 MARK 23070-25020 |
1 | ||
| 23070-31030 |
A25AFKS,2GRFKS..AXVA70,GSV70..LHD MARK 23070-31030 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23220-25020 |
A25AFKS..AXVA70 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31020 |
A25#..AXVA70,AXVH7# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ARFE,6ARFSE..ASV7#;A25AFKS..AXVA70..LHD |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
A25AFKS..AXVA70..LHD;A25AFXS,2ARFE,6ARFSE..ASV7#,AXVH7#..D,N |
1 | ||
| 23280P - RING, O(FOR FUEL PRESSURE REGULATOR), NO.3 | ||||
| 90301-15024 |
A25AFKS..AXVA70 |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
A25AFKS,2GRFKS..AXVA70,GSV70..LHD |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
A25AFKS,2GRFKS..AXVA70,GSV70..LHD |
2 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-33530 |
AXVA70 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33240 |
AXVA70 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-33290 |
AXVA70 |
1 | ||
| 77001-33420 |
AXVA70 |
1 | ||
| 77001-06290 |
AXVA70 (L) |
1 | ||
| 77001-33420 |
AXVA70 (J) |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
GSV70..RUS;AXVA70..LHD;ASV7#,AXVH7#..D,N |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-33060 |
AXVA70 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-47010 |
AXVA70,AXVH70 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-33410 |
AXVA70 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-33151 |
AXVA70 |
1 | ||
| 77209-33150 |
AXVA70 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-33160 |
AXVA70,AXVH70 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33100 |
AXVA70,AXVH70 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-33140 |
AXVA70 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GSV70..RUS;AXVA70..LHD;ASV7#,AXVH71..D,N |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-33110 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-33070 |
AXVA70 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-47120 |
AXVA70,AXVH70 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
GSV70..RUS;AXVA70..LHD;ASV7#,AXVH7#..D,N |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33110 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-53030 |
AXVA70 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20040 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ASV7#,GSV70;AXVA70..LHD |
4 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ASV7#,GSV70;AXVA70..LHD |
4 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33170 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33180 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-33030 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-33060 |
AXVA70 |
2 | ||
| 77651-06130 |
AXVA70 (L) |
2 | ||
| 77652-33060 |
AXVA70 (J) |
2 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-33010 |
AXVA70 |
1 | ||
| 77656-06030 |
AXVA70 (L) |
1 | ||
| 77656-33010 |
AXVA70 (J) |
1 | ||
| 77720H - VALVE ASSY, FUEL OUTLET | ||||
| 77720-33010 |
AXVA70 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-33140 |
AXVA70 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90301-08019 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

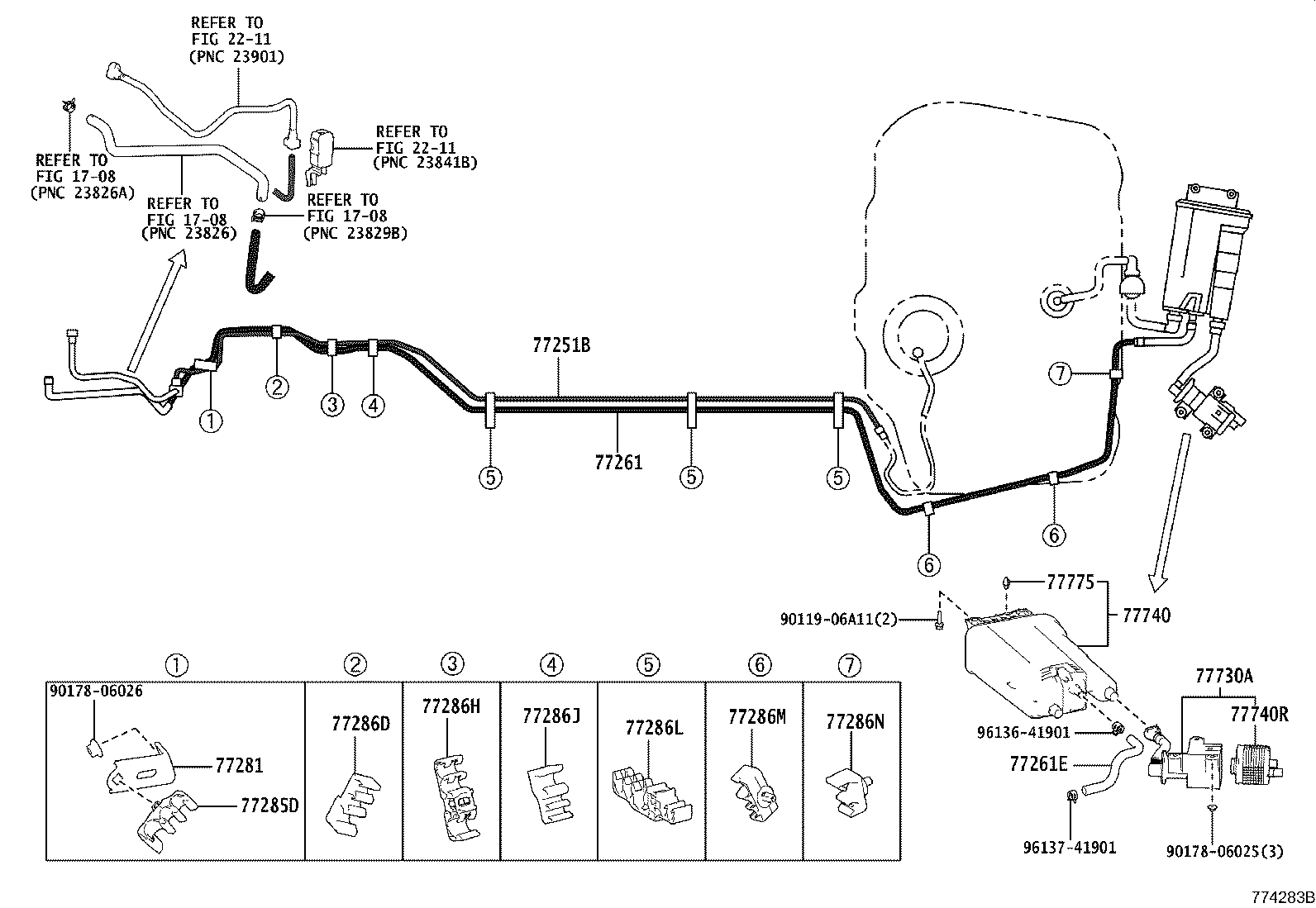

ILLUST NO. 3 OF 4(1709- )AXVA70..EUR
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33240 |
ASV70,AXVA70..EUR |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-33230 |
AXVA70 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77249-33120 |
AXVA70 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-33080 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33090 |
AXVA70,AXVH7# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48120 |
AXVA70,AXVH7# |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-33110 |
AXVA70,AXVH7# |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48190 |
AXVA70,AXVH7# |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-33040 |
AXVA70,AXVH7# |
3 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77286-47050 |
AXVA70 |
2 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77286-33110 |
AXVA70,AXVH7# |
1 | ||
| 77730A - CANISTER ASSY, TRAP W/OUTLET VALVE | ||||
| 77730-33110 |
AXVA70 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-33220 |
AXVA70 |
1 | ||
| 77740R - PUMP SUB-ASSY, LEAK DETECTION | ||||
| 90910-14008 |
AXVA70,AXVH70 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-33010 |
AXVA70,AXVH70 |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90178-06025 | ||||
| 90178-06026 | ||||
| 96136-41901 | ||||
| 96137-41901 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 4 OF 4(1709- )EUR
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-33080 |
ASV7#,AXVA70,AXVH71,GSV70 |
1 | ||
| 77030-33080 |
AXVA70..S |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33230 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-78010 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 77377-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 77379 - SPACER, FUEL INLET BOX COVER, NO.2 | ||||
| 77379-33010 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 90269-06021 | ||||
| 90541-06069 | ||||
