AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
ILLUST NO. 3 OF 3(1709- )
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

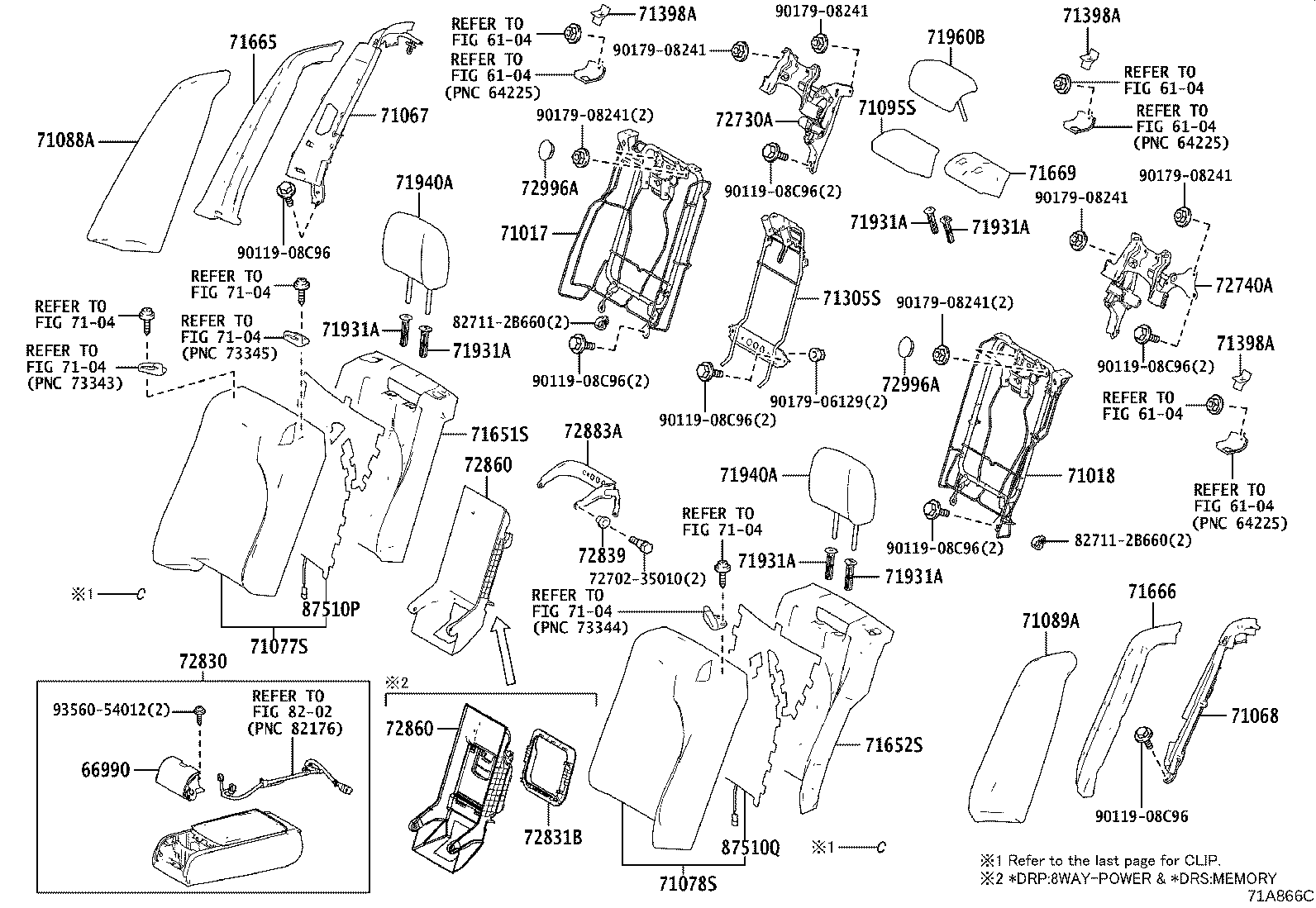

ILLUST NO. 2 OF 3(1709- )AXVA70,AXVH7#..LHD..N,S..EUR
SEAT BACK(FOLD DOWN & KOREA SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-33230 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-33160 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 71067 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71067-33010 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
1 | ||
| 71068 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71068-33010 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-33N70A0 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71077-33N70C0 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71077-33N71C3 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71077-33N71C4 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71077-33Q20C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-33640A0 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71078-33640C0 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71078-33641C4 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71078-33641C3 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71078-33C00C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71088A - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-33440C2 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71088-33440E2 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71088-33441C4 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71088-33441E4 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71088-33441A0 |
AXVA70,AXVH70..N IVORY,TRIM4# |
1 | ||
| 71088-33441C5 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71088-33441C6 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71089A - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-33430E2 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71089-33430C2 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71089-33431E4 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71089-33431C4 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71089-33431A0 |
AXVA70,AXVH70..N IVORY,TRIM4# |
1 | ||
| 71089-33431C5 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71089-33431C6 |
AXVA70..S BLACK/GRAY,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-33080 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-33020 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-33110 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-33040E0 |
AXVH71..RHD..N;ASV70,AXVA70,AXVH70..N..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71349-33040C0 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR BLACK,TRIM2# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C1 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) BLACK |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C1 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) BLACK |
2 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-33230 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-33140 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 71665 - PAD, REAR SEAT BACK SIDE, RH | ||||
| 71665-33070 |
AXVA70,AXVH70 |
1 | ||
| 71666 - PAD, REAR SEAT BACK SIDE, LH | ||||
| 71666-33080 |
AXVA70,AXVH70 |
1 | ||
| 72083A - PAD SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72083-33170 |
AXVH71..RHD..N;ASV70,AXVA70,AXVH70..EUR |
1 | ||
| 72087A - COVER SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72087-33840E2 |
AXVA70;ASV70,AXVH71..RHD NEWTRAL BEIGE,TRIM4# |
1 | ||
| 72087-33840C2 |
AXVA70;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 72087-33841E3 |
AXVA70;ASV70,AXVH71..RHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72087-33841C3 |
AXVA70;ASV70,AXVH71..RHD..N BLACK,TRIM2# |
1 | ||
| 72087-33841C4 |
AXVA70,AXVH70;ASV70,AXVH71..RHD..N BLACK,TRIM2# |
1 | ||
| 72087-33841E4 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-33080 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-33090 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-33010 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
2 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-33010 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
2 | ||
| 72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-33090C0 |
AXVA70..LHD;AXVH71..RHD..N;ASV7#,AXVH70..N BLACK,TRIM2# |
1 | ||
| 72806-33090E0 |
AXVH71..RHD..N;ASV70,AXVA70,AXVH70..N..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-33E50C5 |
AXVA70;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 72830-33E50E5 |
AXVA70;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72830-33E51C2 |
AXVA70;ASV70,AXVH71..RHD..N BLACK,TRIM2# |
1 | ||
| 72830-33E51E2 |
AXVA70;ASV70,AXVH71..RHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72830-33E51C3 |
AXVA70,AXVH70;ASV70,AXVH71..RHD..N BLACK,TRIM2# |
1 | ||
| 72830-33E51E3 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-12010 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) |
1 | ||
| 72860 - BOX ASSY, REAR SEAT CENTER ARMREST | ||||
| 72860-33370E0 |
AXVH71..RHD..N;ASV70,AXVA70,AXVH70..N..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72860-33370C0 |
AXVA70..LHD;AXVH71..RHD..N;ASV7#,AXVH70..N BLACK,TRIM2# |
1 | ||
| 72987 - COVER, REAR SEAT CENTER ARMREST | ||||
| 72987-33130E0 |
AXVH71..RHD;ASV70,AXVA70..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72987-33130C0 |
AXVH71..RHD;ASV70,AXVA70..EUR BLACK,TRIM2# |
1 | ||
| 72987-33130C1 |
AXVA70..N;ASV70,AXVH71..RHD..N BLACK,TRIM20,40 |
1 | ||
| 72987-33130C0 |
AXVH71..RHD..N;ASV70,AXVA70..N..EUR BLACK,TRIM20 |
1 | ||
| 72987-33130E0 |
AXVA70..N;ASV70,AXVH71..RHD..N NEUTRAL BEIGE,TRIM40 |
1 | ||
| 72987-33130C1 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 73930A - AIR BAG ASSY, REAR SEAT, RH | ||||
| 73930-33070 |
AXVA70,AXVH70 |
1 | ||
| 73940A - AIR BAG ASSY, REAR SEAT, LH | ||||
| 73940-33070 |
AXVA70,AXVH70 |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 90119-08C96 | ||||
| 90119-10990 | ||||
| 90119-W0026 | ||||
| 90179-08241 | ||||
| 90386-06009 | ||||
| 91672-81025 | ||||
| 93530-15014 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 6104 | ||||
| 7104 | ||||
ILLUST NO. 2 OF 3(1709- )AXVA70..LHD..N ; (1709- )ASV70,AXVH71,GSV70..LHD..EUR
SEAT BACK(RECLINING SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-33230 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-33160 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 71067 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71067-33010 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
1 | ||
| 71068 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71068-33010 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-33N70A0 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71077-33N70C0 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71077-33N71C3 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71077-33N71C4 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71077-33Q20C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-33640A0 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71078-33640C0 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71078-33641C4 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71078-33641C3 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71078-33C00C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71088A - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-33440C2 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71088-33440E2 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71088-33441C4 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71088-33441E4 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71088-33441A0 |
AXVA70,AXVH70..N IVORY,TRIM4# |
1 | ||
| 71088-33441C5 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71088-33441C6 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71089A - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-33430E2 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71089-33430C2 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71089-33431E4 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71089-33431C4 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71089-33431A0 |
AXVA70,AXVH70..N IVORY,TRIM4# |
1 | ||
| 71089-33431C5 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71089-33431C6 |
AXVA70..S BLACK/GRAY,TRIM2# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C1 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) BLACK |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C1 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) BLACK |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C1 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) BLACK |
2 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-33230 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-33140 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 71665 - PAD, REAR SEAT BACK SIDE, RH | ||||
| 71665-33070 |
AXVA70,AXVH70 |
1 | ||
| 71666 - PAD, REAR SEAT BACK SIDE, LH | ||||
| 71666-33080 |
AXVA70,AXVH70 |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-33E50C5 |
AXVA70;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 72830-33E50E5 |
AXVA70;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72830-33E51C2 |
AXVA70;ASV70,AXVH71..RHD..N BLACK,TRIM2# |
1 | ||
| 72830-33E51E2 |
AXVA70;ASV70,AXVH71..RHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72830-33E51C3 |
AXVA70,AXVH70;ASV70,AXVH71..RHD..N BLACK,TRIM2# |
1 | ||
| 72830-33E51E3 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-12010 |
AXVA70..LHD;AXVH71..LHD..D;ASV7#,AXVH70..N;AXVH71..RHD..(D,N) |
1 | ||
| 72860 - BOX ASSY, REAR SEAT CENTER ARMREST | ||||
| 72860-33370E0 |
AXVH71..RHD..N;ASV70,AXVA70,AXVH70..N..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72860-33370C0 |
AXVA70..LHD;AXVH71..RHD..N;ASV7#,AXVH70..N BLACK,TRIM2# |
1 | ||
| 72860 - BOX ASSY, REAR SEAT CENTER ARMREST | ||||
| 72860-33370E0 |
AXVH71..RHD..N;ASV70,AXVA70,AXVH70..N..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72860-33370C0 |
AXVA70..LHD;AXVH71..RHD..N;ASV7#,AXVH70..N BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 82711-2B660 | ||||
| 90119-08C96 | ||||
| 90179-06129 | ||||
| 90179-08241 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 6104 | ||||
| 7104 | ||||
| 8202 | ||||
ILLUST NO. 1 OF 3(1709- )
SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-33F70A5 |
ASV70..RHD;AXVA70,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71075-33F70C7 |
AXVA70;ASV70..RHD BLACK,TRIM2# |
1 | ||
| 71075-33F7120 |
ASV70..RHD;AXVA70,GSV70..EUR BLACK/C.BROWN,TRIM2# |
1 | ||
| 71075-33F71E0 |
ASV70..RHD;AXVA70,GSV70..EUR FROMAGE/IVORY,TRIM4# |
1 | ||
| 71075-33F7122 |
ASV70..RHD;AXVA70,GSV70..(G,N)..EUR BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 71075-33F71A7 |
ASV70..RHD;AXVA70,GSV70..(G,N)..EUR FROMAGE/IVORY,TRIM4# |
1 | ||
| 71075-33G11C6 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-33130 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-33130 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-33130 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 73717D - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-33090C0 |
ASV70,AXVA70,AXVH71,GSV70..EUR BLACK,TRIM2# |
4 | ||
| 73717-33150C0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK,TRIM2# |
4 | ||
| 73717-33090E0 |
ASV70,AXVA70,AXVH71,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
4 | ||
| 73717-33150E0 |
ASV70,AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
4 | ||
| 73731 - COVER, CHILD RESTRAINT SEAT | ||||
| 73731-33020C0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK,TRIM2# |
4 | ||
| 73731-33020E0 |
ASV70,AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
4 | ||
| 73733 - COVER, CHILD RESTRAINT SEAT BASE | ||||
| 73733-33020C0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK,TRIM2# |
4 | ||
| 73733-33010C0 |
ASV70,AXVA70,AXVH71,GSV70..EUR BLACK,TRIM2# |
4 | ||
| 73733-33010E0 |
ASV70,AXVA70,AXVH71,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
4 | ||
| 73733-33020E0 |
ASV70,AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
4 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 90167-40044 | ||||
| 91671-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
