AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
(1709- )

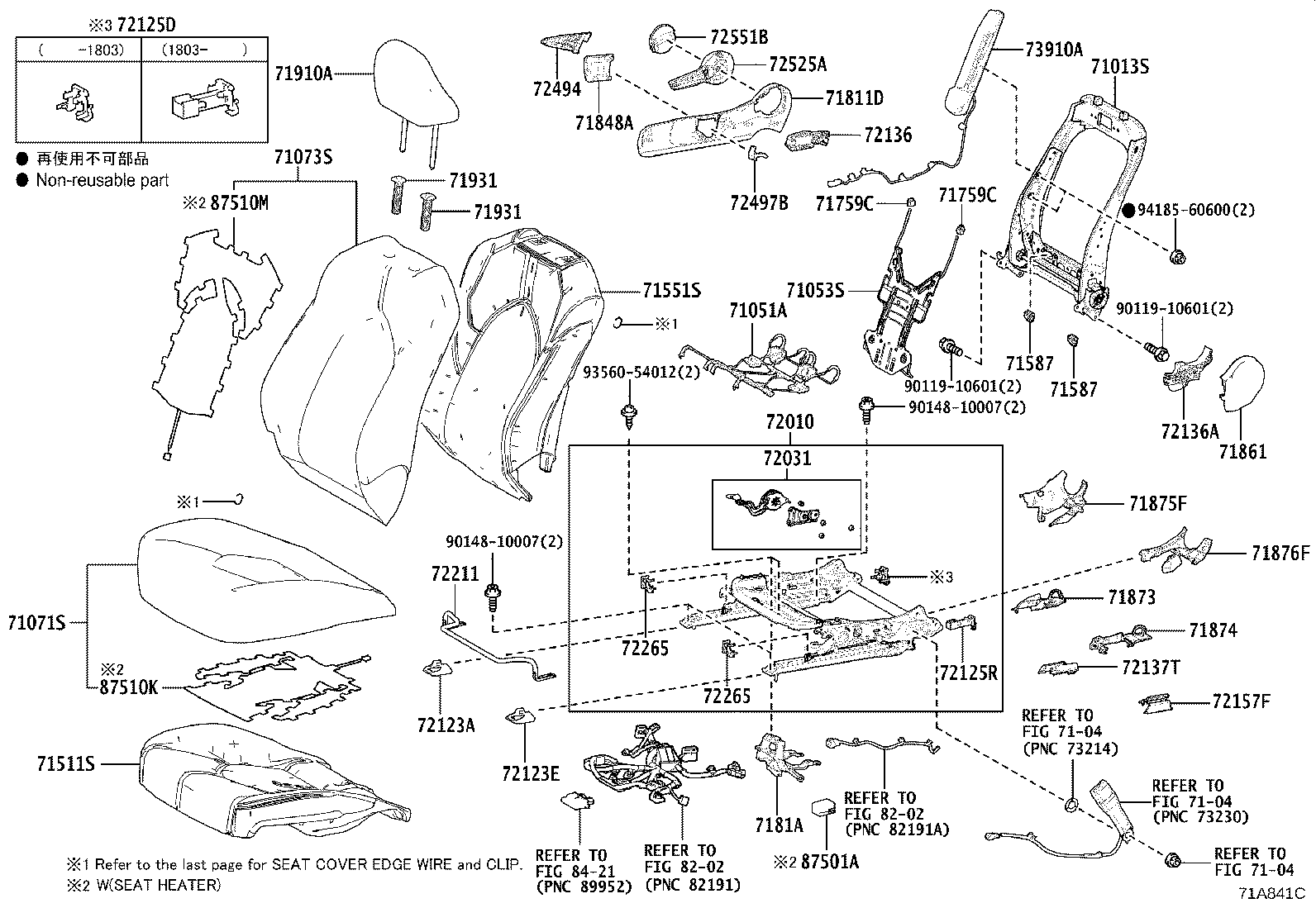

SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1709- )ASV7#..LHD ; (1709- )AXVA70..LHD..N..EUR ; (2104- )AXVA70,MXVA71..
RH SEAT:MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-33340 |
AXVA70 |
1 | ||
| 71013-33560 |
AXVA70,AXVH70 |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33L10A2 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33L10C2 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71071-33L11A3 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33L11C3 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71071-33L12A4 |
AXVA70,AXVH70..N FROMAGE,TRIM4# |
1 | ||
| 71071-33L12C4 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71071-33L30C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33T30A5 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T30C5 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71073-33T31E1 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T31C7 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71073-33U81C1 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33530 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33530 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33410 |
AXVA70,AXVH70 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47140C1 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 71811-47140E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47040C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71875-47070E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B6020 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B60E3 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6121 |
AXVA70..S BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-33540 |
AXVA70 |
1 | ||
| 72010-33541 |
AXVA70,AXVH70 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-47020 |
AXVA70 |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47050 |
AXVA70,AXVH70;AXVH71..LHD..D |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-33050E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72525-33050C0 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-33010E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72551-33010C0 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33080 |
AXVA70,AXVH70 |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-33010 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-33380 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-33170 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
(1709- )AXVH7#..LHD..N ; (1709- )AXVA70..LHD..EUR ; (2102- )AXVH70..S
RH SEAT:MANUAL SEAT(KOREA SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-33340 |
AXVA70 |
1 | ||
| 71013-33560 |
AXVA70,AXVH70 |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33L10A2 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33L10C2 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71071-33L11A3 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33L11C3 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71071-33L12A4 |
AXVA70,AXVH70..N FROMAGE,TRIM4# |
1 | ||
| 71071-33L12C4 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71071-33L30C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33T30A5 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T30C5 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71073-33T31E1 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T31C7 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71073-33U81C1 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33530 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33410 |
AXVA70,AXVH70 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47140C1 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 71811-47140E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47040C1 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 71848-47040E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47070 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-33140 |
AXVA70,AXVH70 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47040C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71875-47070E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B6020 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B60E3 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6121 |
AXVA70..S BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-33540 |
AXVA70 |
1 | ||
| 72010-33541 |
AXVA70,AXVH70 |
1 | ||
| 72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL | ||||
| 72443-47011 |
AXVA70,AXVH70;AXVH71..LHD..D |
1 | ||
| 72443-47010 |
AXVA70;AXVH71..LHD..D |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-47020 |
AXVA70 |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-33250 |
AXVA70,AXVH70 |
1 | ||
| 72136A - SPACER, SEAT TRACK, LOWER NO.2 | ||||
| 72136-33260 |
AXVA70,AXVH70 |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47050 |
AXVA70,AXVH70;AXVH71..LHD..D |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-47030E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72494-47030C1 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-47010 |
AXVA70,AXVH70;AXVH71..LHD..D |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-33050E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72525-33050C0 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-33010E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72551-33010C0 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33080 |
AXVA70,AXVH70 |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-33010 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-33380 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-33170 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||
(1709- )AXVA70..LHD..N..EUR ; (1709- )ASV7#,AXVH71,GSV70..LHD..G,N ; (2104-

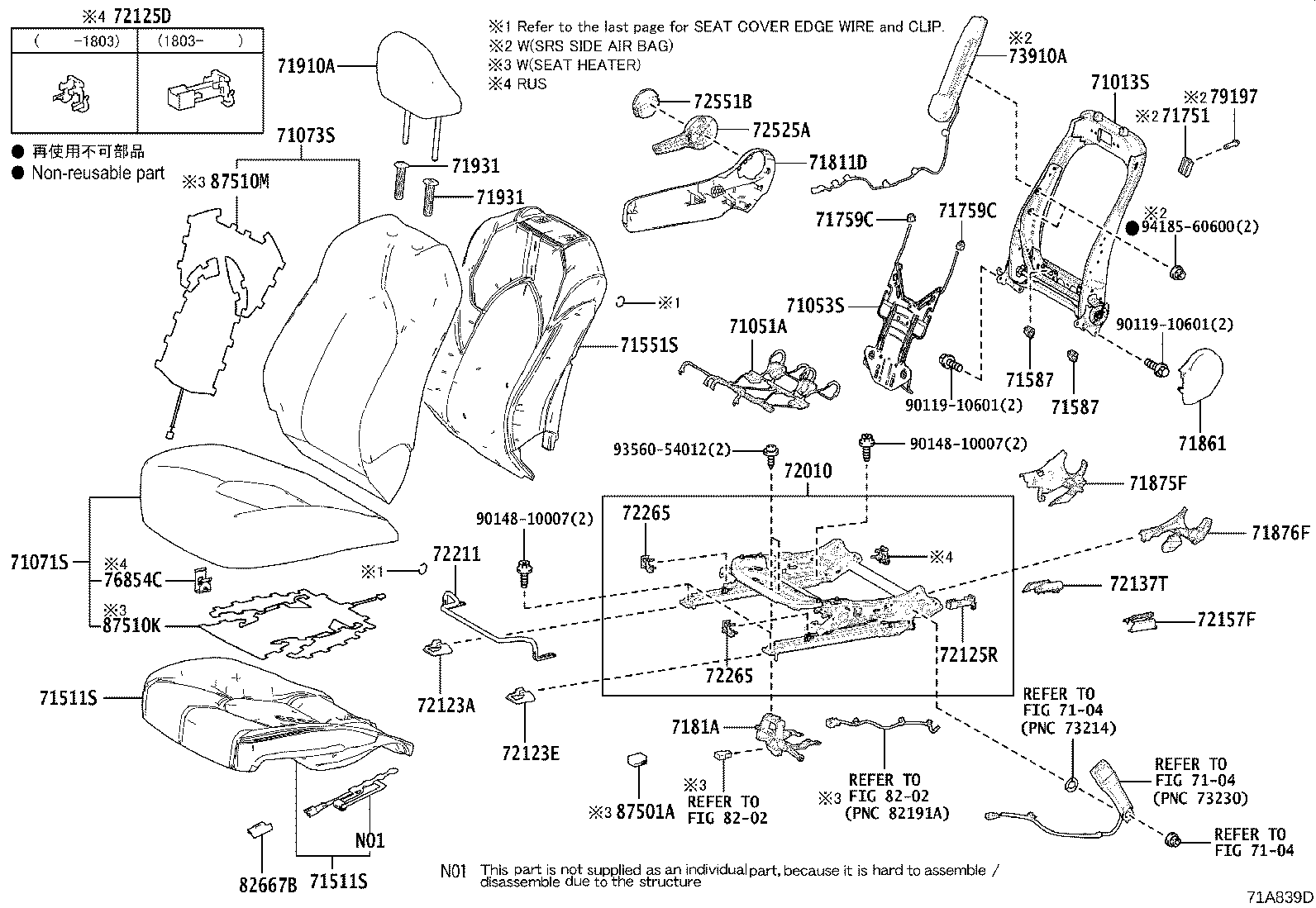

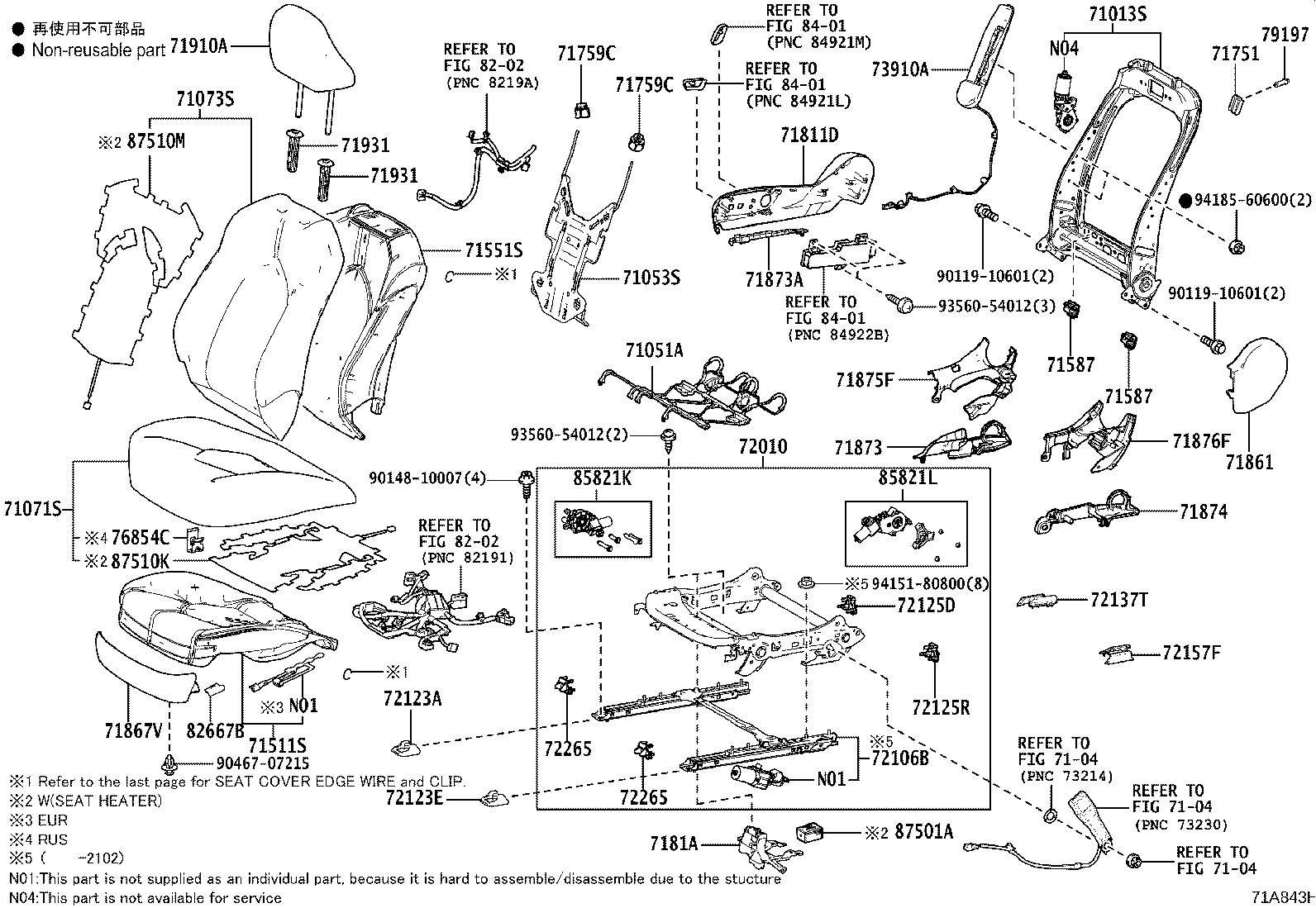

RH SEAT:4WAY-POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-33340 |
AXVA70 |
1 | ||
| 71013-33560 |
AXVA70,AXVH70 |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33L10A2 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33L10C2 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71071-33L11A3 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33L11C3 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71071-33L12A4 |
AXVA70,AXVH70..N FROMAGE,TRIM4# |
1 | ||
| 71071-33L12C4 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71071-33L30C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33T30A5 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T30C5 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71073-33T31E1 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T31C7 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71073-33U81C1 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33530 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33410 |
AXVA70,AXVH70 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47140C1 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 71811-47140E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47070 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-33140 |
AXVA70,AXVH70 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47040C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71875-47070E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B6020 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B60E3 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6121 |
AXVA70..S BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-33540 |
AXVA70 |
1 | ||
| 72010-33541 |
AXVA70,AXVH70 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-47020 |
AXVA70 |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33080 |
AXVA70,AXVH70 |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-33010 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-33380 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-33170 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(1709- )ASV7#..LHD ; (2104- )AXVA70,MXVA71..LHD

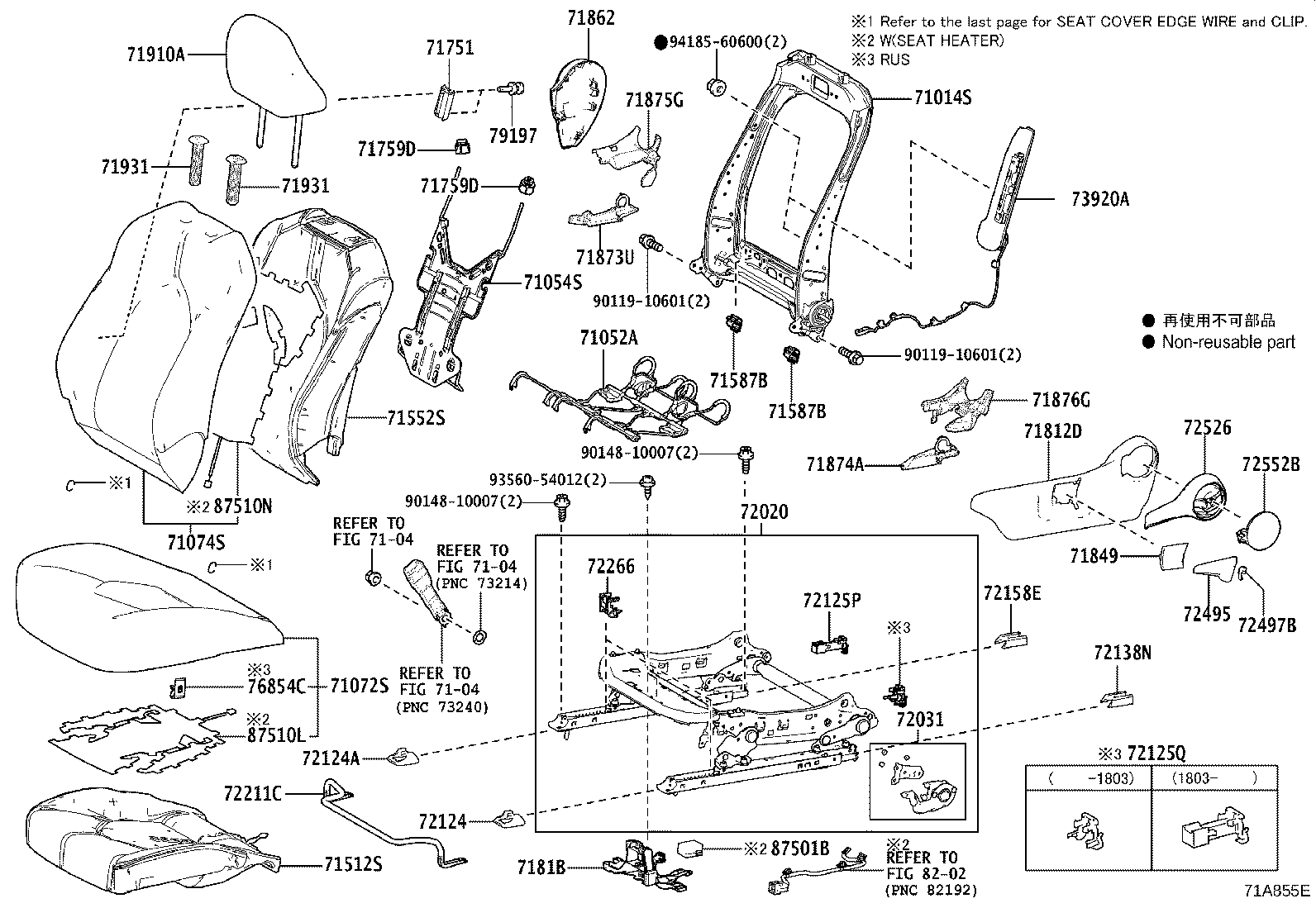

LH SEAT:MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-33160 |
AXVA70 |
1 | ||
| 71014-33400 |
AXVA70,AXVH70 |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33Q40A4 |
AXVA70,AXVH71..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q40C4 |
AXVA70,AXVH71..LHD BLACK,TRIM2# |
1 | ||
| 71072-33Q41A5 |
AXVA70,AXVH71..LHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q41C5 |
AXVA70,AXVH71..LHD..N BLACK,TRIM2# |
1 | ||
| 71072-33Q42A6 |
AXVA70,AXVH7#..LHD..N FROMAGE,TRIM4# |
1 | ||
| 71072-33M20C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71072-33Q42C6 |
AXVA70,AXVH7#..LHD..N BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33S30C5 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71074-33S30A5 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S31E1 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S31C7 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71074-33T91C1 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-33470 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-33300 |
AXVA70,AXVH70 |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33400C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 71812-33400E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-33010 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47090C1 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71862-47090E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-47080 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47070 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-47080C1 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71876-47080E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47040E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876-47040C1 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B6020 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B60E3 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6121 |
AXVA70..S BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-33450 |
AXVA70,AXVH70 |
1 | ||
| 72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL | ||||
| 72443-47011 |
AXVA70,AXVH70;AXVH71..LHD..D |
1 | ||
| 72443-47010 |
AXVA70;AXVH71..LHD..D |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72124A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-47020 |
AXVH7#..N;ASV70..RHD;AXVH71..LHD..D;AXVA70,GSV70..LHD |
1 | ||
| 72125Q - COVER, SEAT TRACK, UPPER REAR NO.4 | ||||
| 72125-47020 |
AXVH7#..N;ASV70..RHD;AXVH71..LHD..D;AXVA70,GSV70..LHD |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47020 |
AXVH7#..N;ASV70..RHD;AXVH71..LHD..D;AXVA70,GSV70..LHD |
2 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-47010 |
AXVA70,AXVH70;AXVH71..LHD..D |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-33080 |
AXVA70,AXVH70 |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-33010 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-33390 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-33170 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
(1709- )AXVH7#..LHD..N ; (1709- )AXVA70..LHD..EUR ; (2102- )AXVH70..S

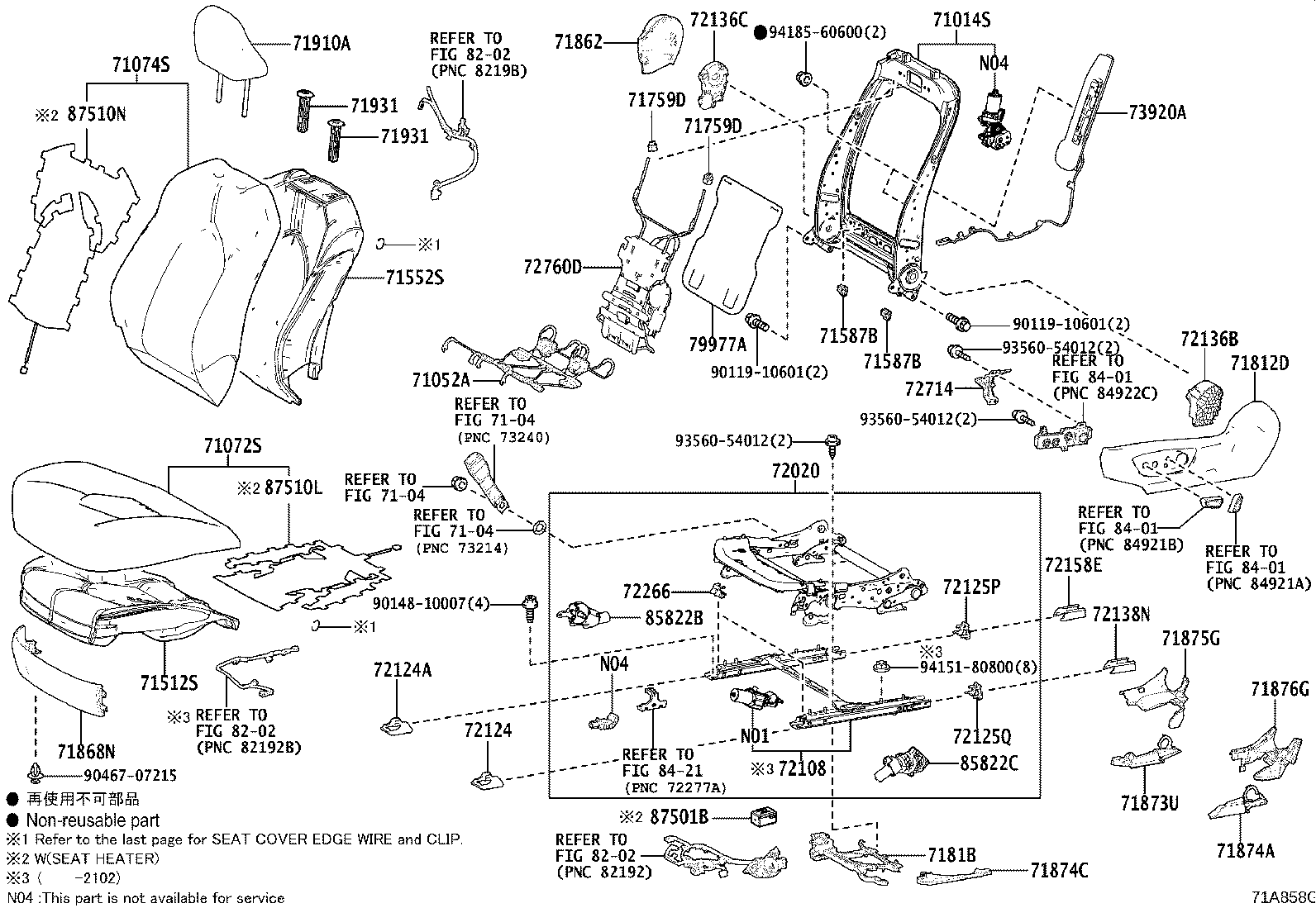

LH SEAT:POWER SEAT(KOREA SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-33160 |
AXVA70 |
1 | ||
| 71014-33400 |
AXVA70,AXVH70 |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33Q40A4 |
AXVA70,AXVH71..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q40C4 |
AXVA70,AXVH71..LHD BLACK,TRIM2# |
1 | ||
| 71072-33Q41A5 |
AXVA70,AXVH71..LHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q41C5 |
AXVA70,AXVH71..LHD..N BLACK,TRIM2# |
1 | ||
| 71072-33Q42A6 |
AXVA70,AXVH7#..LHD..N FROMAGE,TRIM4# |
1 | ||
| 71072-33M20C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71072-33Q42C6 |
AXVA70,AXVH7#..LHD..N BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33S30C5 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71074-33S30A5 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S31E1 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S31C7 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71074-33T91C1 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-33470 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-33300 |
AXVA70,AXVH70 |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33400C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 71812-33400E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-33010 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47090C1 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71862-47090E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71868N - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-47010C1 |
ASV70..RHD;AXVH71..LHD..D;AXVA70,AXVH7#,GSV70..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71868-47010E0 |
ASV70..RHD;AXVH71..LHD..D;AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-47080 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47070 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-47090 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-47080C1 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71876-47080E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47040E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876-47040C1 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B6020 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B60E3 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6121 |
AXVA70..S BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-33450 |
AXVA70,AXVH70 |
1 | ||
| 72108 - RAIL SUB-ASSY, SEAT TRACK, UPPER LH | ||||
| 72108-33040 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72124A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-47020 |
AXVH7#..N;ASV70..RHD;AXVH71..LHD..D;AXVA70,GSV70..LHD |
1 | ||
| 72125Q - COVER, SEAT TRACK, UPPER REAR NO.4 | ||||
| 72125-47020 |
AXVH7#..N;ASV70..RHD;AXVH71..LHD..D;AXVA70,GSV70..LHD |
1 | ||
| 72136B - SPACER, SEAT TRACK, LOWER NO.3 | ||||
| 72136-33290 |
AXVA70,AXVH70 |
1 | ||
| 72136C - SPACER, SEAT TRACK, LOWER NO.4 | ||||
| 72136-33300 |
AXVA70,AXVH70 |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47020 |
AXVH7#..N;ASV70..RHD;AXVH71..LHD..D;AXVA70,GSV70..LHD |
2 | ||
| 72714 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH | ||||
| 72714-47010 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-11020 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-33080 |
AXVA70,AXVH70 |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33030 |
ASV70..RHD;AXVH7#..D,N;AXVA70,GSV70..LHD |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-47040 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-47030 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-33010 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-33390 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-33170 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(1709- )ASV70,AXVA70,AXVH71,GSV70..LHD..D,G,N..EUR ; (2104- )AXVA70,MXVA71..R
LH SEAT:POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-33160 |
AXVA70 |
1 | ||
| 71014-33400 |
AXVA70,AXVH70 |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33Q40A4 |
AXVA70,AXVH71..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q40C4 |
AXVA70,AXVH71..LHD BLACK,TRIM2# |
1 | ||
| 71072-33Q41A5 |
AXVA70,AXVH71..LHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q41C5 |
AXVA70,AXVH71..LHD..N BLACK,TRIM2# |
1 | ||
| 71072-33Q42A6 |
AXVA70,AXVH7#..LHD..N FROMAGE,TRIM4# |
1 | ||
| 71072-33M20C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71072-33Q42C6 |
AXVA70,AXVH7#..LHD..N BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33S30C5 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71074-33S30A5 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S31E1 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S31C7 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71074-33T91C1 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-33470 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-33300 |
AXVA70,AXVH70 |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33400C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 71812-33400E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-33010 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47090C1 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71862-47090E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71868N - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-47010C1 |
ASV70..RHD;AXVH71..LHD..D;AXVA70,AXVH7#,GSV70..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71868-47010E0 |
ASV70..RHD;AXVH71..LHD..D;AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-47080 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47070 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-47090 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-47080C1 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71876-47080E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47040E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876-47040C1 |
AXVH71..D;AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B6020 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B60E3 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6121 |
AXVA70..S BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-33450 |
AXVA70,AXVH70 |
1 | ||
| 72108 - RAIL SUB-ASSY, SEAT TRACK, UPPER LH | ||||
| 72108-33040 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72124A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-47020 |
AXVH7#..N;ASV70..RHD;AXVH71..LHD..D;AXVA70,GSV70..LHD |
1 | ||
| 72125Q - COVER, SEAT TRACK, UPPER REAR NO.4 | ||||
| 72125-47020 |
AXVH7#..N;ASV70..RHD;AXVH71..LHD..D;AXVA70,GSV70..LHD |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47020 |
AXVH7#..N;ASV70..RHD;AXVH71..LHD..D;AXVA70,GSV70..LHD |
2 | ||
| 72714 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH | ||||
| 72714-47010 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-11020 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-33080 |
AXVA70,AXVH70 |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33030 |
ASV70..RHD;AXVH7#..D,N;AXVA70,GSV70..LHD |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-47040 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-47030 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-33010 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-33390 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-33170 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(1902- )LHD..D ; (2102- )AXVH71..RHD..N
RH SEAT:MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-33340 |
AXVA70 |
1 | ||
| 71013-33560 |
AXVA70,AXVH70 |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33L10A2 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33L10C2 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71071-33L11A3 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33L11C3 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71071-33L12A4 |
AXVA70,AXVH70..N FROMAGE,TRIM4# |
1 | ||
| 71071-33L12C4 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71071-33L30C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33T30A5 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T30C5 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71073-33T31E1 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T31C7 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71073-33U81C1 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33530 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33530 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33410 |
AXVA70,AXVH70 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47140C1 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 71811-47140E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47040C1 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 71848-47040E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47070 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-33140 |
AXVA70,AXVH70 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47040C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71875-47070E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B6020 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B60E3 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6121 |
AXVA70..S BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-33540 |
AXVA70 |
1 | ||
| 72010-33541 |
AXVA70,AXVH70 |
1 | ||
| 72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL | ||||
| 72443-47011 |
AXVA70,AXVH70;AXVH71..LHD..D |
1 | ||
| 72443-47010 |
AXVA70;AXVH71..LHD..D |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-47020 |
AXVA70 |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47050 |
AXVA70,AXVH70;AXVH71..LHD..D |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-47030E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72494-47030C1 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-47010 |
AXVA70,AXVH70;AXVH71..LHD..D |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-33050E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72525-33050C0 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-33010E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72551-33010C0 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33080 |
AXVA70,AXVH70 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1902- )LHD..D
RH SEAT:POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-33340 |
AXVA70 |
1 | ||
| 71013-33560 |
AXVA70,AXVH70 |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33L10A2 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33L10C2 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71071-33L11A3 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33L11C3 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71071-33L12A4 |
AXVA70,AXVH70..N FROMAGE,TRIM4# |
1 | ||
| 71071-33L12C4 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71071-33L30C0 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33T30A5 |
AXVA70 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T30C5 |
AXVA70 BLACK,TRIM2# |
1 | ||
| 71073-33T31E1 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T31C7 |
AXVA70,AXVH70..N BLACK,TRIM2# |
1 | ||
| 71073-33U81C1 |
AXVA70..S BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33530 |
AXVA70,AXVH7#,GSV70..LHD..(G,N,S)..EUR |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33410 |
AXVA70,AXVH70 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47140C1 |
AXVA70,AXVH70;AXVH71..LHD..D BLACK,TRIM2# |
1 | ||
| 71811-47140E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47070 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-33140 |
AXVA70,AXVH70 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47040C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C1 |
AXVA70,AXVH70;AXVH71..LHD..D;ASV70,AXVH71..RHD BLACK,TRIM2# |
1 | ||
| 71875-47070E0 |
AXVA70,AXVH70..N;ASV70,AXVH71..RHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B6020 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B60E3 |
ASV70..RHD;AXVA70,AXVH71,GSV70..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6121 |
AXVA70..S BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050E0 |
ASV70..RHD;ASV70..RUS;AXVA70..LHD..N;ASV71,AXVH7#,GSV70..D,G,N W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ASV70..RHD;AXVH7#..D,N;ASV71,AXVA70,GSV70..LHD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-33540 |
AXVA70 |
1 | ||
| 72010-33541 |
AXVA70,AXVH70 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-47020 |
AXVA70 |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXVH70..N;ASV7#..RUS;AXVA70..LHD;AXVH71..LHD..D |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33080 |
AXVA70,AXVH70 |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33030 |
ASV70..RHD;AXVH7#..D,N;AXVA70,GSV70..LHD |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-33010 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-33380 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-33170 |
AXVA70,AXVH7#..LHD..(N,S) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
