AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )LHD

Click highlighted areas on diagram

W(SMART ENTRY) LHD

diagram 69052 69055A 69056A 69503 69503A 69503B 89072B 89745C 89745C 89904B 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-33410

AXVA70,AXVH7#,GSV70..LHD..EUR

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-33510

ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30270

ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR

 1
69503 - CYLINDER SET, LOCK
69005-33E20

AXVA70,AXVH7#,GSV70..LHD..EUR

 1
69503A - KEY, BLANK
69515-47030

ASV70..RHD;ASV70..RUS;ASV71,AXVA70,AXVH7#,GSV70

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-47020

ASV70..RHD;ASV70..RUS;ASV71,AXVA70,AXVH7#,GSV70

MASTER KEY,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-33C80

AXVA70

 2
89745C - BATTERY, TRANSMITTER
89745-45010

AXVA70,AXVH70

CR2032

 1
89745C - BATTERY, TRANSMITTER
89745-45010

AXVA70,AXVH70

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-33880

AXVA70

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-33880

AXVA70

 2

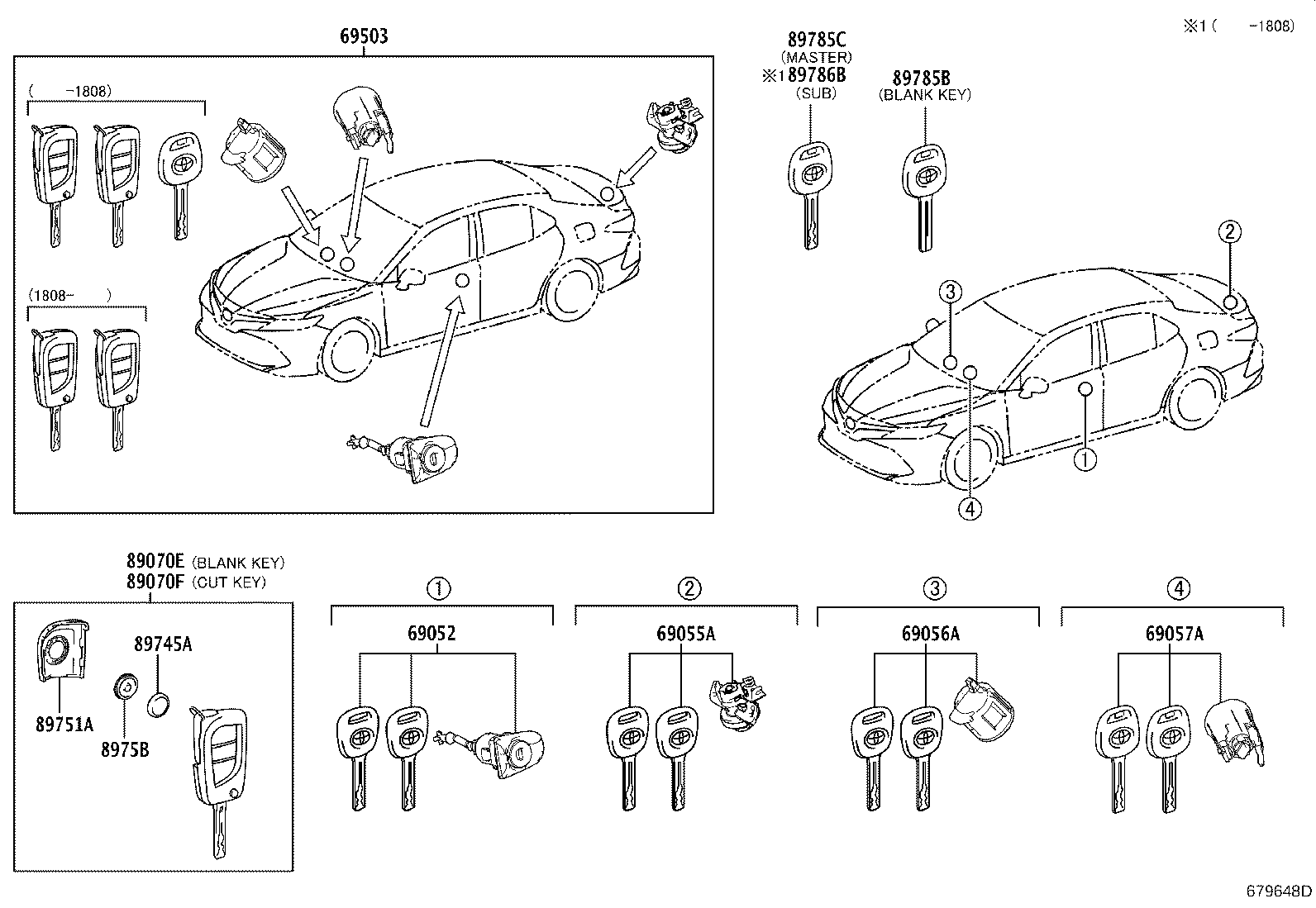

(1709- )ASV70,AXVA70..LHD..N..EUR

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69052 69055A 69056A 69057A 69503 89070E 89070F 89745A 89751A 8975B 89785B 89785C 89786B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-33410

AXVA70,AXVH7#,GSV70..LHD..EUR

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-33510

ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30270

ASV70..RHD;AXVA70,AXVH7#,GSV70..EUR

 1
69503 - CYLINDER SET, LOCK
69005-33E20

AXVA70,AXVH7#,GSV70..LHD..EUR

 1
