AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709-2102)G,N,S ; (2102- )AXVH70

Click highlighted areas on diagram

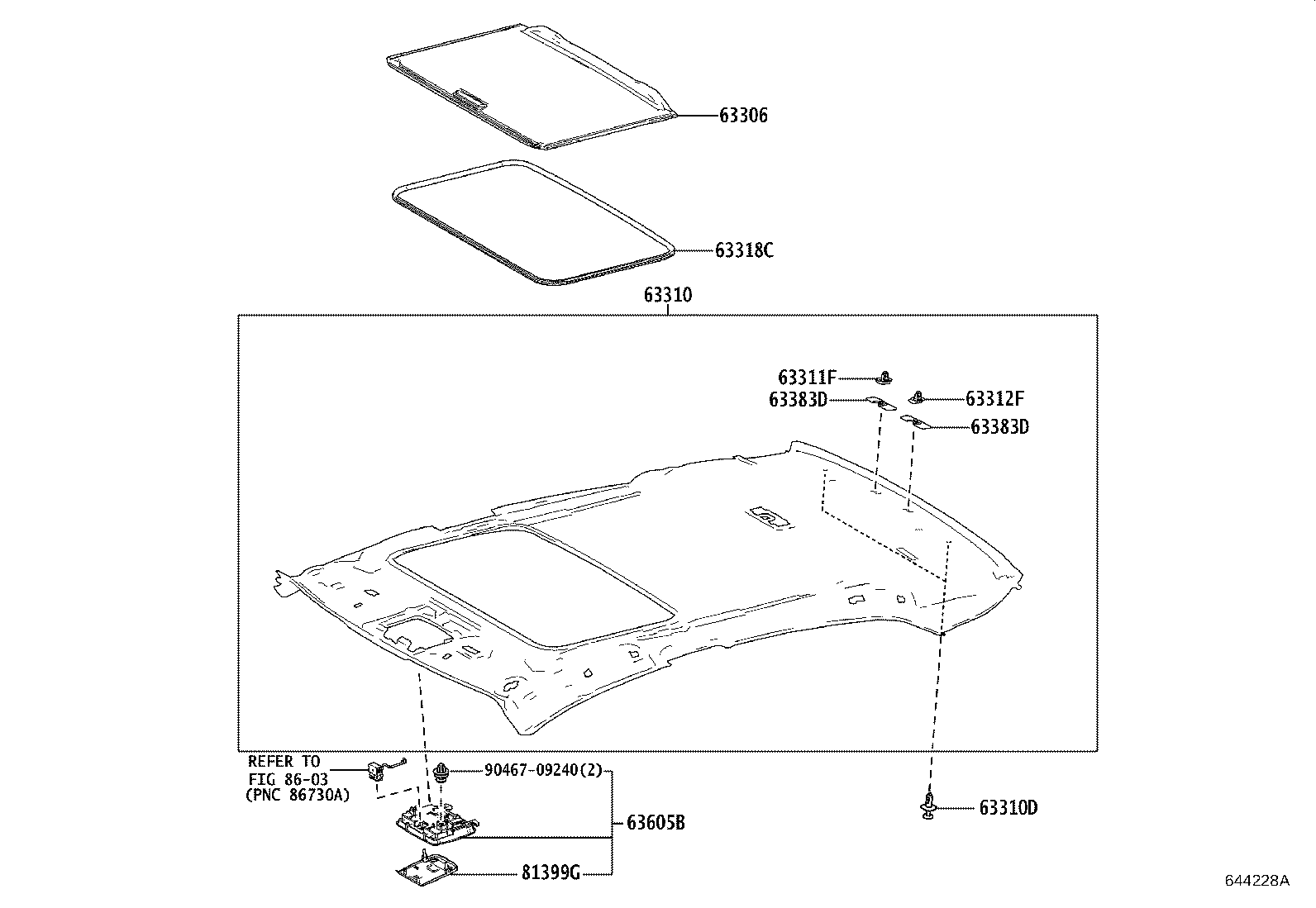

W(MOON ROOF)

diagram 63306 63310 63310D 63311F 63312F 63318C 63383D 63383D 63605B 81399G 8603 9046709240
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-33350B0

AXVA70,AXVH71..LHD..(N,S)

GRAY,TRIM2#

 1
63306-33350E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-33860B0

AXVA70,AXVH71..LHD..(N,S)

GRAY,TRIM2#

 1
63310-33860E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90467-05168B0

ASV70,AXVA70,AXVH7#,GSV70..EUR

GRAY,TRIM2#

 2
90467-05168E0

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

NEUTRAL BEIGE,TRIM4#

 2
63311F - CLIP, ROOF HEADLINING, NO.1
90467-10181

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
63312F - CLIP, ROOF HEADLINING, NO.2
90467-09126

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
63383D - RETAINER, ROOF HEADLINING, REAR
63383-24030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
63383D - RETAINER, ROOF HEADLINING, REAR
63383-24030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
63605B - BOX SUB-ASSY, ROOF CONSOLE
63605-33200E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63605-33200B0

AXVA70,AXVH71..LHD..N

GRAY,TRIM1#,2#

 1
63605-33200B0

AXVA70..S

GRAY,TRIM2#

 1
81399G - COVER, LENS
81399-33040

AXVA70,AXVH71..LHD..(N,S)

 1
Common parts
90467-09240
Linked diagrams
8603

(1709-2102)G,N,S ; (2102- )AXVA70..RHD ; (2102- )AXVH7#,GSV70..G,N..EUR

Click highlighted areas on diagram

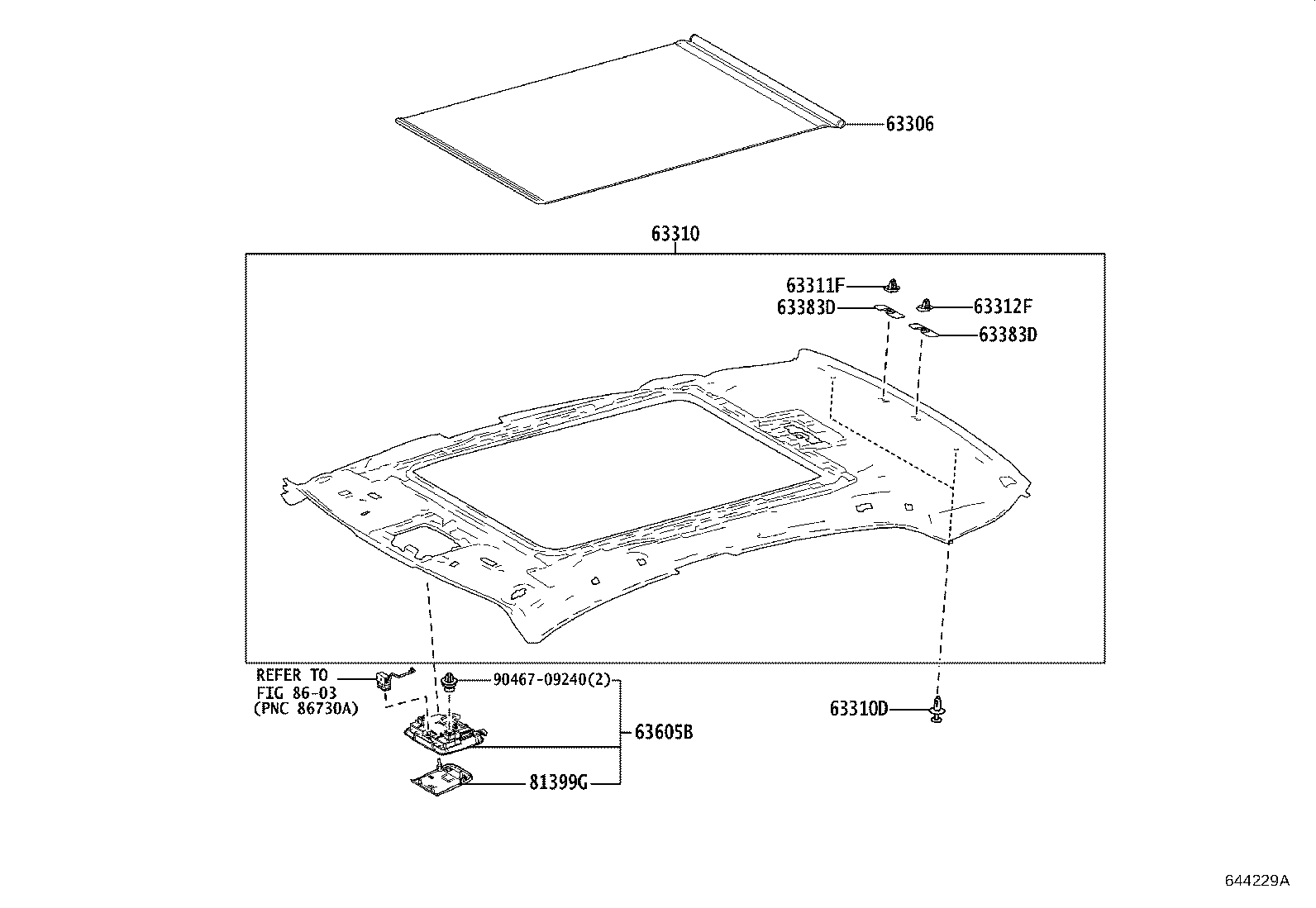

W(PANORAMA ROOF)

diagram 63306 63310 63310D 63311F 63312F 63383D 63383D 63605B 81399G 8603 9046709240
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-33350B0

AXVA70,AXVH71..LHD..(N,S)

GRAY,TRIM2#

 1
63306-33350E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-33860B0

AXVA70,AXVH71..LHD..(N,S)

GRAY,TRIM2#

 1
63310-33860E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90467-05168B0

ASV70,AXVA70,AXVH7#,GSV70..EUR

GRAY,TRIM2#

 2
90467-05168E0

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

NEUTRAL BEIGE,TRIM4#

 2
63311F - CLIP, ROOF HEADLINING, NO.1
90467-10181

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
63312F - CLIP, ROOF HEADLINING, NO.2
90467-09126

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
63383D - RETAINER, ROOF HEADLINING, REAR
63383-24030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
63383D - RETAINER, ROOF HEADLINING, REAR
63383-24030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
63605B - BOX SUB-ASSY, ROOF CONSOLE
63605-33200E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63605-33200B0

AXVA70,AXVH71..LHD..N

GRAY,TRIM1#,2#

 1
63605-33200B0

AXVA70..S

GRAY,TRIM2#

 1
81399G - COVER, LENS
81399-33040

AXVA70,AXVH71..LHD..(N,S)

 1
Common parts
90467-09240
Linked diagrams
8603

(1709-2102)G,N,S..EUR ; (2102- )LHD..D ; (2102- )AXVH71..RHD ; (2102- )AXV

Click highlighted areas on diagram

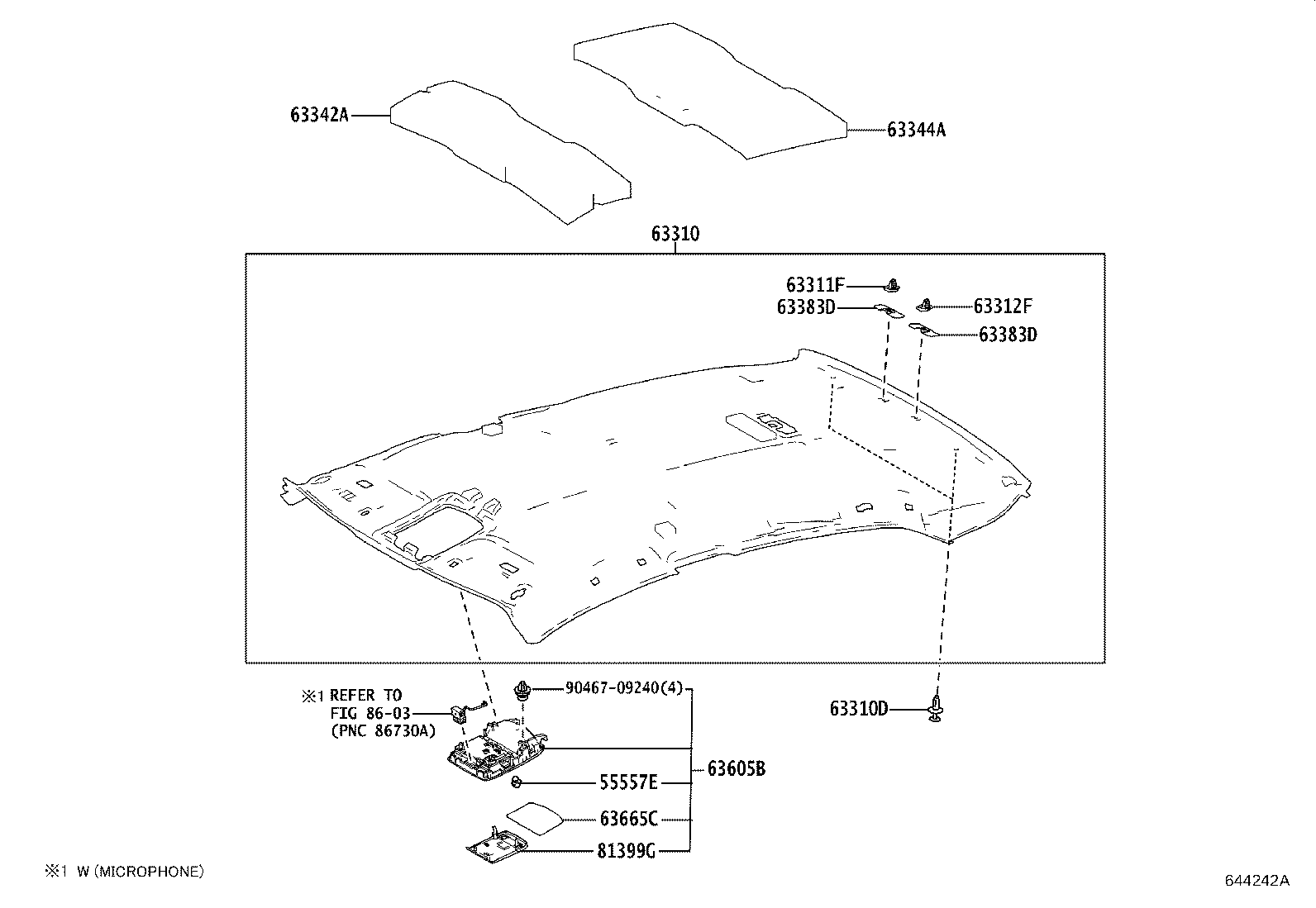

diagram 55557E 63310 63310D 63311F 63312F 63342A 63344A 63383D 63383D 63605B 63665C 81399G 8603 9046709240
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-33860B0

AXVA70,AXVH71..LHD..(N,S)

GRAY,TRIM2#

 1
63310-33860E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90467-05168B0

ASV70,AXVA70,AXVH7#,GSV70..EUR

GRAY,TRIM2#

 2
90467-05168E0

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

NEUTRAL BEIGE,TRIM4#

 2
63311F - CLIP, ROOF HEADLINING, NO.1
90467-10181

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
63312F - CLIP, ROOF HEADLINING, NO.2
90467-09126

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
63383D - RETAINER, ROOF HEADLINING, REAR
63383-24030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
63383D - RETAINER, ROOF HEADLINING, REAR
63383-24030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
63605B - BOX SUB-ASSY, ROOF CONSOLE
63605-33200E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63605-33200B0

AXVA70,AXVH71..LHD..N

GRAY,TRIM1#,2#

 1
63605-33200B0

AXVA70..S

GRAY,TRIM2#

 1
81399G - COVER, LENS
81399-33040

AXVA70,AXVH71..LHD..(N,S)

 1
Common parts
90467-09240
Linked diagrams
8603

(1902- )D

Click highlighted areas on diagram

diagram 55557E 63310 63310D 63311F 63312F 63342A 63344A 63383D 63383D 63605B 63605B 63665C 81399G 81399G 8603 8603 8615 8615 9046709240 9046709240
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-33860B0

AXVA70,AXVH71..LHD..(N,S)

GRAY,TRIM2#

 1
63310-33860E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90467-05168B0

ASV70,AXVA70,AXVH7#,GSV70..EUR

GRAY,TRIM2#

 2
90467-05168E0

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

NEUTRAL BEIGE,TRIM4#

 2
63311F - CLIP, ROOF HEADLINING, NO.1
90467-10181

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
63312F - CLIP, ROOF HEADLINING, NO.2
90467-09126

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
63383D - RETAINER, ROOF HEADLINING, REAR
63383-24030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
63383D - RETAINER, ROOF HEADLINING, REAR
63383-24030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
63605B - BOX SUB-ASSY, ROOF CONSOLE
63605-33200E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63605-33200B0

AXVA70,AXVH71..LHD..N

GRAY,TRIM1#,2#

 1
63605-33200B0

AXVA70..S

GRAY,TRIM2#

 1
63605B - BOX SUB-ASSY, ROOF CONSOLE
63605-33200E0

AXVA70,AXVH71..LHD..N

NEUTRAL BEIGE,TRIM4#

 1
63605-33200B0

AXVA70,AXVH71..LHD..N

GRAY,TRIM1#,2#

 1
63605-33200B0

AXVA70..S

GRAY,TRIM2#

 1
81399G - COVER, LENS
81399-33040

AXVA70,AXVH71..LHD..(N,S)

 1
81399G - COVER, LENS
81399-33040

AXVA70,AXVH71..LHD..(N,S)

 1
Common parts
90467-09240
Linked diagrams
8603
8615
