AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
ILLUST NO. 1 OF 2(1709- )LHD..D ; (1709- )AXVH71..RHD ; (1709- )ASV7#,AXVA70,AXVH70,GSV70,M

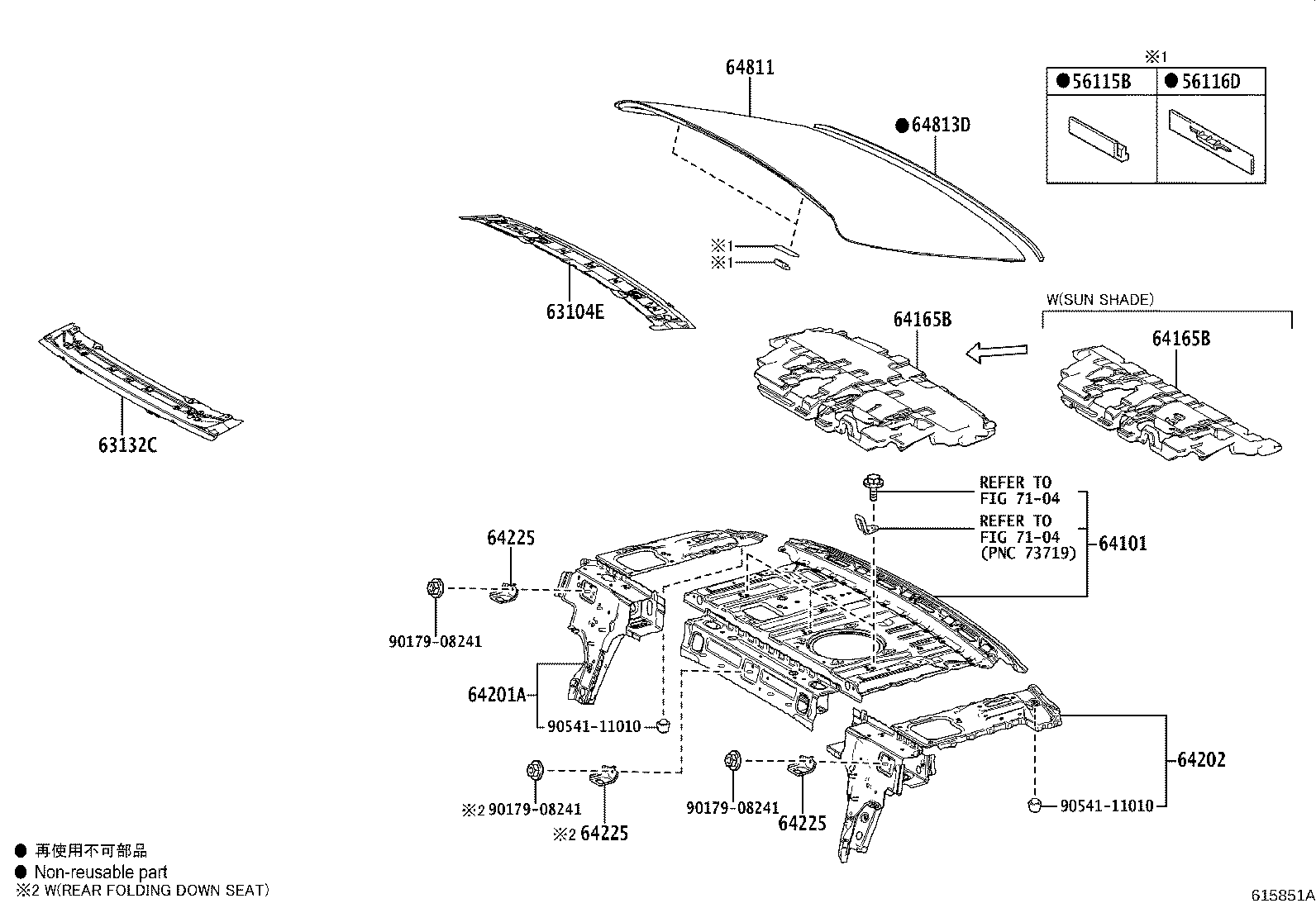

ROOF PANEL(NORMAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-33290 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-33350 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-33110 |
AXVA70,AXVH70 |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-33110 |
AXVA70,AXVH70 |
1 | ||
| 64201A - EXTENSION SUB-ASSY, PACKAGE TRAY, RH | ||||
| 64201-33090 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 64202 - EXTENSION SUB-ASSY, PACKAGE TRAY, LH | ||||
| 64202-33090 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-33050 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
2 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-33050 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
2 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-33050 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-33914 |
AXVA70,AXVH70 |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-64010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 90541-11010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 2(1709- )AXVH7#..N ; (1709- )ASV70,AXVA70,GSV70..EUR
ROOF PANEL(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63104-33110 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-33290 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-33350 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-33110 |
AXVA70,AXVH70 |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-33110 |
AXVA70,AXVH70 |
1 | ||
| 64201A - EXTENSION SUB-ASSY, PACKAGE TRAY, RH | ||||
| 64201-33090 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 64202 - EXTENSION SUB-ASSY, PACKAGE TRAY, LH | ||||
| 64202-33090 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-33050 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
2 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-33050 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
2 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-33050 |
AXVH71..RHD;AXVH71..LHD..D;ASV70,AXVA70,AXVH70..EUR |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-33914 |
AXVA70,AXVH70 |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-64010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 90541-11010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(1709- )AXVH7#..N ; (1709- )ASV70,AXVA70,GSV70..EUR

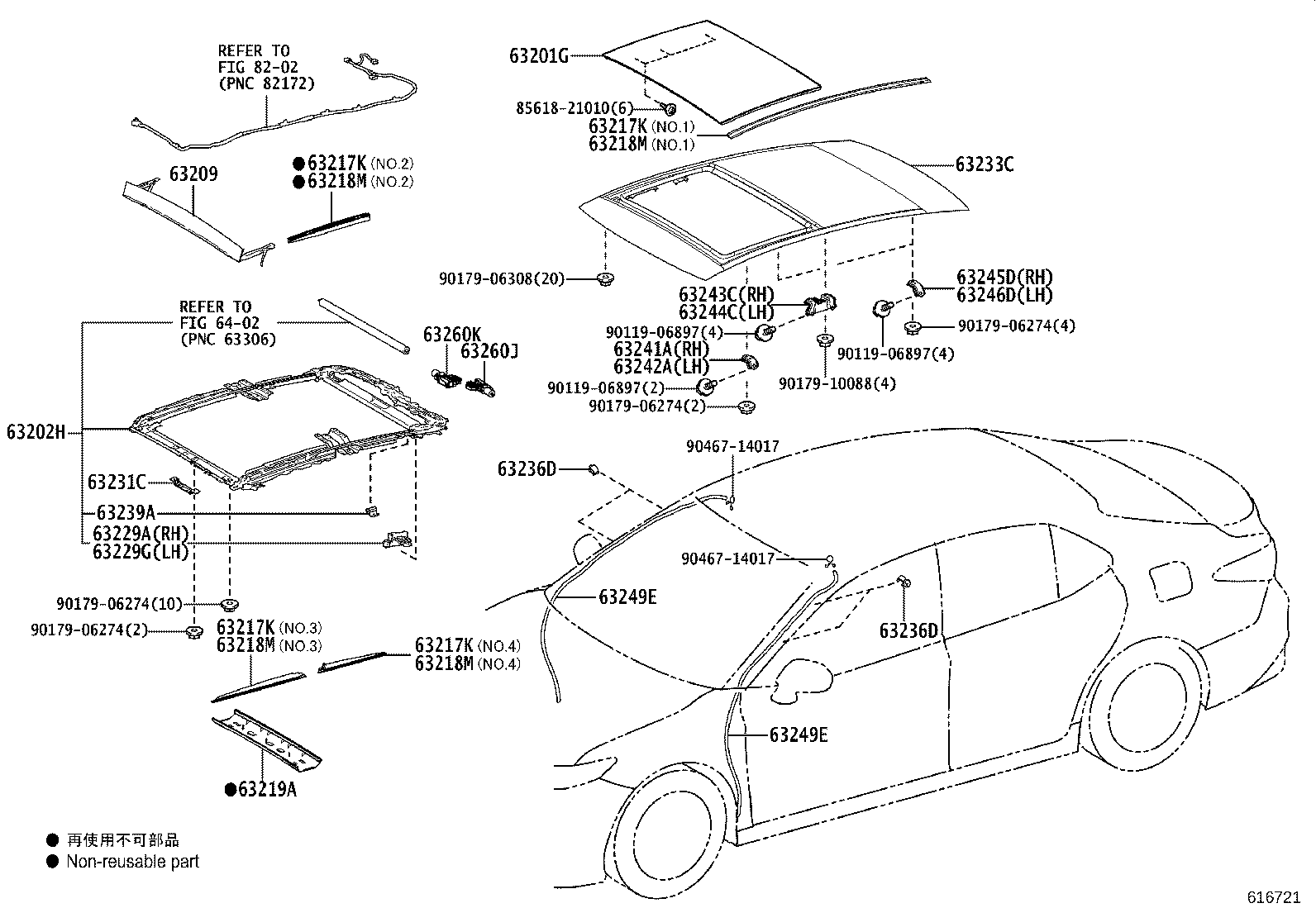

SLIDING ROOF(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-33320 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63201-33321 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-33150B0 |
AXVA70,AXVH71..LHD..(N,S) GRAY,TRIM2# |
1 | ||
| 63202-33151B0 |
AXVA70,AXVH71..LHD..(N,S) GRAY,TRIM2# |
1 | ||
| 63202-33150E0 |
AXVA70,AXVH71..LHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63202-33151E0 |
AXVA70,AXVH71..LHD..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-33180 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-33160 |
AXVA70,AXVH71..LHD..(N,S) NO.2 |
1 | ||
| 63217-33140 |
AXVA70,AXVH71..LHD..(N,S) NO.4 |
1 | ||
| 63217-33130 |
AXVA70,AXVH71..LHD..(N,S) NO.3 |
1 | ||
| 63217-33150 |
AXVA70,AXVH71..LHD..(N,S) NO.1 |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-33160 |
AXVA70,AXVH71..LHD..(N,S) NO.2 |
1 | ||
| 63217-33140 |
AXVA70,AXVH71..LHD..(N,S) NO.4 |
1 | ||
| 63217-33130 |
AXVA70,AXVH71..LHD..(N,S) NO.3 |
1 | ||
| 63217-33150 |
AXVA70,AXVH71..LHD..(N,S) NO.1 |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-33160 |
AXVA70,AXVH71..LHD..(N,S) NO.2 |
1 | ||
| 63217-33140 |
AXVA70,AXVH71..LHD..(N,S) NO.4 |
1 | ||
| 63217-33130 |
AXVA70,AXVH71..LHD..(N,S) NO.3 |
1 | ||
| 63217-33150 |
AXVA70,AXVH71..LHD..(N,S) NO.1 |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-33160 |
AXVA70,AXVH71..LHD..(N,S) NO.2 |
1 | ||
| 63217-33140 |
AXVA70,AXVH71..LHD..(N,S) NO.4 |
1 | ||
| 63217-33130 |
AXVA70,AXVH71..LHD..(N,S) NO.3 |
1 | ||
| 63217-33150 |
AXVA70,AXVH71..LHD..(N,S) NO.1 |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-33100 |
AXVA70,AXVH71..LHD..(N,S) NO.3 |
1 | ||
| 63218-33120 |
AXVA70,AXVH71..LHD..(N,S) NO.1 |
1 | ||
| 63218-33130 |
AXVA70,AXVH71..LHD..(N,S) NO.2 |
1 | ||
| 63218-33110 |
AXVA70,AXVH71..LHD..(N,S) NO.4 |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-33100 |
AXVA70,AXVH71..LHD..(N,S) NO.3 |
1 | ||
| 63218-33120 |
AXVA70,AXVH71..LHD..(N,S) NO.1 |
1 | ||
| 63218-33130 |
AXVA70,AXVH71..LHD..(N,S) NO.2 |
1 | ||
| 63218-33110 |
AXVA70,AXVH71..LHD..(N,S) NO.4 |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-33100 |
AXVA70,AXVH71..LHD..(N,S) NO.3 |
1 | ||
| 63218-33120 |
AXVA70,AXVH71..LHD..(N,S) NO.1 |
1 | ||
| 63218-33130 |
AXVA70,AXVH71..LHD..(N,S) NO.2 |
1 | ||
| 63218-33110 |
AXVA70,AXVH71..LHD..(N,S) NO.4 |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-33100 |
AXVA70,AXVH71..LHD..(N,S) NO.3 |
1 | ||
| 63218-33120 |
AXVA70,AXVH71..LHD..(N,S) NO.1 |
1 | ||
| 63218-33130 |
AXVA70,AXVH71..LHD..(N,S) NO.2 |
1 | ||
| 63218-33110 |
AXVA70,AXVH71..LHD..(N,S) NO.4 |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-33050 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-33050 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63229G - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-33060 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63231C - BRACKET, ROOM LAMP | ||||
| 63231-33110 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-33150 |
AXVA70,AXVH71..LHD..N |
1 | ||
| 63233-33110 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-42010 |
AXVA70,AXVH71..LHD..(N,S) |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-42010 |
AXVA70,AXVH71..LHD..(N,S) |
4 | ||
| 63239A - SPACER, SLIDING ROOF HOUSING | ||||
| 63239-33060 |
AXVA70,AXVH71..LHD..(N,S) |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-33140 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-33140 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-33160 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-33130 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-33110 |
AXVA70,AXVH71..LHD..(N,S) |
2 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63245-33110 |
AXVA70,AXVH71..LHD..(N,S) |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-33210 |
AXVA70,AXVH71..LHD..(N,S) |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-33210 |
AXVA70,AXVH71..LHD..(N,S) |
2 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-33171 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| 63260K - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-33180 |
AXVA70,AXVH71..LHD..(N,S) |
1 | ||
| Common parts | ||||
| 85618-21010 | ||||
| 90119-06897 | ||||
| 90179-06274 | ||||
| 90179-06308 | ||||
| 90179-10088 | ||||
| 90467-14017 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||
