AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )ASV70,AXVA70,GSV70..LHD..EUR

Click highlighted areas on diagram

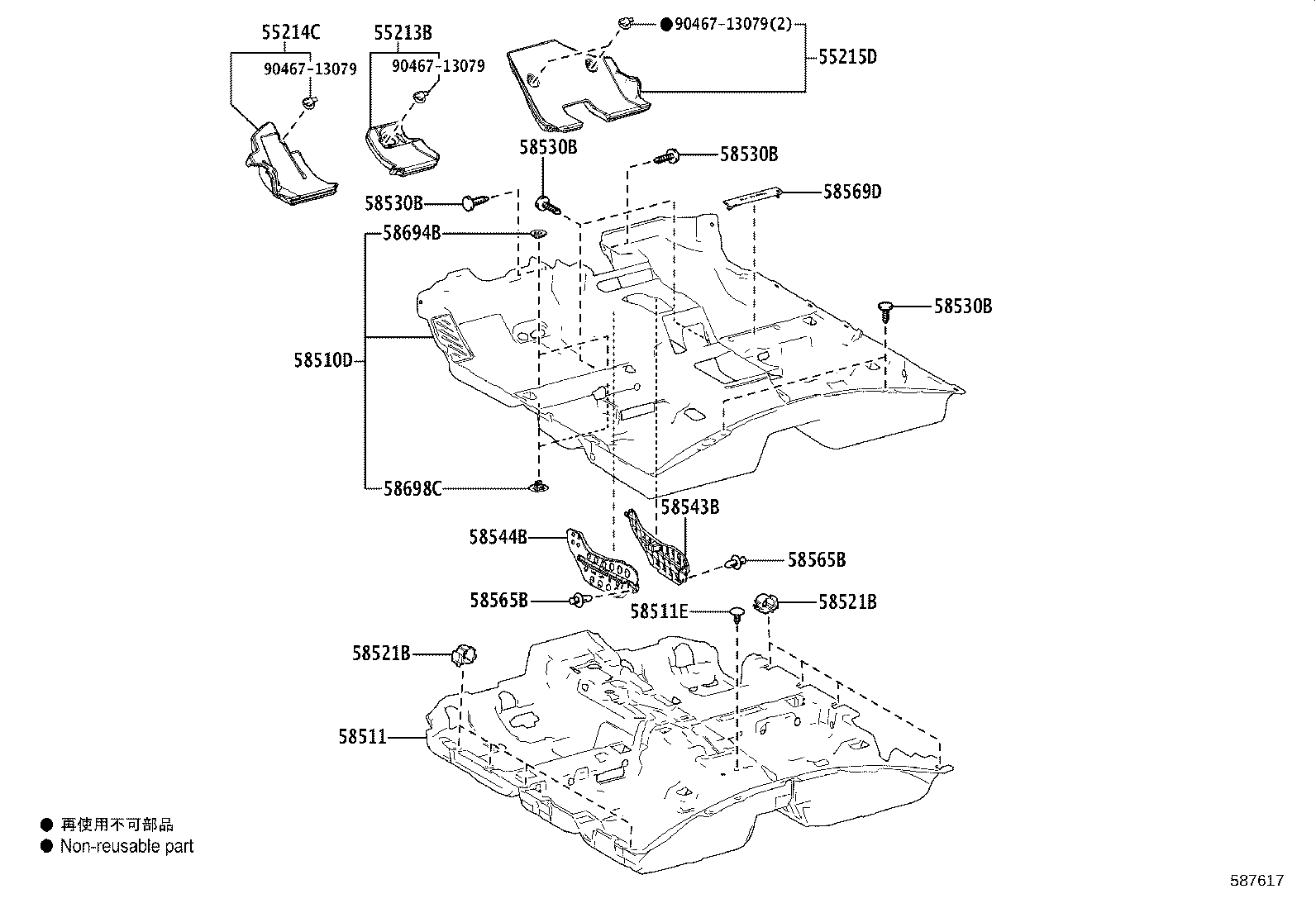

diagram 55213B 55214C 55215D 58510D 58511 58511E 58521B 58521B 58530B 58530B 58530B 58530B 58543B 58544B 58565B 58565B 58569D 58694B 58698C 9046713079 9046713079 9046713079
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-33180

ASV70,AXVA70,AXVH71,GSV70..LHD..EUR

 1
55213-33181

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-33110

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-33040

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-33880B2

AXVA70..N

NEUTRAL WARM GRAY,TRIM4#

 1
58510-33880C1

AXVA70

BLACK,TRIM2#

 1
58511 - MAT, FLOOR, FRONT
58511-33010

ASV70,AXVA70,GSV70..EUR

 1
58511-33011

ASV70,AXVA70,GSV70..EUR

 1
58511-33012

ASV70,AXVA70,GSV70..EUR

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C4

ASV70,AXVA70,AXVH7#,GSV70..EUR

BLACK

 1
58521B - HOOK, FLOOR CARPET
58521-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 8
58521B - HOOK, FLOOR CARPET
58521-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 8
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

ASV70,AXVA70,GSV70..LHD

BLACK

 6
90467-07161C1

ASV70,AXVA70,GSV70..LHD..EUR

BLACK

 5
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

ASV70,AXVA70,GSV70..LHD

BLACK

 6
90467-07161C1

ASV70,AXVA70,GSV70..LHD..EUR

BLACK

 5
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

ASV70,AXVA70,GSV70..LHD

BLACK

 6
90467-07161C1

ASV70,AXVA70,GSV70..LHD..EUR

BLACK

 5
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

ASV70,AXVA70,GSV70..LHD

BLACK

 6
90467-07161C1

ASV70,AXVA70,GSV70..LHD..EUR

BLACK

 5
58543B - BRACKET, FLOOR CARPET, RH
58543-33110

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
58544B - BRACKET, FLOOR CARPET, LH
58544-33110

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
58565B - CLIP
90467-07076C7

ASV70,AXVA70,AXVH7#,GSV70..EUR

BLACK

 2
58565B - CLIP
90467-07076C7

ASV70,AXVA70,AXVH7#,GSV70..EUR

BLACK

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-33030C0

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

BLACK,TRIM2#,4#

 1
58569-33030B0

AXVH71;ASV70,AXVA70,GSV70..LHD

NEUTRAL WARM GRAY,TRIM40

 1
58569-33030C0

ASV70,AXVA70,AXVH71,GSV70

BLACK,TRIM2#,40

 1
58569-33030C0

AXVA70..S

BLACK,TRIM2#

 1
58694B - PLATE, MAT SET, UPPER
58694-33010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
58698C - PLATE, MAT SET, LOWER
58698-33010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
Common parts
90467-13079
