AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )AXVA70,MXVA71

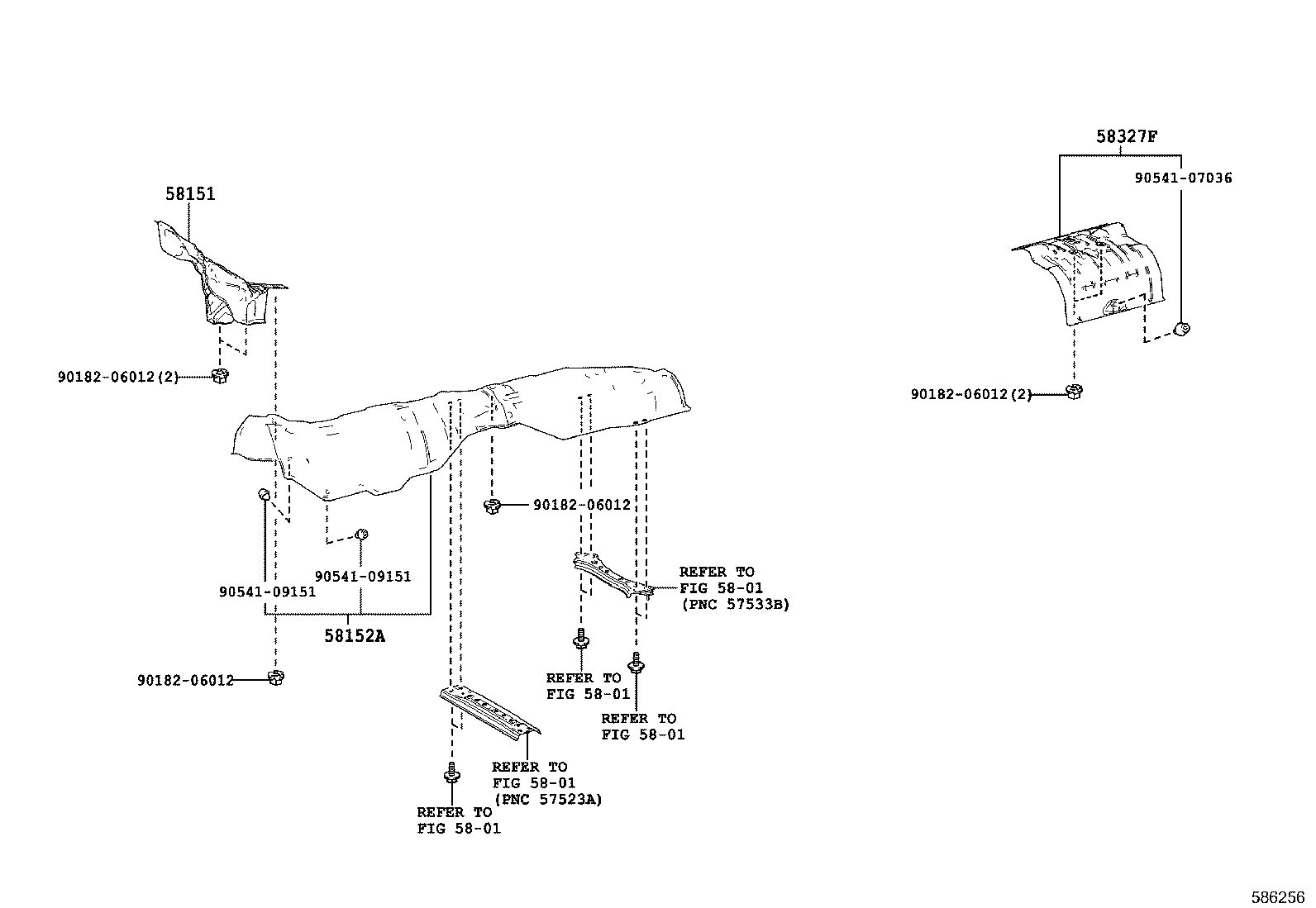

Click highlighted areas on diagram

diagram 5801 5801 5801 5801 5801 58151 58152A 58327F 9018206012 9018206012 9018206012 9018206012 9054107036 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-33010

AXVA70,AXVH7#

 1
58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58152-33080

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
58327F - INSULATOR, MAIN MUFFLER HEAT, RH
58327-33080

ASV70,AXVA70,GSV70..EUR

 1
Common parts
90182-06012
90541-07036
90541-09151
Linked diagrams
5801
