AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid

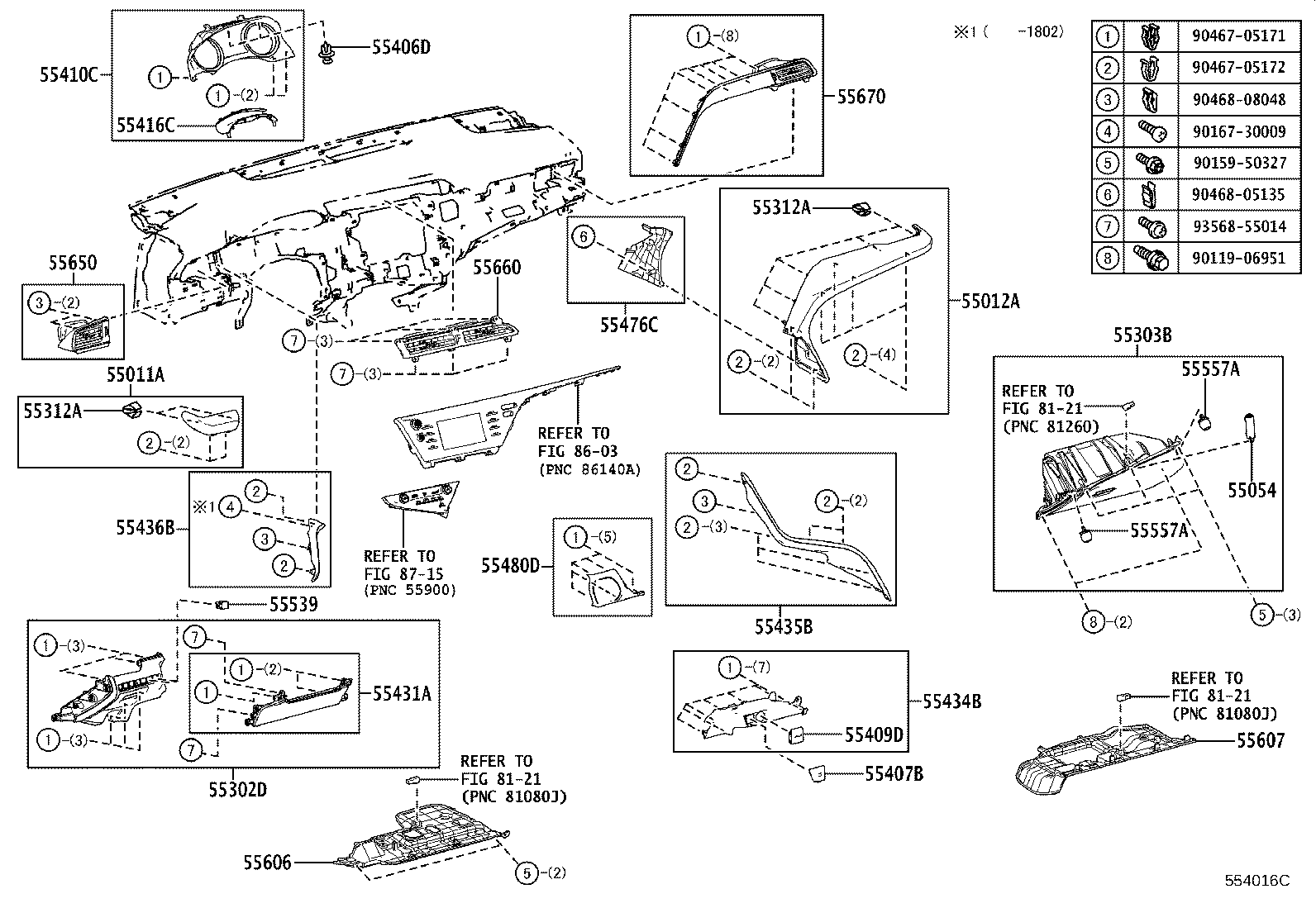

ILLUST NO. 2 OF 2(1709-2102)LHD..G,N,S..EUR ; (1709-2104)RUS
W/O(DRIVER'S KNEE AIRBAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-33070B1 |
ASV70,AXVA70,AXVH71,GSV70..LHD..(G,N)..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 55011-33070A1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR FROMAGE/IVORY,TRIM4# |
1 | ||
| 55011-33070C1 |
AXVA70..S BLACK/GRAY,TRIM2# |
1 | ||
| 55011-33070C2 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-33050A1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR FROMAGE/IVORY,TRIM4# |
1 | ||
| 55012-33050C2 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 55012-33050B1 |
ASV70,AXVA70,AXVH71,GSV70..LHD..(G,N)..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 55012-33050C1 |
AXVA70..S BLACK/GRAY,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33140 |
AXVA70,AXVH70 |
1 | ||
| 55302D - PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1 | ||||
| 55302-33280E0 |
AXVA70,AXVH71,GSV70..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55302-33280C0 |
AXVA70,AXVH71,GSV70..LHD BLACK,TRIM2# |
1 | ||
| 55302-33281E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55302-33281C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-33300E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55303-33300B0 |
AXVA70 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55303-33300C0 |
AXVA70,AXVH70 BLACK,TRIM2# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR MELLOW WHITE |
7 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR MELLOW WHITE |
7 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-06165C3 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK |
2 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-33040C1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55407-33040E1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55409D - BASE SUB-ASSY, CIGAR LIGHTER | ||||
| 55409-33120E1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55409-33120C1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-33080 |
AXVH71..LHD..D;ASV70,AXVA70,AXVH70..LHD..EUR |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-33070 |
AXVH71..LHD..D;ASV70,AXVA70,AXVH70..LHD..EUR |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-33110E1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55434-33110C1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-33100 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55436B - CLUSTER, METER HOOD, NO.2 | ||||
| 55436-33100 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-33280E0 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55476-33280B0 |
ASV70,AXVA70,AXVH71,GSV70..LHD..(G,N)..EUR NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55476-33280C0 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-33190C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55480-33190E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-33030 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-33170 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-33500 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55650-33440 |
ASV70,AXVA70,AXVH71,GSV70..LHD..EUR |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-33280 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-33450E2 |
AXVA70,AXVH71,GSV70..LHD..EUR TIGER EYE,TRIM2#,4# |
1 | ||
| 55670-33530E0 |
AXVA70,AXVH7#,GSV70..LHD..(G,N)..EUR TIGER EYE,TRIM2#,4# |
1 | ||
| 55670-33530B0 |
AXVA70..S TEXTURED METAL,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90167-30009 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 90468-08048 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||
| 8715 | ||||

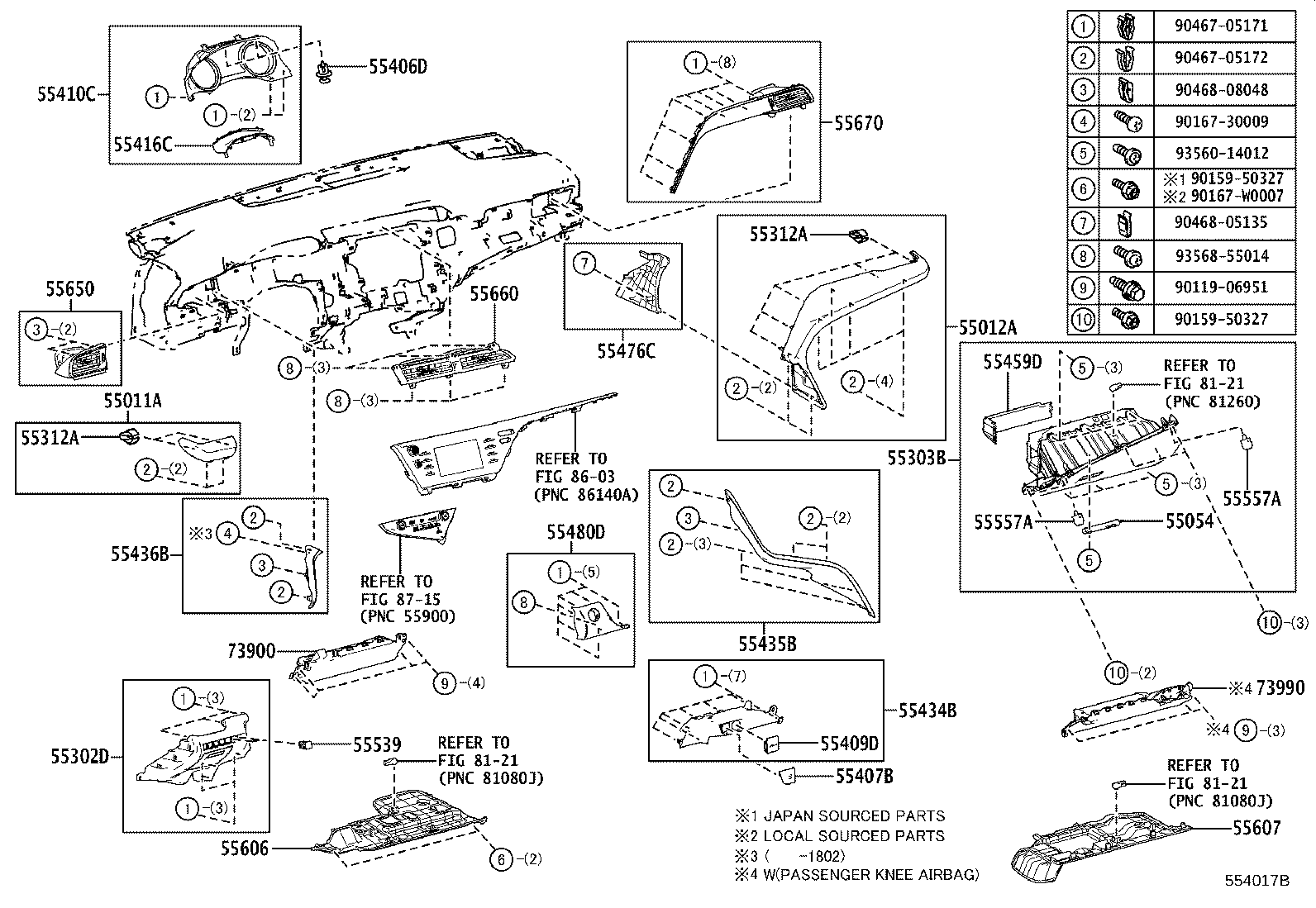

ILLUST NO. 2 OF 2(1709-2102)LHD..G,N,S..EUR ; (1709-2104)RUS
W(DRIVER'S KNEE AIRBAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-33070B1 |
ASV70,AXVA70,AXVH71,GSV70..LHD..(G,N)..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 55011-33070A1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR FROMAGE/IVORY,TRIM4# |
1 | ||
| 55011-33070C1 |
AXVA70..S BLACK/GRAY,TRIM2# |
1 | ||
| 55011-33070C2 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-33050A1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR FROMAGE/IVORY,TRIM4# |
1 | ||
| 55012-33050C2 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 55012-33050B1 |
ASV70,AXVA70,AXVH71,GSV70..LHD..(G,N)..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 55012-33050C1 |
AXVA70..S BLACK/GRAY,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33140 |
AXVA70,AXVH70 |
1 | ||
| 55302D - PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1 | ||||
| 55302-33280E0 |
AXVA70,AXVH71,GSV70..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55302-33280C0 |
AXVA70,AXVH71,GSV70..LHD BLACK,TRIM2# |
1 | ||
| 55302-33281E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55302-33281C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-33300E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55303-33300B0 |
AXVA70 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55303-33300C0 |
AXVA70,AXVH70 BLACK,TRIM2# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR MELLOW WHITE |
7 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR MELLOW WHITE |
7 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-06165C3 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK |
2 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-33040C1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55407-33040E1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55409D - BASE SUB-ASSY, CIGAR LIGHTER | ||||
| 55409-33120E1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55409-33120C1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-33080 |
AXVH71..LHD..D;ASV70,AXVA70,AXVH70..LHD..EUR |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-33070 |
AXVH71..LHD..D;ASV70,AXVA70,AXVH70..LHD..EUR |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-33110E1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55434-33110C1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-33100 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55436B - CLUSTER, METER HOOD, NO.2 | ||||
| 55436-33100 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-33070 |
AXVA70,AXVH70 |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-33280E0 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55476-33280B0 |
ASV70,AXVA70,AXVH71,GSV70..LHD..(G,N)..EUR NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55476-33280C0 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-33190C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55480-33190E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-33030 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-33170 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-33500 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55650-33440 |
ASV70,AXVA70,AXVH71,GSV70..LHD..EUR |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-33280 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-33450E2 |
AXVA70,AXVH71,GSV70..LHD..EUR TIGER EYE,TRIM2#,4# |
1 | ||
| 55670-33530E0 |
AXVA70,AXVH7#,GSV70..LHD..(G,N)..EUR TIGER EYE,TRIM2#,4# |
1 | ||
| 55670-33530B0 |
AXVA70..S TEXTURED METAL,TRIM2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-33120B0 |
AXVA70,AXVH71,GSV70..LHD..EUR NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 73900-33120C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 73900-33120E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-33040B0 |
AXVA70 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 73990-33040E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 73990-33040C0 |
AXVA70,AXVH70 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90167-30009 | ||||
| 90167-W0007 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 90468-08048 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1709-2102)LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-33160 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-33190 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-33160 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-33170 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-33140 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-33430 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-33060 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 90105-08473 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 90105-08473 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 90119-08D16 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
3 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-33908C2 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR SOFT BLACK,TRIM2# |
1 | ||
| 55401-33902B0 |
ASV70,AXVA70,AXVH71,GSV70..LHD..(D,G,N)..EUR NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55401-33902C0 |
ASV70,AXVA70,AXVH71,GSV70..LHD..EUR SOFT BLACK,TRIM2# |
1 | ||
| 55401-33908B0 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
2 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
2 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-33220B0 |
ASV7#,AXVA70,AXVH71,GSV70..LHD NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55472-33280 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55472-33220C0 |
ASV70..LHD..EUR;ASV71,AXVA70,AXVH71,GSV70..LHD BLACK,TRIM1#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-33090B0 |
ASV7#,AXVA70,AXVH71,GSV70..LHD NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55473-33090C0 |
ASV70..LHD..EUR;ASV71,AXVA70,AXVH71,GSV70..LHD BLACK,TRIM1#,2# |
1 | ||
| 55473-33130 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-33150B0 |
ASV7#,AXVA70,AXVH71,GSV70..LHD NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55981-33150C0 |
ASV70..LHD..EUR;ASV71,AXVA70,AXVH71,GSV70..LHD BLACK,TRIM1#,2# |
1 | ||
| 55981-33160 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-33160 |
AXVA70,AXVH70 |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8301 | ||||
ILLUST NO. 2 OF 2(1902-2102)LHD..D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-33070B1 |
ASV70,AXVA70,AXVH71,GSV70..LHD..(G,N)..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 55011-33070A1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR FROMAGE/IVORY,TRIM4# |
1 | ||
| 55011-33070C1 |
AXVA70..S BLACK/GRAY,TRIM2# |
1 | ||
| 55011-33070C2 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-33050A1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR FROMAGE/IVORY,TRIM4# |
1 | ||
| 55012-33050C2 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 55012-33050B1 |
ASV70,AXVA70,AXVH71,GSV70..LHD..(G,N)..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 55012-33050C1 |
AXVA70..S BLACK/GRAY,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33140 |
AXVA70,AXVH70 |
1 | ||
| 55302D - PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1 | ||||
| 55302-33280E0 |
AXVA70,AXVH71,GSV70..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55302-33280C0 |
AXVA70,AXVH71,GSV70..LHD BLACK,TRIM2# |
1 | ||
| 55302-33281E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55302-33281C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-33300E0 |
AXVA70,AXVH70..N NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55303-33300B0 |
AXVA70 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55303-33300C0 |
AXVA70,AXVH70 BLACK,TRIM2# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR MELLOW WHITE |
7 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR MELLOW WHITE |
7 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-06165C3 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK |
2 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-33040C1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55407-33040E1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55409D - BASE SUB-ASSY, CIGAR LIGHTER | ||||
| 55409-33120E1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55409-33120C1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-33080 |
AXVH71..LHD..D;ASV70,AXVA70,AXVH70..LHD..EUR |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-33070 |
AXVH71..LHD..D;ASV70,AXVA70,AXVH70..LHD..EUR |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-33110E1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55434-33110C1 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-33100 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55436B - CLUSTER, METER HOOD, NO.2 | ||||
| 55436-33100 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-33280E0 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55476-33280B0 |
ASV70,AXVA70,AXVH71,GSV70..LHD..(G,N)..EUR NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55476-33280C0 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-33190C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55480-33190E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
ASV70,AXVA70,AXVH7#,GSV70..EUR BLACK |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-33030 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-33170 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-33500 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55650-33440 |
ASV70,AXVA70,AXVH71,GSV70..LHD..EUR |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-33280 |
ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-33450E2 |
AXVA70,AXVH71,GSV70..LHD..EUR TIGER EYE,TRIM2#,4# |
1 | ||
| 55670-33530E0 |
AXVA70,AXVH7#,GSV70..LHD..(G,N)..EUR TIGER EYE,TRIM2#,4# |
1 | ||
| 55670-33530B0 |
AXVA70..S TEXTURED METAL,TRIM2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-33120B0 |
AXVA70,AXVH71,GSV70..LHD..EUR NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 73900-33120C0 |
AXVA70,AXVH7#,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 73900-33120E0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 90468-08048 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
