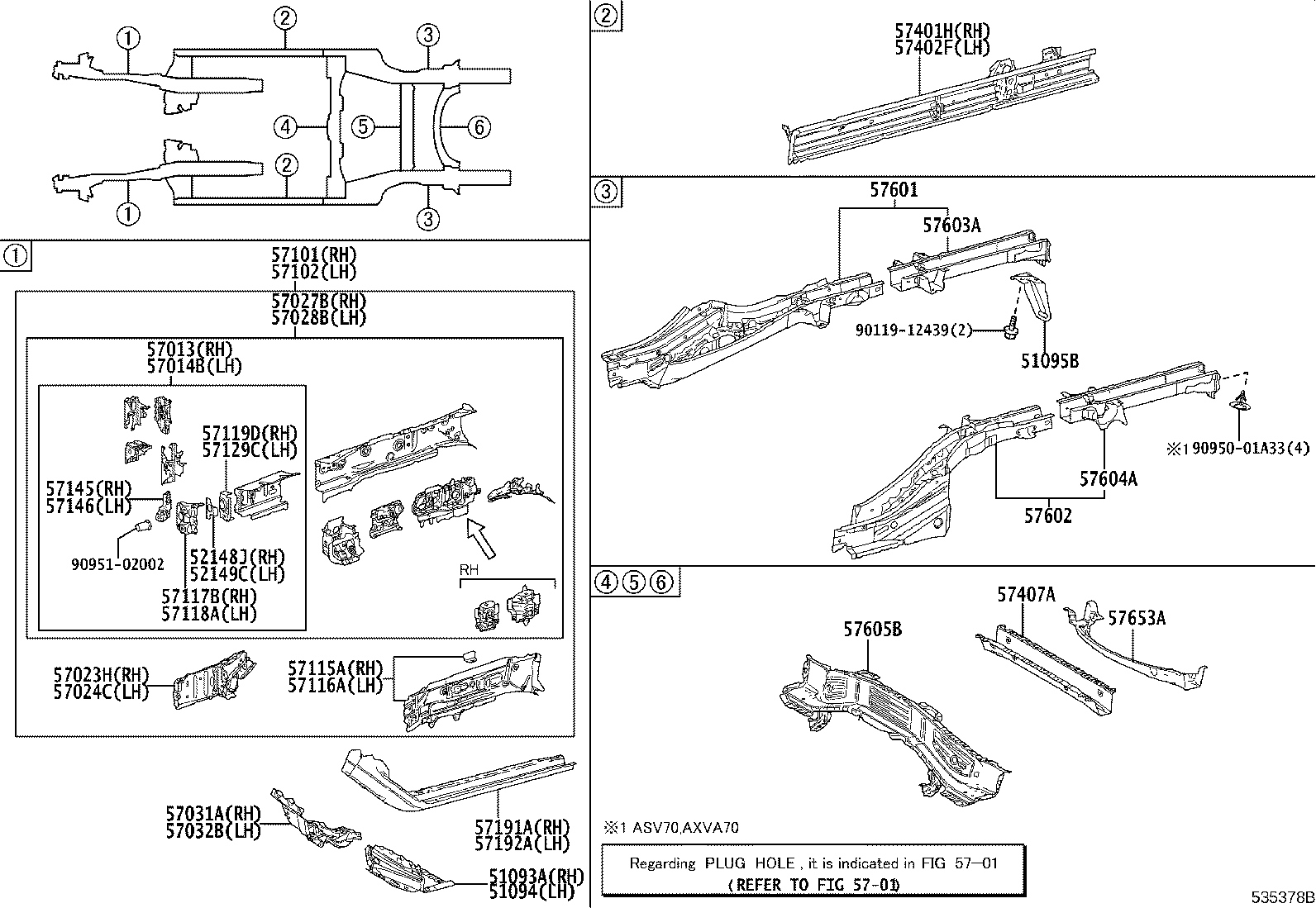

AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
(1709- )ASV70,AXVA70,GSV70,MXVA71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51093A - HOOK SUB-ASSY, TRANSPORT, FRONT RH | ||||
| 51093-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 51093A - HOOK SUB-ASSY, TRANSPORT, FRONT RH | ||||
| 51093-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 51094 - HOOK SUB-ASSY, TRANSPORT, FRONT LH | ||||
| 51094-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 51094 - HOOK SUB-ASSY, TRANSPORT, FRONT LH | ||||
| 51094-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 52148J - STOPPER, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52148-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 52149C - STOPPER, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52149-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57013 - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57014B - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57023H - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH | ||||
| 57023-33010 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 57024C - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH | ||||
| 57024-33010 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-33040 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-33070 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-33907 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-33907 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-33900 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-33900 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 57117-33060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57118-33060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57119D - PLATE, FRONT SIDE MEMBER, FRONT RH | ||||
| 57119-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57129C - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57129-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57145 - PLATE, FRONT SIDE MEMBER, CENTER RH | ||||
| 57145-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57146 - PLATE, FRONT SIDE MEMBER, CENTER LH | ||||
| 57146-33040 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-33020 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-33020 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-33160 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-33150 |
AXVH71..D;AXVA70,AXVH70 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-33010 |
ASV7#,AXVA70,AXVH7#,GSV70 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-33240 |
AXVA70,AXVH70 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-33190 |
AXVA70,AXVH70 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-33030 |
ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-33030 |
ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-33130 |
ASV7#,AXVA70,GSV70 |
1 | ||
| 57605-33131 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 57653A - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-33100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90119-12439 | ||||
| 90950-01A33 | ||||
| 90951-02002 | ||||
| Linked diagrams | ||||
| 5701 | ||||
