AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1709- )ASV7#,AXVA70,GSV70,MXVA71..LHD

Click highlighted areas on diagram

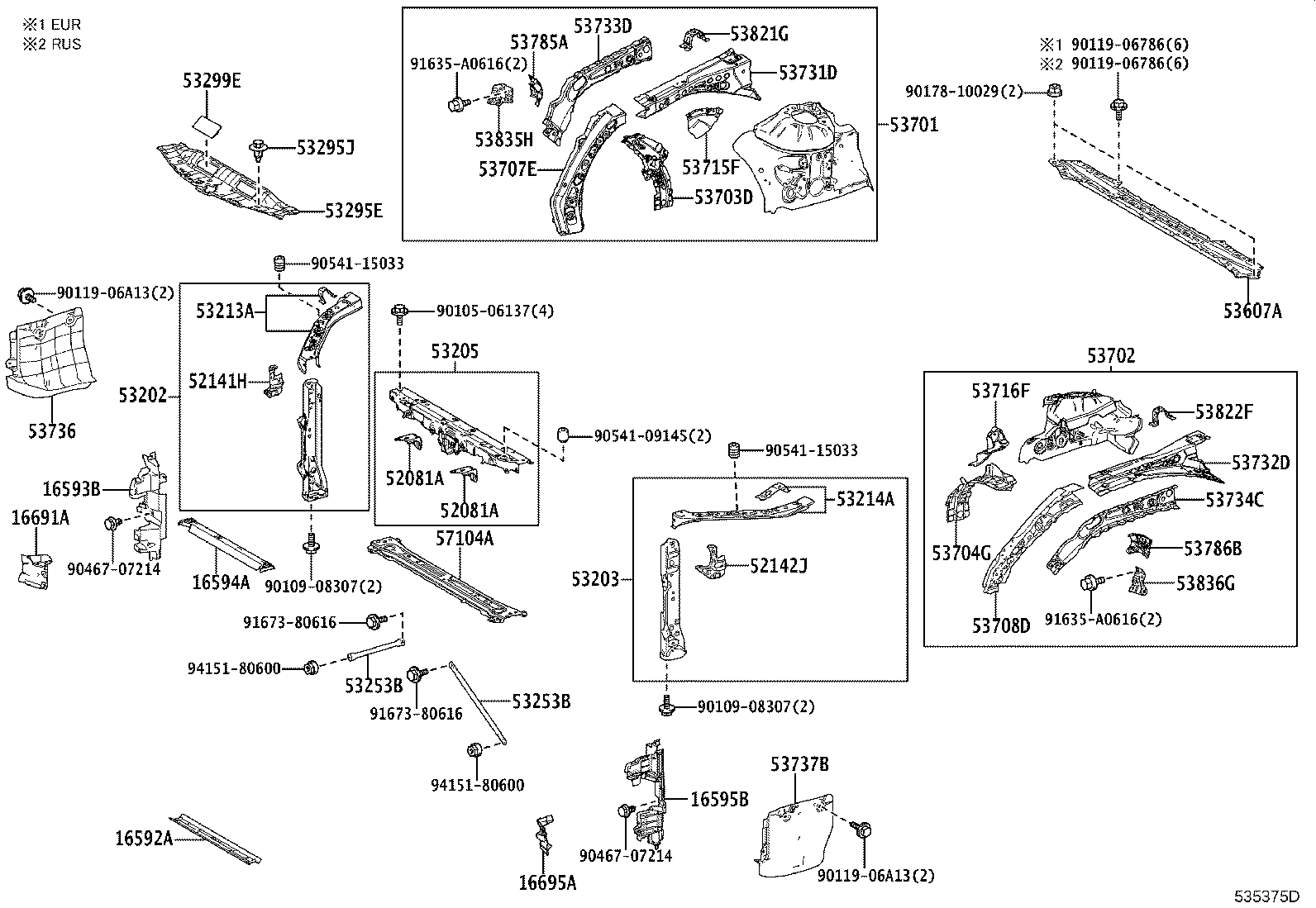

RADIATOR SUPPORT & FENDER APRON

diagram 16592A 16593B 16594A 16595B 16691A 16695A 52081A 52081A 52141H 52142J 53202 53203 53205 53213A 53214A 53253B 53253B 53295E 53295J 53299E 53607A 53701 53702 53703D 53704G 53707E 53708D 53715F 53716F 53731D 53732D 53733D 53734C 53736 53737B 53785A 53786B 53821G 53822F 53835H 53836G 57104A 9010506137 9010908307 9010908307 9011906786 9011906786 9011906A13 9011906A13 9017810029 9046707214 9046707214 9054109145 9054115033 9054115033 91635A0616 91635A0616 9167380616 9167380616 9415180600 9415180600
Part # Description Qty Price
16592A - GUIDE, RADIATOR AIR, NO.3
16592-25010

A25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
16593B - GUIDE, RADIATOR AIR, NO.1 RH
16593-25040

A25AFKS..AXVA70..S

 1
16593-25030

A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..(G,N)..EUR

 1
16594A - GUIDE, RADIATOR AIR, NO.2
16594-25010

A25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
16595B - GUIDE, RADIATOR AIR, NO.1 LH
16595-25040

A25AFKS..AXVA70..S

 1
16595-25030

A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..(G,N)..EUR

 1
16691A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16691-25010

A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..(G,N)..EUR

 1
16691-25020

A25AFKS..AXVA70..S

 1
16695A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
16695-25010

A25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

 1
16695-25020

A25AFKS..AXVA70..S

 1
52081A - STAY SUB-ASSY, FRONT BUMPER, RH
52081-33030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
52081A - STAY SUB-ASSY, FRONT BUMPER, RH
52081-33030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
52141H - ARM, FRONT BUMPER, UPPER RH
52141-33130

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
52142J - ARM, FRONT BUMPER, UPPER LH
52142-33110

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-33903

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-33902

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-33901

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-33902

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-33902

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53253B - BRACKET, RADIATOR MOUNTING, UPPER
53253-33010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
53253B - BRACKET, RADIATOR MOUNTING, UPPER
53253-33010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
53295E - SEAL, COOL AIR INTAKE DUCT
53295-33130

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53295J - CLIP, COOL AIR INTAKE DUCT SEAL
90467-07217

ASV70,AXVA70,AXVH7#,GSV70..EUR

 5
53299E - PLATE, COOL AIR INTAKE DUCT
53299-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53607-33010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-33190

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-33150

ASV70,AXVA70,GSV70..EUR

 1
53703D - APRON SUB-ASSY, FRONT FENDER, NO.2 RH
53703-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53704G - APRON SUB-ASSY, FRONT FENDER, NO.2 LH
53704-33060

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 1
53707E - APRON SUB-ASSY, FENDER SIDE, RH
53707-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53708D - APRON SUB-ASSY, FENDER SIDE, LH
53708-33010

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 1
53715F - APRON, FENDER SIDE, RH
53715-33010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53716F - APRON, FENDER SIDE, LH
53716-33010

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-33100

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-33090

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-33060

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-33050

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53737B - SEAL, FRONT FENDER APRON, LH
53737-33030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53785A - GUSSET, FRONT FENDER APRON, UPPER RH
53785-33010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53786B - GUSSET, FRONT FENDER APRON, UPPER LH
53786-33010

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 1
53821G - BRACKET, FRONT FENDER, REAR RH
53821-33080

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53822F - BRACKET, FRONT FENDER, REAR LH
53822-33070

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 1
53835H - BRACE, FRONT FENDER TO EXTENSION, RH
53835-33110

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
53836G - BRACE, FRONT FENDER TO EXTENSION, LH
53836-33120

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-33080

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
Common parts
90105-06137
90109-08307
90119-06786
90119-06A13
90178-10029
90467-07214
90541-09145
90541-15033
91635-A0616
91673-80616
94151-80600

ILLUST NO. 2 OF 2(1709- )LHD

Click highlighted areas on diagram

DASH PANEL

diagram 55101 55210 55210A 55223A 55223C 55241 55241B 55242 55242B
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
55101-33470

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-33300

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55210A - CLIP
90467-11122

ASV70,AXVA70,AXVH7#,GSV70..EUR

 6
55223A - INSULATOR, DASH PANEL, OUTER
55223-33260

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
55223C - CLIP
90467-06197

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 5
55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
55241B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

ASV70,AXVA70,AXVH7#,GSV70..EUR

 3
55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
55242B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

ASV70,AXVA70,AXVH7#,GSV70..EUR

 3
