AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709-2102)D,G,N..EUR ; (1709-2104)RUS

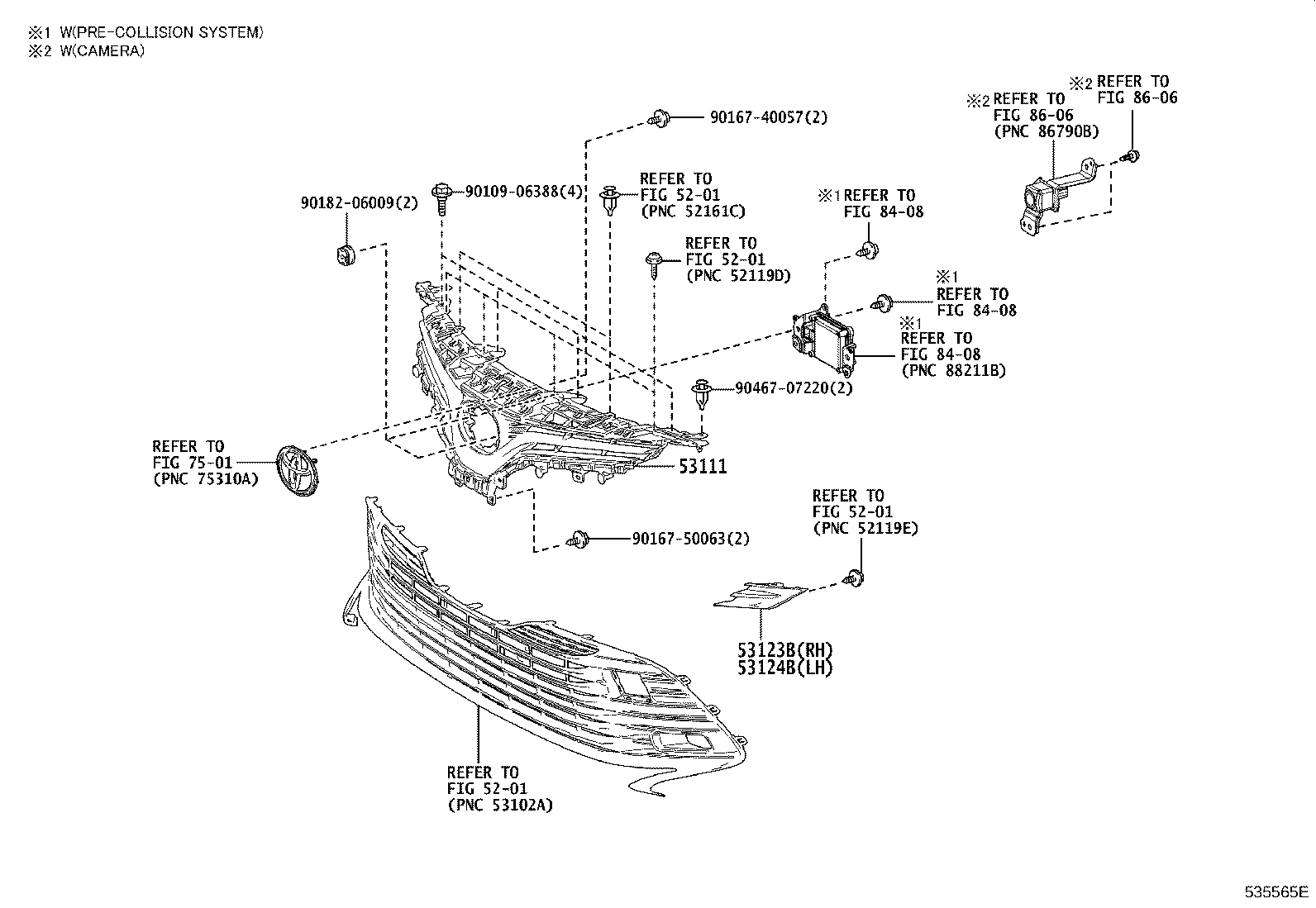

Click highlighted areas on diagram

diagram 5201 5201 5201 5201 53111 53123B 53124B 7501 8408 8408 8408 8606 8606 9010906388 9016740057 9016750063 9018206009 9046707220
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-33540

ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR

 1
53101-33570

AXVA70..S

NO PAINT REQ.

 1
53123B - MOULDING, RADIATOR GRILLE SIDE, RH
53123-33050

ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR

 1
53124B - MOULDING, RADIATOR GRILLE SIDE, LH
53124-33070

ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR

 1
Common parts
90109-06388
90167-40057
90167-50063
90182-06009
90467-07220
Linked diagrams
5201
7501
8408
8606

(1910-2102)S

Click highlighted areas on diagram

diagram 5201 5201 5201 53111 7501 8408 8408 8408 9010906388 9016740057 9016750063 9016750063 9018206009 9046707220
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-33540

ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR

 1
53101-33570

AXVA70..S

NO PAINT REQ.

 1
Common parts
90109-06388
90167-40057
90167-50063
90182-06009
90467-07220
Linked diagrams
5201
7501
8408
