AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1709-2102)D,G,N..EUR ; (1709-2104)RUS

Click highlighted areas on diagram

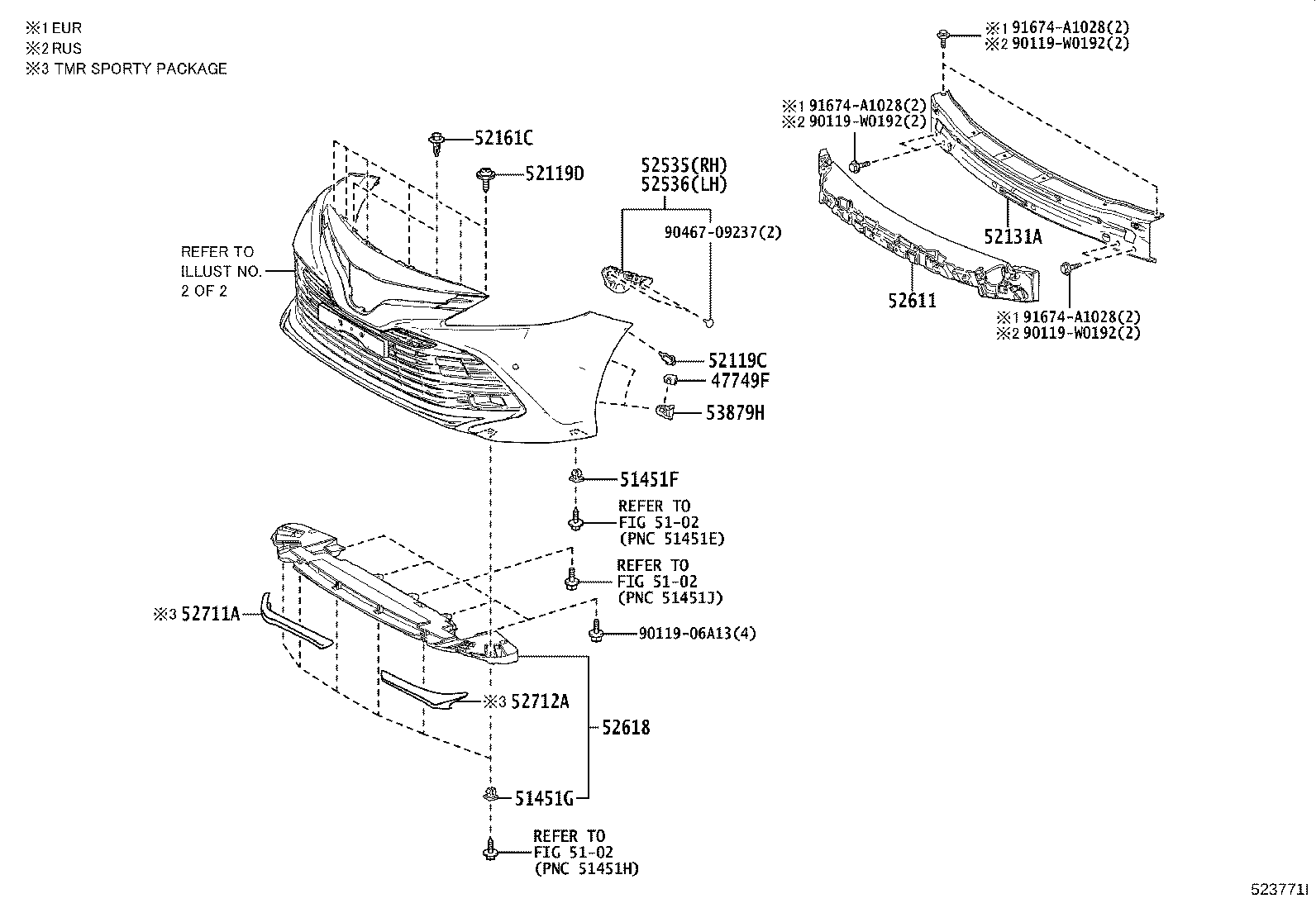

diagram 47749F 5102 5102 5102 51451F 51451G 52119C 52119D 52131A 52161C 52535 52536 52611 52618 52711A 52712A 53879H 9011906A13 90119W0192 90119W0192 90119W0192 9046709237 91674A1028 91674A1028 91674A1028
Part # Description Qty Price
47749F - CLIP, PIN HOLD
47749-33030

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 4
51451F - GROMMET, NO.1
90189-06237

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 2
51451G - GROMMET, NO.2
90189-06237

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 6
52119C - CLIP, FRONT BUMPER COVER
90467-05170

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 2
52119D - SCREW, NO.1
90167-50063

AXVA70..S

 6
90167-50063

AXVA70..LHD..N;ASV7#,AXVH7#,GSV70..D,G,N

 4
52131A - REINFORCEMENT, FRONT BUMPER
52131-33180

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-33300

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-33060

ASV7#,AXVA70,AXVH71,GSV70

 1
52618-33060

AXVA70..S

 1
52618-33110

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

 1
53879H - RETAINER, FRONT FENDER LINER
53879-33030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 4
Common parts
90119-06A13
90119-W0192
90467-09237
91674-A1028
Linked diagrams
5102

ILLUST NO. 1 OF 2(1910-2102)S

Click highlighted areas on diagram

diagram 47749F 5102 5102 5102 51451F 51451G 52119C 52119D 52131A 52161C 52535 52536 52611 52618 53879H 9011906A13 9046709237 91674A1028 91674A1028 91674A1028
Part # Description Qty Price
47749F - CLIP, PIN HOLD
47749-33030

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 4
51451F - GROMMET, NO.1
90189-06237

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 2
51451G - GROMMET, NO.2
90189-06237

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 6
52119C - CLIP, FRONT BUMPER COVER
90467-05170

AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N

 2
52119D - SCREW, NO.1
90167-50063

AXVA70..S

 6
90167-50063

AXVA70..LHD..N;ASV7#,AXVH7#,GSV70..D,G,N

 4
52131A - REINFORCEMENT, FRONT BUMPER
52131-33180

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ASV70,AXVA70,AXVH7#,GSV70..EUR

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-33060

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-33300

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-33060

ASV7#,AXVA70,AXVH71,GSV70

 1
52618-33060

AXVA70..S

 1
52618-33110

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

 1
53879H - RETAINER, FRONT FENDER LINER
53879-33030

ASV70,AXVA70,AXVH7#,GSV70..EUR

 4
Common parts
90119-06A13
90467-09237
91674-A1028
Linked diagrams
5102

ILLUST NO. 2 OF 2(1910-2102)S

Click highlighted areas on diagram

diagram 52119A 52127D 52128B 52422A 52423A 52712 52713A 53102A 53123C 53123D 53124D 53395E 53395K 75392J 75392J 81481E 81482C 8417 9016750063 9016750063
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-3T933

AXVA70,AXVH70..N

 1
52119-3T934

AXVA70..S

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-33904

AXVA70..S

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-33918

AXVA70..S

 1
52422A - PAD, FRONT BUMPER, RH
52422-33020

AXVA70..S

 1
52422-33010

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

 1
52423A - PAD, FRONT BUMPER, LH
52423-33010

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

 1
52423-33020

AXVA70..S

 1
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-33040

AXVA70..S

 1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-33040

AXVA70..S

 1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-33270

AXVA70,AXVH70..N

 1
53102-33200

AXVA70..S

 1
53123C - MOULDING, RADIATOR GRILLE, LOWER RH
53123-33040

AXVA70..S

 1
53123D - MOULDING, RADIATOR GRILLE, LOWER
53122-33050

AXVA70..S

 1
53124D - MOULDING, RADIATOR GRILLE, LOWER LH
53124-33060

AXVA70..S

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-33030

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

 1
53395-33040

AXVA70..S

 1
53395K - CLIP(FOR HOOD TO FRONT END PANEL SEAL)
90467-04032

ASV70,AXVA70,AXVH7#,GSV70..EUR

 6
75392J - RETAINER, OUTSIDE MOULDING
75392-35220

AXVA70..S

 4
75392J - RETAINER, OUTSIDE MOULDING
75392-35220

AXVA70..S

 4
81481E - COVER, FOG LAMP, RH
81481-33100

AXVA70..S

 1
81482C - COVER, FOG LAMP, LH
81482-33100

AXVA70..S

 1
Common parts
90167-50063
Linked diagrams
8417

ILLUST NO. 2 OF 2(1709-2102)D,G,N..EUR ; (1709-2104)RUS

Click highlighted areas on diagram

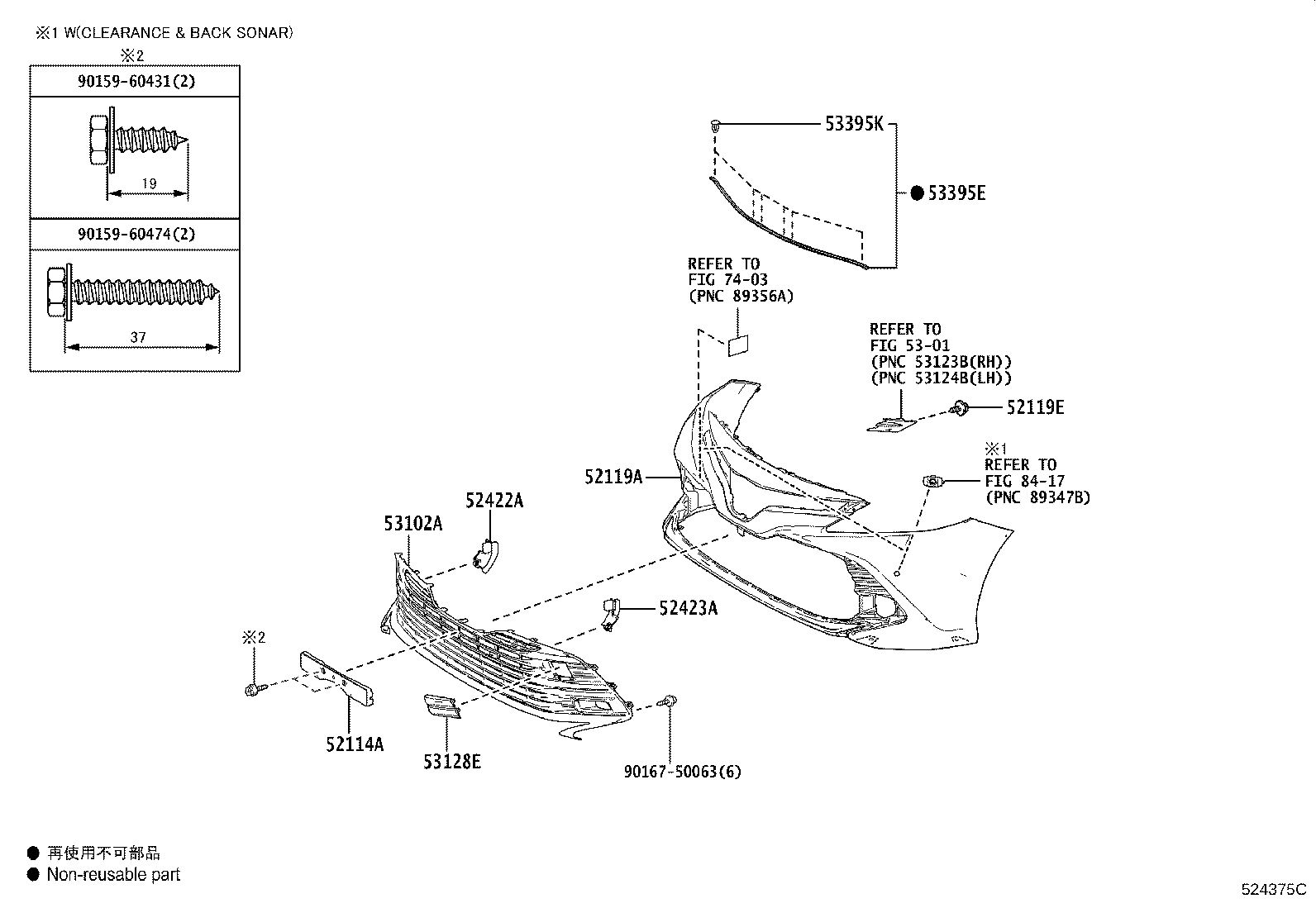

diagram 52114A 52119A 52119E 52422A 52423A 5301 53102A 53128E 53395E 53395K 7403 8417 9015960431 9015960474 9016750063
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-3T933

AXVA70,AXVH70..N

 1
52119-3T934

AXVA70..S

PAINT REQ.

 1
52119E - SCREW, NO.2
90167-50063

AXVA70..LHD..N;ASV7#,AXVH7#,GSV70..D,G,N

 2
52422A - PAD, FRONT BUMPER, RH
52422-33020

AXVA70..S

 1
52422-33010

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

 1
52423A - PAD, FRONT BUMPER, LH
52423-33010

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

 1
52423-33020

AXVA70..S

 1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-33270

AXVA70,AXVH70..N

 1
53102-33200

AXVA70..S

 1
53128E - GRILLE, RADIATOR, LOWER SIDE LH
53128-33040

ASV70..RHD;AXVA70,AXVH7#,GSV70..(G,N)..EUR

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-33030

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

 1
53395-33040

AXVA70..S

 1
53395K - CLIP(FOR HOOD TO FRONT END PANEL SEAL)
90467-04032

ASV70,AXVA70,AXVH7#,GSV70..EUR

 6
Common parts
90159-60431
90159-60474
90167-50063
Linked diagrams
5301
7403
8417
