AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )AXVA70..LHD ; (2102- )MXVA71

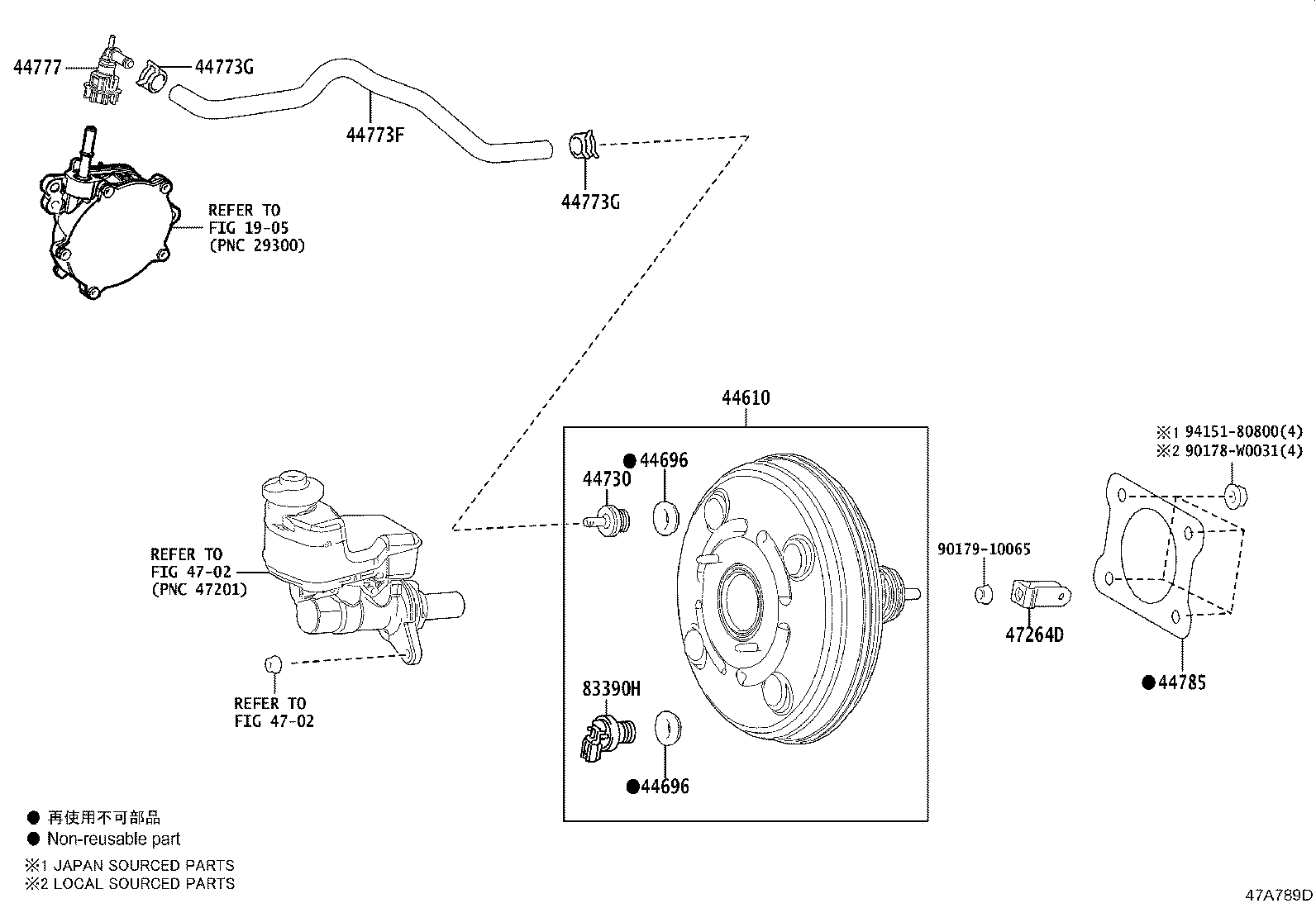

Click highlighted areas on diagram

diagram 1905 44610 44696 44696 44730 44773F 44773G 44773G 44777 44785 4702 4702 47264D 83390H 90178W0031 9017910065 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-33B20

ASV71,AXVA70,GSV70

 1
44696 - GROMMET, CHECK VALVE
90480-24439

AXVA70,GSV70..EUR

 2
44696 - GROMMET, CHECK VALVE
90480-24439

AXVA70,GSV70..EUR

 2
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

ASV71,AXVA70,GSV70

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-33180

AXVA70

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

ASV70..RHD;ASV71,AXVA70,GSV70..LHD

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

ASV70..RHD;ASV71,AXVA70,GSV70..LHD

 2
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-33010

AXVA70

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ASV70,AXVA70,GSV70..EUR

#,(J)

 1
44785-05020

ASV70,AXVA70,GSV70..EUR

#,(L)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-33030

ASV70,AXVA70,GSV70..EUR

 1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120

AXVA70,GSV70..EUR

 1
Common parts
90178-W0031
90179-10065
94151-80800
Linked diagrams
1905
4702
