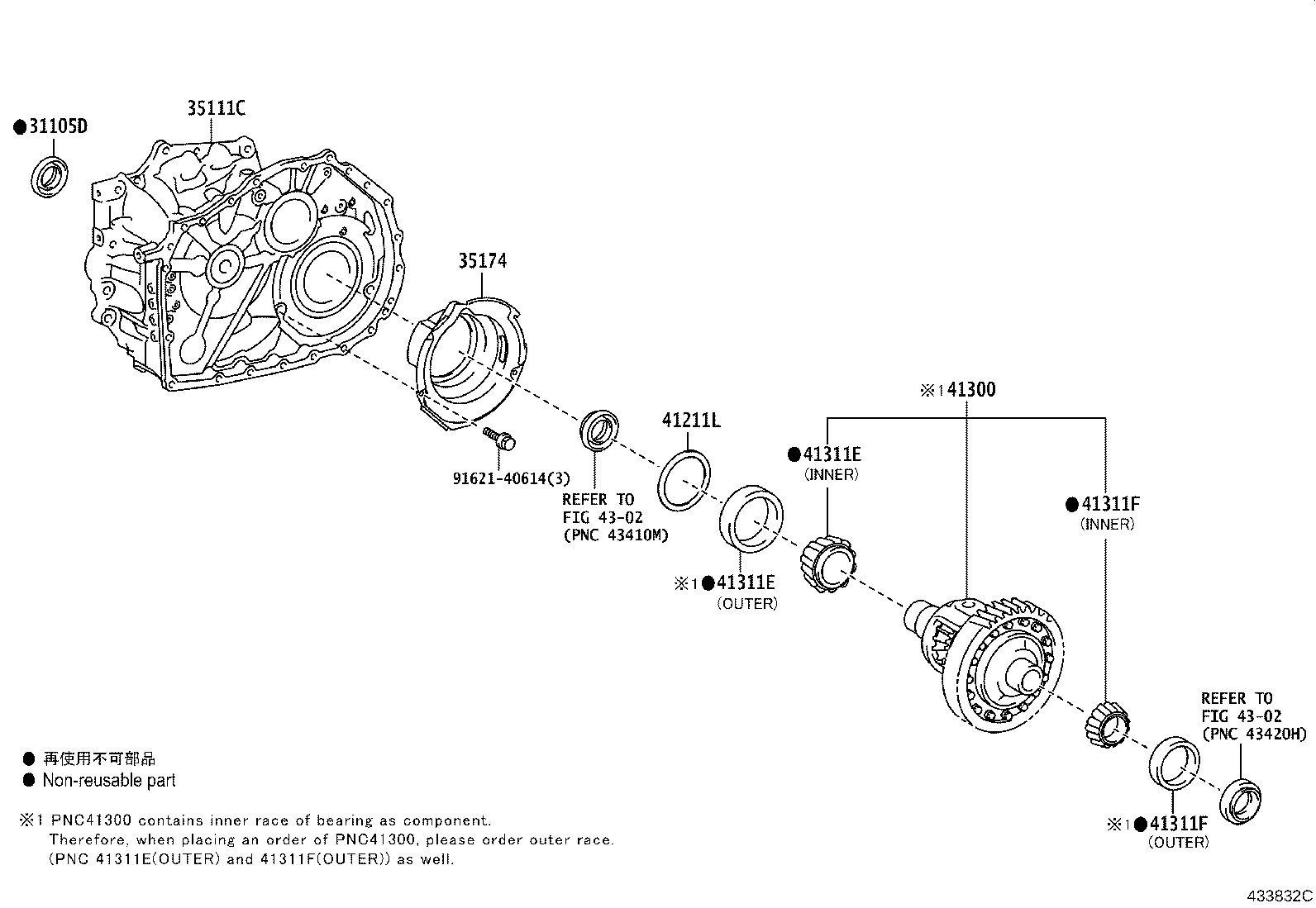

Toyota Camry/hybrid AXVA70 FRONT AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-51013	AXVA70,GSV70..EUR	09/2017 - 02/2021	1
35111C - HOUSING, TRANSAXLE
35105-33040	AXVA70 AISIN:REFER 35-01	09/2017 - 02/2021	1
35105-33030	AXVA70 TOYOTA:REFER 35-01	09/2017 - 02/2021	1
35174 - SEPARATOR, TRANSAXLE HOUSING OIL
35174-33020	AXVA70 TOYOTA:REFER 35-01	09/2017 - 02/2021	1
35174-33030	AXVA70 AISIN:REFER 35-01	09/2017 - 02/2021	1
41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION)
90564-75002	AXVA70,GSV70..EUR T=1.10,MARK 50	09/2017 - 02/2021	1
90564-75009	AXVA70,GSV70..EUR T=1.31,MARK 57	09/2017 - 02/2021	1
90564-75004	AXVA70,GSV70..EUR T=1.16,MARK 52	09/2017 - 02/2021	1
90564-75003	AXVA70,GSV70..EUR T=1.13,MARK 51	09/2017 - 02/2021	1
90564-75006	AXVA70,GSV70..EUR T=1.22,MARK 54	09/2017 - 02/2021	1
90564-75005	AXVA70,GSV70..EUR T=1.19,MARK 53	09/2017 - 02/2021	1
90564-75012	AXVA70,GSV70..EUR T=1.40,MARK 60	09/2017 - 02/2021	1
90564-75011	AXVA70,GSV70..EUR T=1.37,MARK 59	09/2017 - 02/2021	1
90564-75015	AXVA70,GSV70..EUR T=1.49,MARK 63	09/2017 - 02/2021	1
90564-75010	AXVA70,GSV70..EUR T=1.34,MARK 58	09/2017 - 02/2021	1
90564-75013	AXVA70,GSV70..EUR T=1.43,MARK 61	09/2017 - 02/2021	1
90564-75016	AXVA70,GSV70..EUR T=1.52,MARK 64	09/2017 - 02/2021	1
90564-75007	AXVA70,GSV70..EUR T=1.25,MARK 55	09/2017 - 02/2021	1
90564-75017	AXVA70,GSV70..EUR T=1.55,MARK 65	09/2017 - 02/2021	1
90564-75018	AXVA70,GSV70..EUR T=1.58,MARK 66	09/2017 - 02/2021	1
90564-75025	AXVA70,GSV70..EUR T=1.70,MARK 70	09/2017 - 02/2021	1
90564-75008	AXVA70,GSV70..EUR T=1.28,MARK 56	09/2017 - 02/2021	1
90564-75024	AXVA70,GSV70..EUR T=1.67,MARK 69	09/2017 - 02/2021	1
90564-75019	AXVA70,GSV70..EUR T=1.61,MARK 67	09/2017 - 02/2021	1
90564-75014	AXVA70,GSV70..EUR T=1.46,MARK 62	09/2017 - 02/2021	1
90564-75023	AXVA70,GSV70..EUR T=1.64,MARK 68	09/2017 - 02/2021	1
90564-75027	AXVA70,GSV70..EUR T=1.76,MARK 72	09/2017 - 02/2021	1
90564-75030	AXVA70,GSV70..EUR T=1.85,MARK 75	09/2017 - 02/2021	1
90564-75029	AXVA70,GSV70..EUR T=1.82,MARK 74	09/2017 - 02/2021	1
90564-75028	AXVA70,GSV70..EUR T=1.79,MARK 73	09/2017 - 02/2021	1
90564-75031	AXVA70,GSV70..EUR T=1.88,MARK 76	09/2017 - 02/2021	1
90564-75033	AXVA70,GSV70..EUR T=1.94,MARK 78	09/2017 - 02/2021	1
90564-75035	AXVA70,GSV70..EUR T=2.00,MARK 80	09/2017 - 02/2021	1
90564-75032	AXVA70,GSV70..EUR T=1.91,MARK 77	09/2017 - 02/2021	1
90564-75034	AXVA70,GSV70..EUR T=1.97,MARK 79	09/2017 - 02/2021	1
90564-75026	AXVA70,GSV70..EUR T=1.73,MARK 71	09/2017 - 02/2021	1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-33020	AXVA70 TOYOTA:REFER 35-01	12/2020 - 02/2021	1
41300-33010	AXVA70 TOYOTA:REFER 35-01	09/2017 - 12/2020	1
41300-33030	AXVA70 AISIN:REFER 35-01	09/2017 - 02/2021	1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-57048	AXVA70 INNER	09/2017 - 02/2021	1
90366-57049	AXVA70 OUTER	09/2017 - 02/2021	1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-57048	AXVA70 INNER	09/2017 - 02/2021	1
90366-57049	AXVA70 OUTER	09/2017 - 02/2021	1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50176	AXVA70 OUTER	09/2017 - 02/2021	1
90366-50175	AXVA70 INNER	09/2017 - 02/2021	1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50176	AXVA70 OUTER	09/2017 - 02/2021	1
90366-50175	AXVA70 INNER	09/2017 - 02/2021	1
Common parts
91621-40614
Linked diagrams
4302

AXVA70L-AEZNBW (2017)

(1709- )AXVA70
