AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

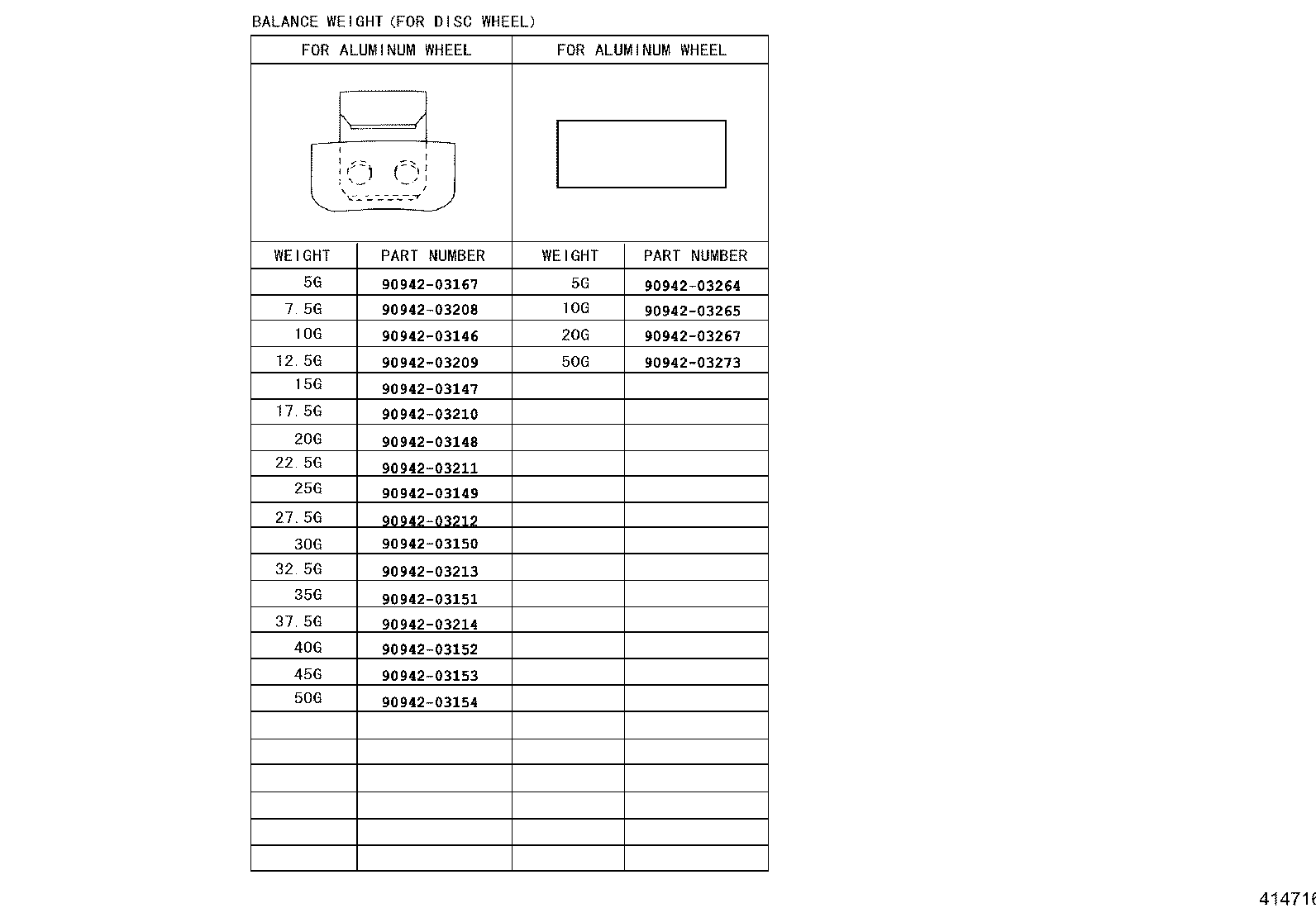

ILLUST NO. 4 OF 4(1901-2102)EUR ; (2102- )AXVH71..RHD..N ; (2102- )AXVA70,GSV70,MXVA71..RUS

Click highlighted areas on diagram

diagram 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

ILLUST NO. 1 OF 4(1709- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42611G 42611J 42621
Part # Description Qty Price
42601 - WHEEL, DISC
42611-33C00

AXVA70,AXVH70

17X7.5J,#,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE,TYPE F:REFER ILLUST.

 4
42611-33C10

AXVA70,AXVH70..N

18X8J,#,TYPE D:REFER ILLUST.

 4
42611-33C40

AXVA70,AXVH70

17X7.5J,#,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE,TYPE B:REFER ILLUST.

 4
42611-33C60

AXVA70,AXVH70

17X7.5J,#,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE,TYPE C:REFER ILLUST.

 4
42611-33C90

AXVA70,AXVH70..N

18X8J,#,TYPE E:REFER ILLUST.

 4
42611-33D30

AXVA70..S

18X8J,#,TYPE D:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-33E20

AXVA70,AXVH70

17X4T,TYPE G:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

ASV7#..RUS;AXVH7#..D,N;AXVA70,GSV70..LHD

TYPE B:REFER ILLUST.

 20
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

ASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR

 1

ILLUST NO. 3 OF 4(1709- )

Click highlighted areas on diagram

diagram 04423 04423 04423B 04423B 42603 42607 42607 42607A 42607A 42607D 42607E 42611U 42611U 42611W 42611W
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

AXVH71..D;AXVA70,AXVH70

TYPE A:REFER ILLUST.

 4
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

AXVH71..D;AXVA70,AXVH70

TYPE A:REFER ILLUST.

 4
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-48140

ASV7#..RUS;AXVA70,AXVH71,GSV70

*ALU,TYPE A:REFER ILLUST.

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-60010

AXVH71..D;AXVA70,AXVH70

TYPE A:REFER ILLUST.

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-60010

AXVH71..D;AXVA70,AXVH70

TYPE A:REFER ILLUST.

 4
42611U - CAP, TIRE VALVE
90942-05039

AXVH71..D;AXVA70,AXVH70

TYPE A:REFER ILLUST.

 4
42611U - CAP, TIRE VALVE
90942-05039

AXVH71..D;AXVA70,AXVH70

TYPE A:REFER ILLUST.

 4

ILLUST NO. 2 OF 4(1709- )

Click highlighted areas on diagram

diagram 42601 42601A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-33C00

AXVA70,AXVH70

17X7.5J,#,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE,TYPE F:REFER ILLUST.

 4
42611-33C10

AXVA70,AXVH70..N

18X8J,#,TYPE D:REFER ILLUST.

 4
42611-33C40

AXVA70,AXVH70

17X7.5J,#,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE,TYPE B:REFER ILLUST.

 4
42611-33C60

AXVA70,AXVH70

17X7.5J,#,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE,TYPE C:REFER ILLUST.

 4
42611-33C90

AXVA70,AXVH70..N

18X8J,#,TYPE E:REFER ILLUST.

 4
42611-33D30

AXVA70..S

18X8J,#,TYPE D:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-33E20

AXVA70,AXVH70

17X4T,TYPE G:REFER ILLUST.

 1
