AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709-1912)AXVA70

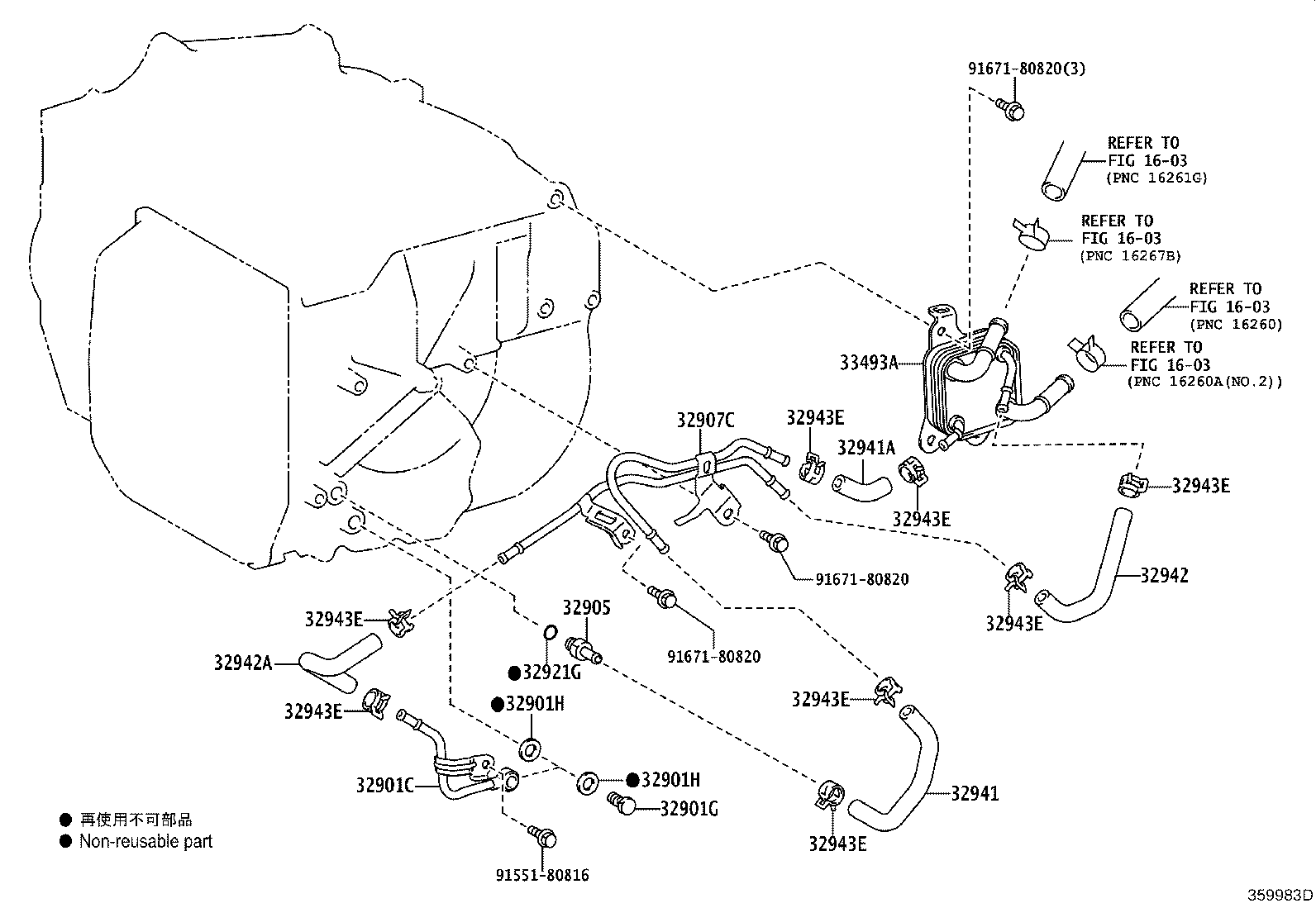

Click highlighted areas on diagram

UB80E

diagram 1603 1603 1603 1603 32901C 32901G 32901H 32901H 32905 32907C 32921G 32941 32941A 32942 32942A 32943E 32943E 32943E 32943E 32943E 32943E 32943E 32943E 33493A 9155180816 9167180820 9167180820 9167180820
Part # Description Qty Price
32901C - UNION SUB-ASSY, OIL COOLER
32901-48020

AXVA70,GSV70..EUR

 1
32901G - BOLT, UNION(FOR OIL COOLER)
90401-14003

AXVA70,GSV70..EUR

 1
32901H - GASKET(FOR OIL COOLER UNION)
90430-14016

AXVA70,GSV70..EUR

 2
32901H - GASKET(FOR OIL COOLER UNION)
90430-14016

AXVA70,GSV70..EUR

 2
32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
90404-14030

AXVA70,GSV70..EUR

 1
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-42070

AXVA70

 1
32907-33220

AXVA70

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11031

ASV71,AXVA70,GSV70..LHD

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-33180

AXVA70

 1
32941-42170

AXVA70,GSV70..EUR

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32941-33190

AXVA70,GSV70..EUR

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-33230

AXVA70,GSV70..EUR

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32942-33240

AXVA70,GSV70..EUR

 1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
33493A - COOLER, TRANSMISSION OIL
33493-33061

AXVA70,GSV70..EUR

 1
33493-33060

AXVA70..S

 1
33493-33060

AXVA70,GSV70

 1
Common parts
91551-80816
91671-80820
Linked diagrams
1603

(1912- )AXVA70

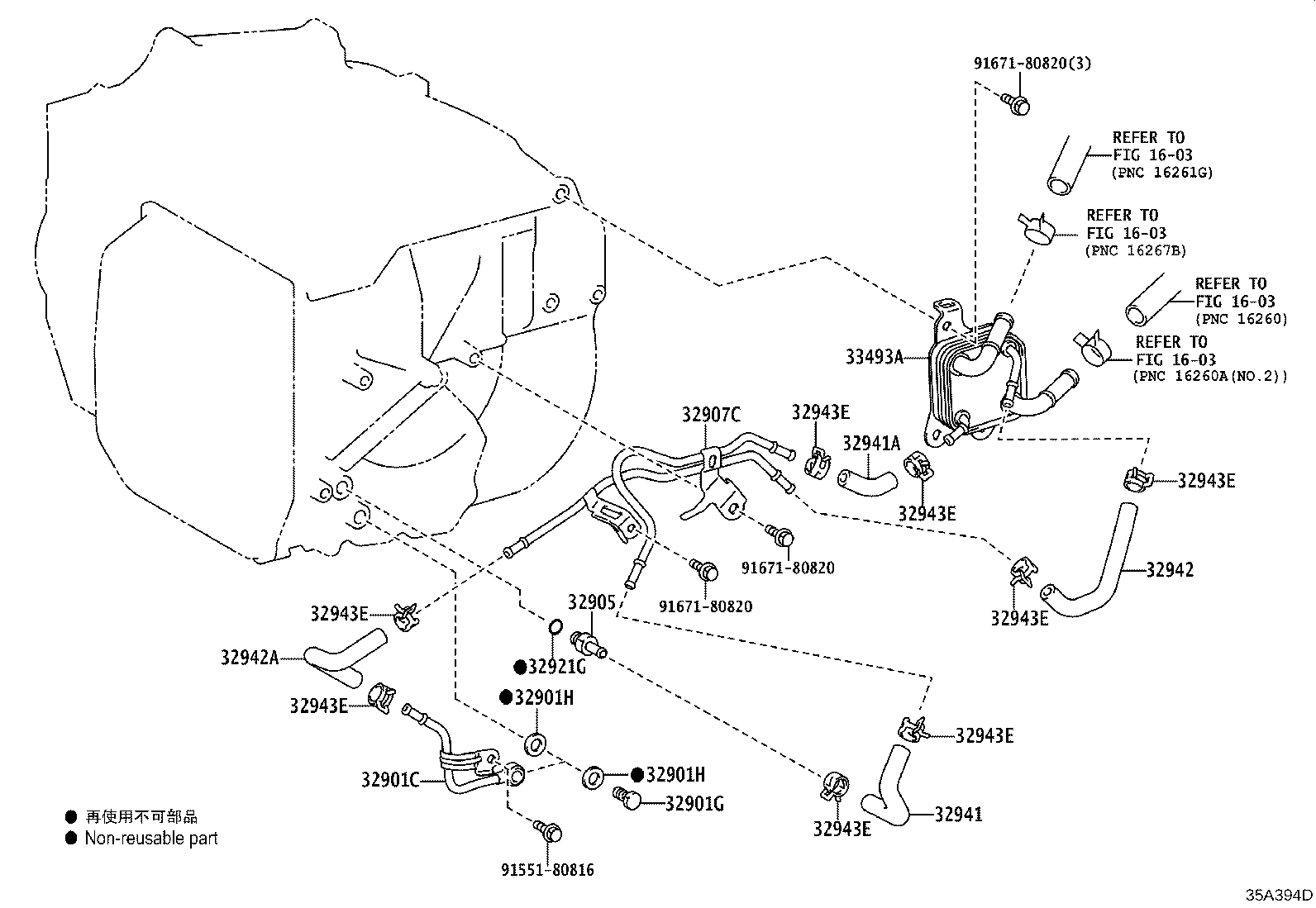

Click highlighted areas on diagram

UB80E

diagram 1603 1603 1603 1603 32901C 32901G 32901H 32901H 32905 32907C 32921G 32941 32941A 32942 32942A 32943E 32943E 32943E 32943E 32943E 32943E 32943E 32943E 33493A 9155180816 9167180820 9167180820 9167180820
Part # Description Qty Price
32901C - UNION SUB-ASSY, OIL COOLER
32901-48020

AXVA70,GSV70..EUR

 1
32901G - BOLT, UNION(FOR OIL COOLER)
90401-14003

AXVA70,GSV70..EUR

 1
32901H - GASKET(FOR OIL COOLER UNION)
90430-14016

AXVA70,GSV70..EUR

 2
32901H - GASKET(FOR OIL COOLER UNION)
90430-14016

AXVA70,GSV70..EUR

 2
32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
90404-14030

AXVA70,GSV70..EUR

 1
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-42070

AXVA70

 1
32907-33220

AXVA70

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11031

ASV71,AXVA70,GSV70..LHD

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-33180

AXVA70

 1
32941-42170

AXVA70,GSV70..EUR

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32941-33190

AXVA70,GSV70..EUR

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-33230

AXVA70,GSV70..EUR

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32942-33240

AXVA70,GSV70..EUR

 1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

AXVA70,GSV70..EUR

 8
33493A - COOLER, TRANSMISSION OIL
33493-33061

AXVA70,GSV70..EUR

 1
33493-33060

AXVA70..S

 1
33493-33060

AXVA70,GSV70

 1
Common parts
91551-80816
91671-80820
Linked diagrams
1603
