AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
Production
Sep 2017
-
Feb 2021
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1709- )AXVA70

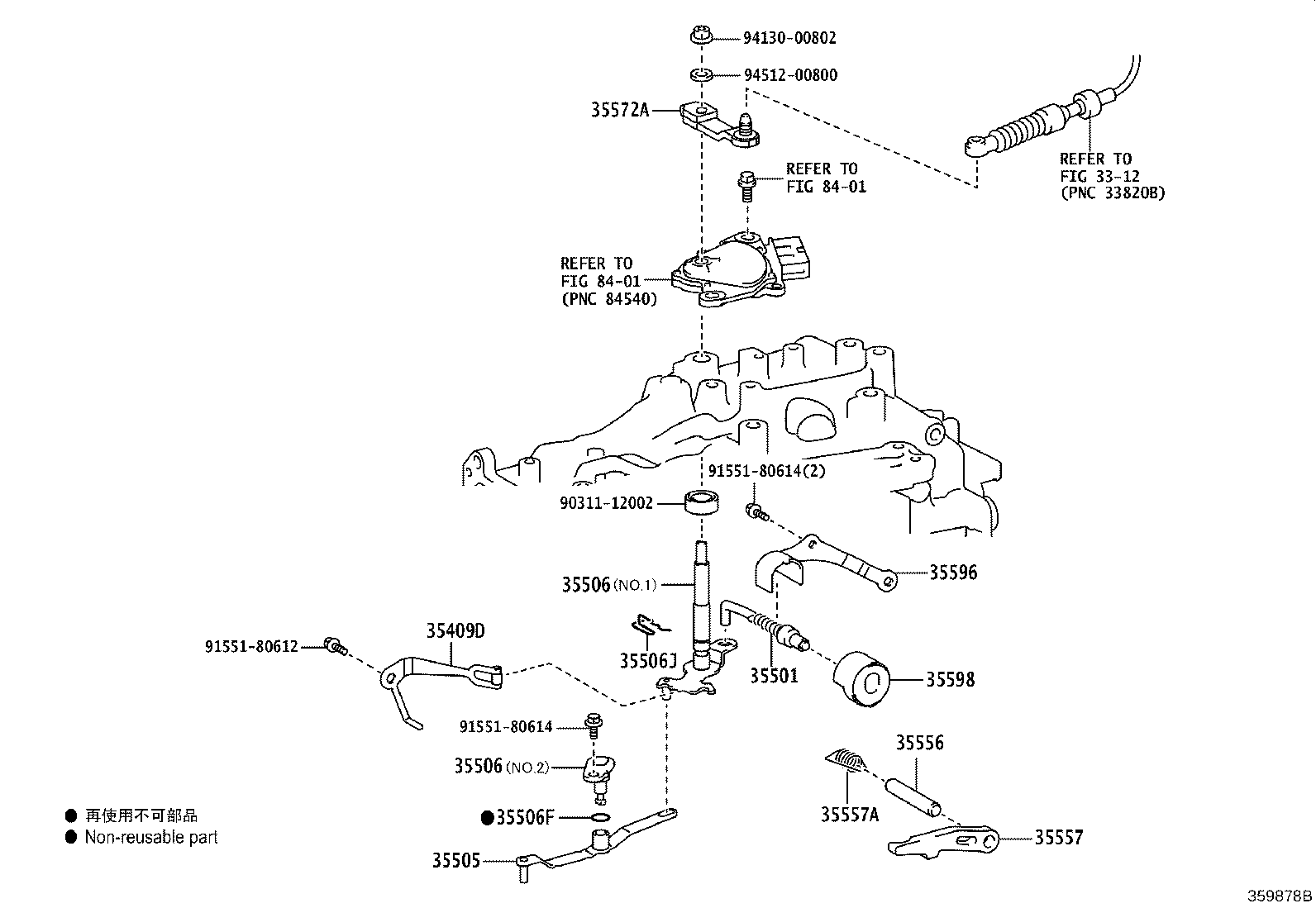

Click highlighted areas on diagram
UB80E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35409D - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-48060 |
AXVA70,GSV70..EUR |
1 | ||
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-33030 |
AXVA70 |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35502-33010 |
AXVA70 |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35506-33030 |
AXVA70 NO.1,TMC:REFER 35-01 |
1 | ||
| 35503-48010 |
AXVA70,GSV70..EUR NO.2 |
1 | ||
| 35506-33040 |
AXVA70 NO.1,AISIN:SEE 35-01 |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35506-33030 |
AXVA70 NO.1,TMC:REFER 35-01 |
1 | ||
| 35503-48010 |
AXVA70,GSV70..EUR NO.2 |
1 | ||
| 35506-33040 |
AXVA70 NO.1,AISIN:SEE 35-01 |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90301-09173 |
AXVA70,GSV70..LHD |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-09004 |
AXVA70,GSV70..EUR |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-48040 |
AXVA70 AISIN:REFER 35-01 |
1 | ||
| 35556-48030 |
AXVA70 TOYOTA:REFER 35-01 |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-33040 |
AXVA70 |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-29030 |
AXVA70,GSV70..EUR |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-48050 |
AXVA70,GSV70..EUR |
1 | ||
| 35596 - PLATE, PAWL STOPPER | ||||
| 35596-33020 |
AXVA70 |
1 | ||
| 35598 - SLEEVE, PARKING LOCK | ||||
| 35598-48040 |
AXVA70,GSV70..EUR |
1 | ||
| Common parts | ||||
| 90311-12002 | ||||
| 91551-80612 | ||||
| 91551-80614 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
