AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
Production
Sep 2017
-
Feb 2021
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1709- )AXVA70

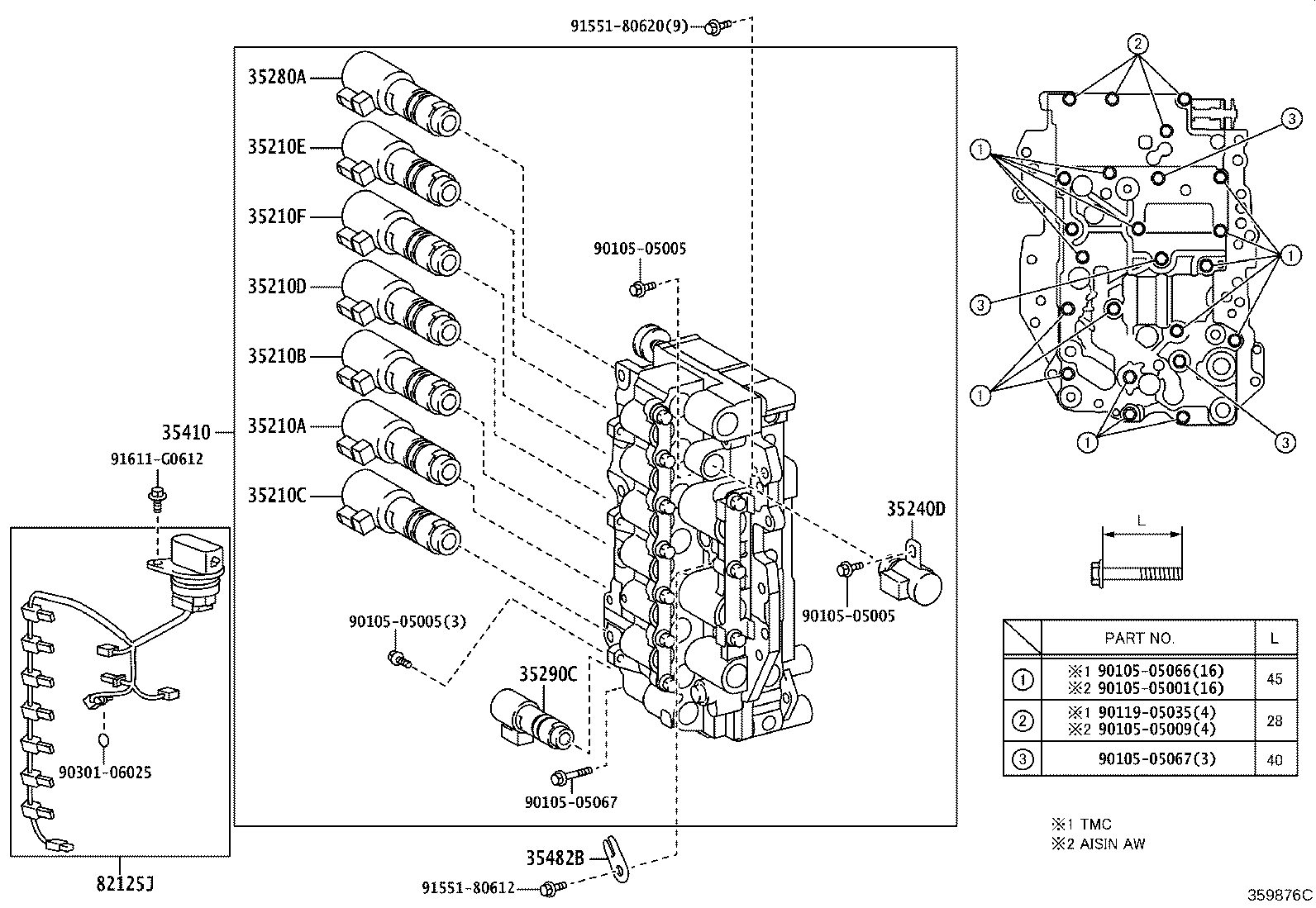

Click highlighted areas on diagram
UB80E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210A - VALVE, SOLENOID(SL1) | ||||
| 35210-48020 |
AXVA70,GSV70..EUR |
1 | ||
| 35210B - VALVE, SOLENOID(SL3) | ||||
| 35210-48020 |
AXVA70,GSV70..EUR |
1 | ||
| 35210C - VALVE, SOLENOID(SL2) | ||||
| 35210-48020 |
AXVA70,GSV70..EUR |
1 | ||
| 35210D - VALVE, SOLENOID(SL4) | ||||
| 35210-48020 |
AXVA70,GSV70..EUR |
1 | ||
| 35210E - VALVE, SOLENOID(SL5) | ||||
| 35210-48020 |
AXVA70,GSV70..EUR |
1 | ||
| 35210F - VALVE, SOLENOID(SL6) | ||||
| 35210-48020 |
AXVA70,GSV70..EUR |
1 | ||
| 35240D - VALVE, SOLENOID(SL) | ||||
| 35240-48020 |
AXVA70,GSV70..EUR |
1 | ||
| 35280A - VALVE, SOLENOID(SLU) | ||||
| 35280-48030 |
AXVA70,GSV70..EUR |
1 | ||
| 35290C - VALVE, SOLENOID(SLT) | ||||
| 35290-48030 |
AXVA70,GSV70..EUR |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-48070 |
AXVA70,GSV70 TOYOTA:REFER 35-01 |
1 | ||
| 35410-48090 |
AXVA70 TOYOTA:REFER 35-01 |
1 | ||
| 35410-48090 |
AXVA70 AISIN:REFER 35-01 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-73010 |
AXVA70,GSV70..EUR |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-33171 |
AXVA70,GSV70..EUR |
1 | ||
| 82125-33170 |
AXVA70,GSV70 |
1 | ||
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||
| 90105-05066 | ||||
| 90105-05067 | ||||
| 90119-05035 | ||||
| 90301-06025 | ||||
| 91551-80612 | ||||
| 91551-80620 | ||||
| 91611-G0612 | ||||
