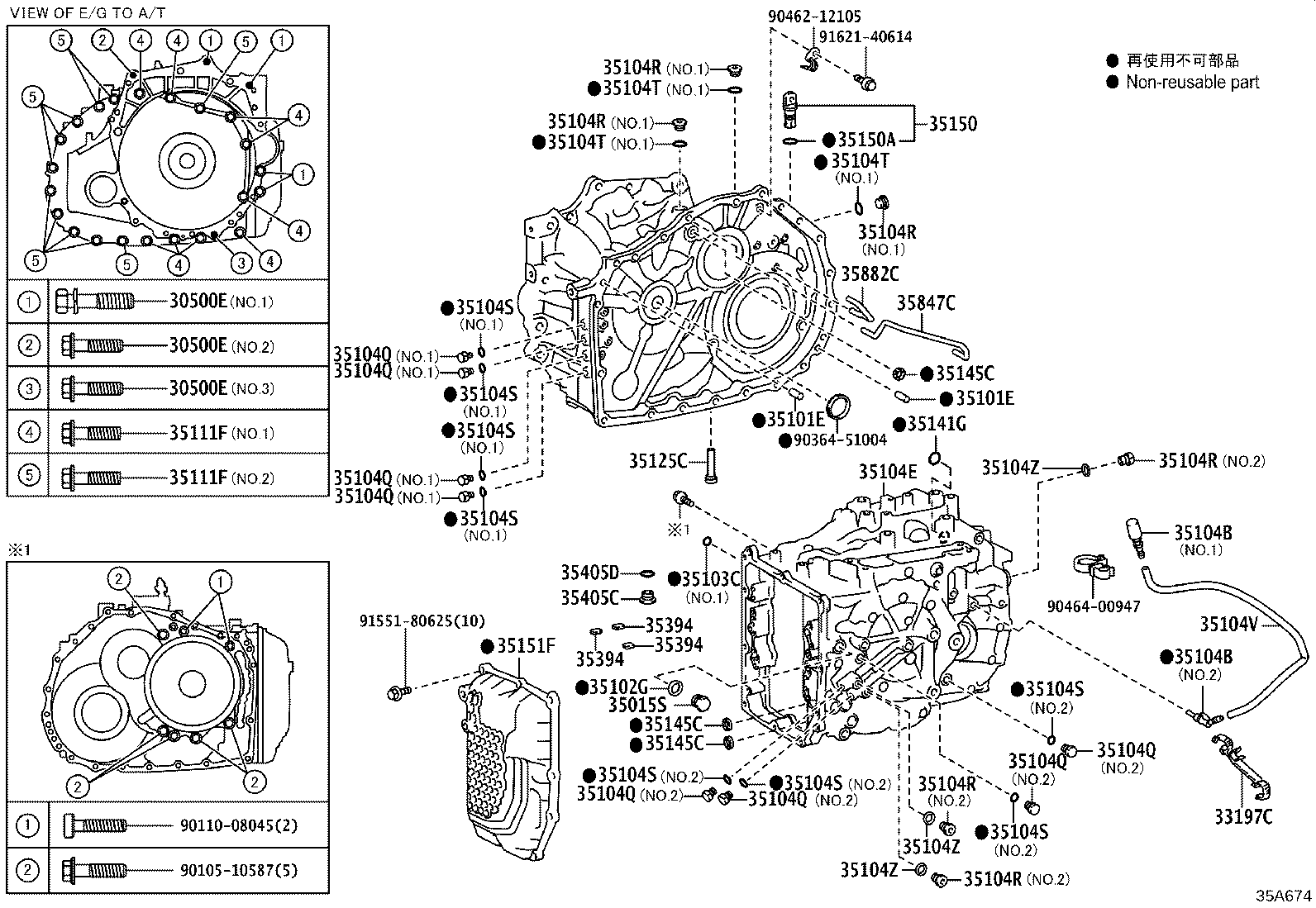

AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
(1709- )AXVA70
UB80E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-10591 |
AXVA70 *10-1.25PX45-36,NO.2 |
1 | ||
| 91553-80830 |
AXVA70 *8-1.25PX35-22,NO.3 |
1 | ||
| 91552-81250 |
AXVA70 *12-1.25PX50-30,NO.1 |
2 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-10591 |
AXVA70 *10-1.25PX45-36,NO.2 |
1 | ||
| 91553-80830 |
AXVA70 *8-1.25PX35-22,NO.3 |
1 | ||
| 91552-81250 |
AXVA70 *12-1.25PX50-30,NO.1 |
2 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-10591 |
AXVA70 *10-1.25PX45-36,NO.2 |
1 | ||
| 91553-80830 |
AXVA70 *8-1.25PX35-22,NO.3 |
1 | ||
| 91552-81250 |
AXVA70 *12-1.25PX50-30,NO.1 |
2 | ||
| 33197C - CLAMP, TRANSMISSION BREATHER | ||||
| 33197-33020 |
AXVA70,GSV70..EUR |
1 | ||
| 35015S - PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90341-18064 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 35101E - PIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90250-10021 |
AXVA70 AISIN:REFER 35-01 |
2 | ||
| 90250-10017 |
AXVA70 TOYOTA:REFER 35-01 |
2 | ||
| 35101E - PIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90250-10021 |
AXVA70 AISIN:REFER 35-01 |
2 | ||
| 90250-10017 |
AXVA70 TOYOTA:REFER 35-01 |
2 | ||
| 35102G - GASKET (FOR TRANSAXLE REAR COVER ) | ||||
| 90430-18008 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 35103C - RING, O | ||||
| 90301-06021 |
AXVA70 NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03216 |
AXVA70,GSV70..EUR NO.1 |
1 | ||
| 90930-03230 |
AXVA70,GSV70..EUR NO.2 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03216 |
AXVA70,GSV70..EUR NO.1 |
1 | ||
| 90930-03230 |
AXVA70,GSV70..EUR NO.2 |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-33140 |
AXVA70 AISIN:REFER 35-01 |
1 | ||
| 35104-33130 |
AXVA70 TOYOTA:REFER 35-01 |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AXVA70 NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AXVA70 NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AXVA70 NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AXVA70 NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AXVA70 NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AXVA70 NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AXVA70 NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AXVA70 NO.1 |
4 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
AXVA70 NO.1 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
AXVA70 NO.1 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
AXVA70 NO.1 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
AXVA70 NO.1 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
AXVA70 NO.1 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
AXVA70 NO.1 |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AXVA70 NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AXVA70 NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AXVA70 NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AXVA70 NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AXVA70 NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AXVA70 NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AXVA70 NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AXVA70 NO.1 |
4 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90430-14008 |
AXVA70 NO.1 |
3 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90430-14008 |
AXVA70 NO.1 |
3 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90430-14008 |
AXVA70 NO.1 |
3 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 35121-33070 |
AXVA70 |
1 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90430-14008 |
ASV70,AXVA70,GSV70..EUR |
3 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90430-14008 |
ASV70,AXVA70,GSV70..EUR |
3 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90430-14008 |
ASV70,AXVA70,GSV70..EUR |
3 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 91551-00840 |
AXVA70 *8-1.25PX40-22,NO.1,TMC:REFER 35-01,NO.1,AISIN:SEE 35-01 |
9 | ||
| 91551-00835 |
AXVA70 *8-1.25PX35-22,NO.2,TMC:REFER 35-01,NO.2,AISIN:SEE 35-01 |
11 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 91551-00840 |
AXVA70 *8-1.25PX40-22,NO.1,TMC:REFER 35-01,NO.1,AISIN:SEE 35-01 |
9 | ||
| 91551-00835 |
AXVA70 *8-1.25PX35-22,NO.2,TMC:REFER 35-01,NO.2,AISIN:SEE 35-01 |
11 | ||
| 35125C - TUBE, TRANSMISSION OIL FILLER, NO.1 | ||||
| 35125-33110 |
AXVA70 |
1 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-10018 |
AXVA70,GSV70..LHD |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
ASV7#;AXVA70,GSV70..LHD..EUR |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
ASV7#;AXVA70,GSV70..LHD..EUR |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
ASV7#;AXVA70,GSV70..LHD..EUR |
3 | ||
| 35150 - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-44010 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
ASV70,AXVA70,GSV70..EUR |
1 | ||
| 35151F - COVER, TRANSMISSION CASE, SIDE | ||||
| 35151-33161 |
AXVA70,GSV70..EUR |
1 | ||
| 35151-33160 |
AXVA70,GSV70 TOYOTA:REFER 35-01 |
1 | ||
| 35151-33160 |
AXVA70 AISIN:REFER 35-01 |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-48010 |
AXVA70,GSV70..EUR |
3 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-48010 |
AXVA70,GSV70..EUR |
3 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-48010 |
AXVA70,GSV70..EUR |
3 | ||
| 35405C - PLUG SUB-ASSY, W/HEAD STRAIGHT SCREW | ||||
| 90341-18016 |
AXVA70 |
1 | ||
| 90341-18023 |
AXVA70 |
1 | ||
| 35405D - RING, O (FOR STRAIGHT SCREW PLUG) | ||||
| 90430-18008 |
AXVA70,GSV70..EUR |
1 | ||
| 35847C - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-48020 |
AXVA70 TOYOTA:REFER 35-01 |
1 | ||
| 35847-48030 |
AXVA70 AISIN:REFER 35-01 |
1 | ||
| 35882C - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-48020 |
AXVA70 TOYOTA:REFER 35-01 |
1 | ||
| 35882-48030 |
AXVA70 AISIN:REFER 35-01 |
1 | ||
| Common parts | ||||
| 90105-10587 | ||||
| 90110-08045 | ||||
| 90364-51004 | ||||
| 90462-12105 | ||||
| 90464-00947 | ||||
| 91551-80625 | ||||
| 91621-40614 | ||||
