AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
Production
Sep 2017
-
Feb 2021
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

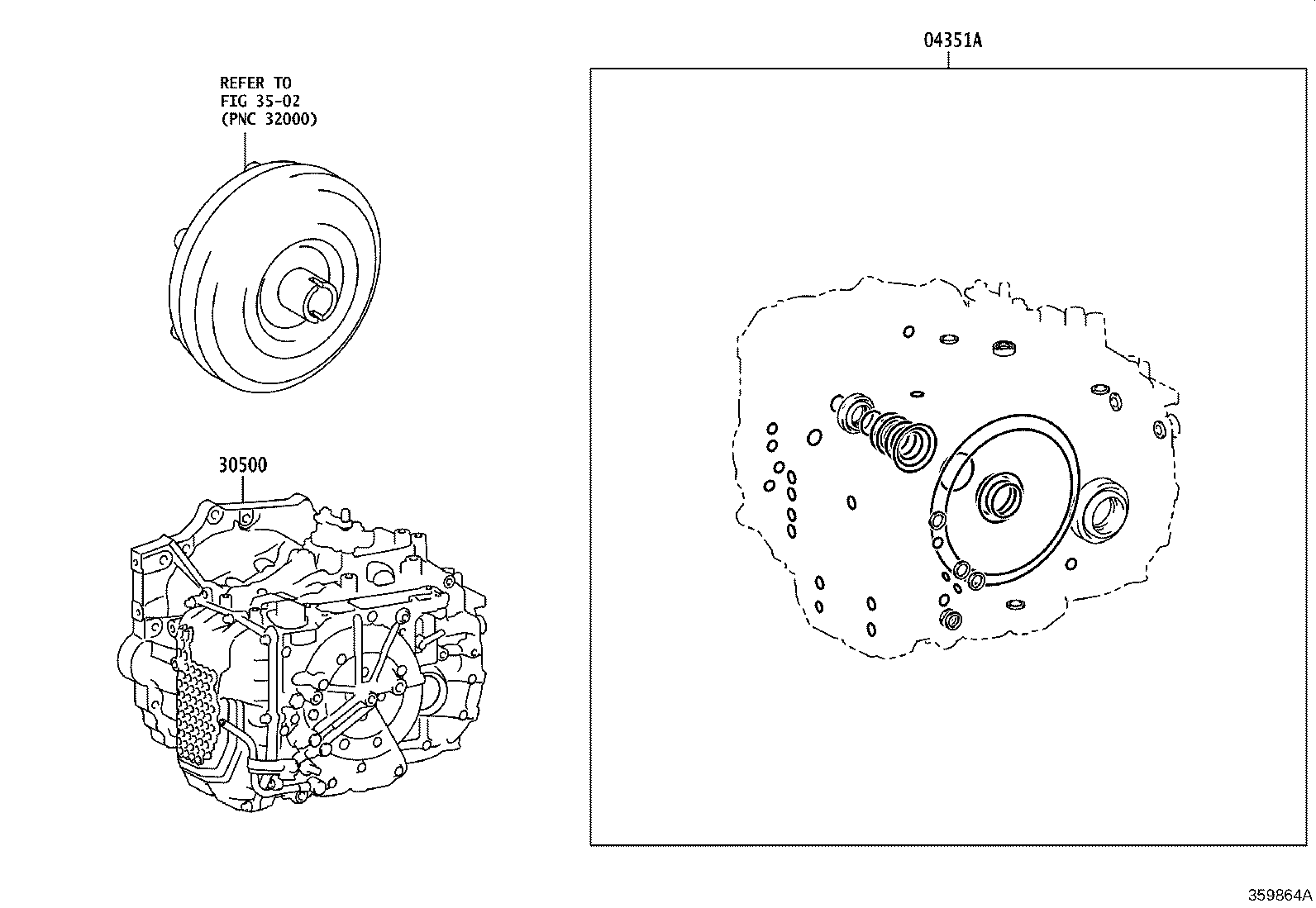

ILLUST NO. 1 OF 2(1709- )AXVA70
Click highlighted areas on diagram
UB80E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM) | ||||
| 04351-33580 |
AXVA70 TOYOTA |
1 | ||
| 04351-33590 |
AXVA70 AISIN AW |
1 | ||
| 30500 - TRANSAXLE ASSY, AUTOMATIC | ||||
| 30500-33851 |
AXVA70 UB80E,TOYOTA |
1 | ||
| 30500-33871 |
AXVA70 UB80E,AISIN AW |
1 | ||
| Linked diagrams | ||||
| 3502 | ||||

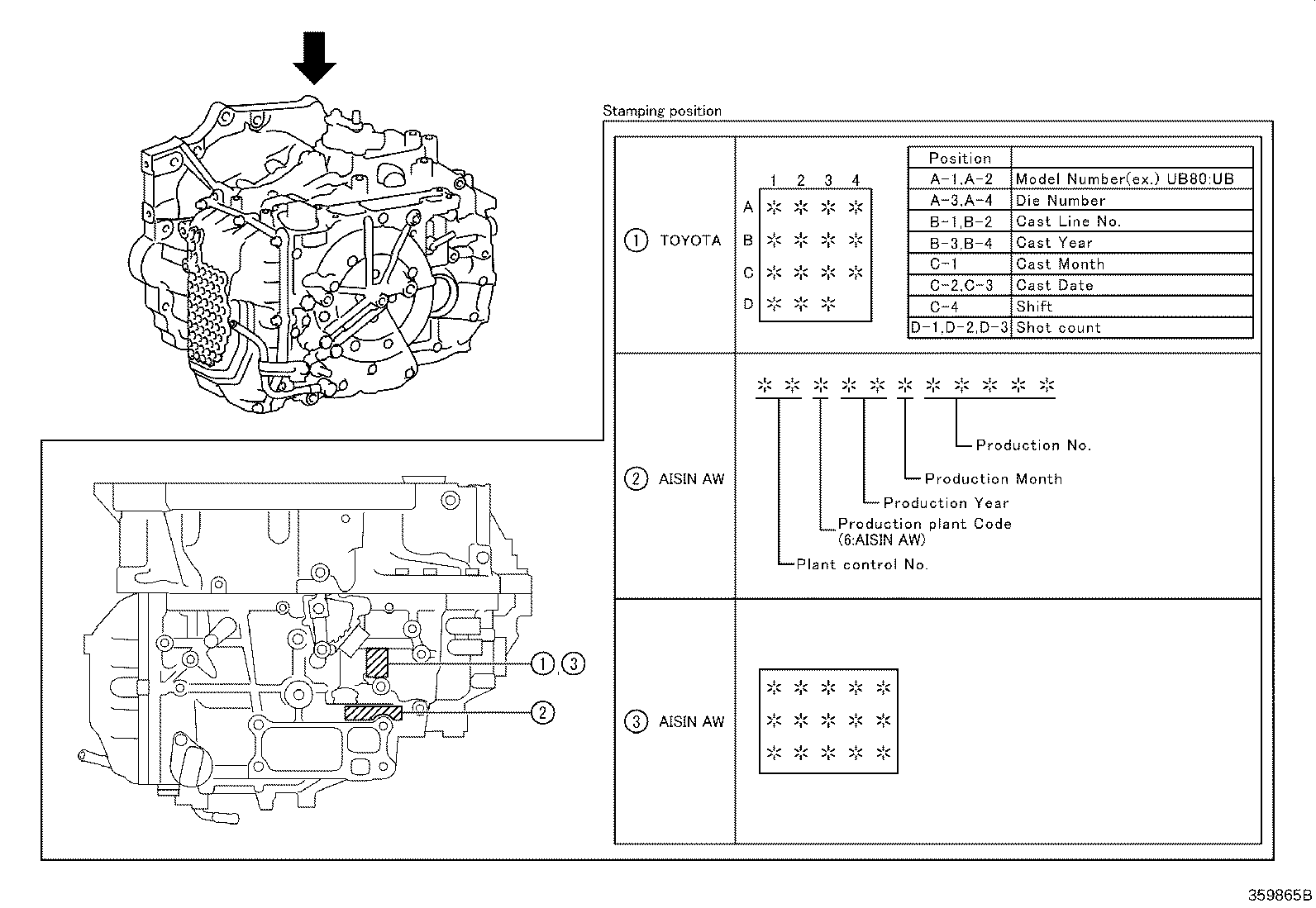

ILLUST NO. 2 OF 2(1709- )AXVA70
Click highlighted areas on diagram
UB80E
| Part # | Description | Qty | Price |
|---|
